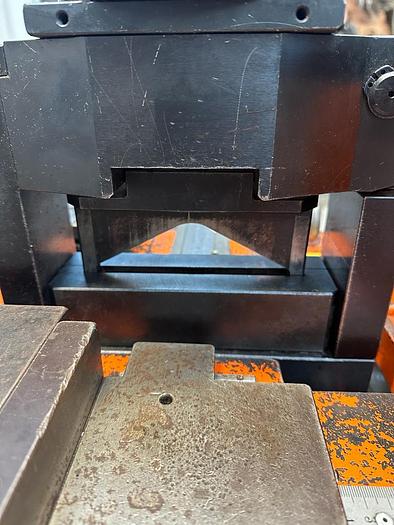

2001 IMB Multifor TRIS 9042 Work Unit

Cork, Ireland

Sold

Description

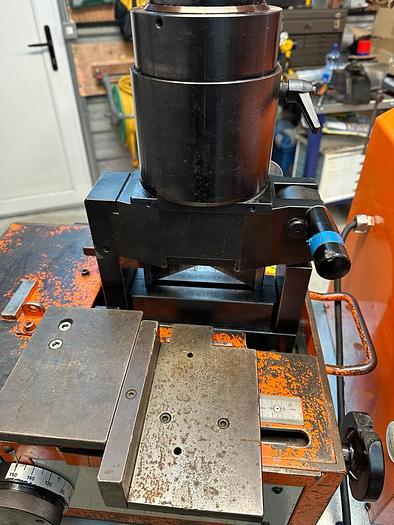

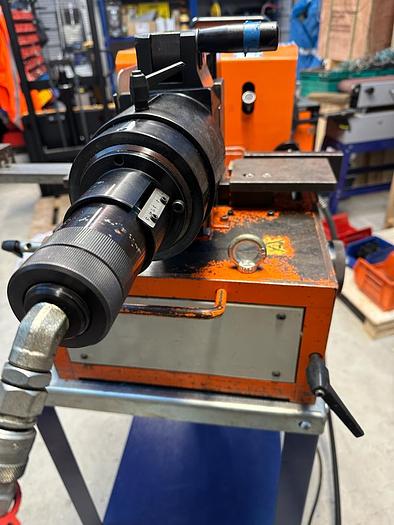

Multifor TRIS 9042 Work Unit


Machine Type: Work Station for Bending,Punching & Shearing of Copper & Metal Bars

Year: 2001

Electrical Connection: 400V/3Phase

Condition: Good


Includes

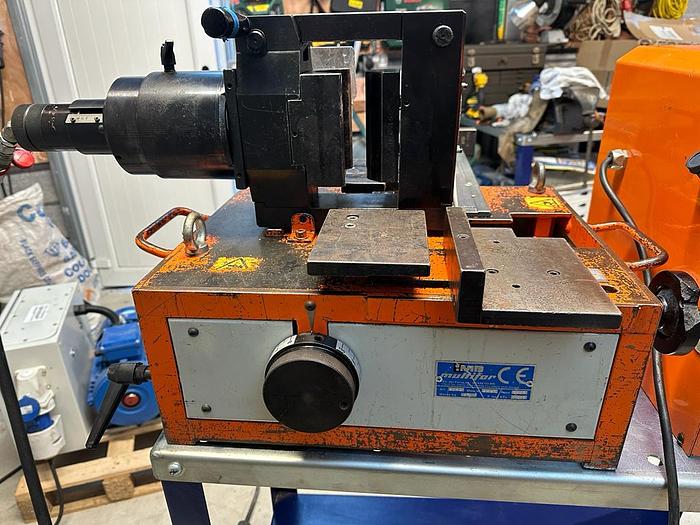

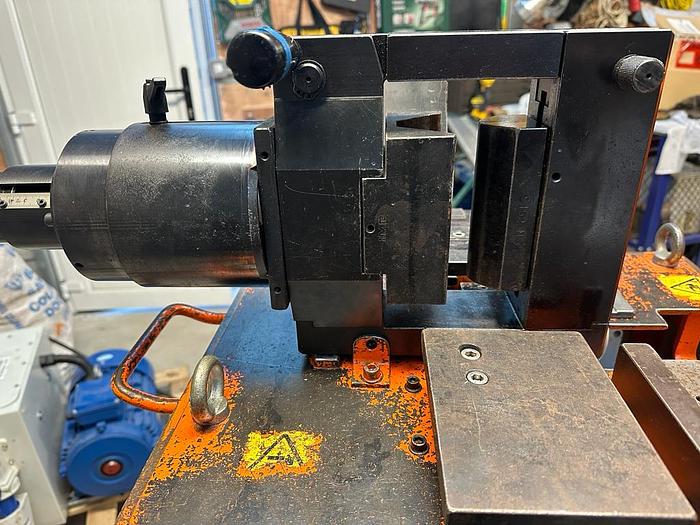

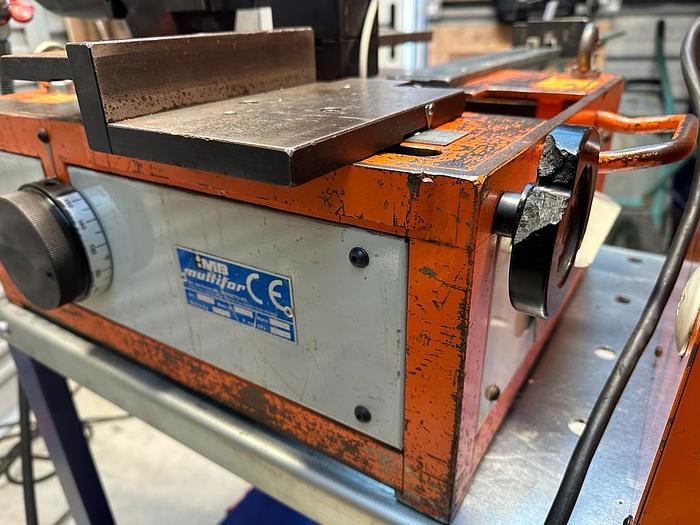

9042 TRIS Work Unit

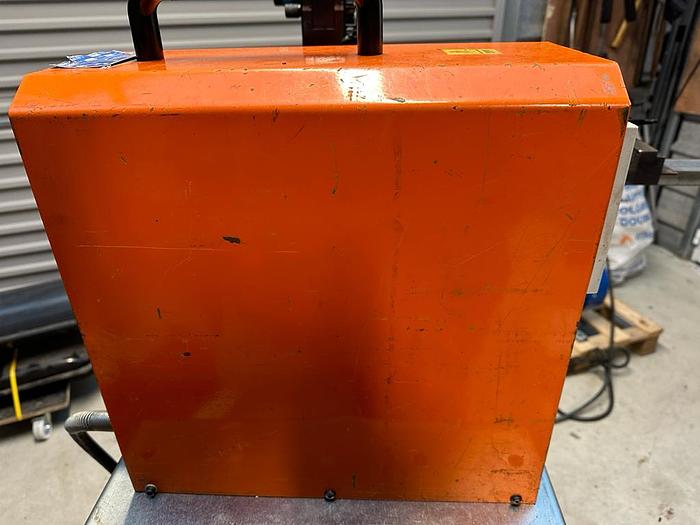

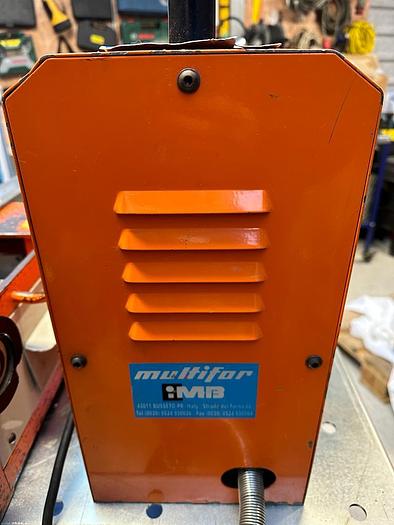

9013 Electro Hydraulic Pump

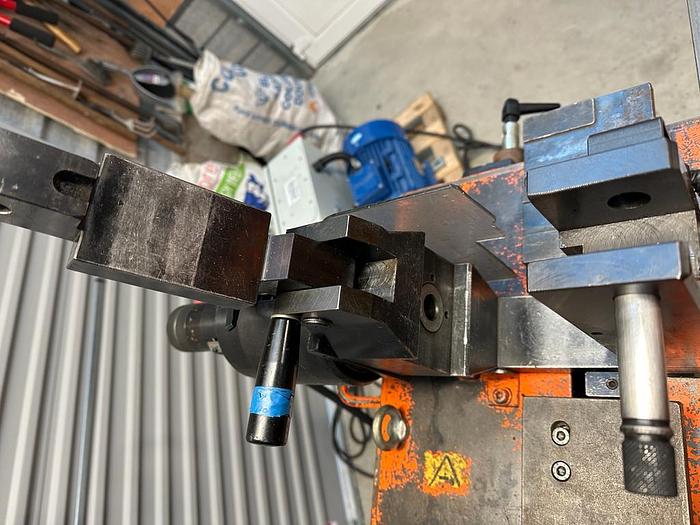

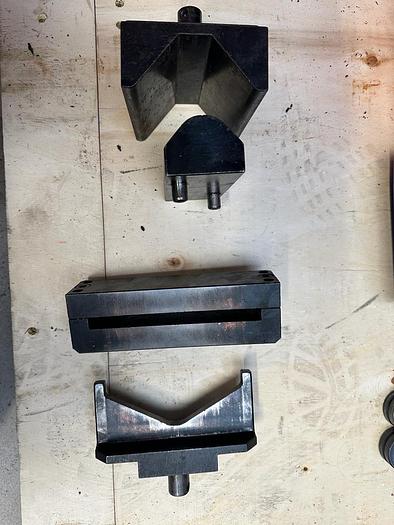

9152 Punch & Die for Bending (6-12mm)

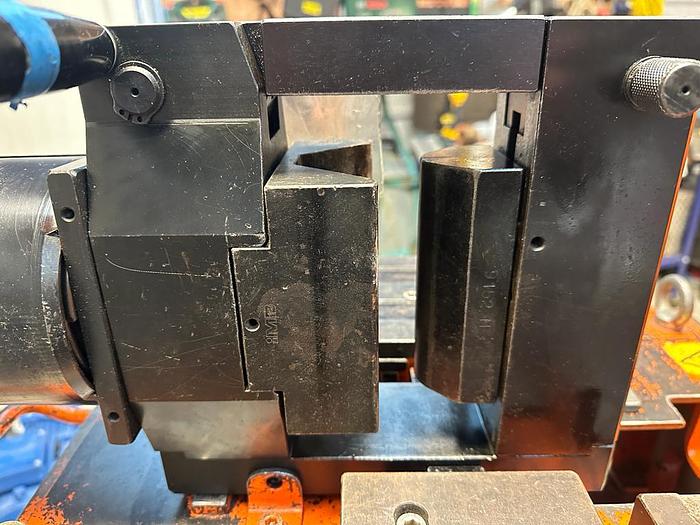

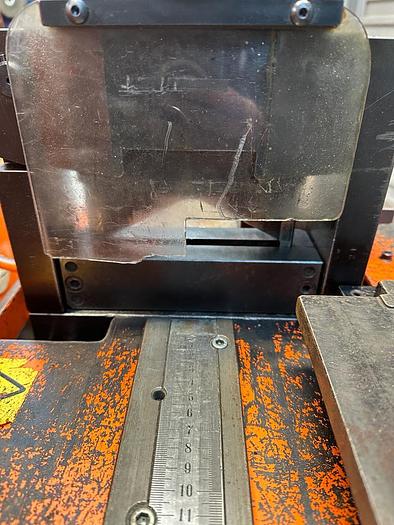

9155 Bar Cutter for Shearing (120x12mm)

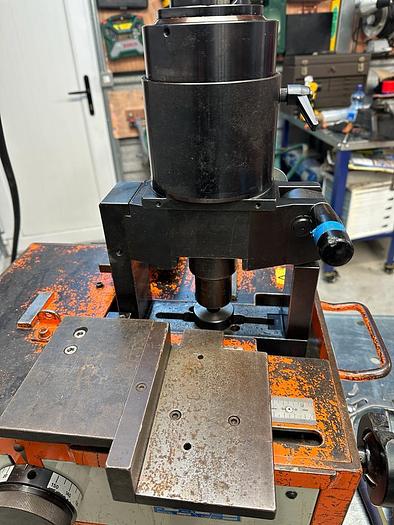

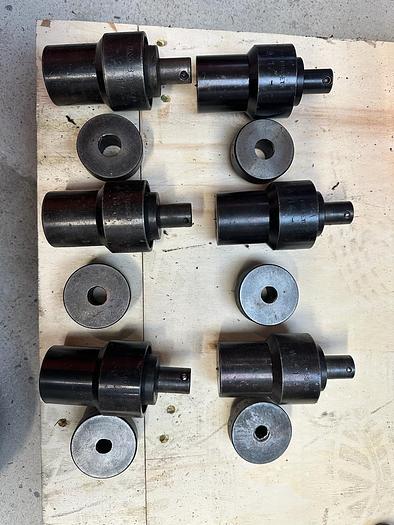

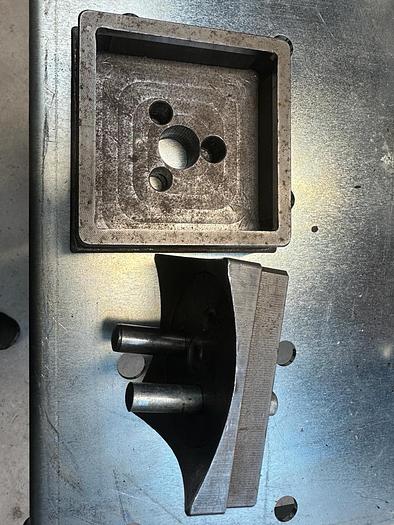

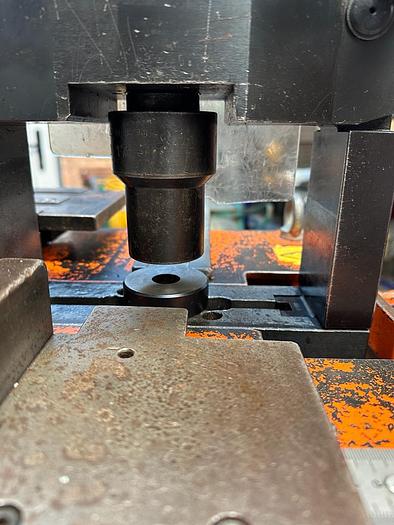

Selection of Punches & Dies for Punching Round Holes

(2 x 17mm, 2 x 14mm, 2 x 11mm)

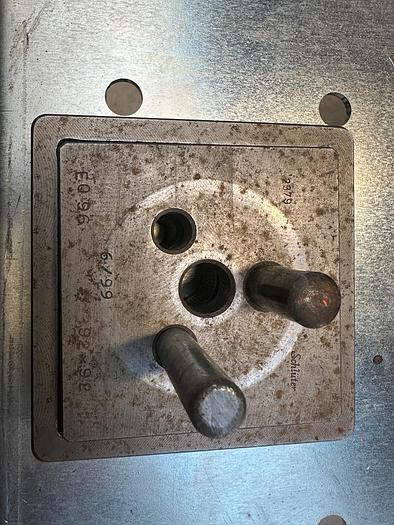

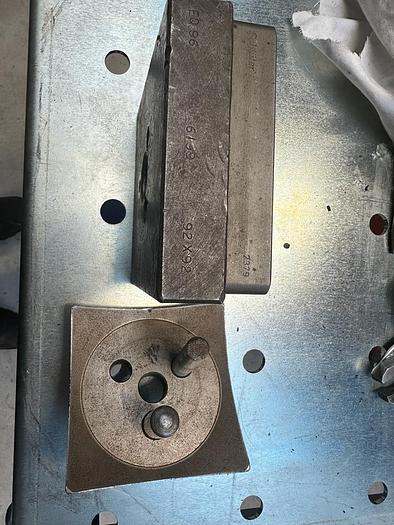

92 x 92mm Square Punch & Die

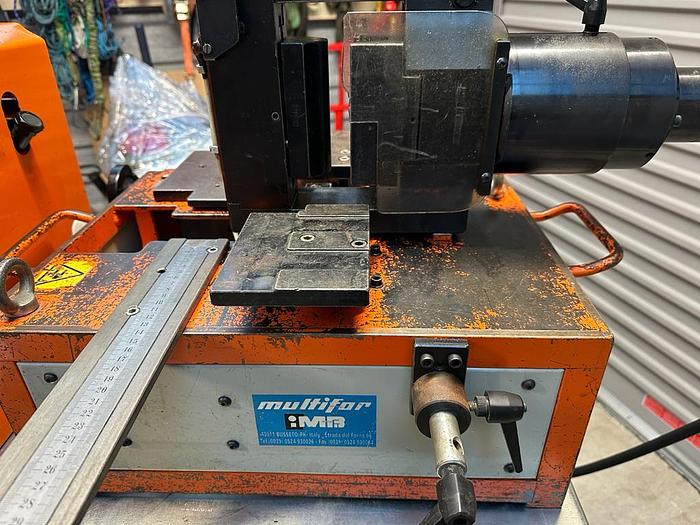

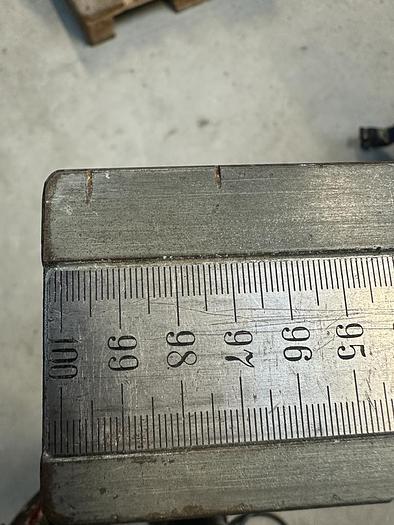

1000mm Length Stop


Description

9042 TRIS WORK UNIT can be used with all MULTIFOR pumps and control units. It isextremely versatile for its different operations.

Our tris unit is made up of :

– a practical tool change-over system.

– a hinged tool frame fully opening, which allows simple introduction and removal of bars.

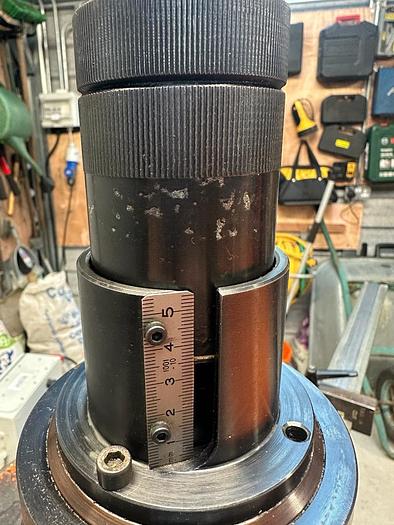

– a millimetric adjustment on the piston, which regulates the stroke of the tools.

– a protractor for reading the bending angle of the bar (OPTIONAL).


Once set up, this accessory can repeat the work cycle without checking every time lengths and angles.


Technical Specifications (9042)

Power: 200kN

Max Working Pressure: 700Bar

Stroke: 50mm

Adjustable Stroke: 40mm

Dimensions: 850 x 600 x 500mm

Weight: 90kg

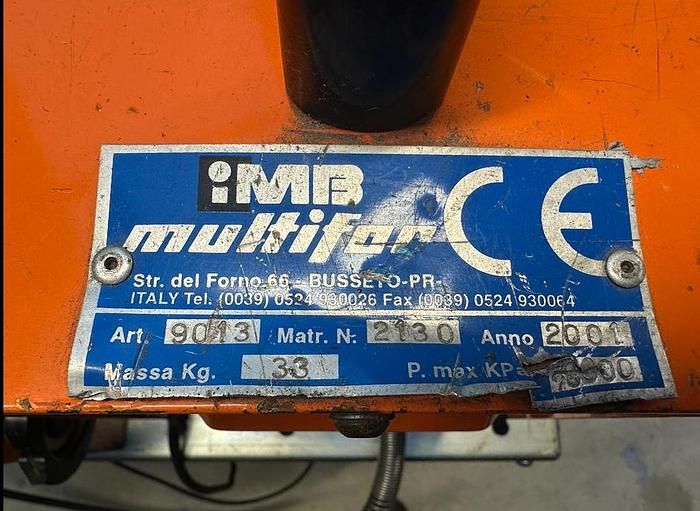

Technical Specifications (9013)

Power: 400V 3Phase

Max Working Pressure: 700bar

Oil Tank Cap: 2.7L

Dimensions: 420 x 240 x 450mm

Weight: 33kg


Punching Capacity in Copper, Aluminium & Steel Bars

Max Thickness: 12mm

Round Holes: Ø 5 to Ø 25mm

Oval Holes: 7x13mm to 18x25mm

Max Bar Width: 120mm


Bending Capacity in Copper, Aluminium & Steel Bars

Min Thickness: 3mm

Max Thickness: 12mm

Max Width: 120mm


Cutting Bending Capacity in Copper, Aluminium & Steel Bars

Min Thickness: 5mm

Max Thickness: 12mm

Max Width: 120mm


Notes: Table in photos not included in price.

Specifications

ManufacturerIMB Multifor
ModelTRIS 9042 Work Unit
Year2001
ConditionUsed

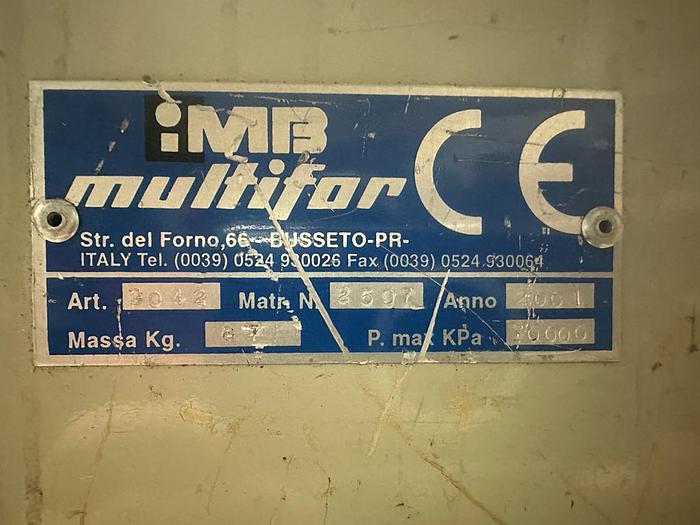

Serial Number2897
Year2001
ConditionGood
Power200kN
Max Working Pressure700Bar
Stroke50mm
Adjustable Stroke40mm
Weight90kg
