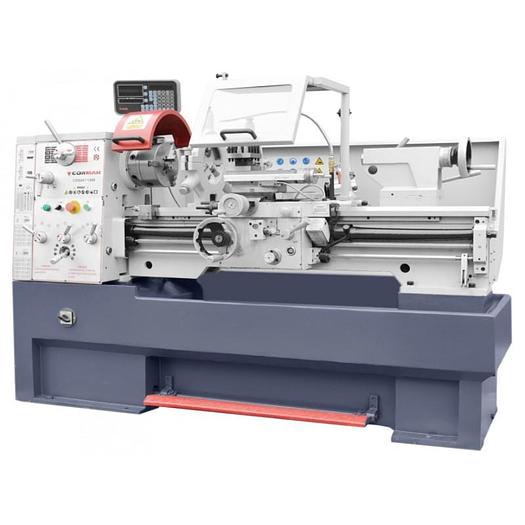

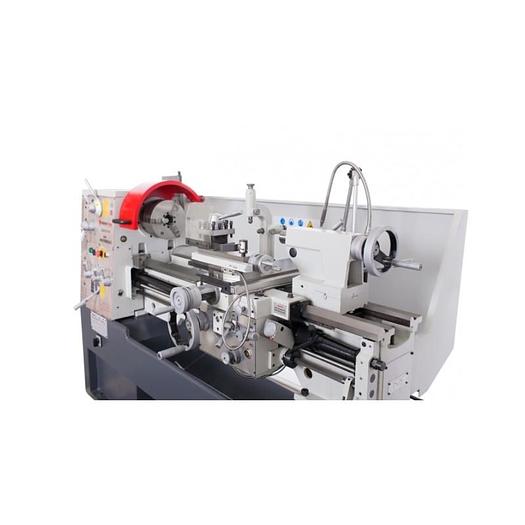

Cormak 410 x 1500 Universal Manual Lathe
Description
Cormak 410 x 1500 Universal Manual Lathe
Machine Description
This lathe can be used for many tasks such as internal and external surfaces turning, tapers turning, buffing, modular and DP threading, drilling and internal broaching.
Machine Features
- Lathes from this series can be used for many tasks such as turning internal and external surfaces, tapers turning, buffing, modular and DP threading, drilling and internal broaching
- By default equipped with a 3 axes digital readout
- Modern and precise spindle bearings
- 52 mm large spindle bore
- Heavy bed made of cast iron, ground and inductively hardened
- Gear wheels strengthened through hardening and precise grinding
- Removable bridge allows for greater machining capabilities

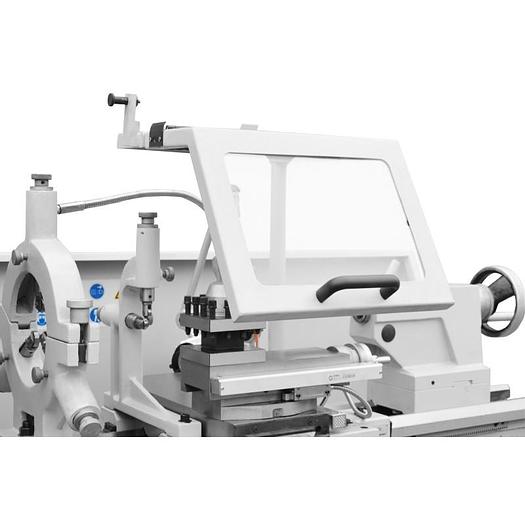

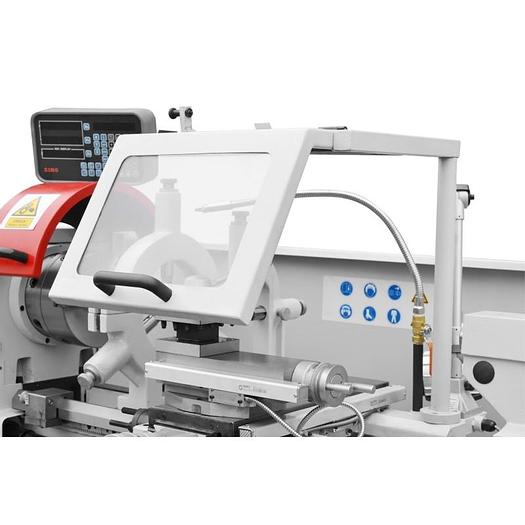

- Protection guards compliant with the newest regulations
- Machining accuracy: circularity deviation below 0.01 mm, cylindricality deviation no more than 0.02 mm for 200 mm long measurement, perfect surface finish
- Equipped with a mechanical foot mechanical brake
Included Equipment
200 mm 3-jaw lathe chuck
250 mm 4-jaw lathe chuck
3 axes digital readout
Face plate
Steady rest
Follow rest
Spindle reducing sleeve
Dead centre
Change gears for the swing-frame of the gear train
Cooling system
Lighting installation
Thread indicator (gauge)
Lathe equipped with an electromechanical foot brake compliant with EC regulations
Chips container
Set of handling tools
Protective guards compliant with the newest EC regulation
User manual
EC declaration of conformity
Factory new machine under full warranty
Technical Specifications
Swing over bed: 410 mm
Swing over cross slide: 255 mm
Swing over gap bridge: 580 mm
Turning length in gap: 190 mm
Centres distance: 1500 mm
Centres height: 205 mm
Bed: Inductively hardened
Bed width: 250 mm
Spindle bore diameter: 52 mm
Spindle taper: D1-6
Spindle mount: MT6
Spindle speed: (16) 45–1800 rpm
Maximum tool dimensions: 20 mm×20 mm
Toolpost: 4 Way
Longitudinal feed range: (17) 0.05–1.7 mm/turn
Transverse feed range: (17) 0.025 – 0.85 mm/turn
Metric thread: (42) 0.2–14 mm
Inch thread: (45) 2–72 T.P.I.
Modular thread: 0.3–3.5 M.P (18)
D.P. thread: 8–44 D.P. (21)
Tailstock quill diameter: 50 mm
Tailstock quill range: 120 mm
Tailstock quill taper: MT 4
Digital readout: 3 axes
Main motor power (S1/S6): 3.0/4.5 kW
Flood coolant pump power: 0.1 kW
Dimensions: 2440×850×1320mm
Weight: 1830kg
Specifications
| Manufacturer | Cormak |
| Model | 410 x 1500 Universal Manual Lathe |
| Condition | New |
| Swing over bed | 410 mm |
| Swing over cross slide | 255 mm |
| Swing over gap bridge | 580 mm |
| Turning length in gap | 190 mm |
| Centres distance | 1500 mm |
| Centres height | 205 mm |
| Bed | Inductively hardened |
| Bed width | 250 mm |
| Spindle bore diameter | 52 mm |
| Spindle taper | D1-6 |
| Spindle mount | MT6 |
| Spindle speed | (16) 45–1800 rpm |
| Maximum tool dimensions | 20 mm×20 mm |
| Toolpost | 4 Way |
| Longitudinal feed range | (17) 0.05–1.7 mm/turn |
| Metric thread | (42) 0.2–14 mm |
| Inch thread | (45) 2–72 T.P.I. |
| Modular thread | 0.3–3.5 M.P (18) |
| D.P. thread | 8–44 D.P. (21) |
| Tailstock quill diameter | 50 mm |
| Tailstock quill range | 120 mm |
| Tailstock quill taper | MT 4 |
| Digital readout | 3 axes |
| Main motor power (S1/S6) | 3.0/4.5 kW |
| Flood coolant pump power | 0.1 kW |
| Dimensions | 2440×850×1320mm |
| Weight | 1830kg |
