Cormak Goliath 660 x 4000 Universal Manual Lathe
Description
Cormak Goliath 660 x 4000 Universal Manual Lathe
Machine Description
The Cormak Goliath 660 lathe is dedicated for low quantity manufacturing. In its basic version it includes a lot of additional equipment, greatly increasing its area of application.
Machine Features
- Wide area of application, including mechanical engineering, manufacturing, refurbishment workshops etc.
- Removable Gap allows for machining elements of large diameter
- Modern bearing of the main arbor with ball bearings
- Central system of switching feeds, a lead screw and a lead shaft for threading
- Accurate speed and feed adjustment
- Bed of the machine is torsion-resistant and vibration-free, providing basic grounds for accurate turning
Included Equipment
3-jaw lathe chuck
4-jaw lathe chuck
Face plate

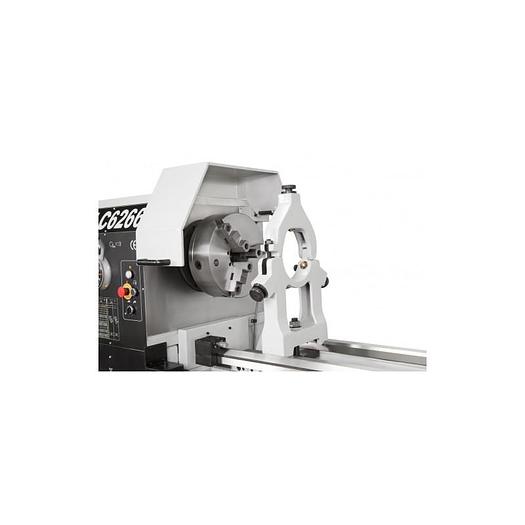

Steady rest
Follow rest

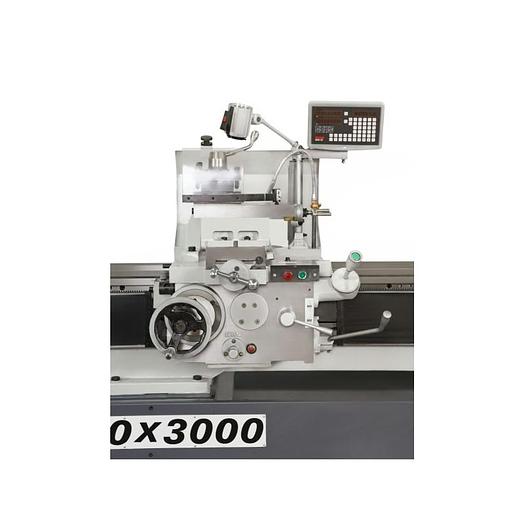

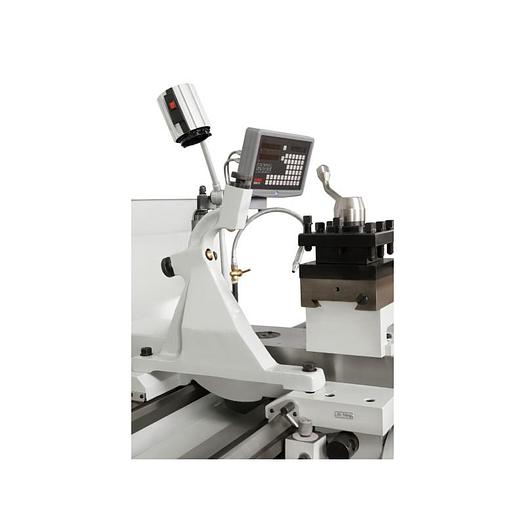

3 axes digital readout
Spindle reducing sleeve
Dead centre
Change gears for the drive unit
Cooling system
24V halogen lighting
Thread indicator
Protective guards compliant with the newest EC regulation
User manual
EC declaration of conformity
Factory new machine under full warranty
Technical Specifications
Swing over bed: 660 mm
Swing over cross slide: 440 mm
Swing over gap bridge: 900 mm
Turning length in gap: 260 mm
Centres distance: 4000 mm
Bed: Inductively hardened
Bed Width: 400mm
Spindle bore diameter: 105 mm
Spindle Nose: D1-8
Spindle Taper: MT5
Spindle speeds (12): 25–1700 rpm
Maximum tool dimensions: 25×25 mm
Toolpost: 4 Way
Longitudinal feed range: 0.063–2.52 mm/turn
Transverse feed range: 0.027 – 1.07 mm/turn
Longitudinal Rapid Feed: 4.2m/min
Traverse Rapid Feed: 1.9m/min
Metric thread: 0.45–22 mm
Inch thread: 7/16–80 T.P.I.
Modular thread: 0.25–60 M.P
D.P. thread: 7/8-60 D.P.
Tailstock quill diameter: 75mm
Tailstock quill travel: 150 mm
Tailstock taper: MT5
Digital readout: 3 axes
Main motor power: 7.5 kW
Dimensions: 5700x2200x1150mm
Weight: 4550kg
Specifications
Manufacturer | Cormak |
Model | Goliath 660 x 4000 Universal Manual Lathe |
Condition | New |
Swing over bed | 660 mm |
Swing over cross slide | 440 mm |
Swing over gap bridge | 900 mm |
Turning length in gap | 260 mm |
Centres distance | 4000 mm |
Bed | Inductively hardened |
Bed Width | 400mm |
Spindle bore diameter | 105 mm |
Spindle Nose | D1-8 |
Spindle Taper | MT5 |
Spindle speeds (12) | 25–1700 rpm |
Maximum tool dimensions | 25×25 mm |
Toolpost | 4 Way |
Longitudinal feed range | 0.063–2.52 mm/turn |
Transverse feed range | 0.027 – 1.07 mm/turn |
Longitudinal Rapid Feed | 4.2m/min |
Traverse Rapid Feed | 1.9m/min |
Metric thread | 0.45–22 mm |
Inch thread | 7/16–80 T.P.I. |
Modular thread | 0.25–60 M.P |
D.P. thread | 7/8-60 D.P. |
Tailstock quill diameter | 75mm |
Tailstock quill travel | 150 mm |
Tailstock taper | MT5 |
Digital readout | 3 axes |
Main motor power | 7.5 kW |
Dimensions | 5700x2200x1150mm |
Weight | 4550kg |
