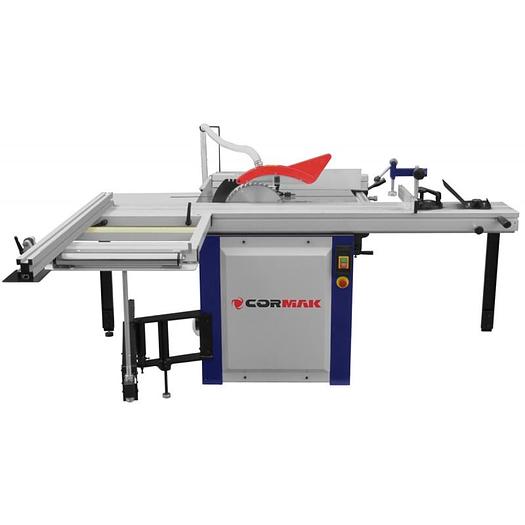

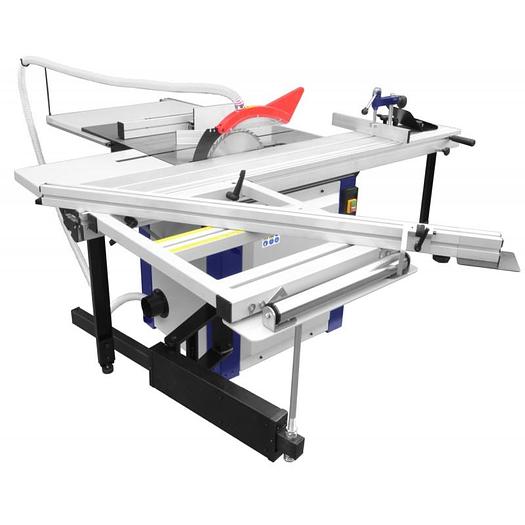

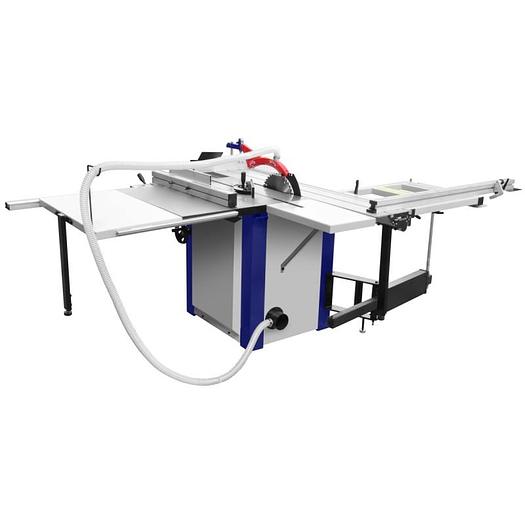

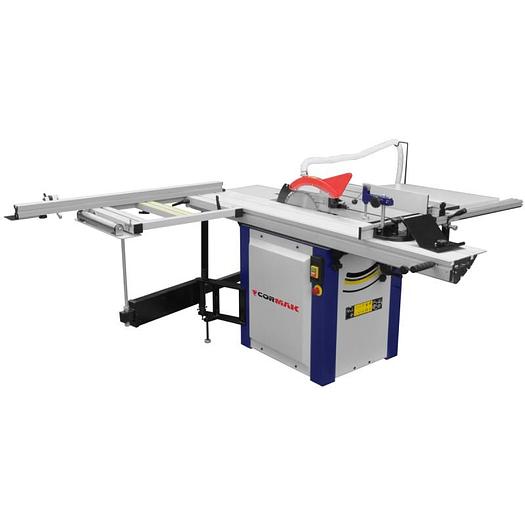

Cormak PS12-2000 Sliding Table Saw

Cormak PS12-2000 Sliding Table Saw

Machine Type: Table Saw for cutting wood and plastics

Machine Description

A sliding table saw for working with high density boards, MDF boards, ABS and PVC panels, solid wood and other wood-based materials of similar structure and hardness.

• Sturdy, solid and compact design ensures convenient and and failure-free operation
• Sliding table saw mounted on a spindle tilting in relation to the worktable capability
• Steel, welded body with a permanent cast iron table and a movable table made of strengthened aluminum – the table of this machine is very durable and does not deform

Included Equipment

• Cutting saw
• Scoring

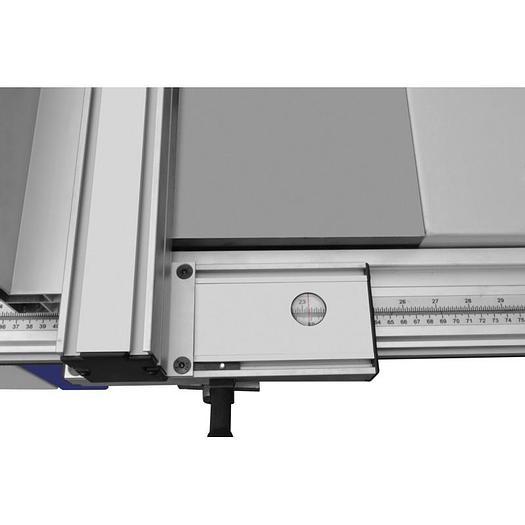

• Transverse cutting fence
• Longitudinal fence

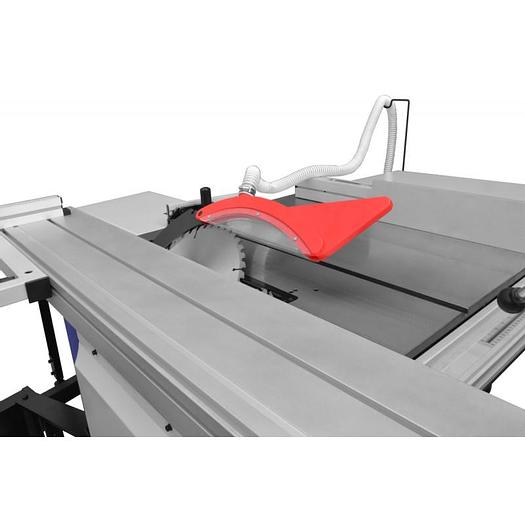

• Saw guard

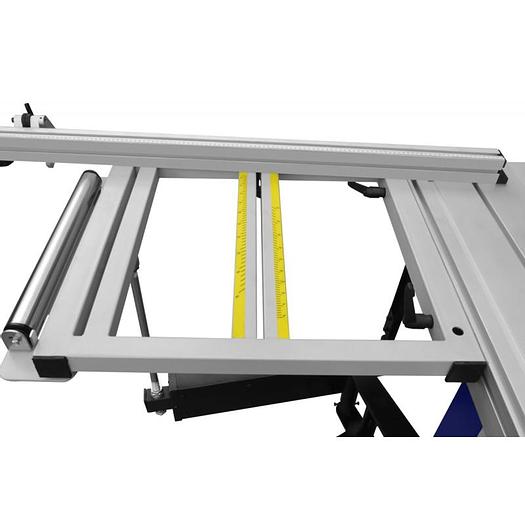

• Worktop extension

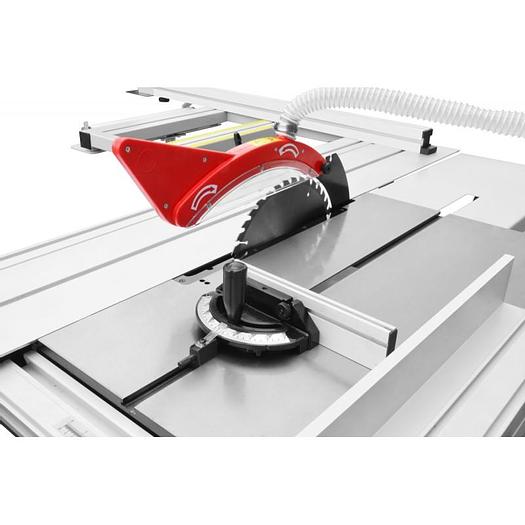

• Mitre cutting fence
• Saw tilt indicator

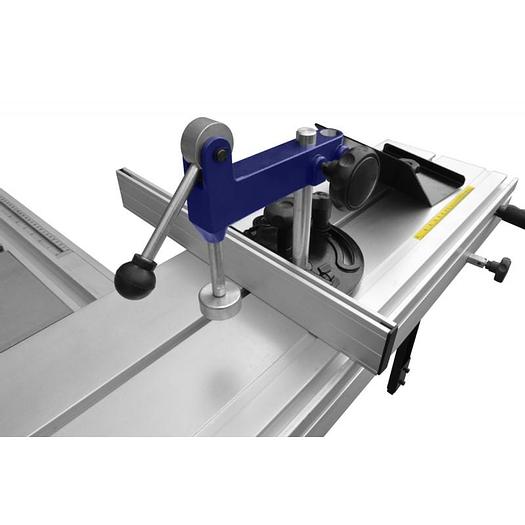

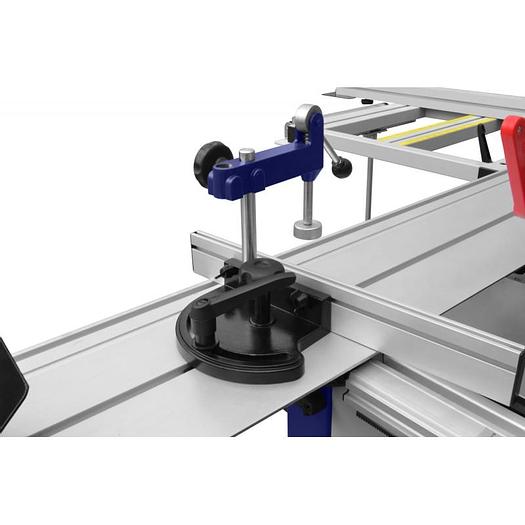

• Eccentric clamping
• User manual
• EC declaration of conformity

Technical Specification

Cutting Length: 2000 mm

Cutting Width: 1220 mm

Saw Tilt: 45°

Cutting Height at 45°: 80 mm

Cutting Height at 90°: 100 mm

Maximum Saw Size: 315×30 mm

Maximum Scoring Size: 90×20 mm

Main Saw Speed: 4000 rpm

Scoring Speed: 5800 rpm

Motor Power: 3.8 kW

Power Supply: 3-phase, 400V

Weight: 275 kg

Warranty

12 months

User manual

yes

EC Declaration

yes
