Cormak BH35P Hinge Drilling Machine

Cormak BH35P Hinge Drilling Machine

Machine Description

The lightweight compact design of the device allows you to take the drill to work at the client's.The drilling machine is characterized with speed and work precision. The pneumatic drilling feed ensures convenient work and the possibility of operating the workpiece with two hands. The compact design is also suitable for mobile applications. This model is additionally equipped with a pneumatic drilling feed and pressure system.

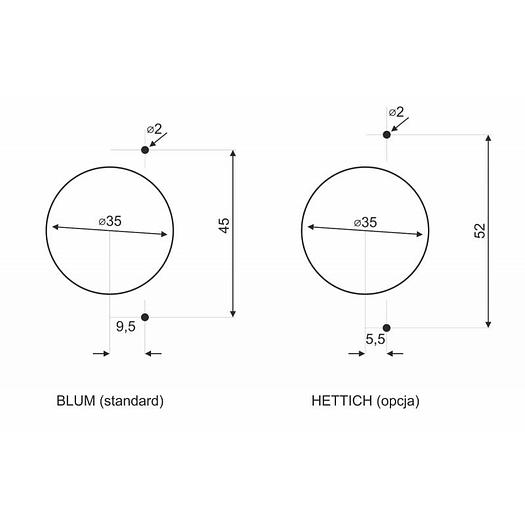

Equipped with a head for BLUM holes as standard

Includes

Head for BLUM holes

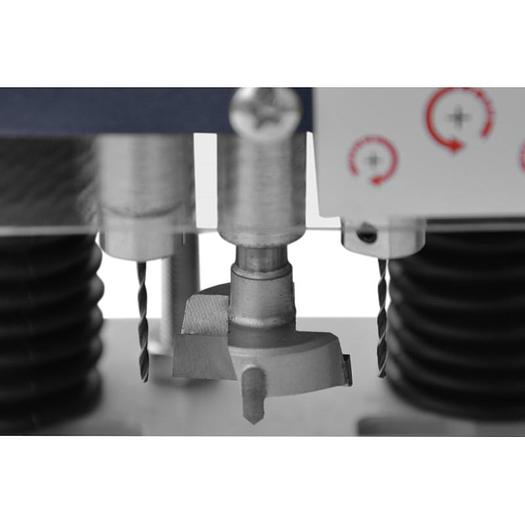

Set of drills (2 drills Ø 2 mm + drill for cup hinges Ø 35 mm)

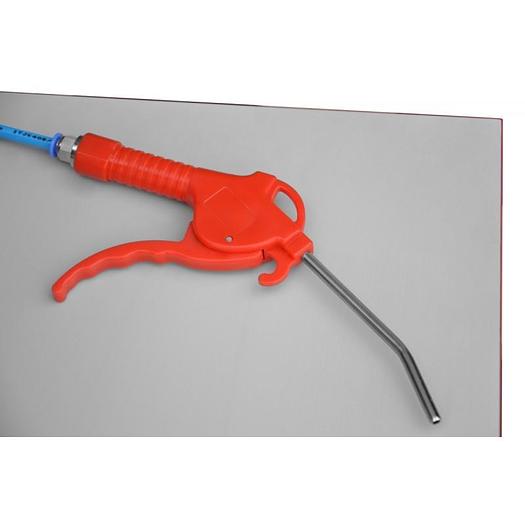

Gun for blowing the workpiece

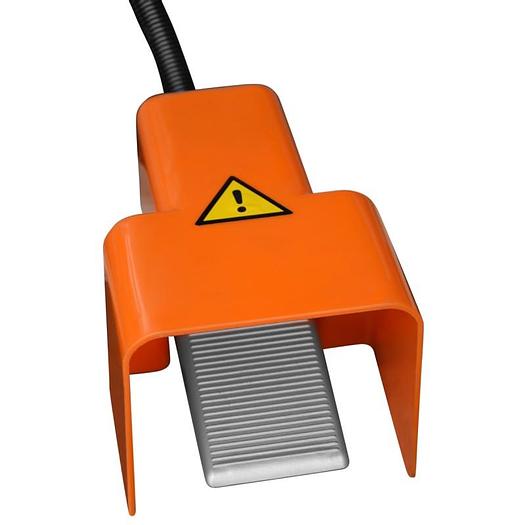

Foot air valve

Worktable

Technical Details

Drilling Diameter: 35 mm

Spindle Number: 3 set

Control: Pneumatic

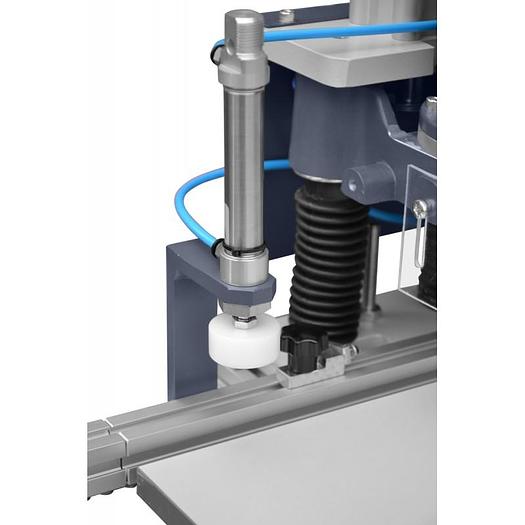

Workpiece Mounting: Pneumatic

Maximum Distance from Spindle to Table: 85 mm

Maximum Distance from Drill to Table: 50 mm

Table Dimensions: 500 x 350 mm

Required Compressed Air: 6 - 8 bar

Rotational Speed: 3000 rpm/min.

Motor Power: 0,75 kW

Voltage: 230 V

Machine Dimensions: 500 x 520 x 500 mm

Weight: 28 kg
