2019 Dalmec PEC, PARTNER EQUO Pneumatic Manipulator

"As New" Dalmec PEC,PARTNER EQUO Pneumatic Manipulator

Machine Type: Pneumatic Parts Manipulator for Pressbrakes

Year: 2019

Capacity: Up to 550kg

Condition: As new. Never taken out of the crate.

Manipulator Description

Dalmec Machine Type: PEC, PARTNER EQUO pneumatic manipulator

Mounting: Column mounted to be bolted to the floor

Brakes: Pneumatic brakes to all axes

Tooling

Venturi vacuum with suitable suction cups

Three additional manually interchangeable tooling heads

180 degrees manual rotation

120 degrees ‘free’ inclination

Highered controls

Manually adjustable tooling interaxis

Includes:

Transpallet Base Plate

In order to make the Dalmec manipulator a fully free-standing mobile unit it has a transpallet base plate (1200 mm x 1200 mm x 140

mm) with all the relevant counter-balancing built into the base. This system allows the machine to be moved about between work stations simply by disconnecting the air supply and up-lifting with either a handpallet or a fork lift truck.

Screw Stabilisers

Screw stabilisers are fitted to ensure that the base plate is positioned squarely to prevent any “drifting” of the manipulator arms.

Level Indicators

Level Indicators for Transpallet Base Plate to it is level

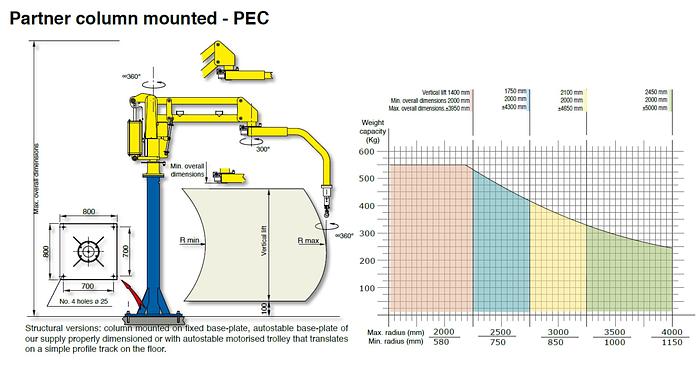

Technical Specifications

Mounting: Column mounted to be bolted to the floor

Brakes: Pneumatic brakes to all axes

Main Axis Rotation: 360°

Intermediate Axis Rotation: 300°

Tooling Axis Rotation: 360°

Min. Vertical Lift: 150 mm

Max. Vertical Lift: 1750 mm

Nominal Radius: 3000 mm

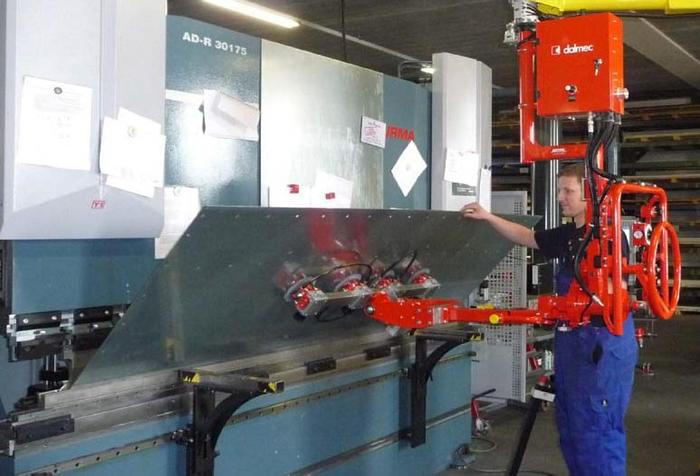

NB. Photos Shown are of Sample Similar Dalmec Units
