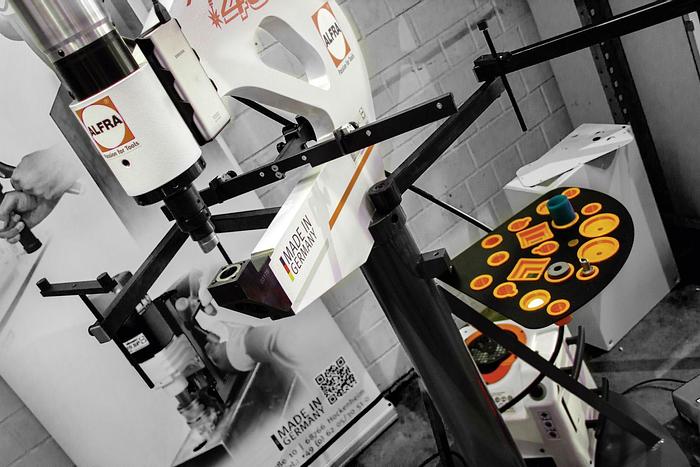

ALFRA PRESS AP 400 - Stationary Punching Machine

Press Product No: 03195

Machine Description

400 mm overhang, 220 kg deadweight and 46 kN punching force. When it comes to punching without pre-drilling, no other device can hold a candle to our AP 400 – no matter if you need to work on control cabinet housings, switch cabinet doors or mounting plates. Openings in round, square or rectangular shapes are created effortlessly. Special shapes are also possible. Thanks to quick tool changes, you work efficiently - even in extreme edge areas. The laser pointer is indicating the tool center optically. A simple reticule with a pen is sufficient as a marker. In addition, attachable flip stops even allow row punching. The AP 400 is also mobile and can be used at any location due to its mobile base.

Driven by 600 bar it punches sheet steel, stainless steel, aluminum and plastic.

Includes:

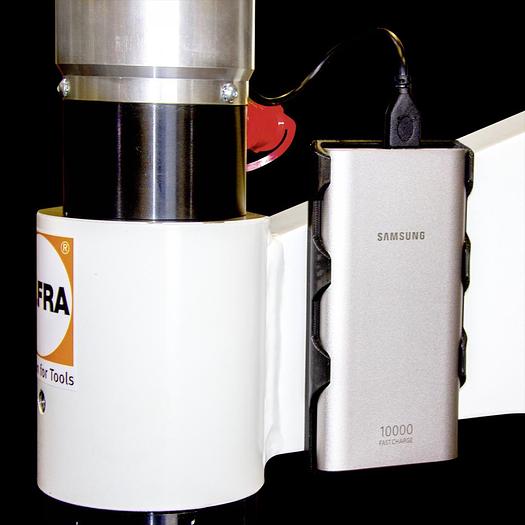

Laser Pointer for Optical Display of Tool Centre and Power Bank

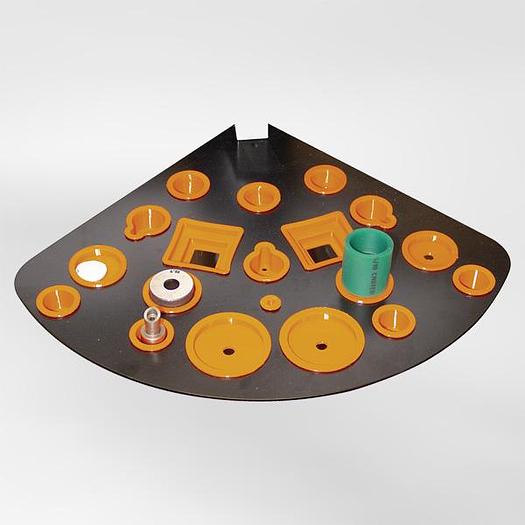

Pivoting Tool Drawer

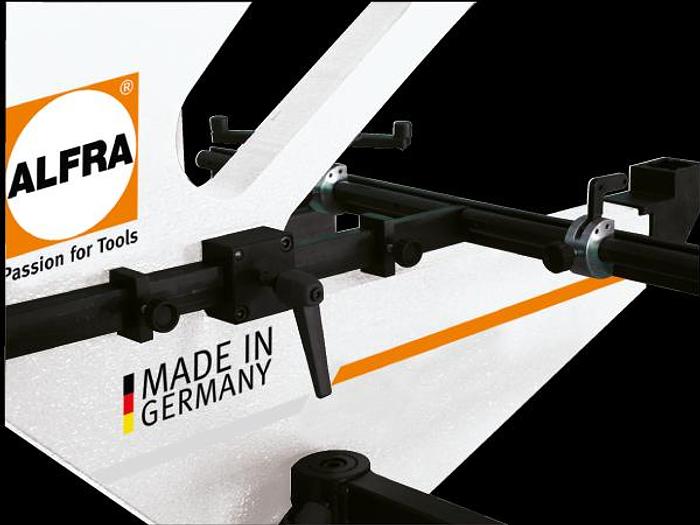

Length & Depth Limit Stop with Foldable add-on Stops

Picoting Support Arms, height adjustable with 2 rubber supports

Mobile Base

Extra Requirements

AHP-S Electro-Hydraulic Power Pack - Power Pack Product No: 03854

Tooling

Technical Specifications:

Overhang with limit stop: 400 mm

Overhang without limit stop: 430 mm

Punching stroke: 50 mm

Punching force F: 46 kN at 600 bar

Hydraulic connection: R 1/4"

Weight: 220 kg

Space requirement with base approx.: 1,200 mm x 800 mm

Punching capacity:

Circular: Ø 3.2 - 40.5 mm

Square: 28.0 x 28.0 mm

Rectangle: 22.0 x 30.0 mm

Special forms up to a max. diagonal of: 40.0 mm

Material thicknesses (max):

Sheet steel (S235): 2.5 mm

Stainless steel (F = 600 N/mm2): 2.0 mm

Aluminum (F = 22 N/mm2): 4.0 mm

Punchable plastics: 4.0 mm
