Alfra GmbH PRESS AP 600 - Stationary Punching Machine
Description
ALFRA PRESS AP 600 - Stationary Punching Machine
Includes:

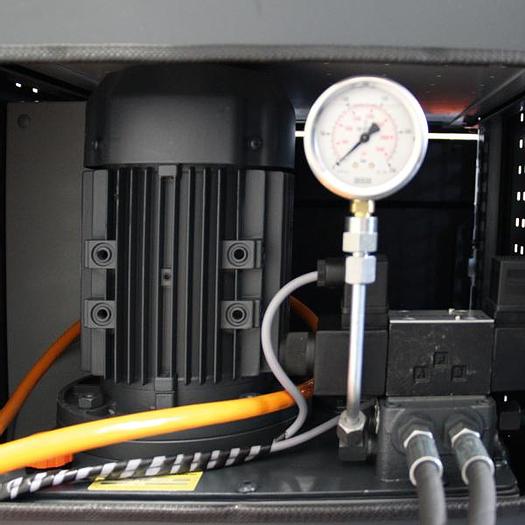

Dual Circuit Hydraulic Unit in Machine Base
Laser Pointer for Optical Display of Tool Centre
Stable Piston Rod with Tool Anti-Twist Device

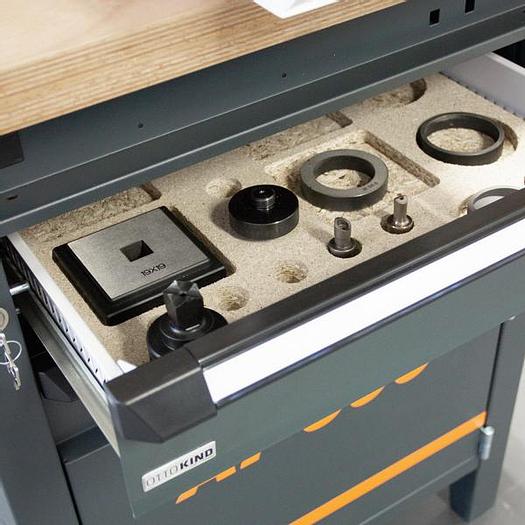

Tool Drawer with Compartments

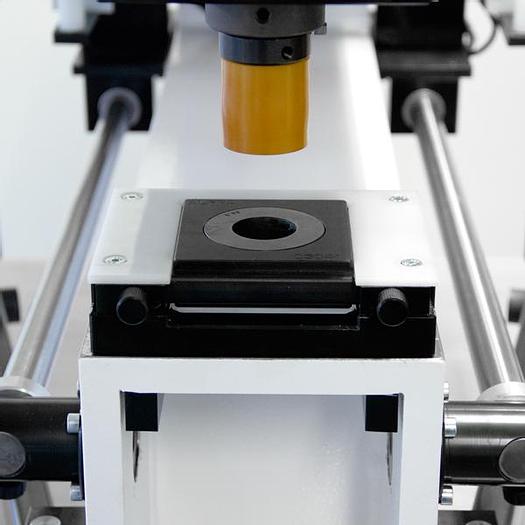

Reciprocal Quick Clamping Systme for Edge Folds either Top or Bottom

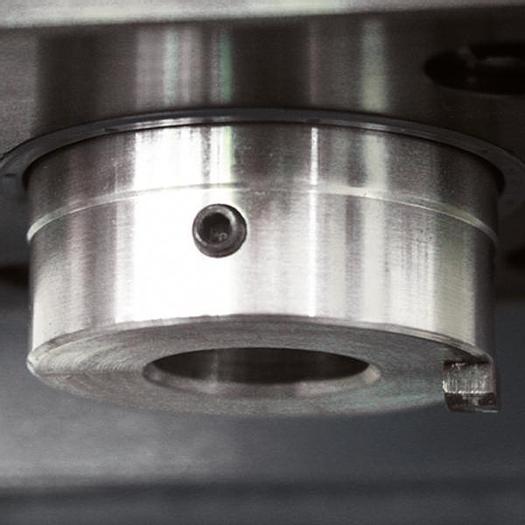

Die Bed Holder

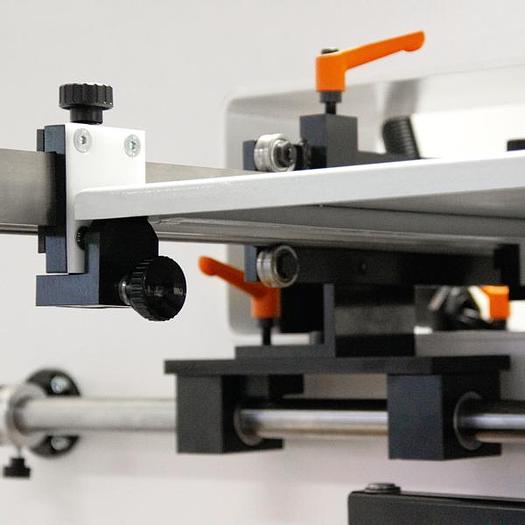

Length & Depth Limit Stops
Press Product No: 03090
Machine Description

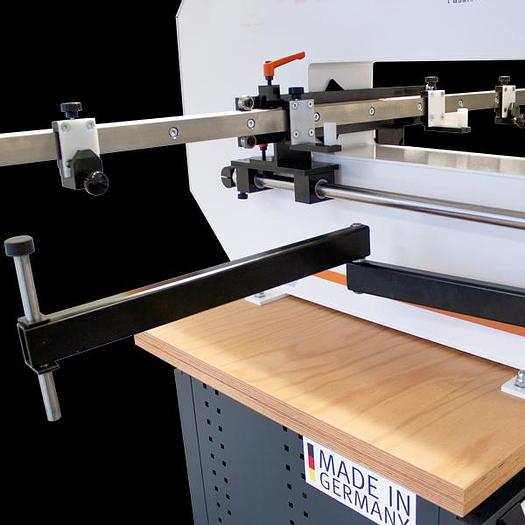

The strongest among our stationary punches is used when size matters. The numbers speak a clear language. 600 mm ovrehang, 60 kN punching force at 165 bar, 66 mm punching stroke and 360 kg dead weight. This high-performance device was developed especially for control cabinet and switchgear manufacturers. Its core competence: square, rectangular or special shapes for sheets and control cabinet doors with dimensions up to 2200 mm X 1000 mm and a folding height up to 30 mm. Our strength: in our own tool shop we produce special tools at short notice! Our AP600 is not only monumental, but also quick: change the tool for your application in seconds - even with the door inserted. The stop system can be moved in X and Y direction. The double-acting hydraulic cylinder is flanged to the machine body in a force and form-fit manner. Also included are the laser pointer for displaying the tool center, the digital measuring display for the X and Y axis and swiveling double-jointed arms to support the workpiece.
Technical Specifications:
Overhang with limit stop: 600 mm
Punching stroke: 66 mm
Punching force F: 60 kN at 165 bar
Motor Power: 0.75 kW
Operating Voltage: 400 V
Working Height: 1000mm
Machine Height: 1600mm
Width of Puncher Body: 310mm
Depth of Puncher Body: 1150mm
Length of Limit Stock Rails: 1500mm
Space Requirements: 2000 mm x 3000 mm
Machine Weight: 360kg
Punching capacity:
Circular: Ø 3.2 - 70.0 mm
Square: 68.0 x 68.0 mm
Special forms up to a max. diagonal of: 90.0 mm
Material thicknesses (max):
Sheet steel (S235): 3.0 mm
Stainless steel (F = 600 N/mm2): 2.0 mm
Aluminum (F = 22 N/mm2): 4.0 mm
Punchable plastics: 4.0 mm
Specifications
| Manufacturer | Alfra GmbH |
| Model | PRESS AP 600 - Stationary Punching Machine |
| Condition | New |
| Press Product No | 03090 |
| Overhang with limit stop | 600 mm |
| Punching stroke | 66 mm |
| Motor Power | 0.75 kW |
| Operating Voltage | 400 V |
| Working Height | 1000mm |
| Machine Height | 1600mm |
| Width of Puncher Body | 310mm |
| Depth of Puncher Body | 1150mm |
| Machine Weight | 360kg |
| Square | 68.0 x 68.0 mm |
| Sheet steel (S235) | 3.0 mm |
| Punchable plastics | 4.0 mm |
