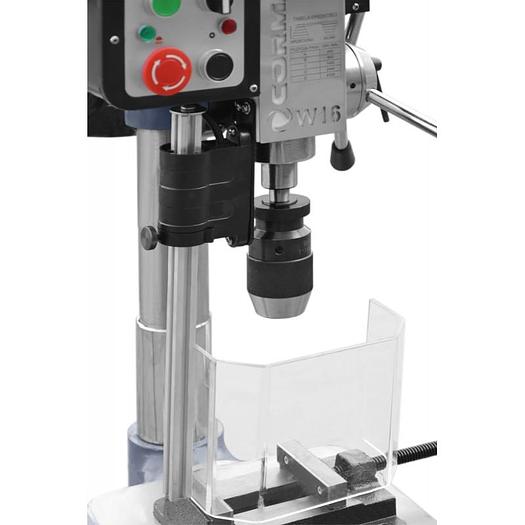

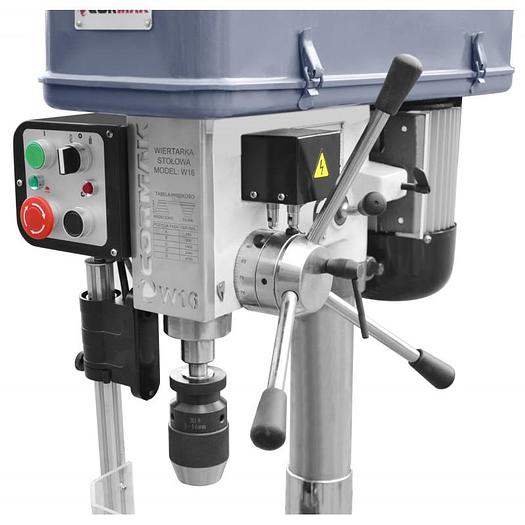

Cormak W16 Bench Mounted Drilling Machine

Cormak W16 Bench Mounted Drilling Machine

Power: 3ph/400V

Machine Description

Universal drilling machine for drilling, reaming, tapping. Equipped with a tilt table, rotary and self tightening chuck. 125 mm vice included in the set.

Includes

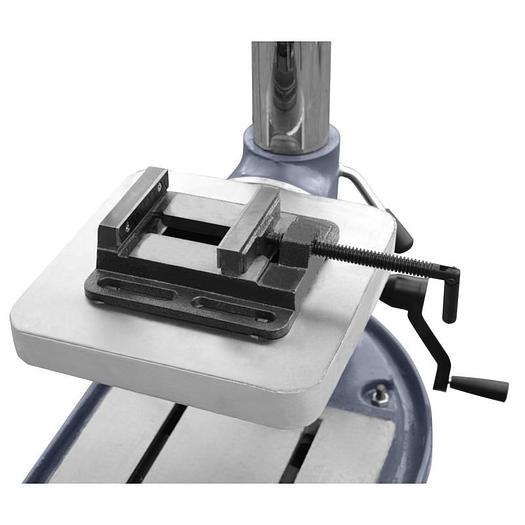

125 mm vice

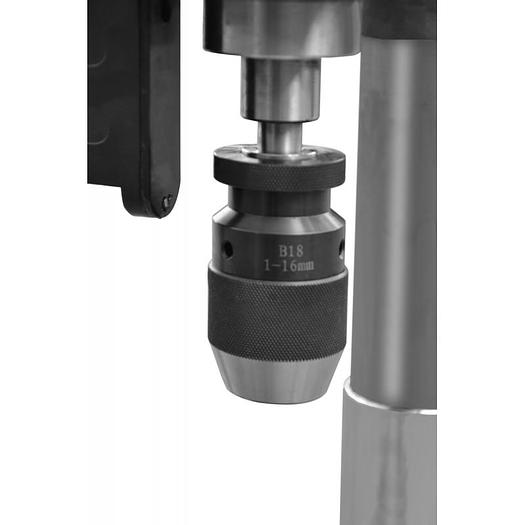

B18 self-tightening drilling chuck

MT2 drilling chuck mandrel

Features

Tapping function

Automatic spindle rotation direction during tapping

Manual rotation direction change with a hand lever

High spindle rigidity

Capability of setting required drilling/tapping depth

Power transmitted through a belt drive

Worktable with adjustable height, from -45 to +45 degrees swiveling, with 360 degrees rotation around column

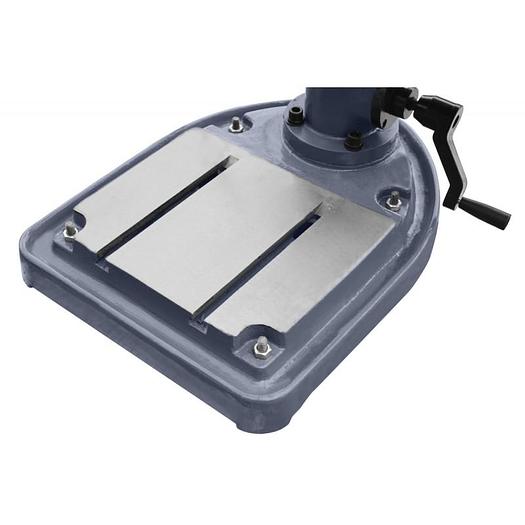

Base equipped with 14 mm wide T-slots

Belt drive guard equipped with limit safety switch

Technical Specification

Maximum drilling depth: 16 mm

Maximum spindle quill extension: 100 mm

Spindle taper: MT2

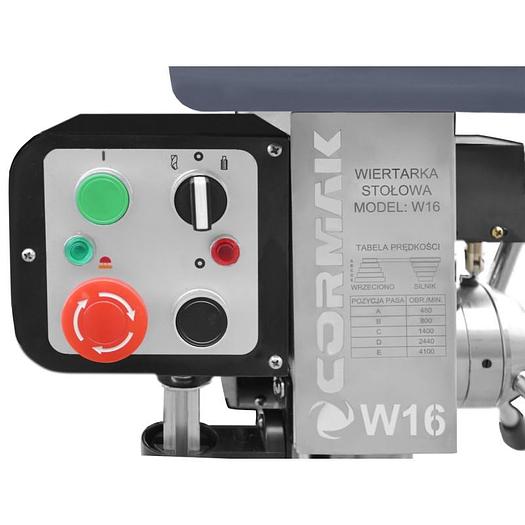

Spindle speeds: 480, 800, 1400, 2440, 4100 rpm

Spindle axis from column distance: 193 mm

Table dimensions: 200x230 mm

Base dimensions: 528x360 mm

Maximum spindle tip from table distance: 315 mm

Maximum spindle tip from base distance: 556 mm

Worktable horizontal axis rotation range: ±45°

Worktable vertical axis rotation range: 360°

Motor power: 750 W/400V

Weight: 90 kg
