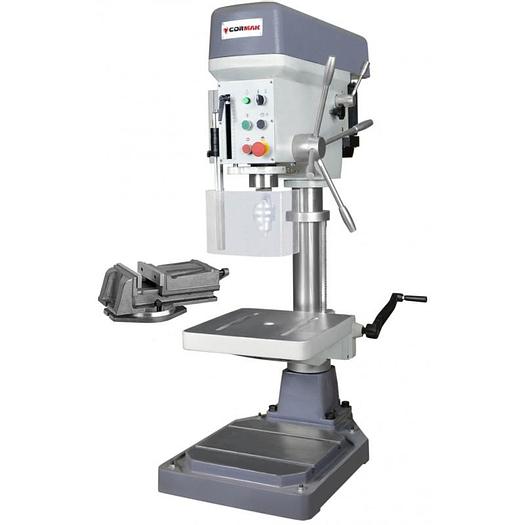

Cormak WS16 Bench Mounted Drilling Machine

Cormak WS16 Bench Mounted Drilling Machine

Power: 3ph/400V

Machine Description

CORMAK WS 16, a bench drilling machine of strengthened structure, is a general-purpose drilling machine for such operations as drilling, reaming, deepening, tapping (with the use of special chucks for tapping tools). These drilling machines allow for drilling and tapping with multi-spindle holders. Featuring high efficiency, accuracy of operation, an LED light, a low noise level, a broad range of speeds and a centralized control panel, this machine is easy and simple to handle.

Machine Features

High spindle rigidity

Tapping done through automatic left rotation switching

Left rotation switch

Headstock, column, table and column base made of the highest quality castings

Spindle and gearbox shafts made of hardened and heat-treated steel

High motor power

Large spindle stroke

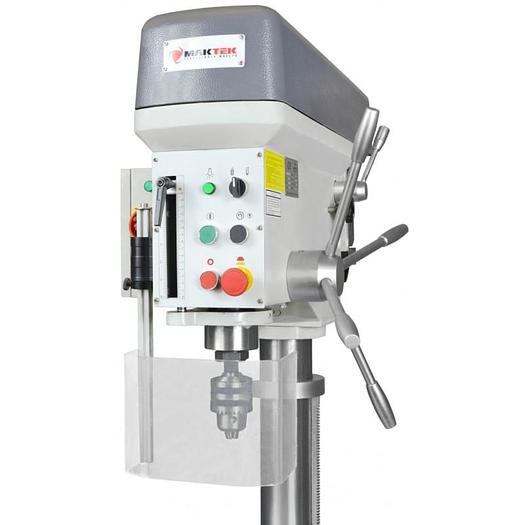

Intuitive control panel

U-type spindle guard with a limiting switch, compliant with EC

Manually raised, 360° swiveling worktable with mounting grooves

Belt transmission guard equipped with limiting safety switch

EC certificate

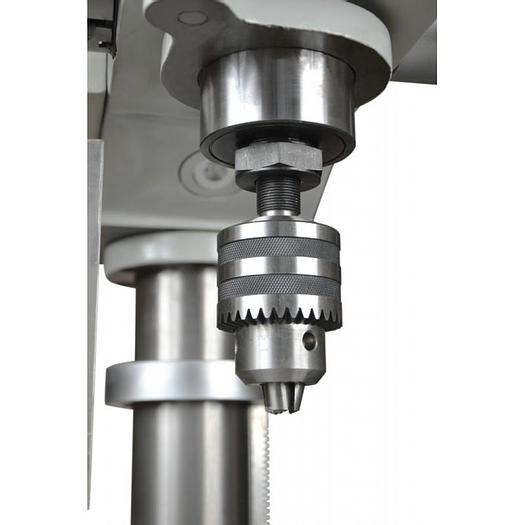

Adjustable drill chuck with a key and Morse taper mount

Wedge for taper removal

Technical Specification

Maximum steel drilling diameter: 16 mm

Maximum steel tapping diameter: M10

Column diameter: 70 mm

Spindle stroke:100 mm

Distance spindle-column: 193 mm

Maximum distance spindle-table: 330 mm

Maximum distance spindle-base: 613 mm

Spindle mount: MK2

Speed range:480–1875 rpm

Number of speed ranges: 5

Table dimensions: 265×285 mm

Base dimensions: 360×480 mm

Machine height: 1130 mm

Motor power: 0.75 kW

Power supply: 400V

Net weight: 131.5 kg

Dimensions: 600×400×1150 mm
