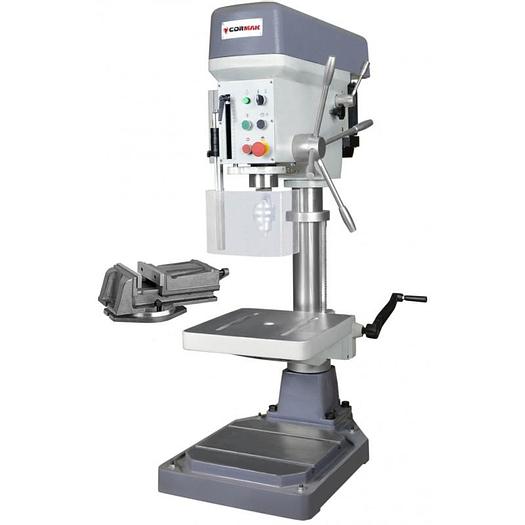

Cormak WS32 Bench Mounted Drilling Machine

Cormak Ws32 Bench Mounted Drilling Machine

Power: 3ph/400V

Machine Description

The Cormak WS32, a bench drilling machine of strengthened structure, is a general-purpose drilling machine for such operations as drilling, reaming, deepening, tapping (with the use of special chucks for tapping tools). These drilling machines allow for drilling and tapping with multi-spindle holders. Featuring high efficiency, accuracy of operation, a low noise level, a broad range of speeds and a centralized control panel, this machine is easy and simple to handle.

Machine Features

High spindle rigidity

Tapping done through automatic left rotation switching

Left rotation switch

Headstock, column, table and column base made of the highest quality castings

Spindle and gearbox shafts made of hardened and heat-treated steel

High motor power

Large spindle stroke

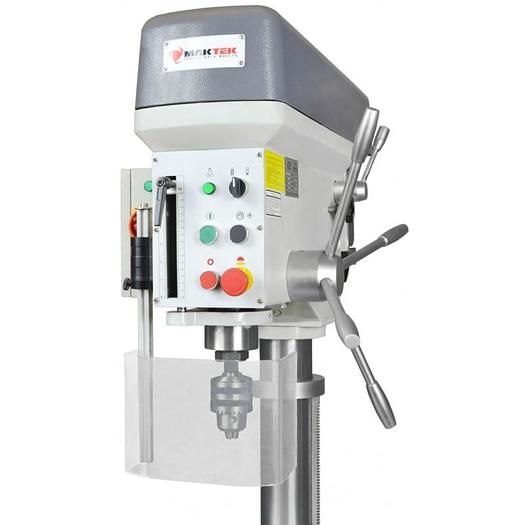

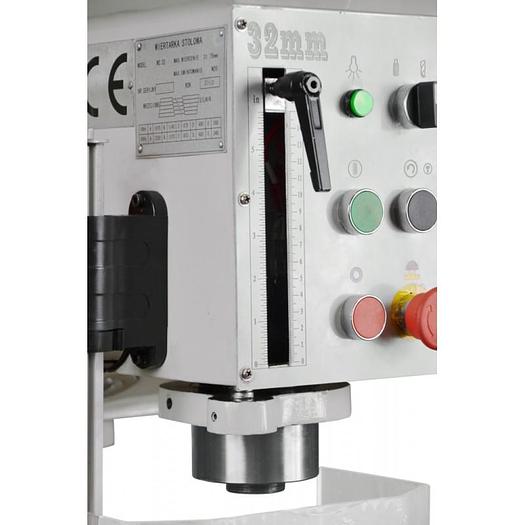

Intuitive control panel

U-type spindle guard with a limiting switch, compliant with EC

Manually raised, 360° swiveling worktable with mounting grooves

Belt transmission guard equipped with limiting safety switch

EC certificate

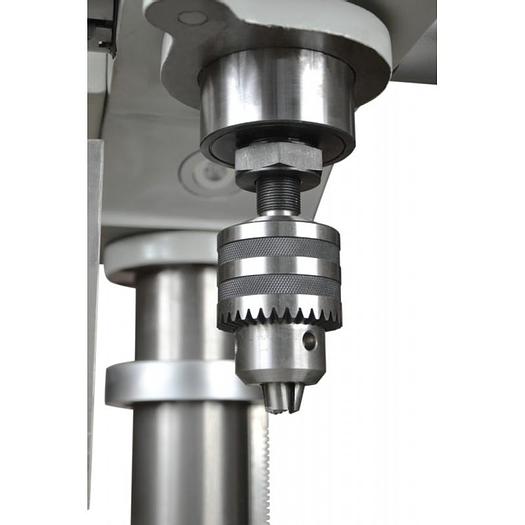

Adjustable drill chuck with a key and Morse taper mount

Drift for taper removal

Technical Specifications

Maximum steel drilling diameter: 32 mm

Maximum steel tapping diameter: M24

Column diameter: 100 mm

Spindle stroke: 150 mm

Distance spindle-column: 265 mm

Maximum distance spindle-table: 390 mm

Maximum distance spindle-base: 745 mm

Spindle mount: MT3

Speed range: 280, 400, 675, 1140, 1875 rpm

Number of speed ranges: 5

Table dimensions: 380×400 mm

Base dimensions: 645×470 mm

Machine height: 1370 mm

Motor power: 1.1 kW

Power supply: 400V

Net weight: 230 kg

Dimensions: 900×500×1400 mm
