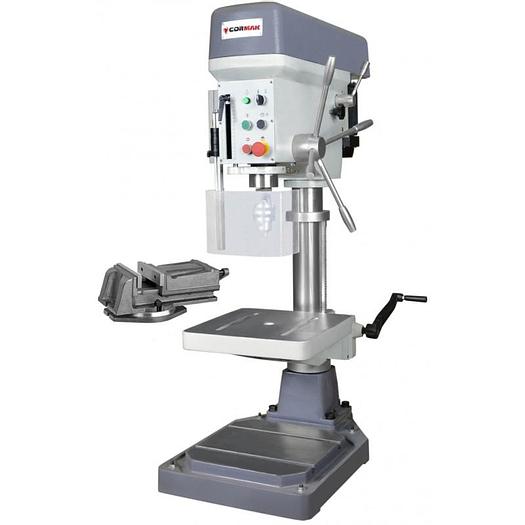

Cormak WS20 Bench Mounted Drilling Machine

Cormak WS20 Bench Mounted Drilling Machine

Power: 3ph/400V

Machine Description

The Cormak WS20 is a bench drilling machine of strengthened structure, is a general-purpose drilling machine for such operations as drilling, reaming, deepening, tapping (with the use of special chucks for tapping tools). These drilling machines allow for drilling and tapping with multi-spindle holders. Featuring high efficiency, accuracy of operation, an LED light, a low noise level, a broad range of speeds and a centralized control panel, this machine is easy and simple to handle. Machine Features High spindle rigidity

Tapping done through automatic left rotation switching

Left rotation switch

Headstock, column, table and column base made of the highest quality castings

Spindle and gearbox shafts made of hardened and heat-treated steel

High motor power

Large spindle stroke

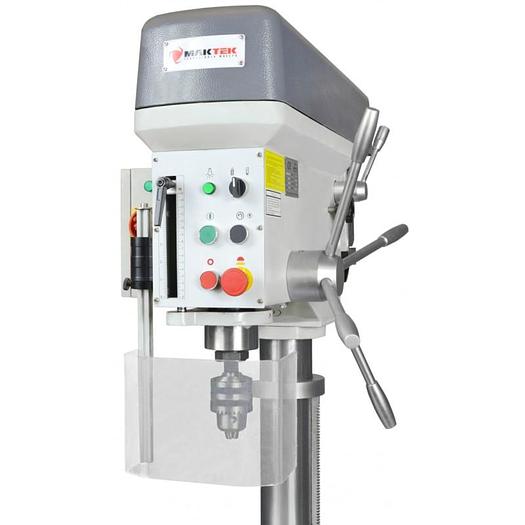

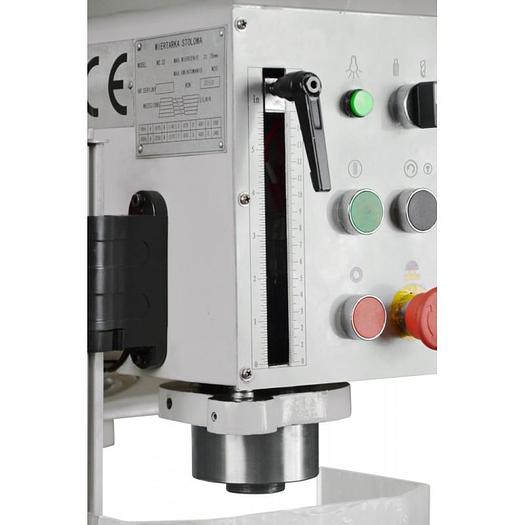

Intuitive control panel

U-type spindle guard with a limiting switch, compliant with EC

Manually raised, 360° swiveling worktable with mounting grooves

Belt transmission guard equipped with limiting safety switch

EC certificate

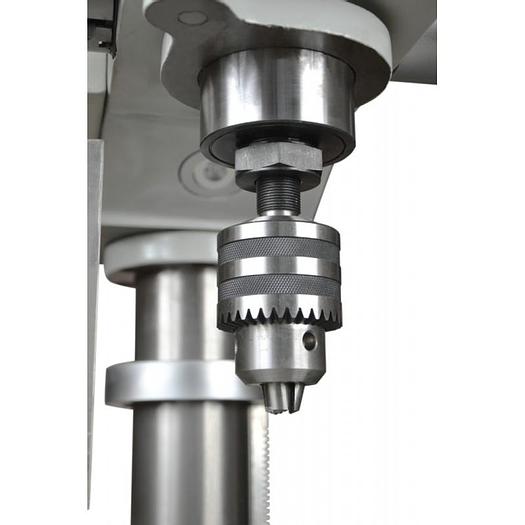

Adjustable drill chuck with a key and Morse taper mount

Drift key for taper removal Technical Specifications Maximum steel drilling diameter: 20 mm

Maximum steel tapping diameter: M16

Column diameter: 85 mm

Spindle stroke: 135 mm

Distance spindle-column: 260 mm

Maximum distance spindle-table: 366 mm

Maximum distance spindle-base: 678 mm

Spindle mount: MT2

Speed range: 280–1875 rpm

Number of speed ranges: 5

Table dimensions: 300×320 mm

Base dimensions: 376×566 mm

Machine height: 1245 mm

Motor power: 1.1 kW

Power supply: 400V

Net weight: 179 kg

Dimensions: 800×450×1250 mm
