Cormak Tytan 500 Universal Lathe with Base
Description

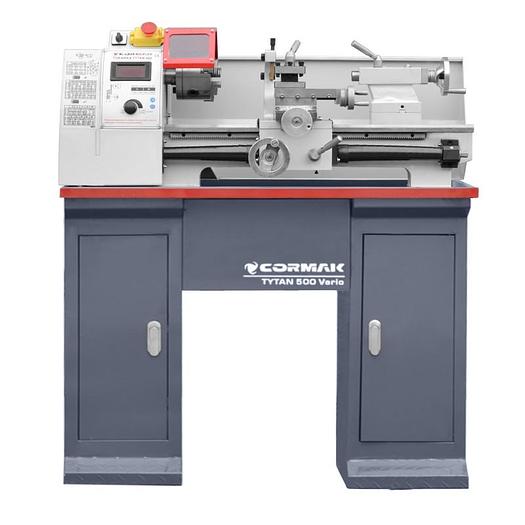

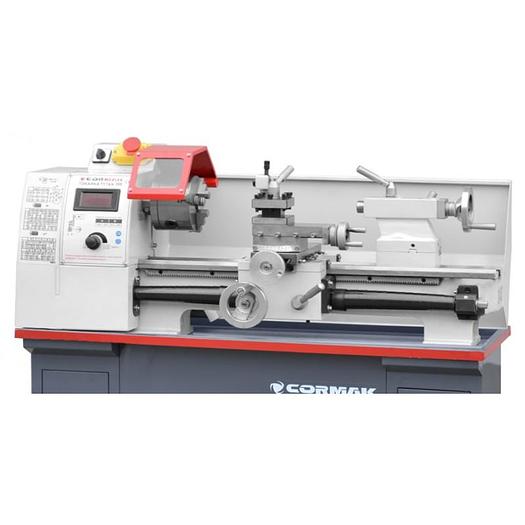

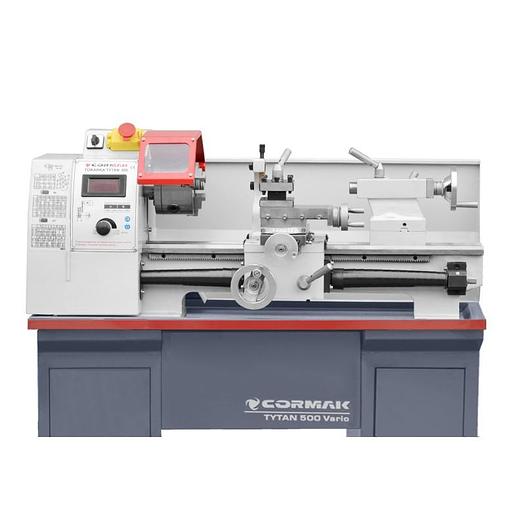

Cormak Tytan 500 Universal Manual Lathe with Base
Machine Description
The Cormak Tytan 500 Vario lathe is a rigid, durable and accurate lathe for metalworking, equipped with a lead screw and a base as standard.
Equipped with multiple useful features, such as 200/500 mm turning, smooth spindle speed adjustment adjustable with a potentiometer, LCD displayed spindle speed, threading capability, bed and guides inductively hardened and ground, change gears, lead screw in a cover - in accordance with the newest safety and EC regulations.
Also includes a 3-jaw 100 mm self-centering chuck and a base with drawers for storage of tools.
This lathe is compliant with all European regulations and standards.
Technical Details
Swing over bed: 200 mm
Swing over cross slide: 140 mm
Centre width: 500 mm
Bed width: 100 mm
Spindle bore: 21 mm
Spindle tip: MT3
Spindle speed (smooth adjustment): 100–2500 rpm
Metric thread: (14) 0.3–3 mm/turn
Inch thread: (10) 10–44 Gg/1''
Longitudinal feed: (3) 0.09; 0.15; 0.2 mm/turn
Tool holder: 4-slots
Maximum cross support travel: 55 mm
Maximum transverse support travel: 100 mm
Maximum longitudinal support travel: 376 mm

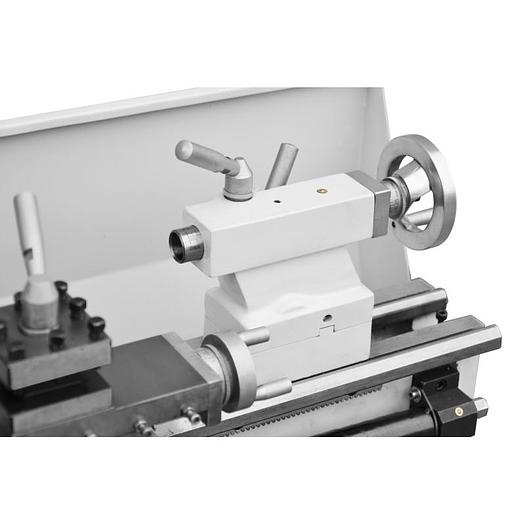

Tailstock spindle travel: 60 mm
Tailstock quill taper: MT2
Motor power: 500 W / 230V
Dimensions (without base): 900×390×340 mm
Dimensions (with base): 900×390×1160 mm
Weight: 95 kg
Standard Equipment
100mm 3 Jaw Chuck
4 Way Toolpost

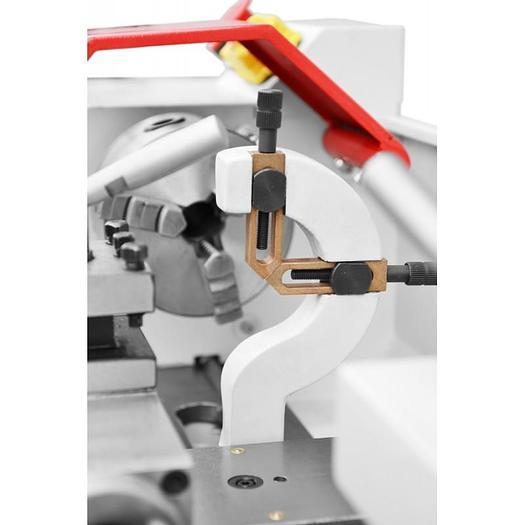

Travelling Steady
Dead Centres
Left/right Jaws
Spanners
Change Gears
Machine Base
Specifications
Manufacturer | Cormak |
Model | Tytan 500 Universal Lathe with Base |
Condition | New |
Swing over bed | 200 mm |
Swing over cross slide | 140 mm |
Centre width | 500 mm |
Bed width | 100 mm |
Spindle bore | 21 mm |
Spindle tip | MT3 |
Spindle speed (smooth adjustment) | 100–2500 rpm |
Metric thread | (14) 0.3–3 mm/turn |
Inch thread | (10) 10–44 Gg/1'' |
Tool holder | 4-slots |
Maximum cross support travel | 55 mm |
Maximum transverse support travel | 100 mm |
Maximum longitudinal support travel | 376 mm |
Tailstock spindle travel | 60 mm |
Tailstock quill taper | MT2 |
Motor power | 500 W / 230V |
Dimensions (without base) | 900×390×340 mm |
Dimensions (with base) | 900×390×1160 mm |
Weight | 95 kg |
