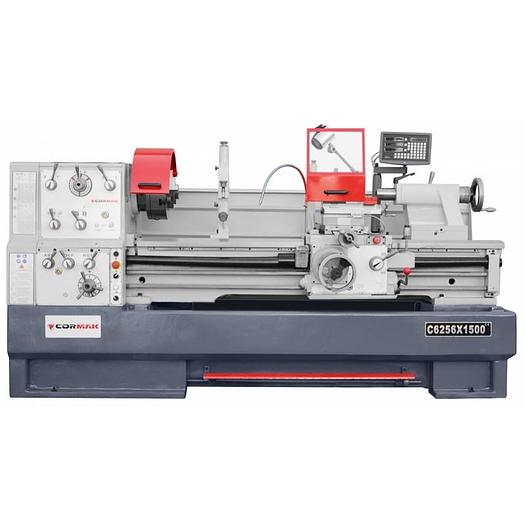

Cormak 560 x 1500 Universal Manual Lathe
Description
Cormak 560 x 1500 Universal Manual Lathe
Machine Description
A modern lathe for metal equipped with a rapid feed, a multi-plate clutch and a digital readout, resulting in a great solution for professional and industrial applications.
Machine Features
- Inductively hardened and precisely ground bed
- Sturdy cast iron design
- Equipped with a quick longitudinal and transverse movement
- Main arbor with ball bearings
- 105 mm spindle bore

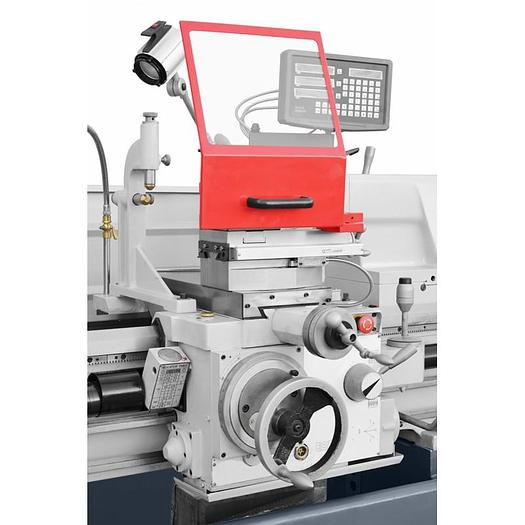

- 3 axes digital readouts
Included Equipment

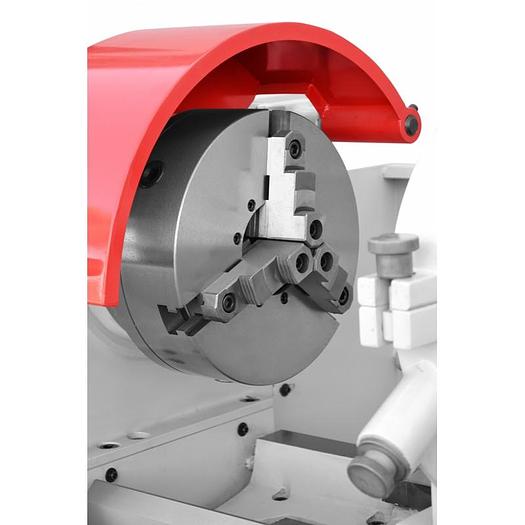

PO3-315 mm / D8 steel 3-jaw chuck
K72-400 mm / D8 4-jaw independent lathe chuck
Handling tools
450 mm face plate
Up to 180 mm clearance steady rest
Up to 120 mm clearance follow rest
2 centering centres
Magnetic brake compliant with the EC regulation
Electromechanical spindle brake
Filled with Shell Tellus 46 oil
Rapid feed
Cooling system
Halogen lighting
Change gears
Chips container
3 axes digital readout
Technical Specifications
Swing over bed: 560 mm
Swing over cross slide: 355 mm
Swing over gap: 785 mm
Turning length in gap: 190 mm
Centres distance: 1500 mm
Centres height: 280 mm
Bed: Inductively hardened
Bed width: 350 mm
Spindle bore diameter: 105 mm
Spindle taper: D1-8
Spindle speed: (12) 25–1600 rpm
Maximum tool dimensions: 25×25 mm

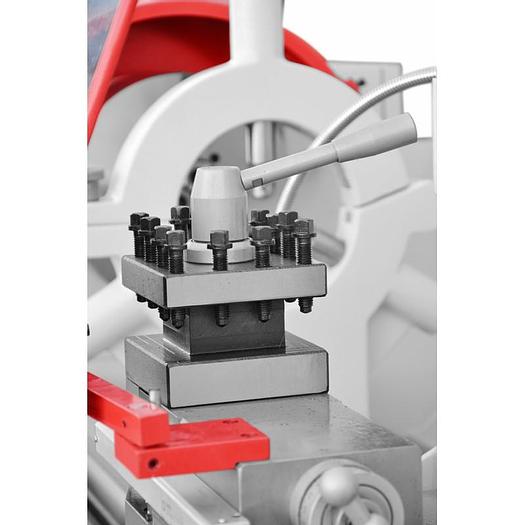

Toolpost: 4 Way
Longitudinal feed range: (35) 0.059–1.64 mm/turn
Transverse feed range: (35) 0.020 – 0.573 mm/turn
Metric thread: (47) 0.2–14 mm
Inch thread: (60) 2–112 Gg/1"
Modular thread: (39) 0.1–7 M.P
D.P. thread: (50) 4–112 D.P.
Tailstock quill diameter: 75 mm
Tailstock quill range: 180 mm
Tailstock quill taper: MT 5
Digital readout: 3 axes
Main motor power: 7.5kW
Flood coolant pump power: 0.1 kW
Dimensions: 2840×1150×1460mm
Weight: 2740kg
Specifications
| Manufacturer | Cormak |
| Model | 560 x 1500 Universal Manual Lathe |
| Condition | New |
| Swing over bed | 560 mm |
| Swing over cross slide | 355 mm |
| Swing over gap | 785 mm |
| Turning length in gap | 190 mm |
| Centres distance | 1500 mm |
| Centres height | 280 mm |
| Bed | Inductively hardened |
| Bed width | 350 mm |
| Spindle bore diameter | 105 mm |
| Spindle taper | D1-8 |
| Spindle speed | (12) 25–1600 rpm |
| Maximum tool dimensions | 25×25 mm |
| Toolpost | 4 Way |
| Longitudinal feed range | (35) 0.059–1.64 mm/turn |
| Metric thread | (47) 0.2–14 mm |
| Inch thread | (60) 2–112 Gg/1" |
| Modular thread | (39) 0.1–7 M.P |
| D.P. thread | (50) 4–112 D.P. |
| Tailstock quill diameter | 75 mm |
| Tailstock quill range | 180 mm |
| Tailstock quill taper | MT 5 |
| Digital readout | 3 axes |
| Main motor power | 7.5kW |
| Flood coolant pump power | 0.1 kW |
| Dimensions | 2840×1150×1460mm |
| Weight | 2740kg |
