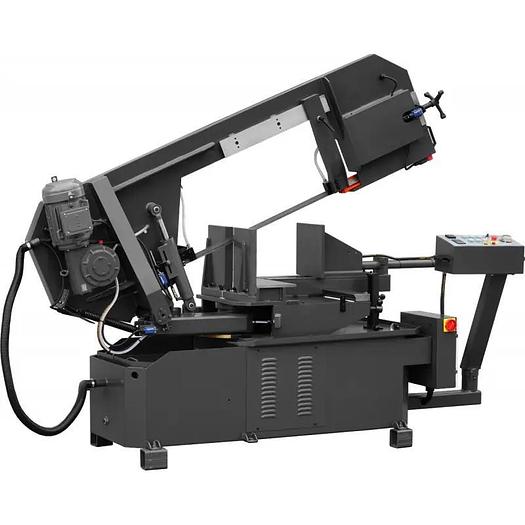

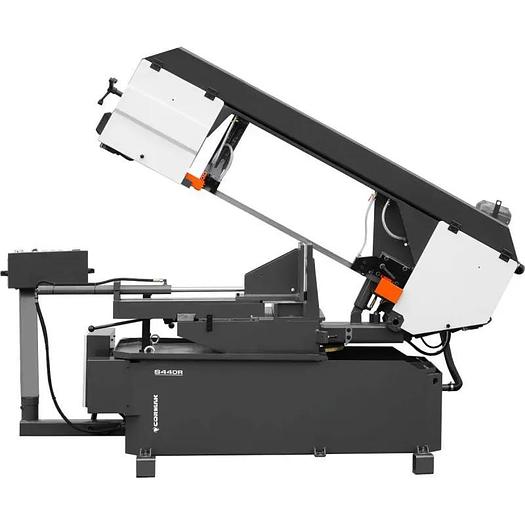

Cormak S-440R Semi Automatic Bandsaw

Cormak S-440R Semi-Automatic Bandsaw

Machine Type: Semi-Automatic Double Mitre Bandsaw

Machine Description

This semi-automatic CORMAK S440R band saw has it's arm made of uniform cast iron and, together with a 34 mm wide cutting band, it enables cutting various profiles and shapes. The band saw uses a vice and a hydraulically raised and lowered arm.

Semi-automatic band saws, after being switched on, do the whole cutting cycle automatically, i.e. clamp the cut material in the hydraulic vice, switch on the cutting band, lower the cutting arm (adjustable speed), stop the machine after cutting, raise the arm up (adjustable arm height) and switch the hydraulic vice off. Machine's arm is made of uniform cast iron and, together with a 34 mm wide cutting band, it enables cutting various profiles and shapes. The band saw uses a vice and a hydraulically raised and lowered arm.

Cutting Capacity

Capacity 0º (Round): 450mm

Capacity 0º (Rectangular): 620 x 440mm

Capacity 0º (Square): 450 x 450mm

Capacity 45º R (Round): 440mm

Capacity 45º R (Rectangular): 500 x 190mm

Capacity 45º R (Square): 420 x 420mm

Capacity 45º L (Round): 440mm

Capacity 45º L (Rectangular): 510 x 180mm

Capacity 45º L (Square): 390 x 390mm

Capacity 60º R (Round): 330mm

Capacity 60º R (Rectangular): 330 x 170mm

Capacity 60º R (Square): 300 x 300mm

Capacity 60º L (Round): 350mm

Capacity 60º L (Rectangular): 350 x 170mm

Capacity 60º L (Square): 310 x 310mm

Technical Details

Arm Raising and Lowering: Hydraulic with arm lowering smooth control

Vice Clamp: Hydraulic

Band Speed: 20/90 m/min

Mitre Cutting: from -60° to +60°

Minimum Cutting Diameter: Ø 5 mm

Minimum Material Length in the Vice: 30 mm

Vice Base Height: 780 mm

Bandsaw Blade Dimensions: 5200 x 34 x 1.1 mm

Total Power: 4.4 kW

Dimensions (LxWxH): 2500×1900×1450 mm

Weight: 1100 kg

Includes

PLC controller

Semi-automatic operating cycle

Control console on a separate component

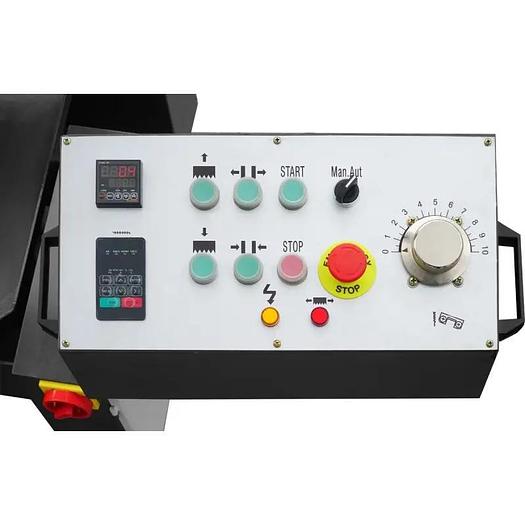

Control panel with an LCD display

Built-in hydraulic unit

Hydraulic control of arm motion (up – down) with possibility of smooth lowering speed control

Arm position memory function (arm returns to a defined height after cutting)

Hydraulically controlled vice's jaws (long stroke cylinder with position memory)

Cutting at angles of L/R 60o – 45o – 0o – 45o – 60o

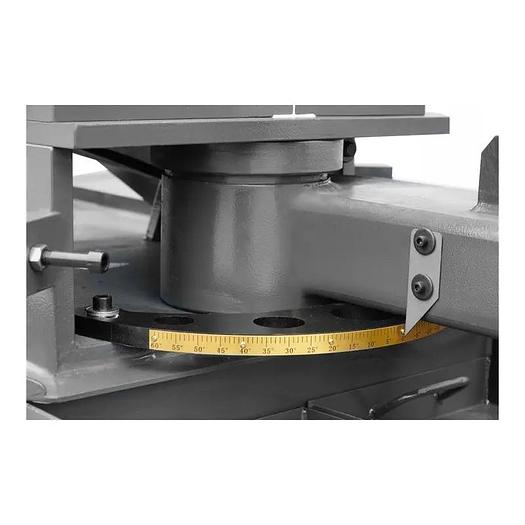

Digitally displayed set cutting angle

Smooth band speed adjustability (inverter)

Powered brush for cleaning the band

Cooling system

Bi-metal saw blade

EC Declaration of Conformity

User manual
