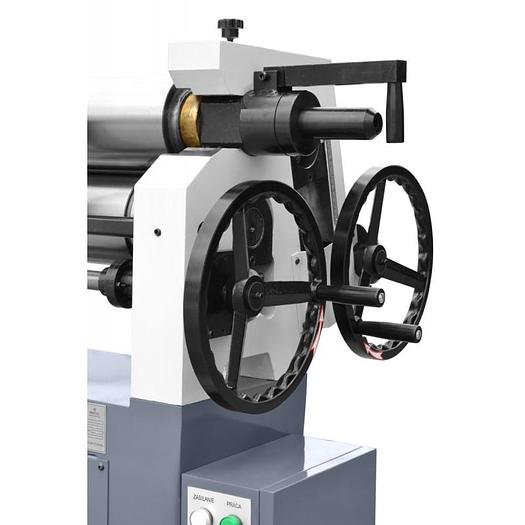

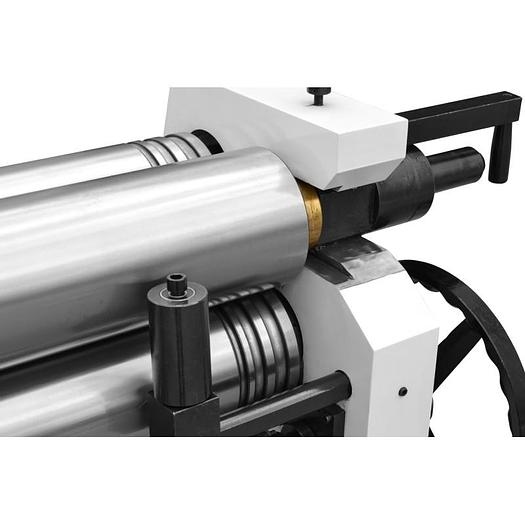

Cormak ESR 1300 x 6.5mm Plate Rolls

Cormak ESR-1300 x 6.5mm Mechanical Plate Rolls

Machine Type: 3 Roll Mechanical Plate Rolls

Machine Description

A solid steel machine body based on the most modern construction supported by many years of experience in roll bender production.

All rolls hardened and very precise bearings

Hydraulic swivel bearings for easy removal of workpiece

Asymmetric rotary bender with three rollers

Adjustable bottom and rear roller

Tilting upper roll with eccentric locking.

Operating the machine via a foot control

Manual rear roller infeed

Braking motor

Control panel

Initial Pinch Rolls

Technical Specification

Maximum working width: 1300mm

Maximum material thickness: 6.5mm

Top Roll Diameter: 150mm

Rotation Speed: 22 rpm

Motor power: 2.2kW

Machine dimensions (L x W x H): 2060 x 640 x 1050mm

Machine weight: 1000kg
