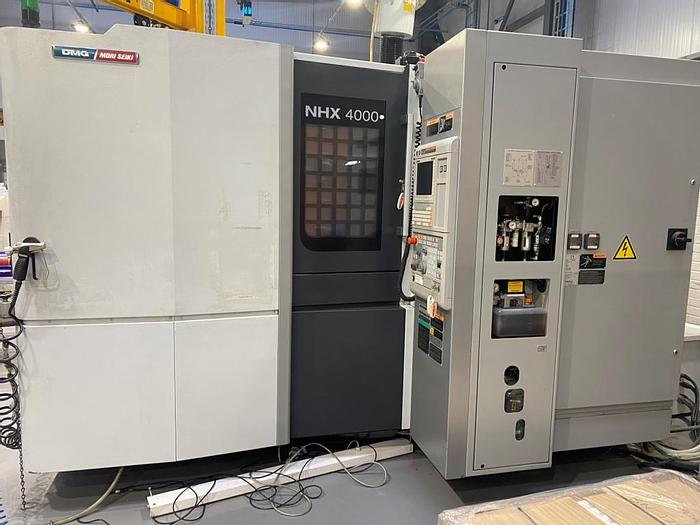

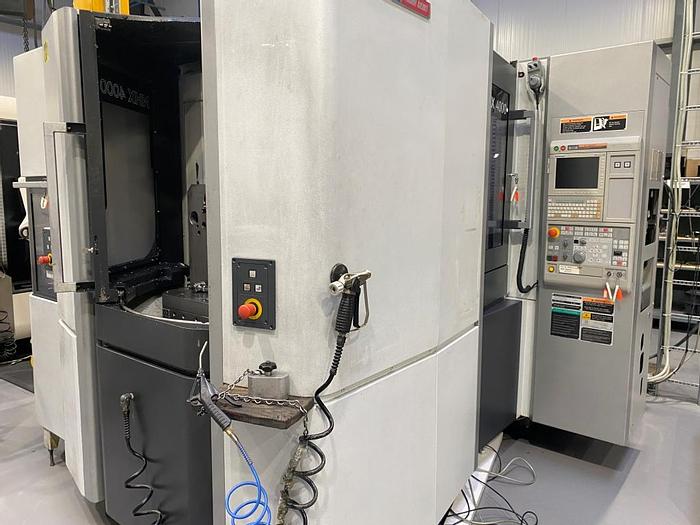

2013 DMG Mori NHX 4000 Horizontal Machining Center
Description

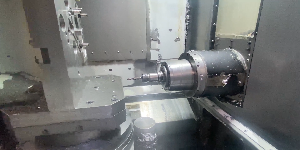

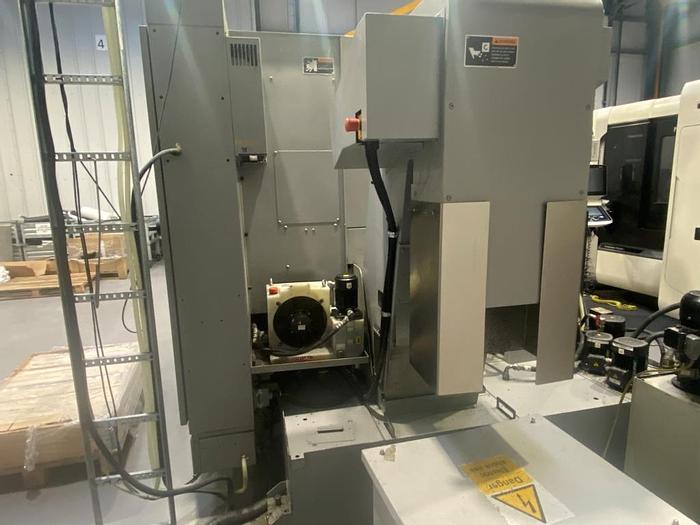

2013 DMG MORI SEIKI NHX 4000 Horizontal Machining Center
Machine Type: Horizontal Machining Center
Year: 11/2013

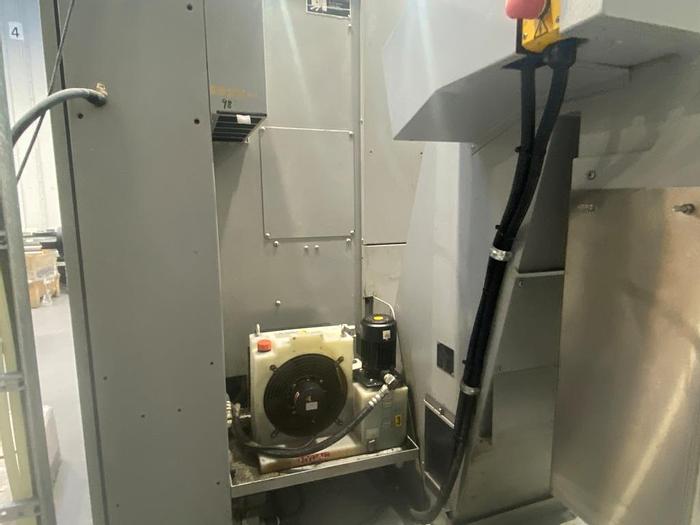

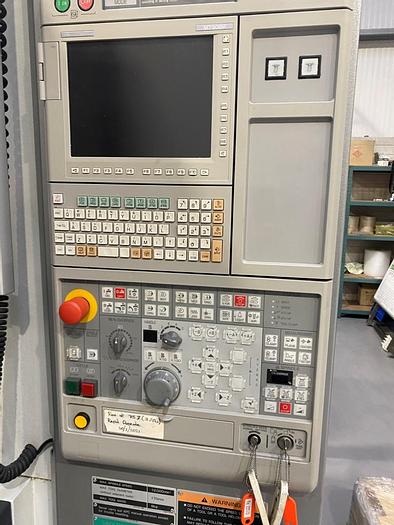

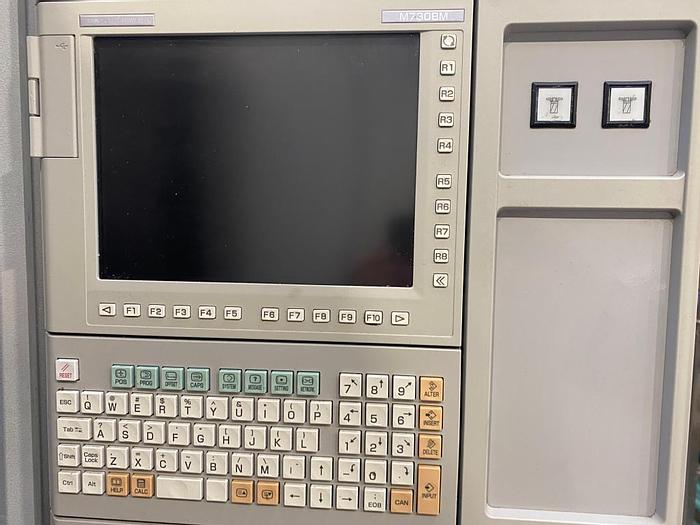

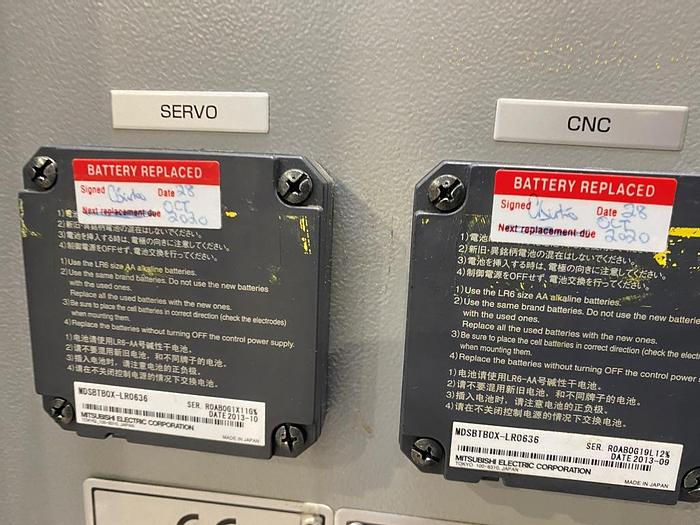

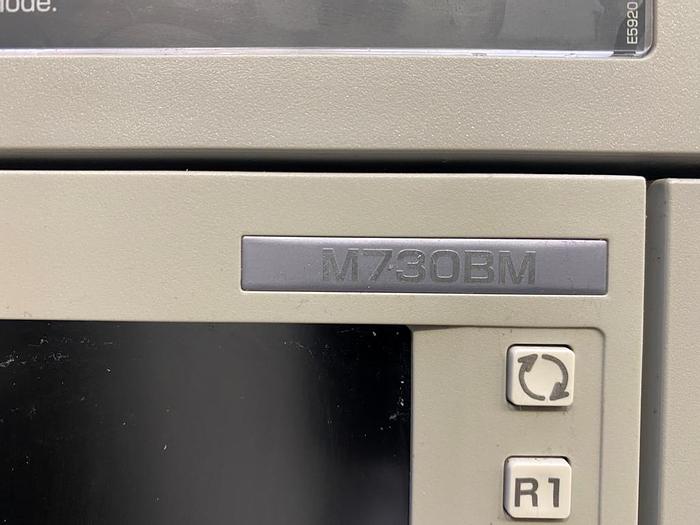

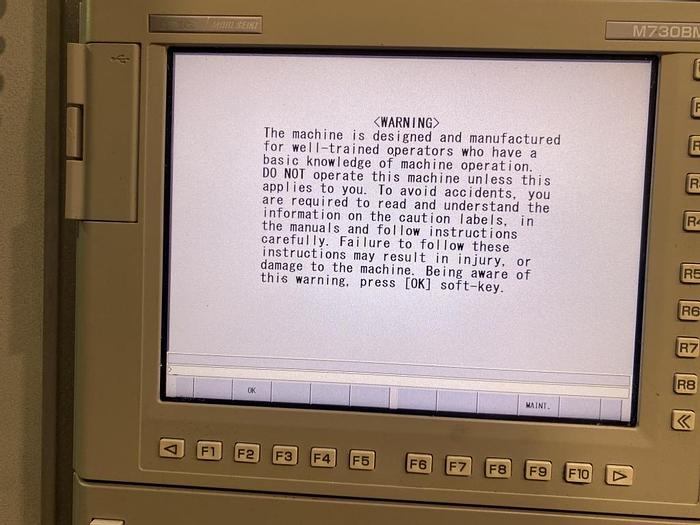

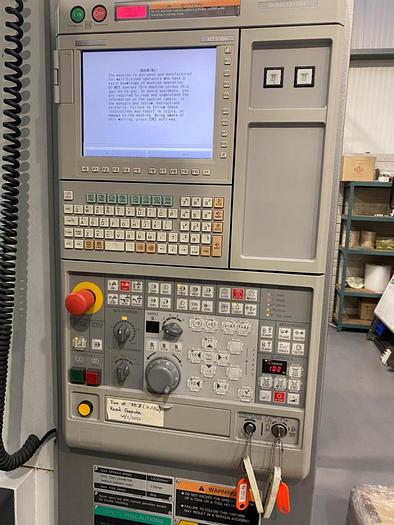

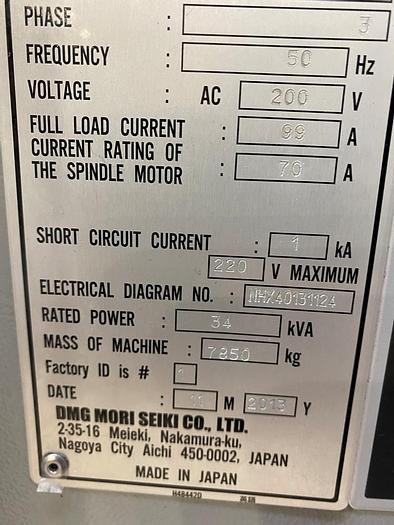

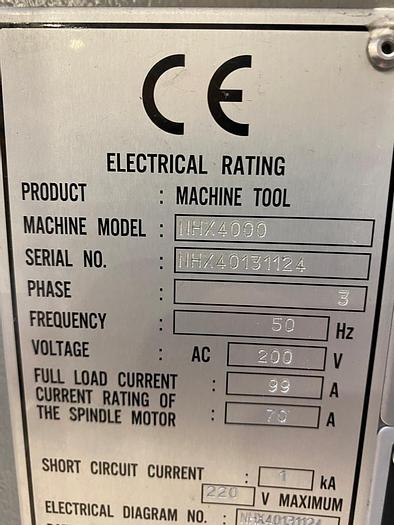

Machine Control: CNC Unit M730BM with MAPPS IV
Controlled Axis: 4 (X,Y,Z,B)

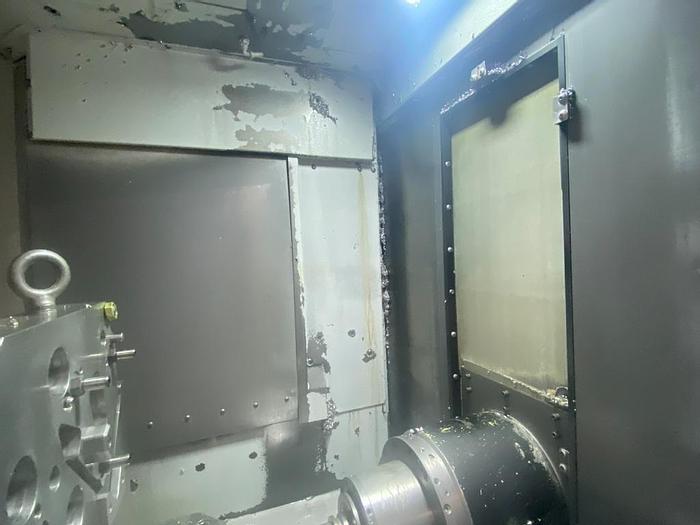

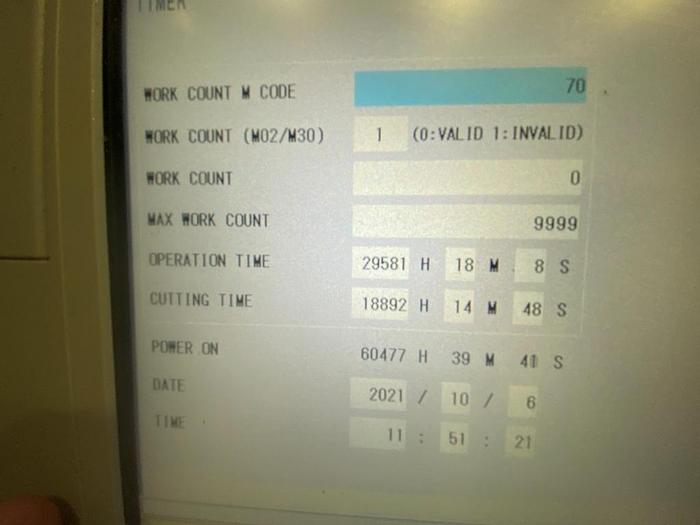

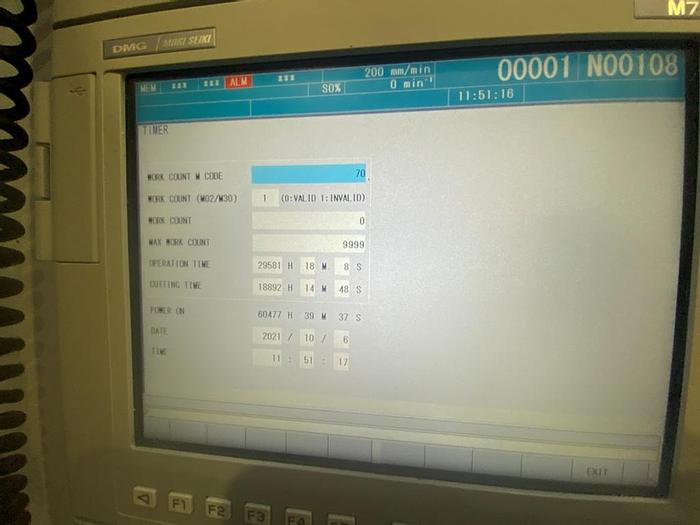

Cutting Hours: 18,892hrs
Condition: Very Good.
Available: Immediately

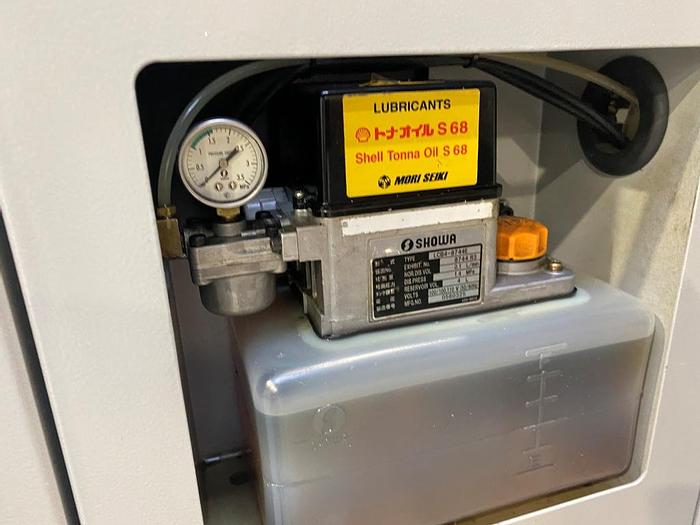

Includes

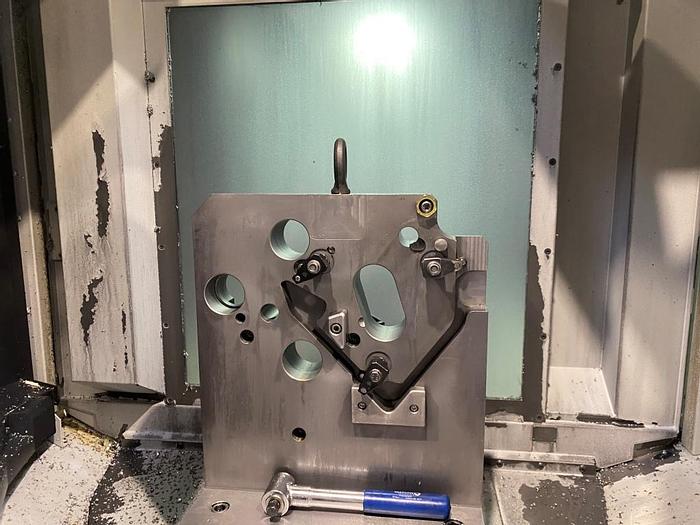

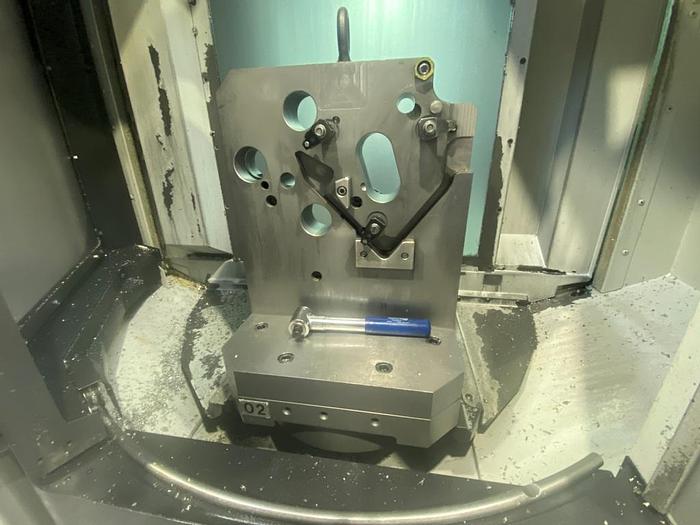

4 x Pallets (2 on machine & 2 Spare)
Tool Holders

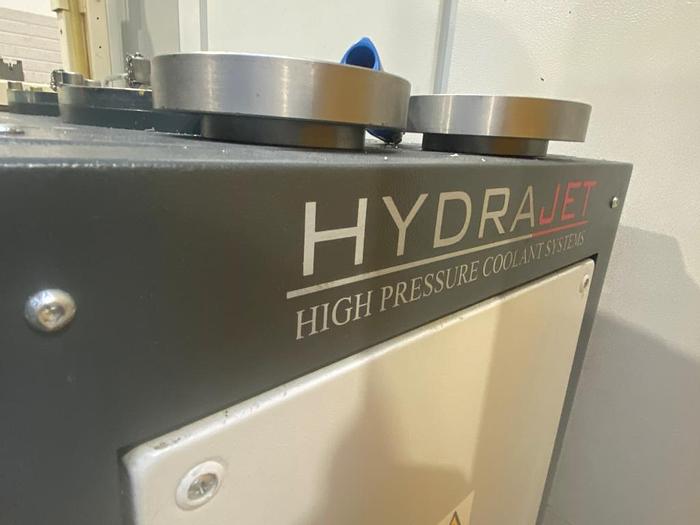

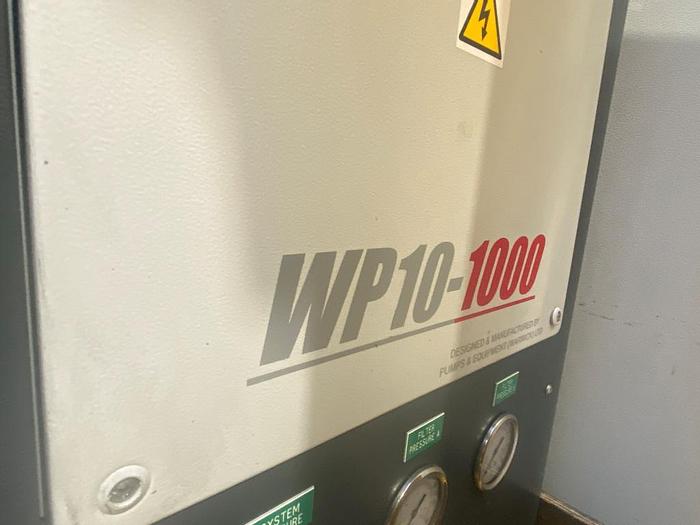

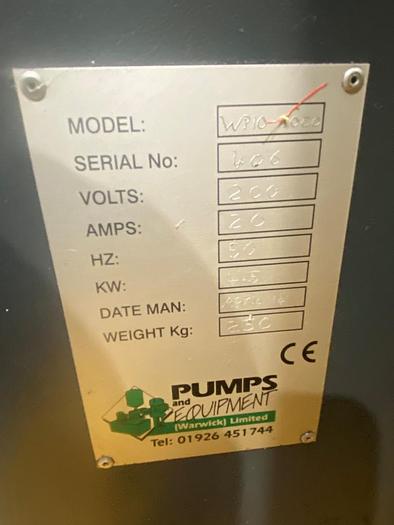

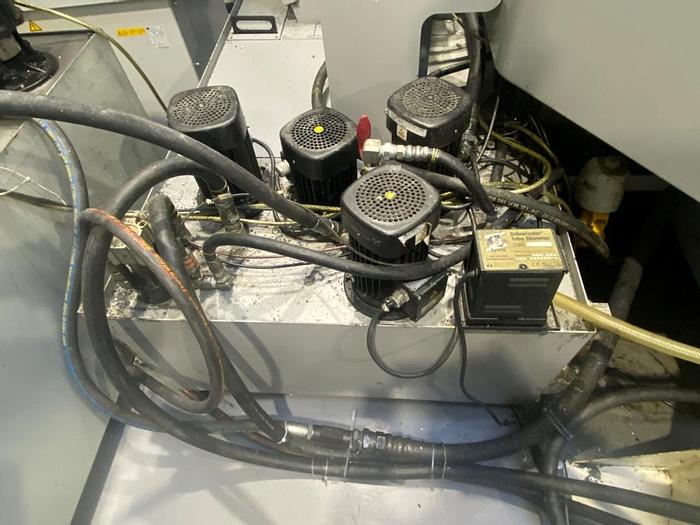

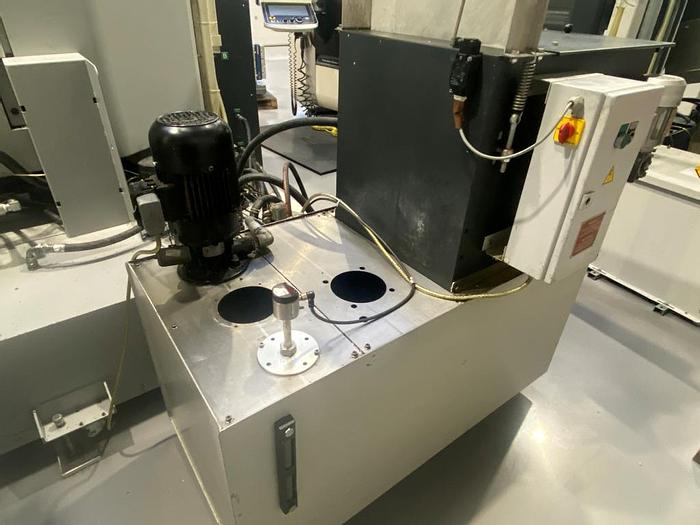

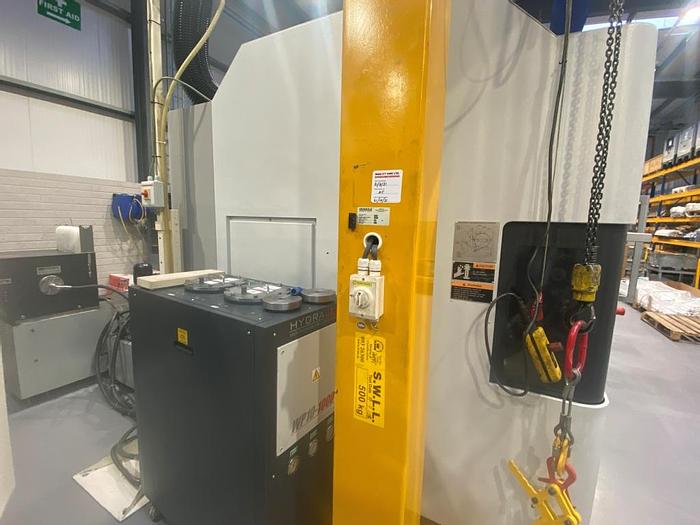

Hydrajet WP10 - 1000 80 Bar High Pressure Coolant Unit

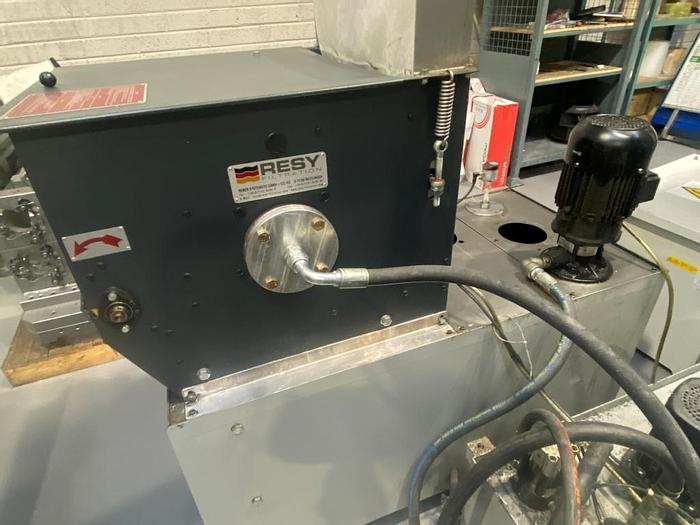

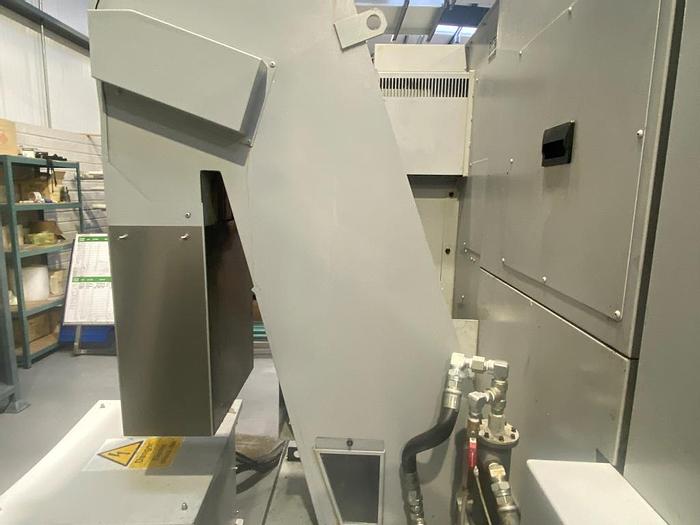

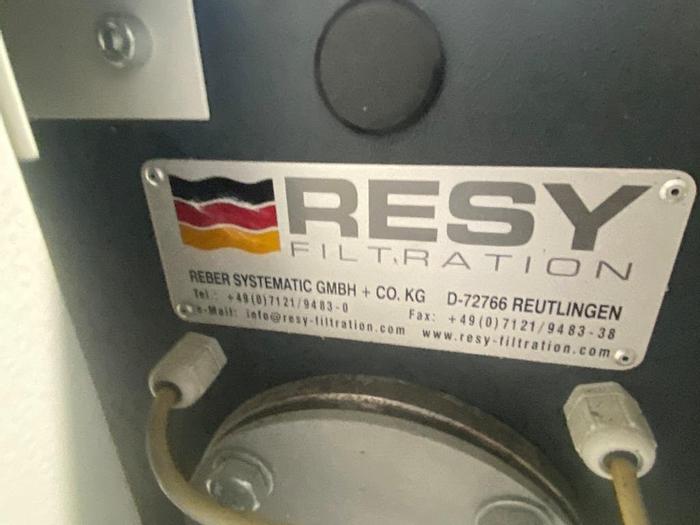

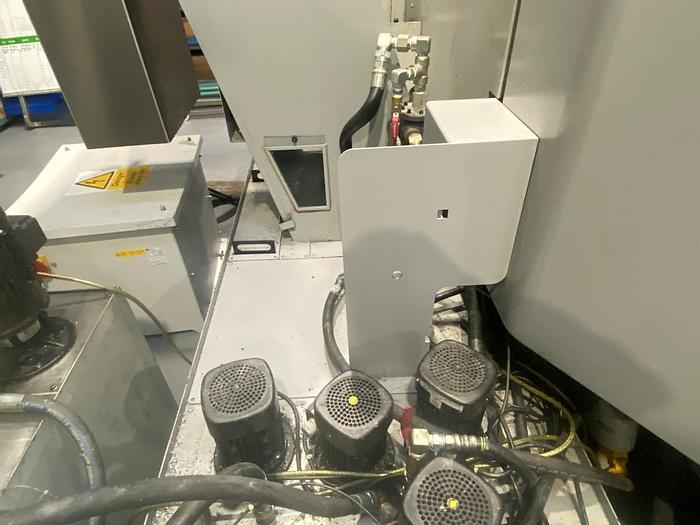

Resy Coolant Filtration Unit
Spare Parts

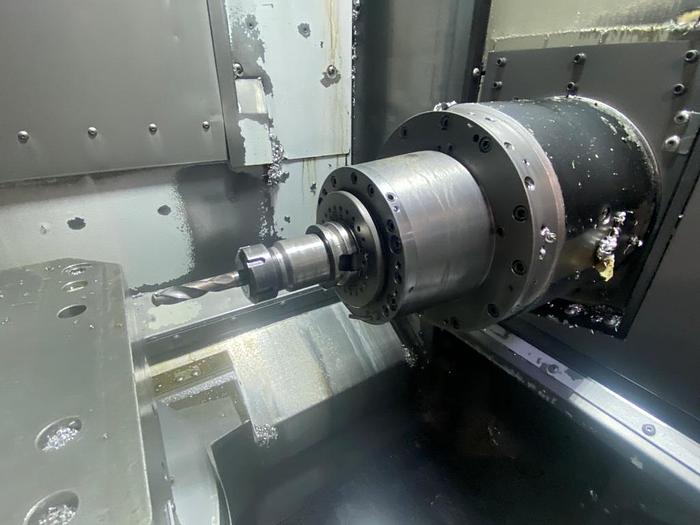

Spare Spindle

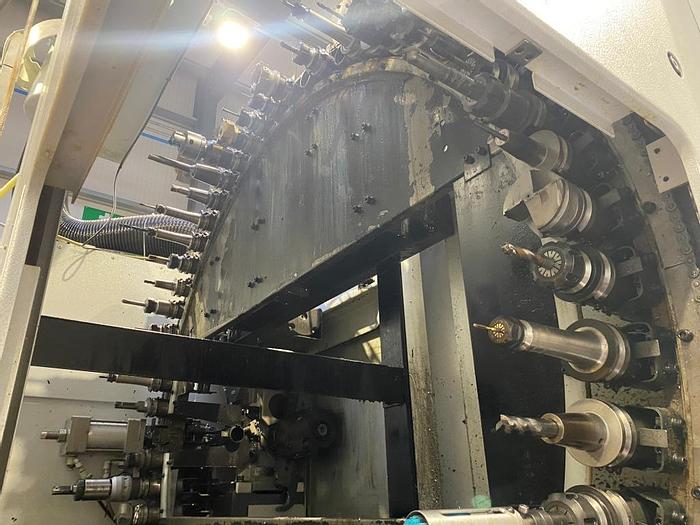

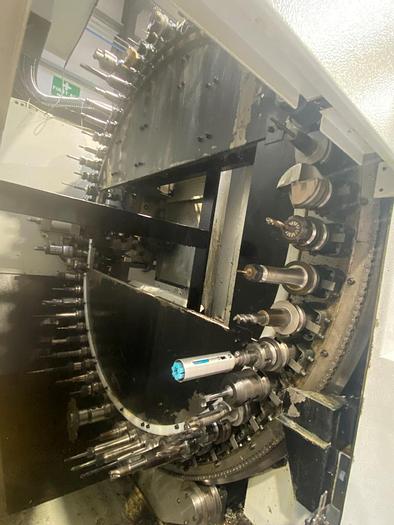

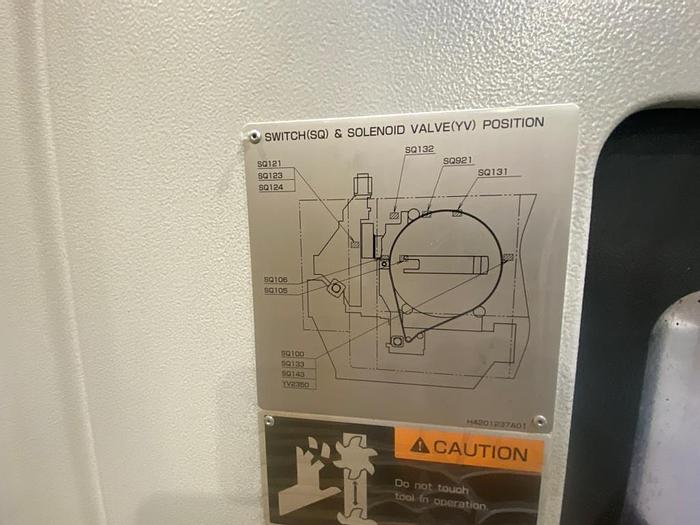

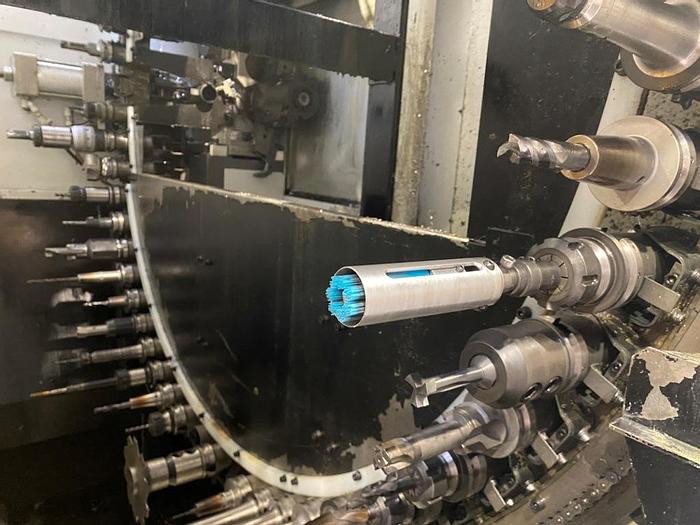

60 Tool ATC

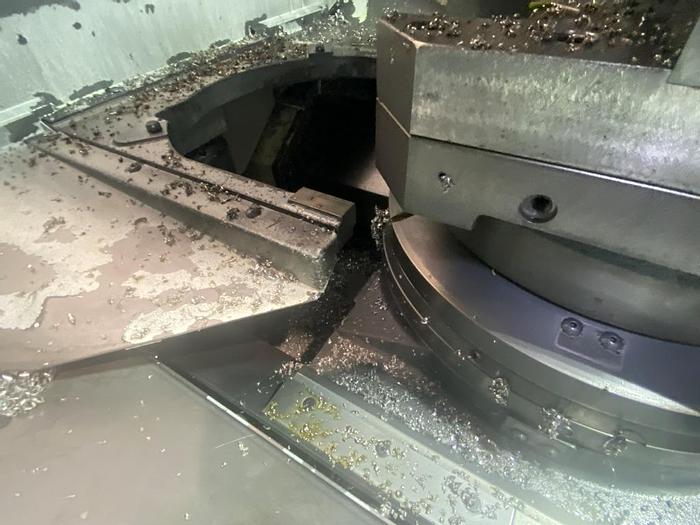

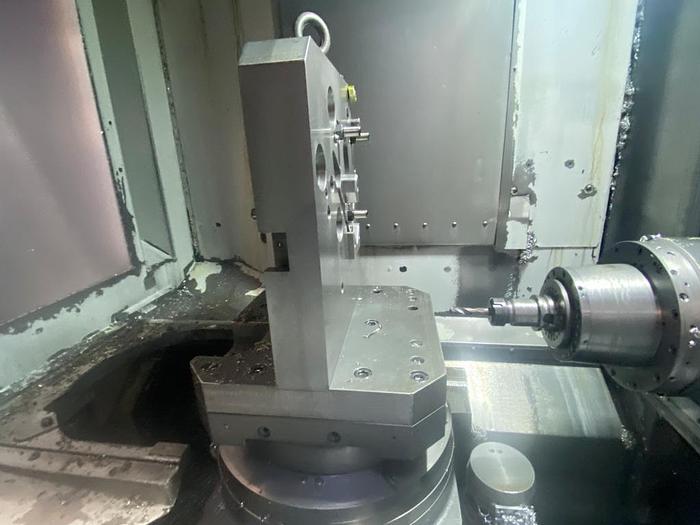

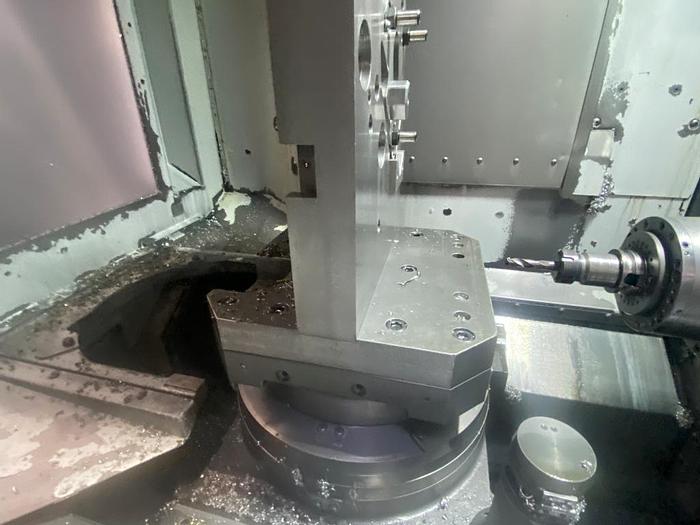

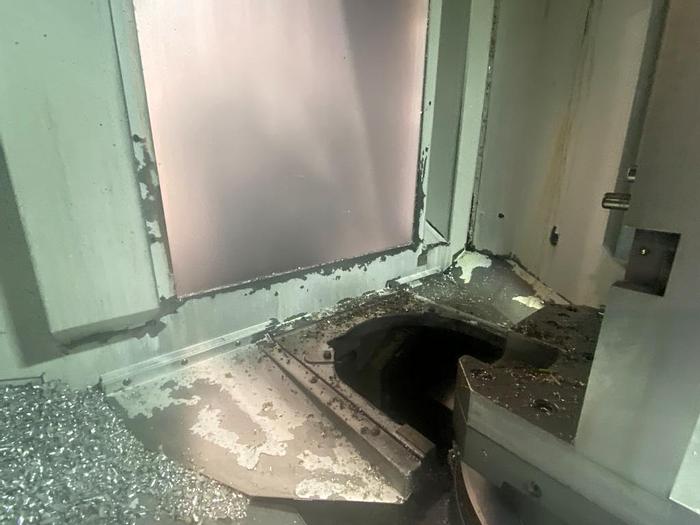

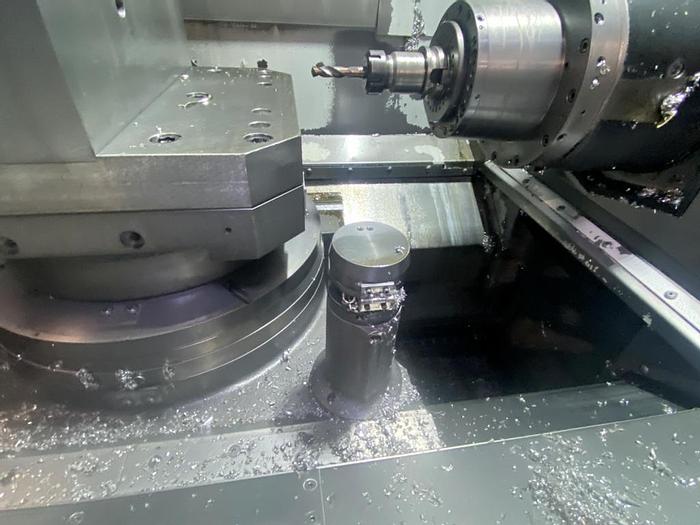

Full 4th Axis Rotary Table
Through Spindle Coolant
Coolant Flow Switch

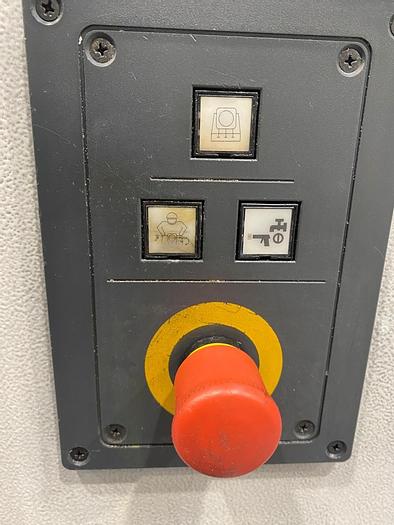

Signal Tower
5 x External M Codes

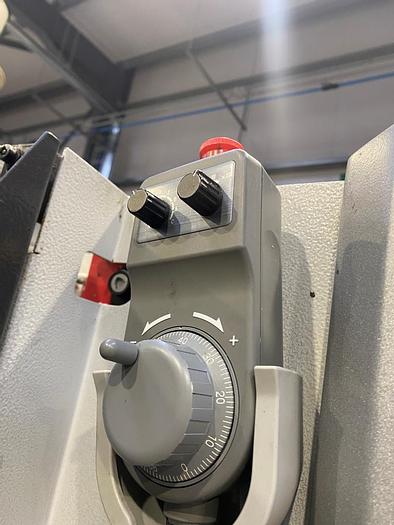

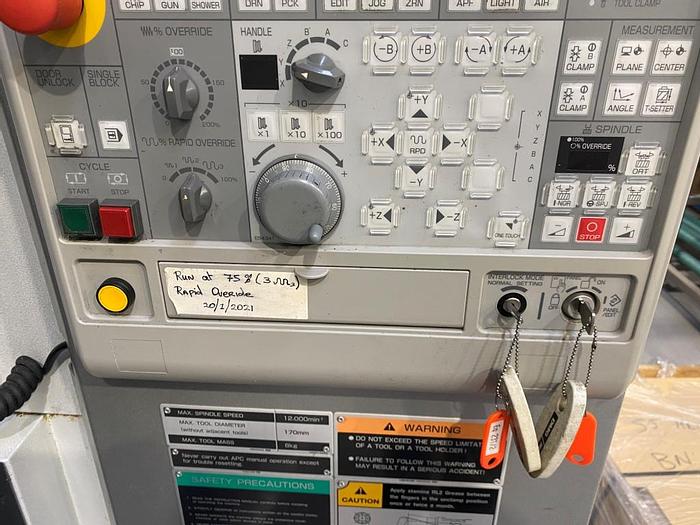

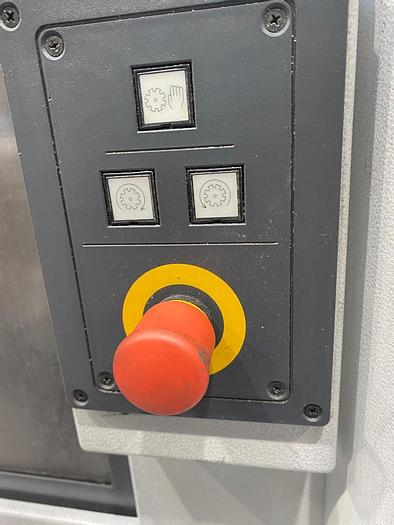

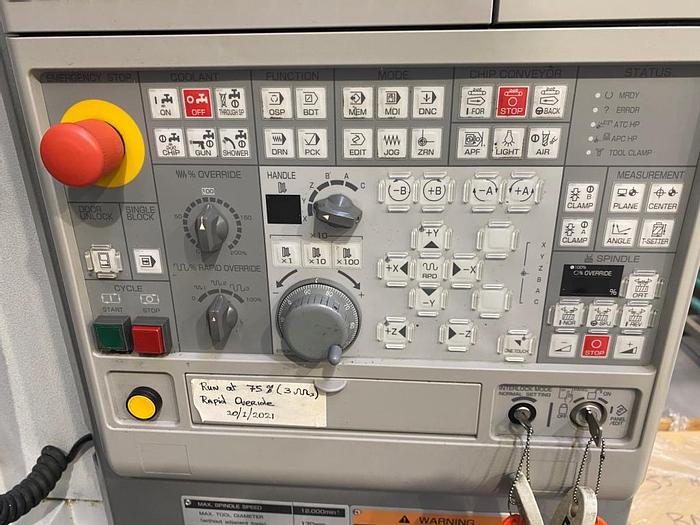

Manual Pulse Generator

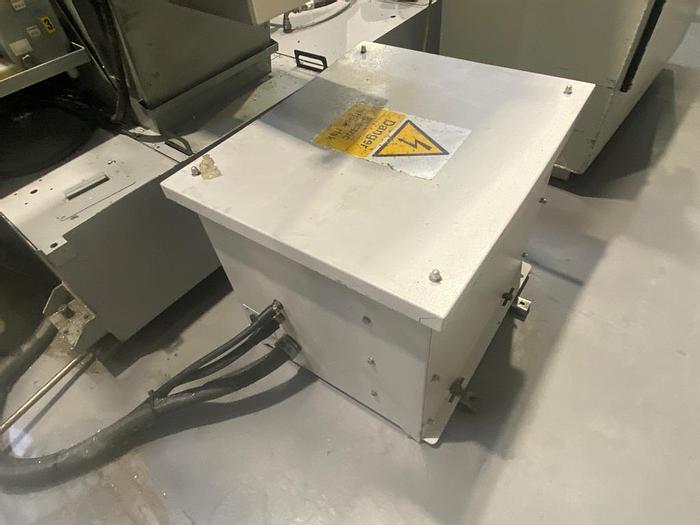

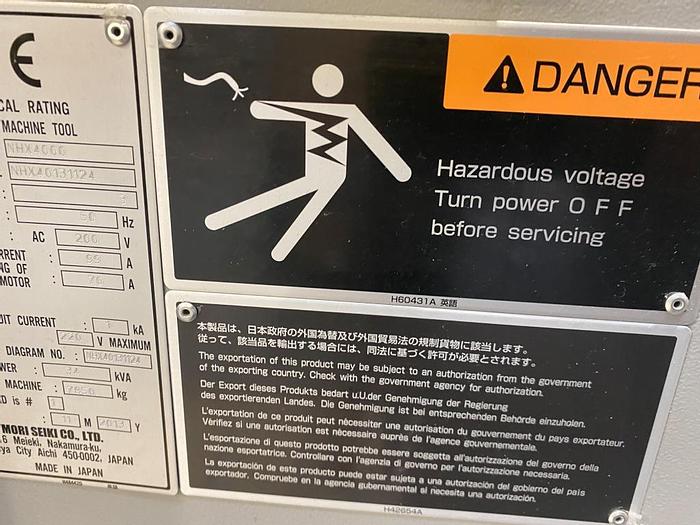

54kVA Transformer

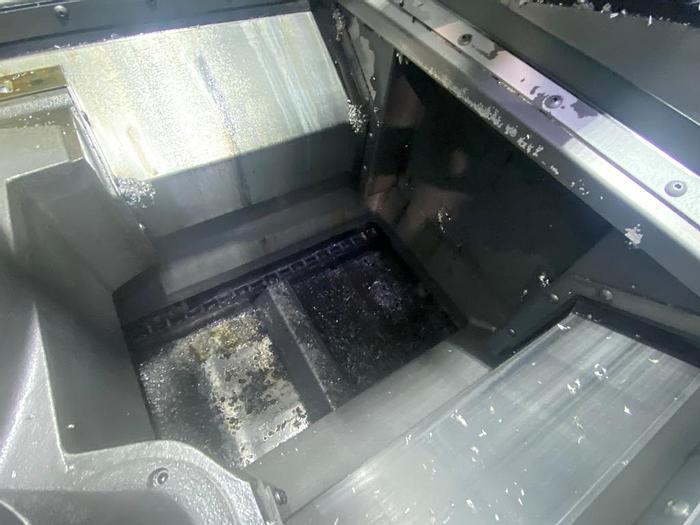

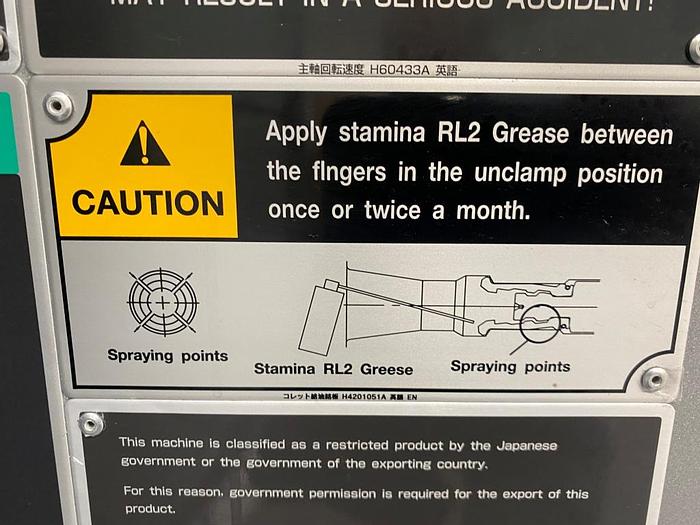

Machine Highlights
- Rapid traverse rate (X/Y/Z): 60 m/min
- Direct scale feedback as standard
- Approx. 40% reduction in total power consumption compared to conventional models
- 14% larger spindle bearing I.D. to offer increased rigidity
- High-rigidity bed with three-point support
Technical Specification
X-axis Travel: 560mm
Y-axis Travel: 560mm
Z-axis Travel: 660mm
No of Pallets: 2
Pallet Change Time: 8sec
Distance from pallet surface to spindle center: 80 - 640mm
Distance from pallet center to spindle gage plane: 70 - 730mm
Pallet Height from floor to pallet surface: 1,050mm
Pallet working surface: 400 x 400mm
Pallet loading capacity: 400kg
Maximum workpiece swing diameter: 630mm
Maximum workpiece height: 900mm
Pallet surface configuration (tap size x holes, pitch): M16x 24,80 mm
Minimum pallet Indexing angle: 0.001Deg Full indexing table
Pallet indexing time (including clamping and unclamping time - 90 deg): 0.65 Sec

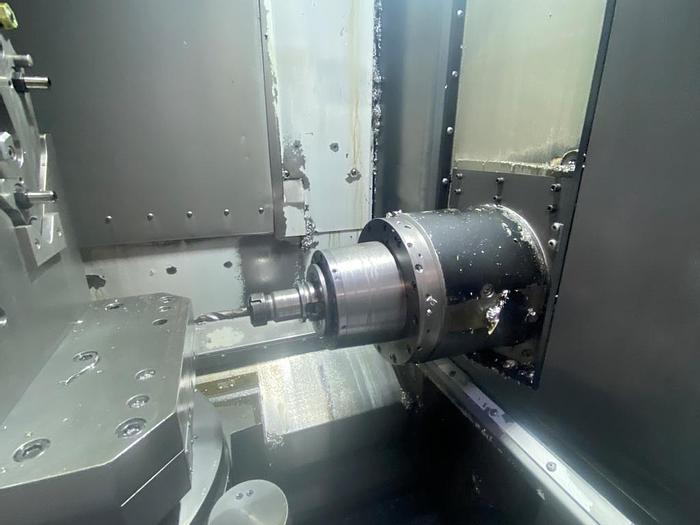

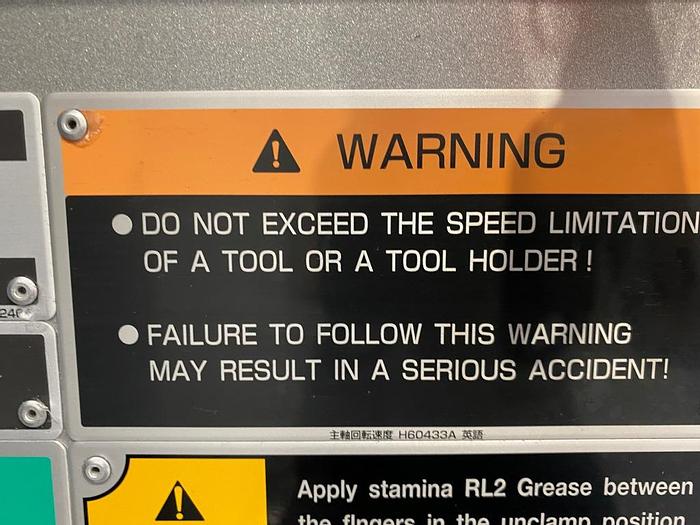

Maximum spindle speed: 12,000rpm
Number of spindle speed ranges: 1
Type of spindle taper hole: BT40
Spindle bearing inner diameter: 80mm
Rapid traverse rate X Axis: 60,000mm/min
Rapid traverse rate Y Axis: 60,000mm/min
Rapid traverse rate Z Axis: 45,000mm/min
ATC Capacity: 60 Tool Ring Type
Tool Shank Taper: BT 40
Max Tool Diameter: 70mm
Max Tool Diameter with Empty Adj. Pocket: 170mm
Max Tool Length: 450mm
Max Tool Weight: 8kg
Method of Tool Selection: Random
Tool Changing Time: 0.9sec (T to T)
Spindle Drive Motor: 15kW
X Axis Feed Motor: 3kW
Y Axis Feed Motor: 3kW
Z Axis Feed Motor: 3kW
B Axis Feed Motor: 3kW
Coolant Pump Motor: 2.4kW

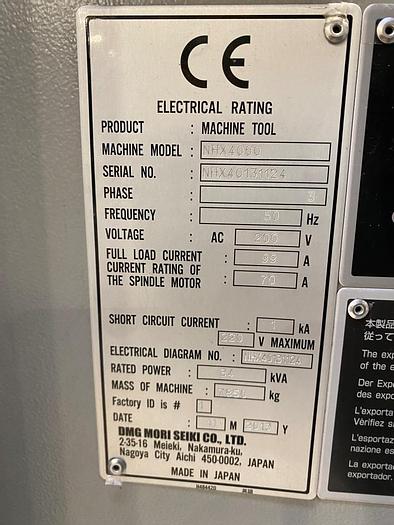

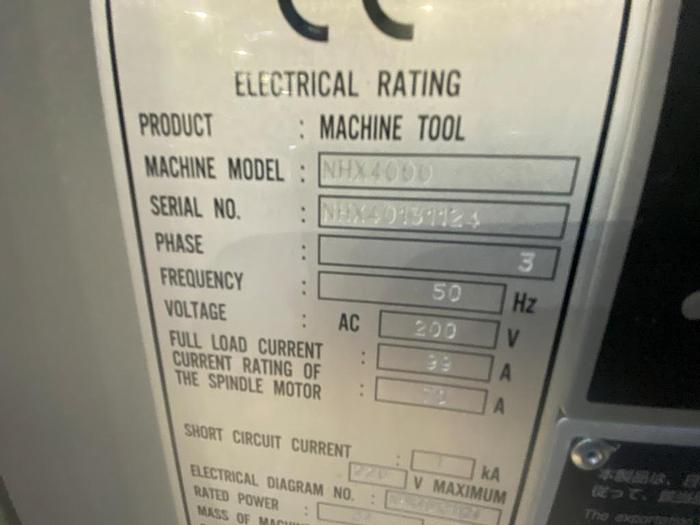

Power Source: 31.3kVA

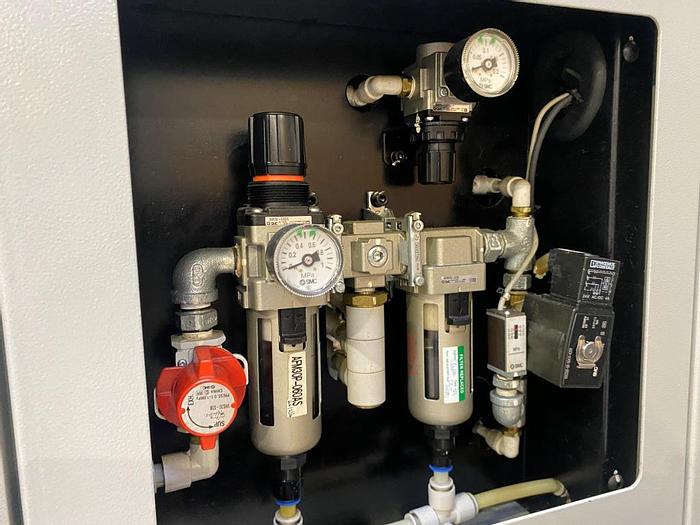

Compressed Air Supply: 0.5MPa, 420L/min
Coolant Tank Capacity: 800L
Machine Dimensions: 2,720 x 4224 x 2513mm
Machine Weight: 7,600kg
Specifications
| Manufacturer | DMG Mori |
| Model | NHX 4000 Horizontal Machining Center |
| Year | 2013 |
| Condition | Used |
| Serial Number | NHX40131124 |
| Machine Type | Horizontal Machining Center |
| Year | 11/2013 |
| Controlled Axis | 4 (X,Y,Z,B) |
| Cutting Hours | 18,892hrs |
| Condition | Very Good. |
| Available | Immediately |
| Rapid traverse rate (X/Y/Z) | 60 m/min |
| X-axis Travel | 560mm |
| Y-axis Travel | 560mm |
| Z-axis Travel | 660mm |
| No of Pallets | 2 |
| Pallet Change Time | 8sec |
| Pallet working surface | 400 x 400mm |
| Pallet loading capacity | 400kg |
| Maximum workpiece swing diameter | 630mm |
| Maximum workpiece height | 900mm |
| Minimum pallet Indexing angle | 0.001Deg Full indexing table |
| Maximum spindle speed | 12,000rpm |
| Spindle bearing inner diameter | 80mm |
| ATC Capacity | 60 Tool Ring Type |
| Tool Shank Taper | BT 40 |
| Max Tool Diameter | 70mm |
| Max Tool Length | 450mm |
| Max Tool Weight | 8kg |
| Method of Tool Selection | Random |
| Tool Changing Time | 0.9sec (T to T) |
| Spindle Drive Motor | 15kW |
| X Axis Feed Motor | 3kW |
| Y Axis Feed Motor | 3kW |
| Z Axis Feed Motor | 3kW |
| B Axis Feed Motor | 3kW |
| Coolant Pump Motor | 2.4kW |
| Power Source | 31.3kVA |
| Compressed Air Supply | 0.5MPa, 420L/min |
| Coolant Tank Capacity | 800L |
| Machine Weight | 7,600kg |
