2017 DMG Mori NHX 4000 Horizontal Machining Center
Description

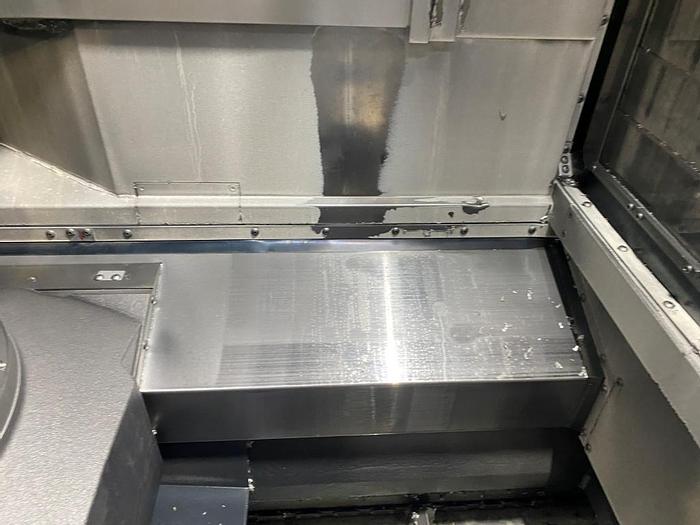

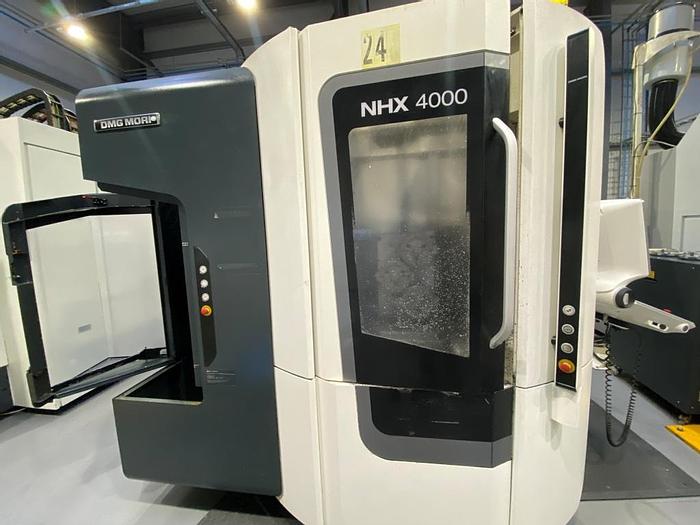

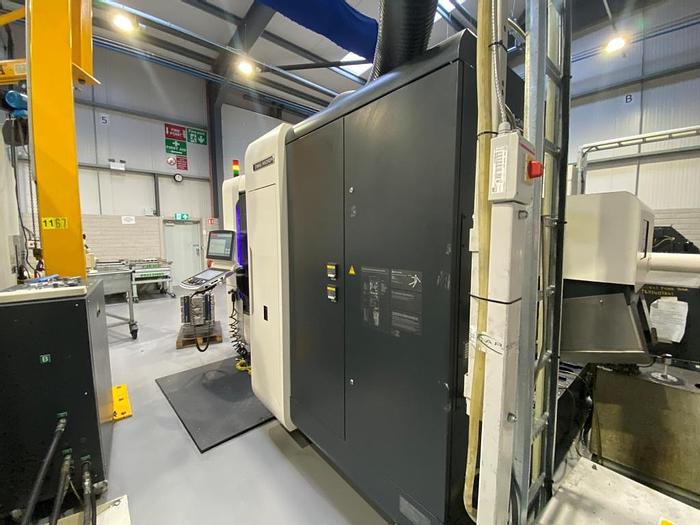

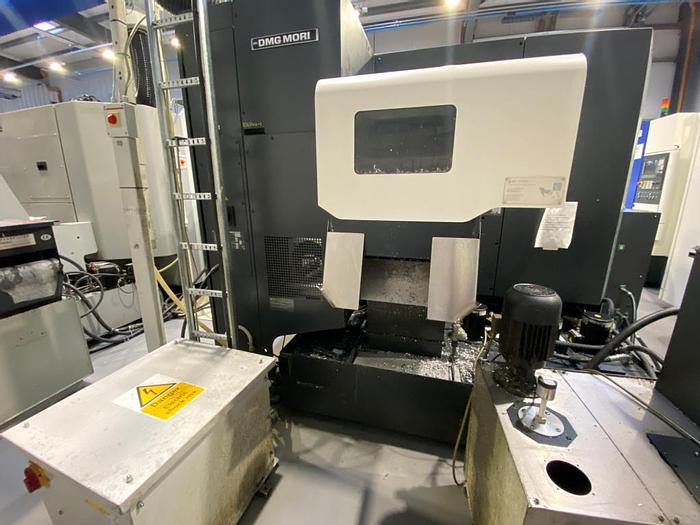

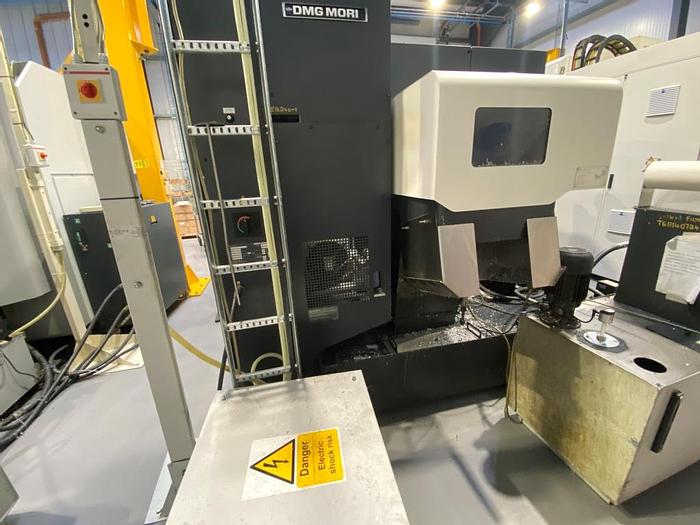

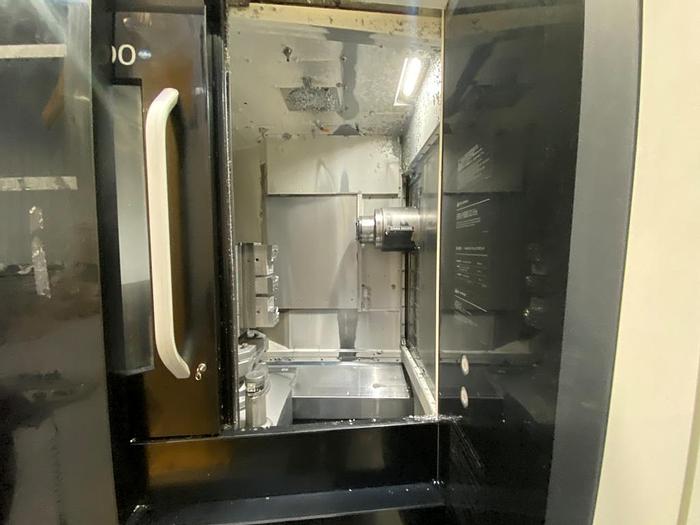

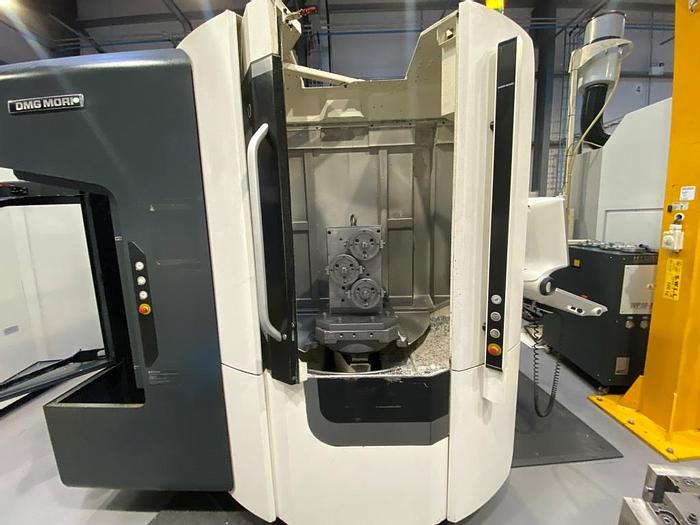

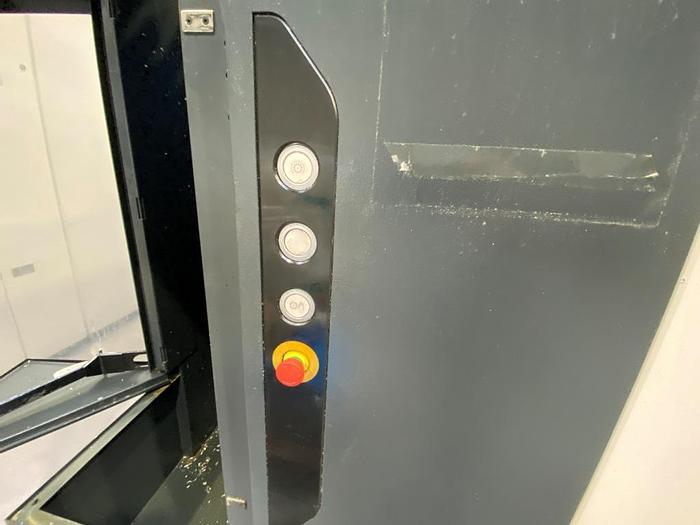

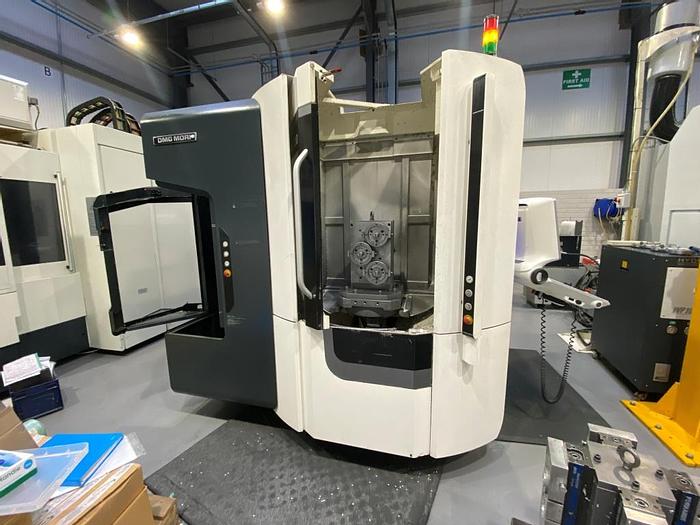

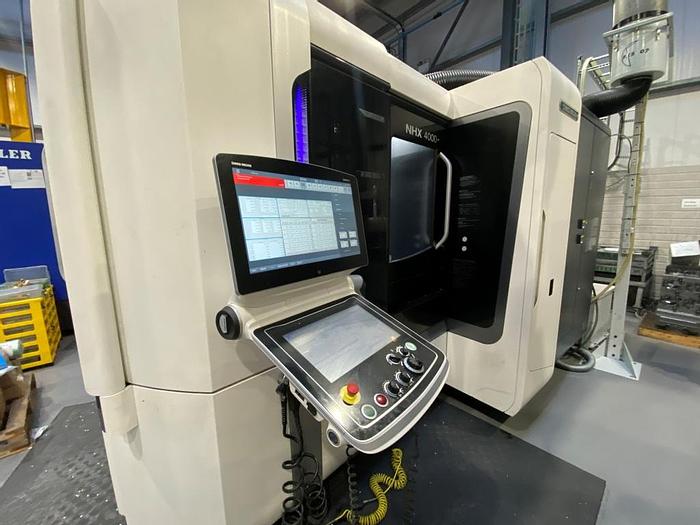

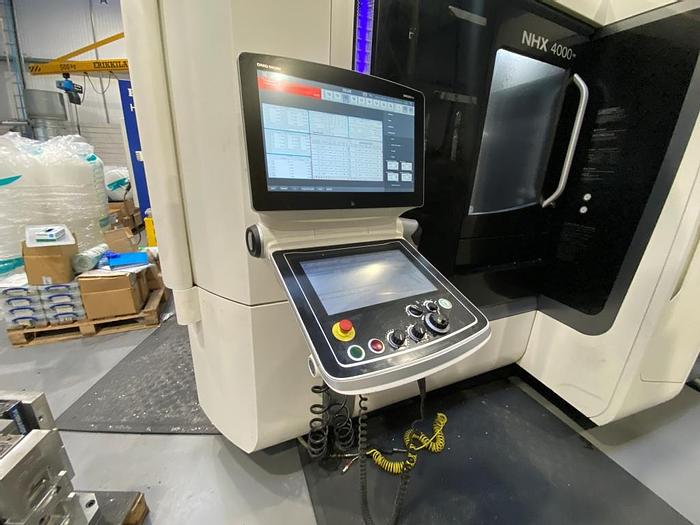

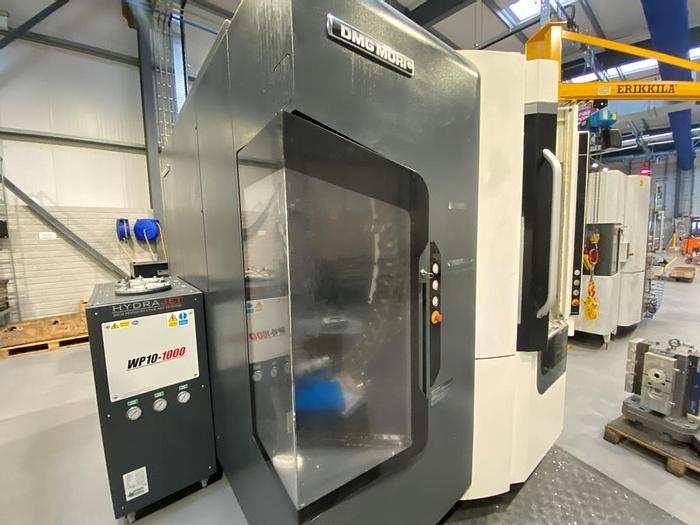

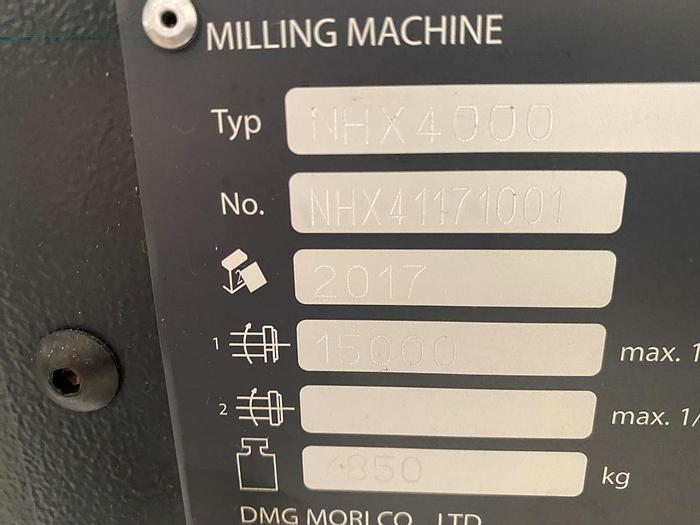

2017 DMG MORI NHX 4000 Horizontal Machining Center
Machine Type: Horizontal Machining Center
Year: 2017

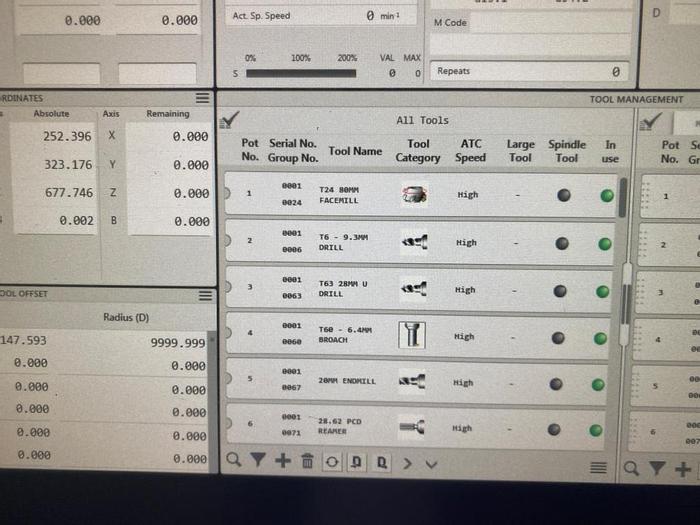

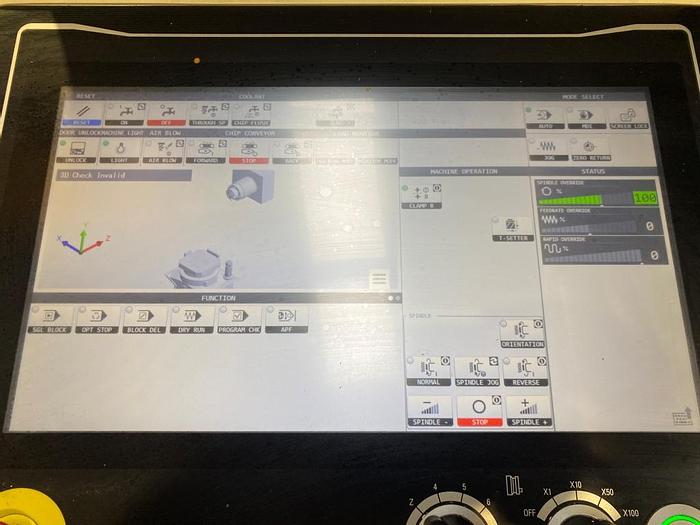

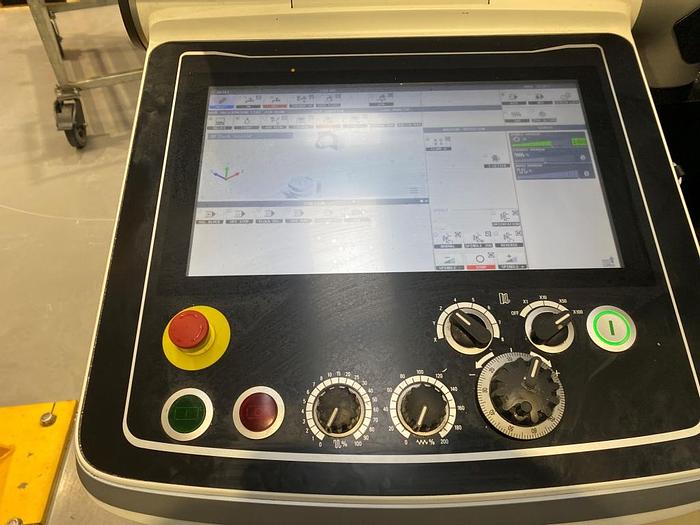

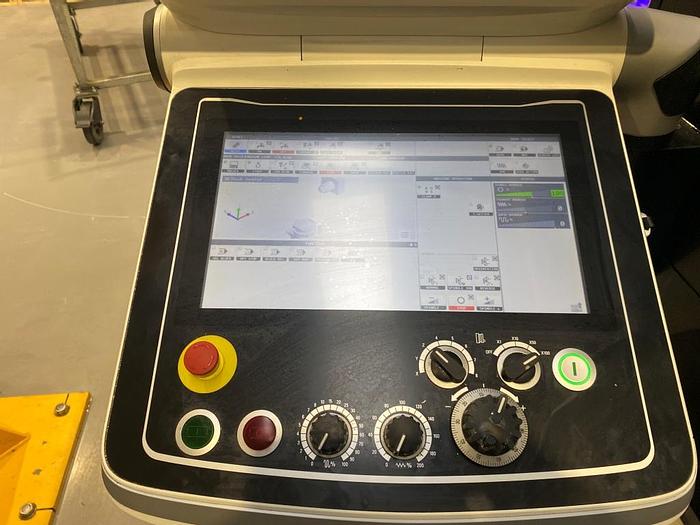

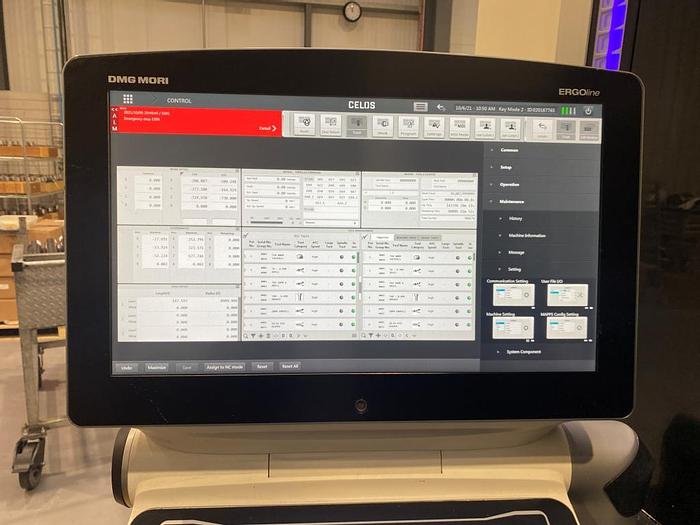

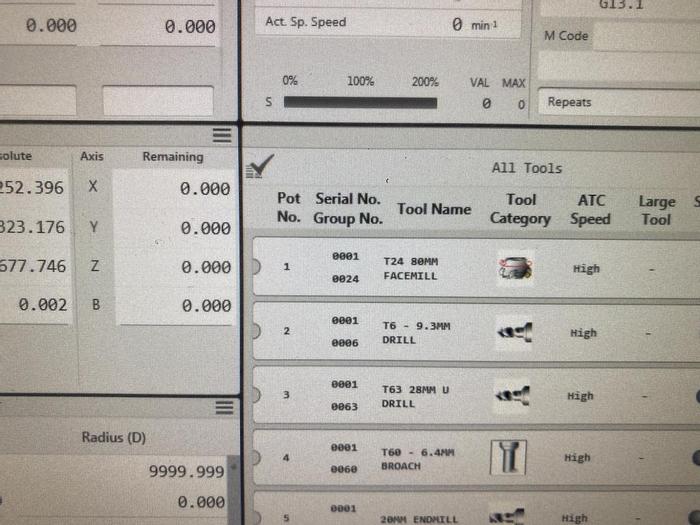

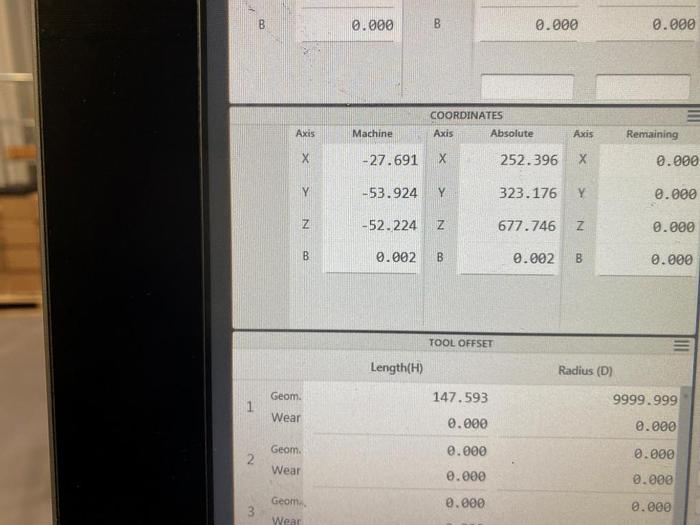

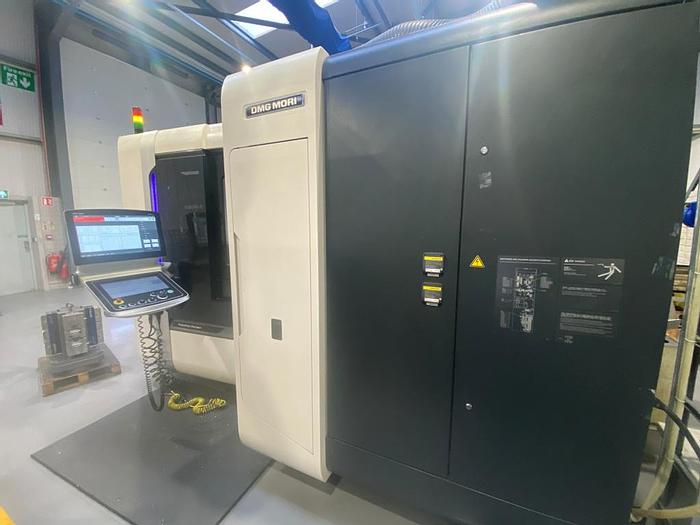

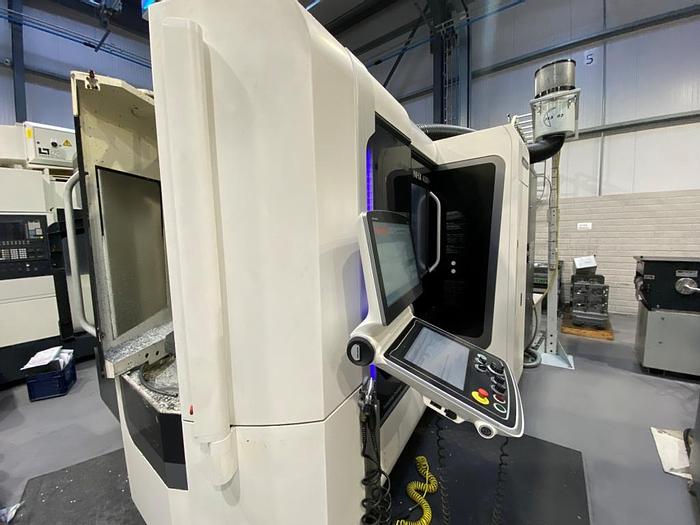

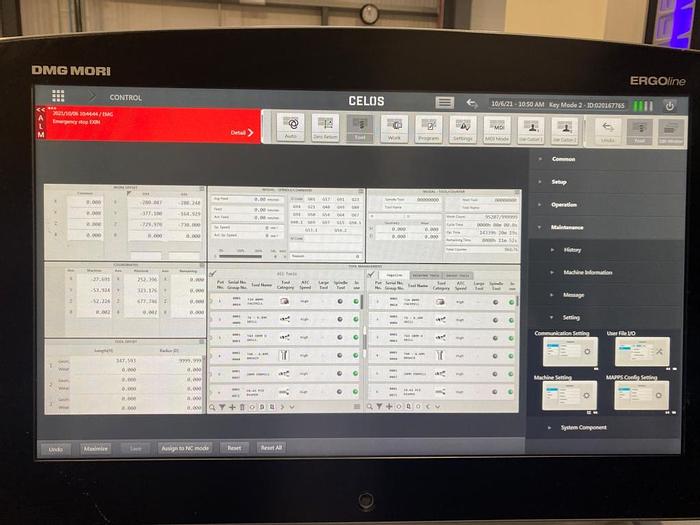

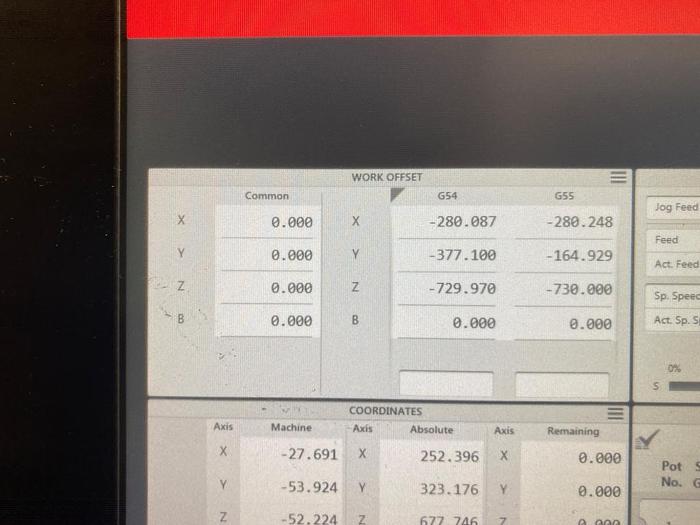

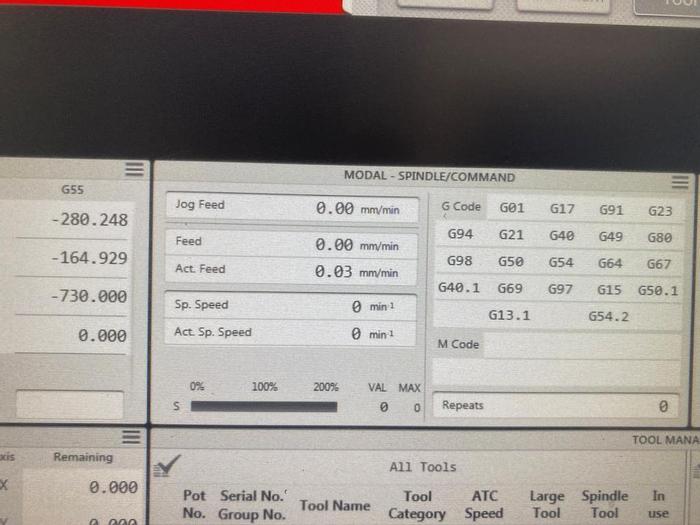

Machine Control: Celos M730UM with Celos/CELOS - ERGOline Touch
Controlled Axis: 4 (X,Y,Z,B)

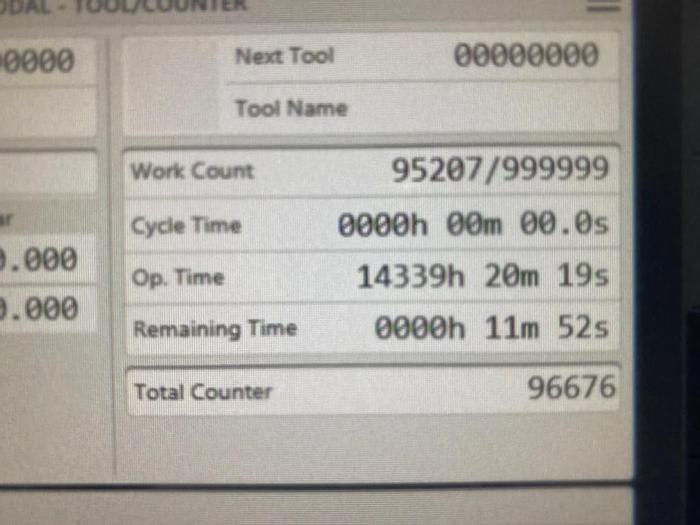

Operating Hours: 14,339hrs
Condition: Excellent
Available: Immediately
Includes:

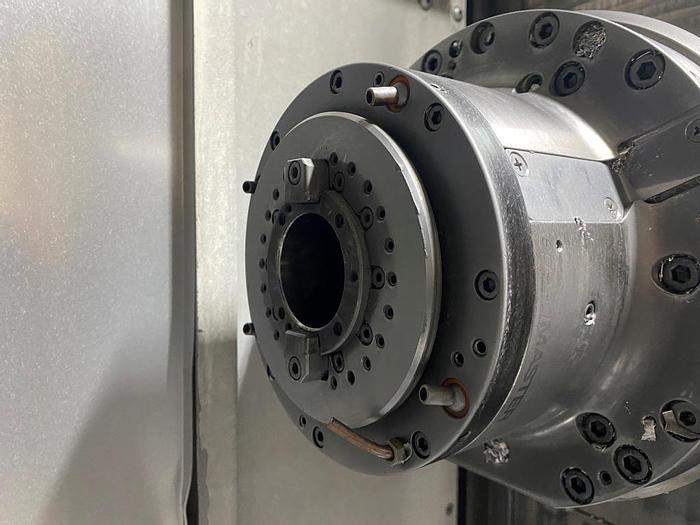

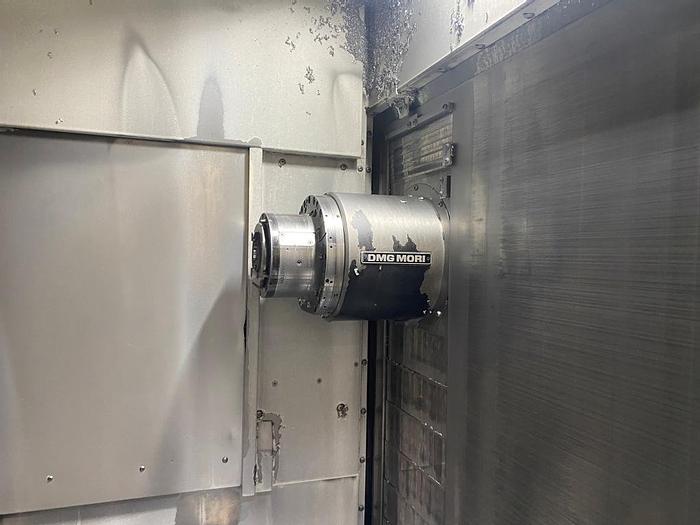

15,000rpm Spindle

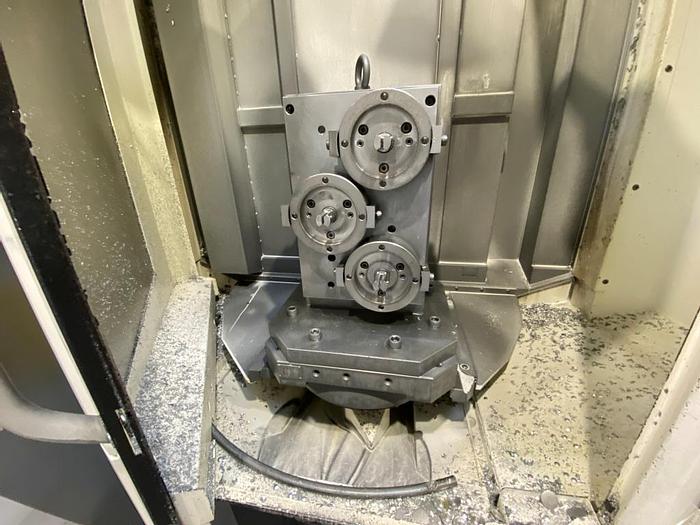

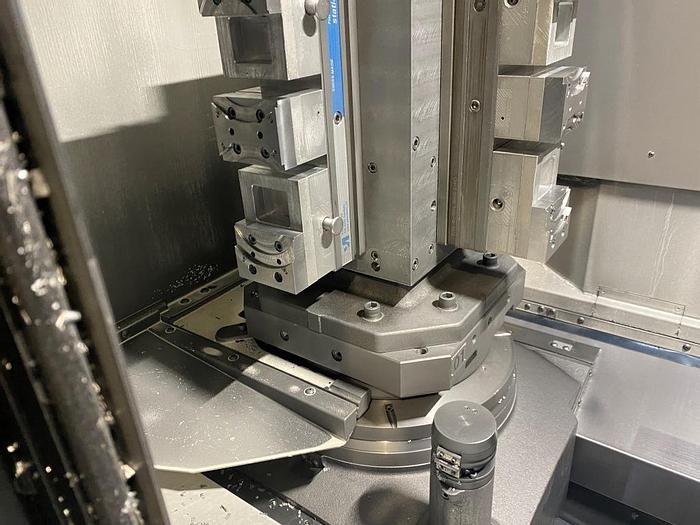

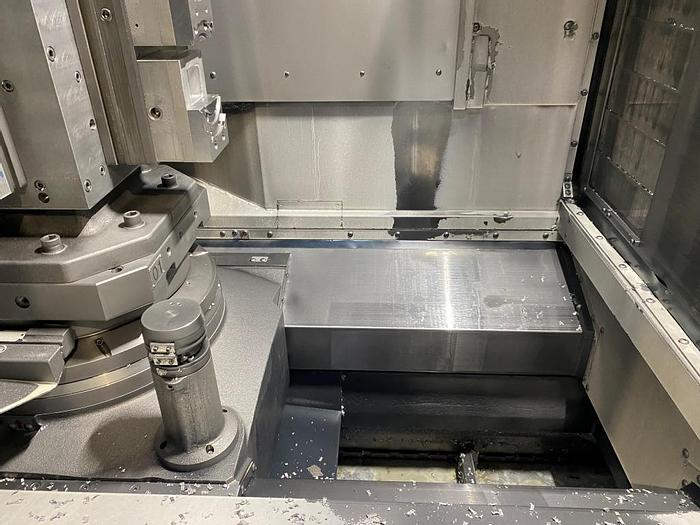

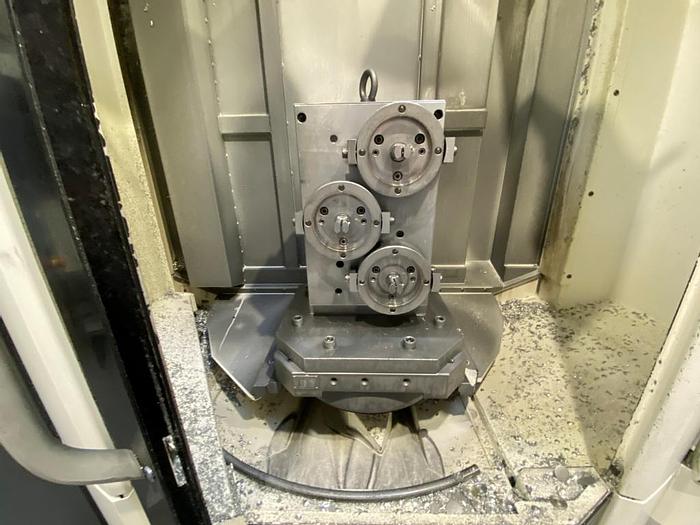

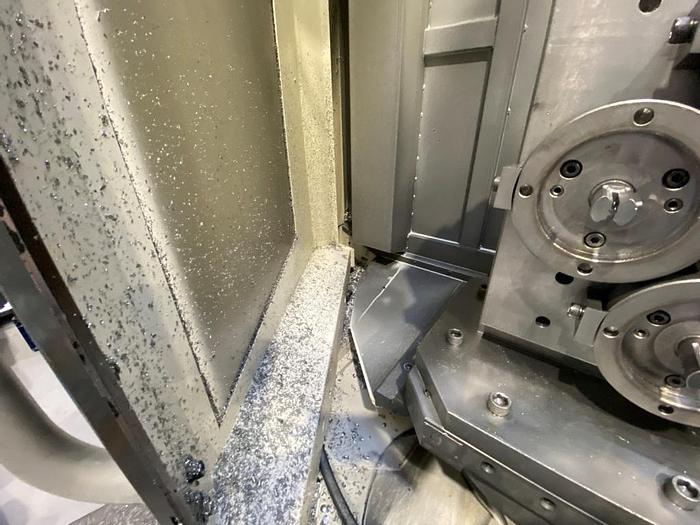

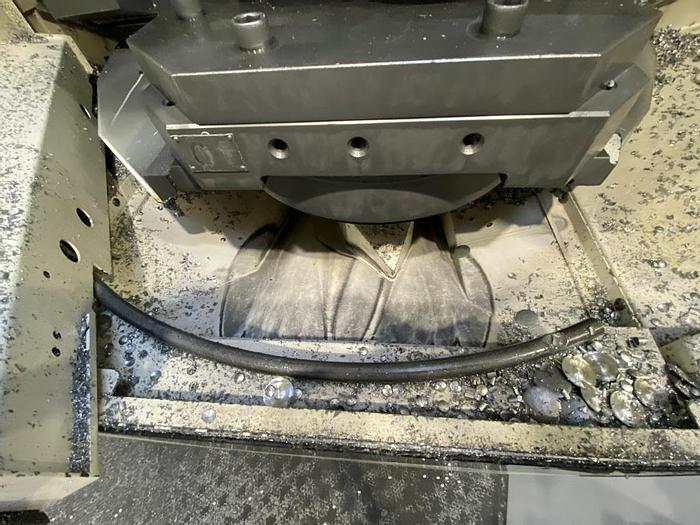

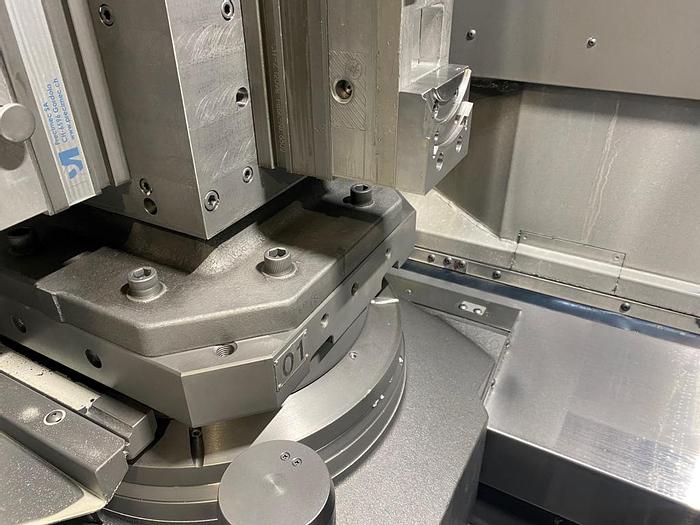

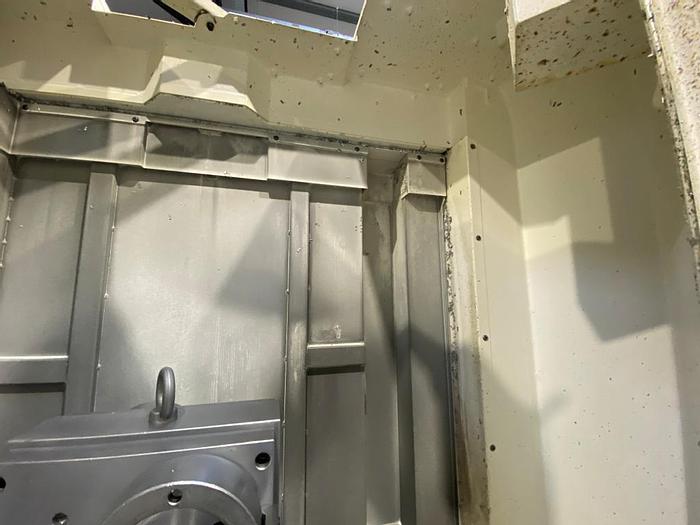

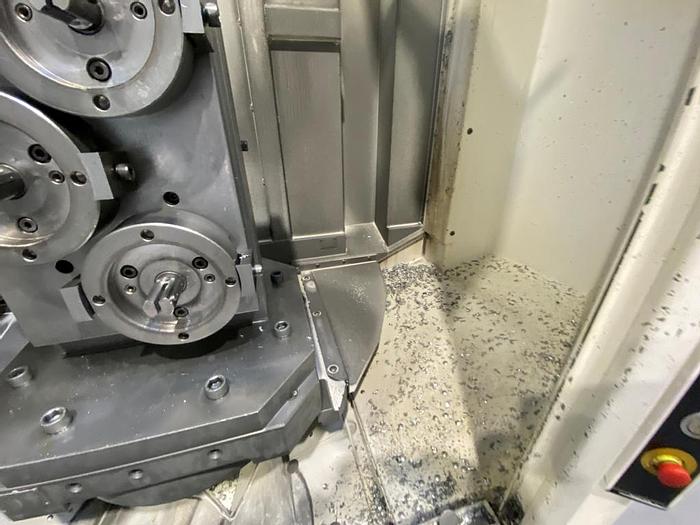

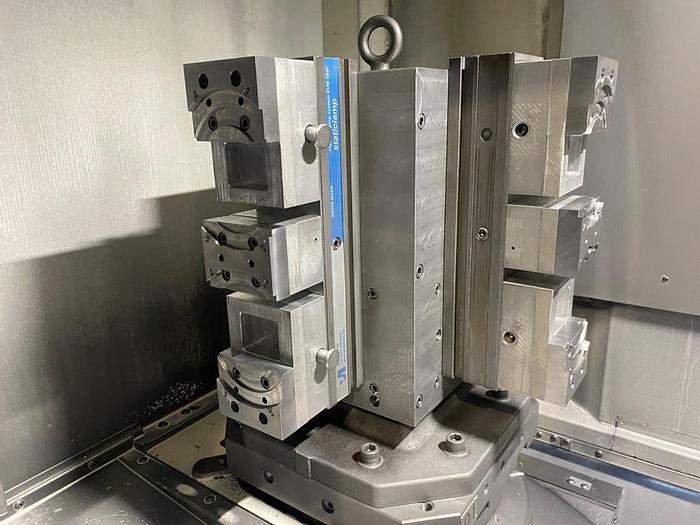

Full 4th Axis Rotary Table

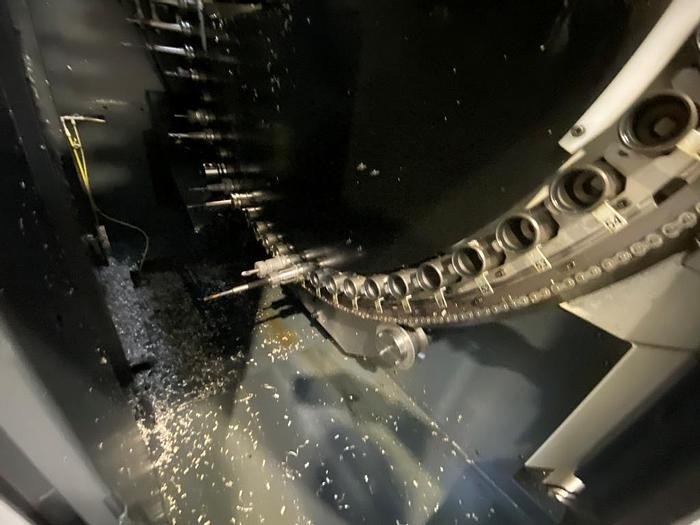

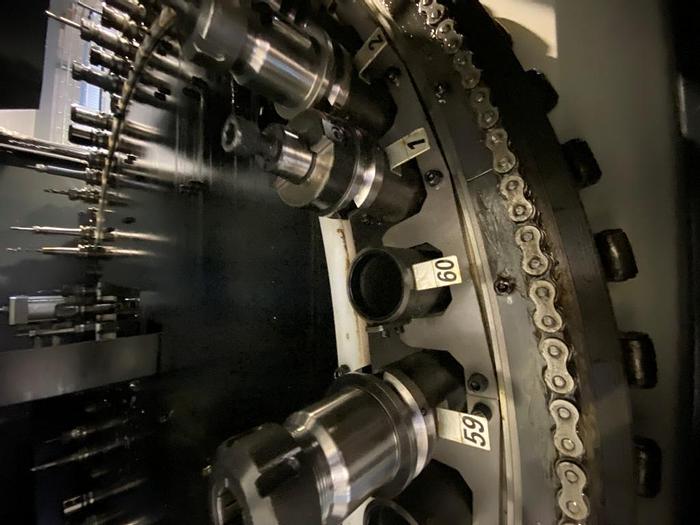

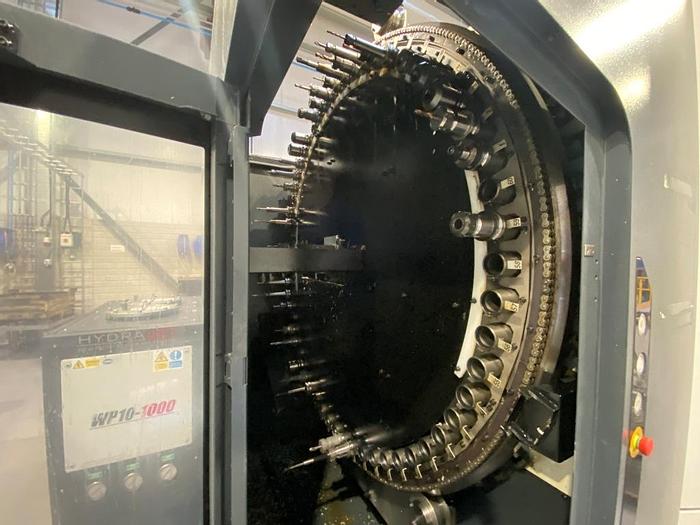

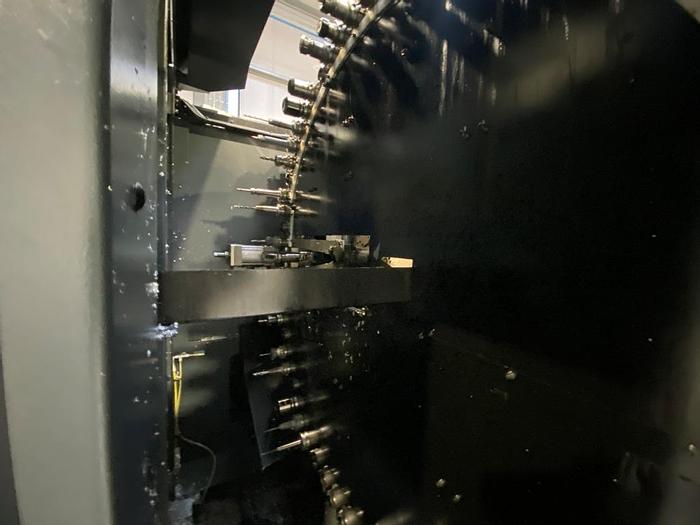

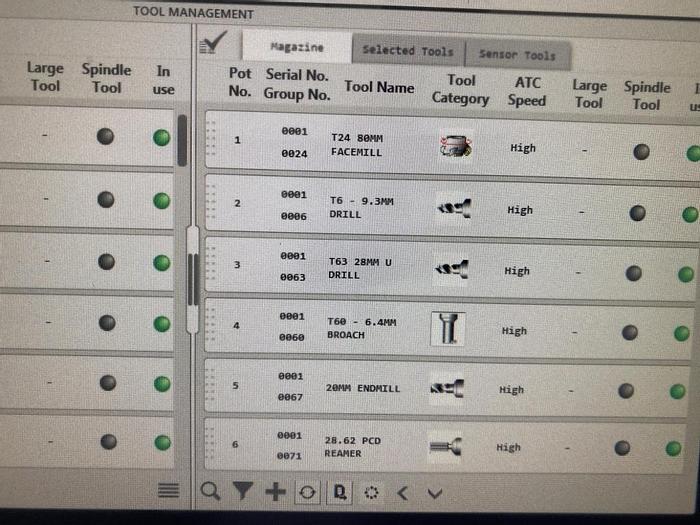

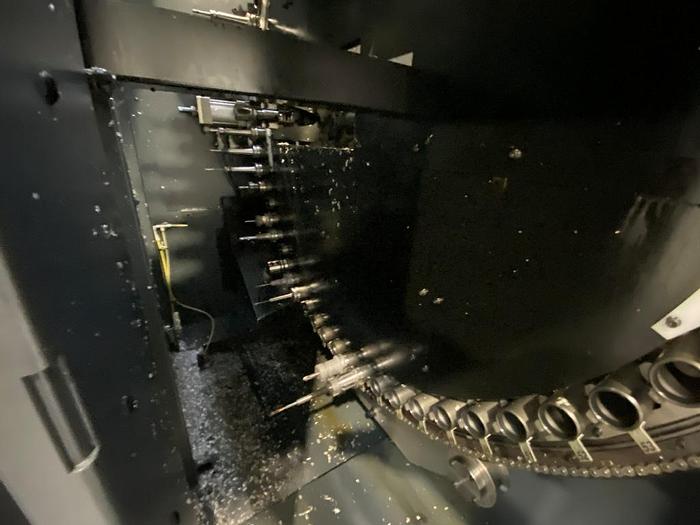

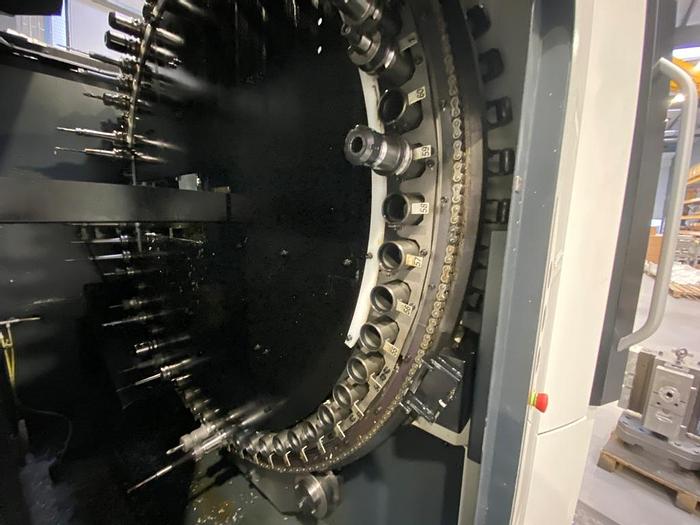

60 Tool ATC
Through Spindle Coolant

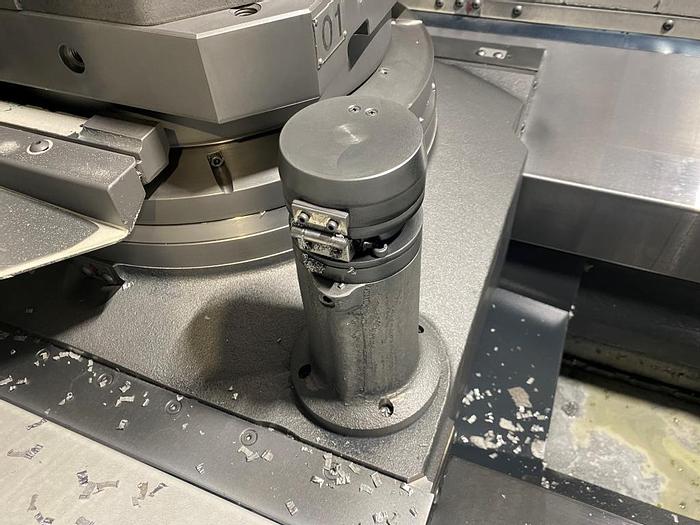

In Machine Measuring & Tool Setter
Manual Pulse Generator

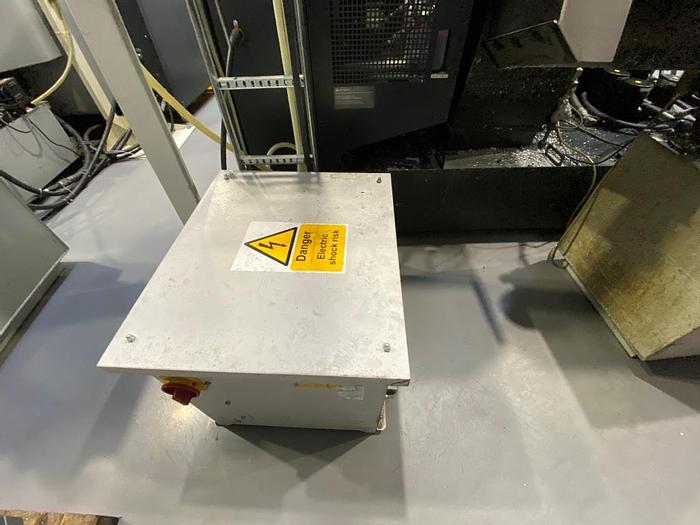

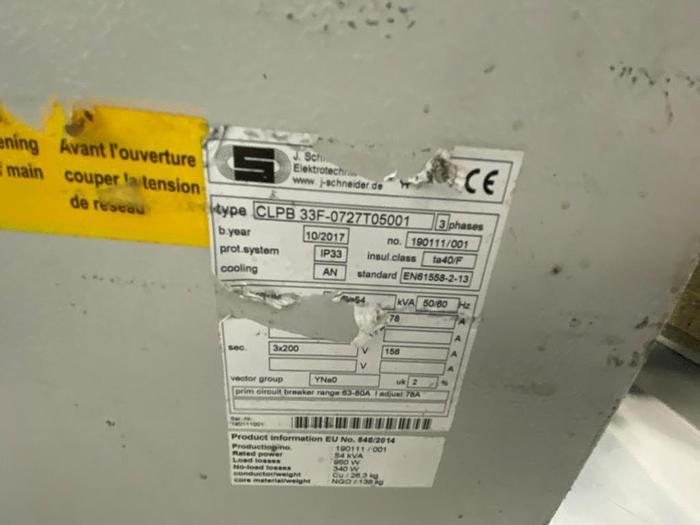

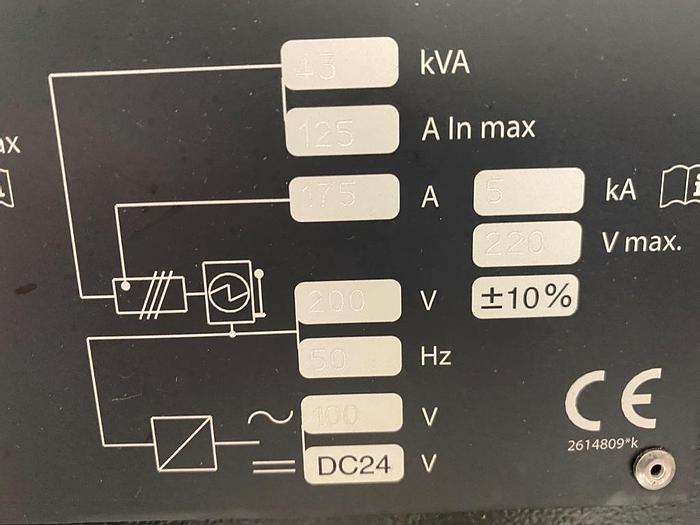

45kVA Transformer

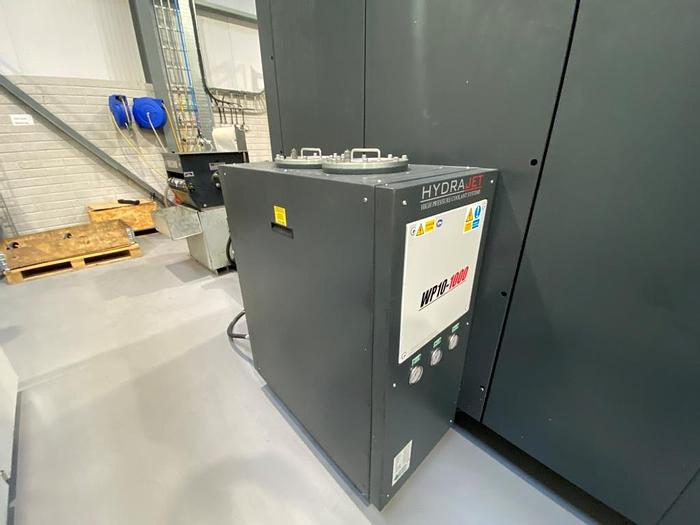

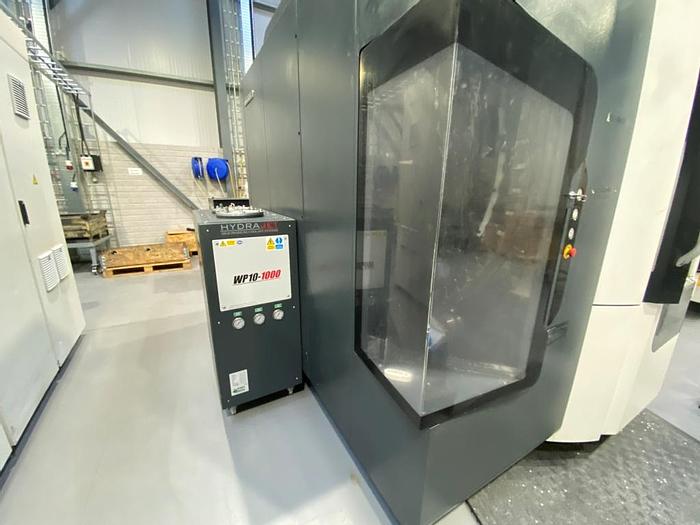

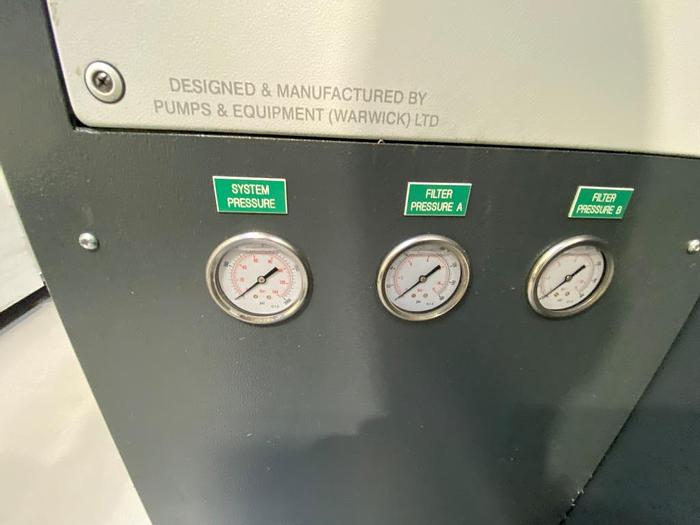

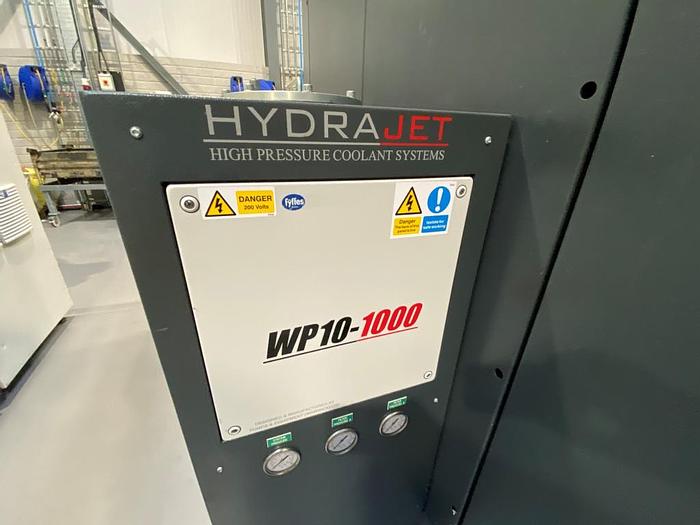

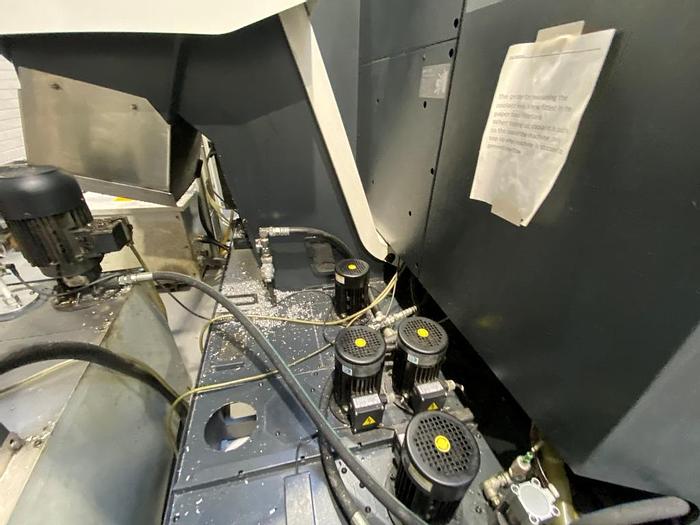

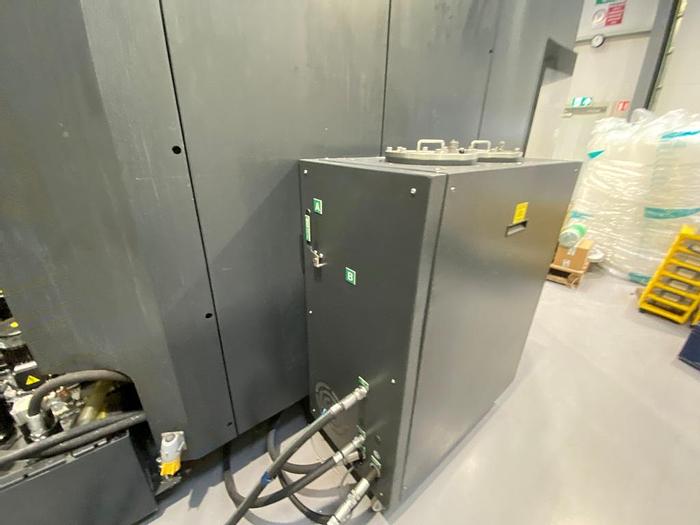

Hydrajet WP10-1000 80 Bar High Pressure Coolant Unit
Filtermist FX 5000 Mist Extraction Unit

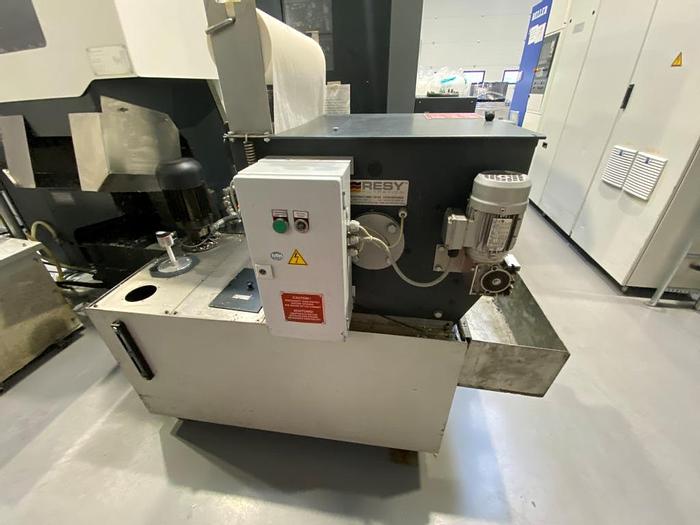

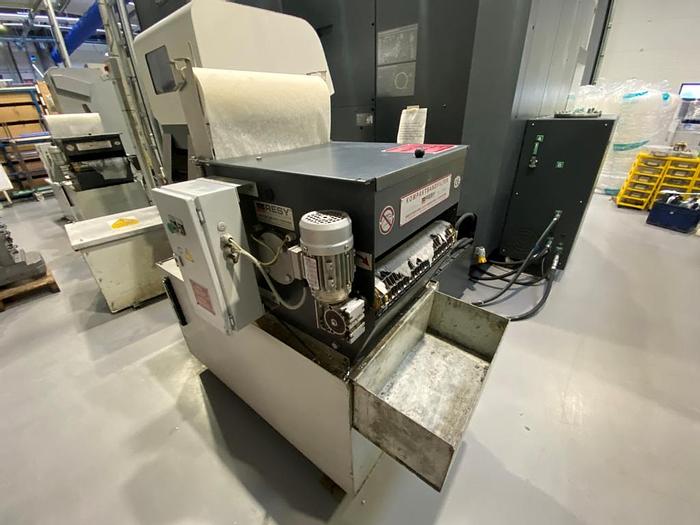

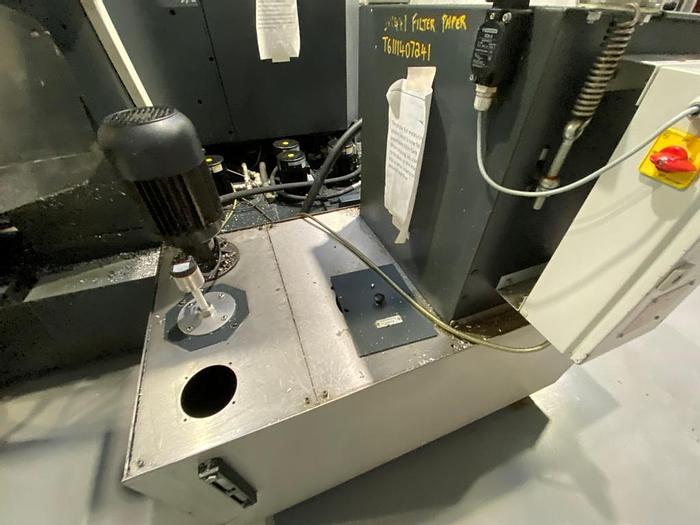

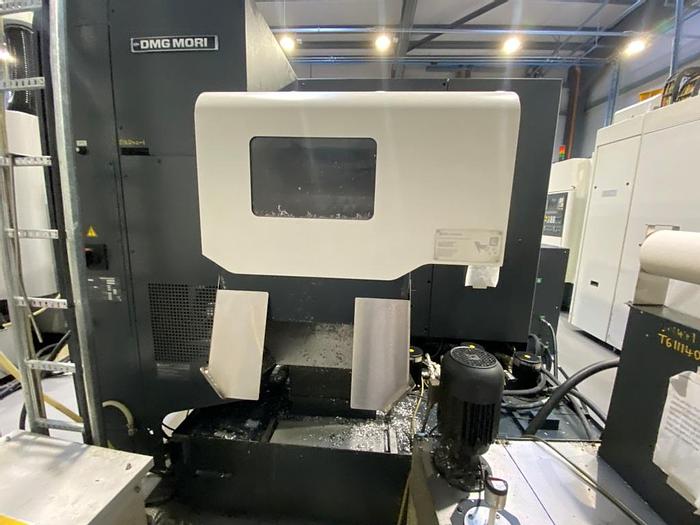

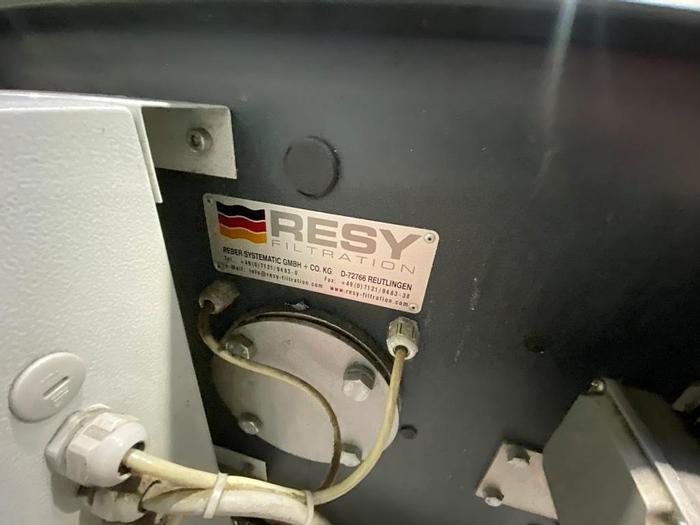

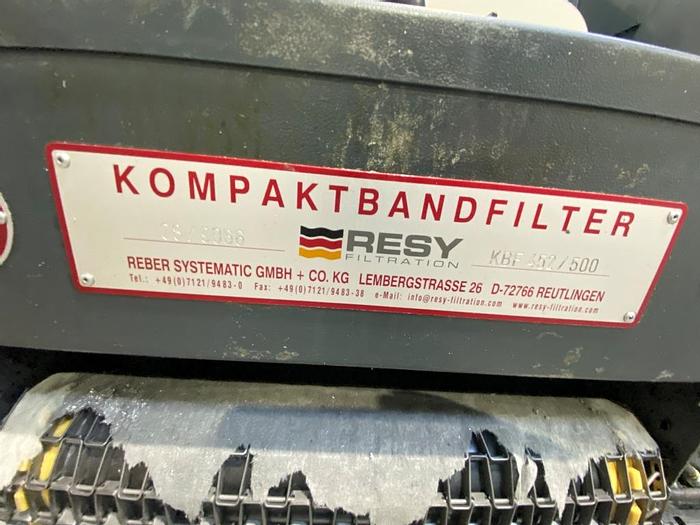

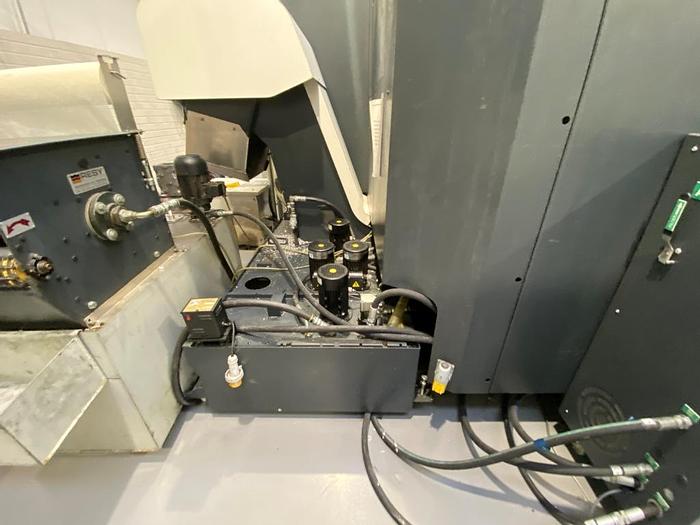

Resy KBF001 Paper Band Coolant Filtration

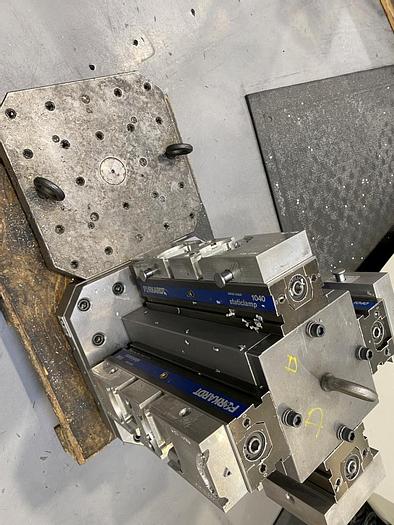

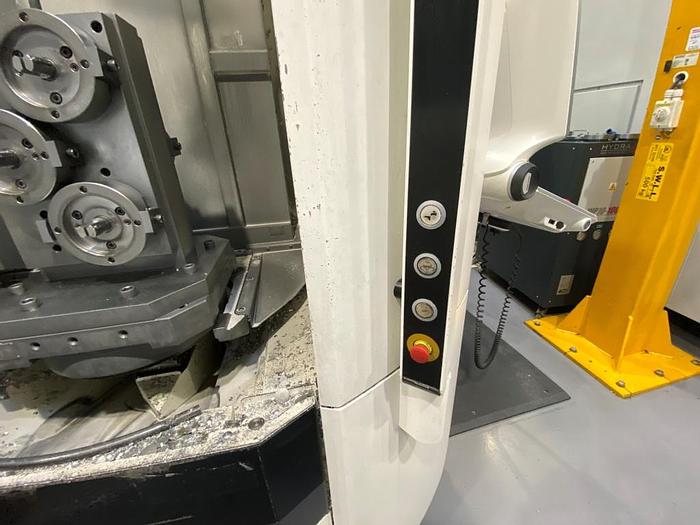

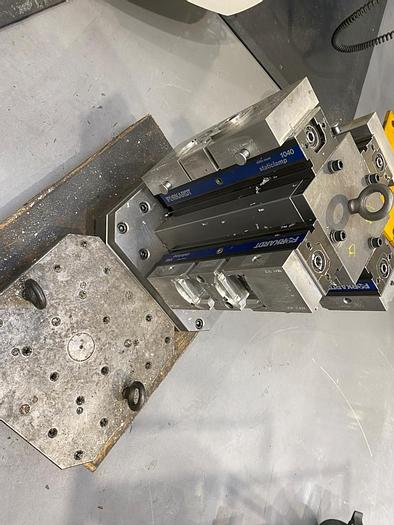

4 x Pallets (2 on machine & 2 Spare Pallets)
Tool Holders
Technical Specification
X-axis Travel: 560mm
Y-axis Travel: 560mm
Z-axis Travel: 660mm
No of Pallets: 2
Pallet Change Time: 8sec
Distance from pallet surface to spindle center: 80 - 640mm
Distance from pallet center to spindle gage plane: 70 - 730mm
Pallet Height from floor to pallet surface: 1,050mm
Pallet working surface: 400 x 400mm
Pallet loading capacity: 400kg
Maximum workpiece swing diameter: 630mm
Maximum workpiece height: 900mm
Pallet surface configuration (tap size x holes, pitch): M16x 24,80 mm
Minimum pallet Indexing angle: 0.001Deg Full indexing table
Pallet indexing time (including clamping and unclamping time - 90 deg): 0.73 Sec

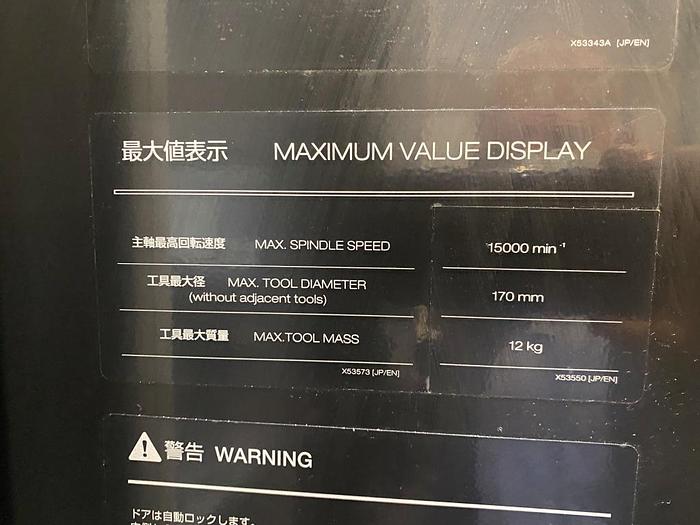

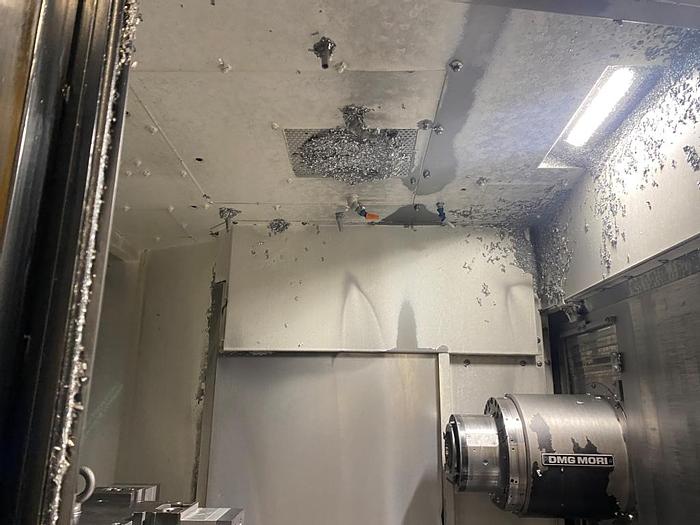

Maximum spindle speed: 15,000rpm
Number of spindle speed ranges: 2
Type of spindle taper hole: BT40
Spindle bearing inner diameter: 80mm
Rapid traverse rate X Axis: 60,000mm/min
Rapid traverse rate Y Axis: 60,000mm/min
Rapid traverse rate Z Axis: 60,000mm/min

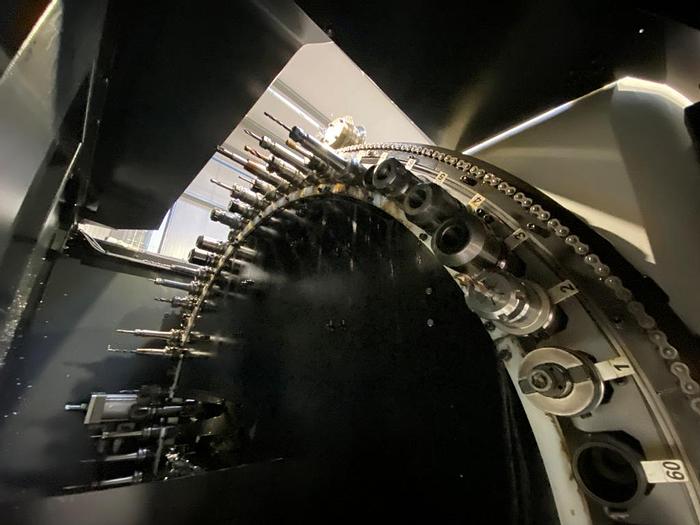

ATC Capacity: 60 Tool Ring Type
Tool Shank Taper: BT 40
Max Tool Diameter: 70mm
Max Tool Diameter with Empty Adj. Pocket: 170mm
Max Tool Length: 450mm
Max Tool Weight: 12kg
Method of Tool Selection: Random
Tool Changing Time: 2.2sec (C to C)
Spindle Drive Motor: 30.7kW
X Axis Feed Motor: 3.5kW
Y Axis Feed Motor: 3.5kW
Z Axis Feed Motor: 3.5kW
B Axis Feed Motor: 3kW
Coolant Pump Motor: 2.4kW
Power Source: 37.3kVA
Compressed Air Supply: 0.5MPa, 420L/min
Coolant Tank Capacity: 800L
Machine Dimensions: 2,680 x 4,181 x 2,540mm
Machine Weight: 8,500kg
Specifications

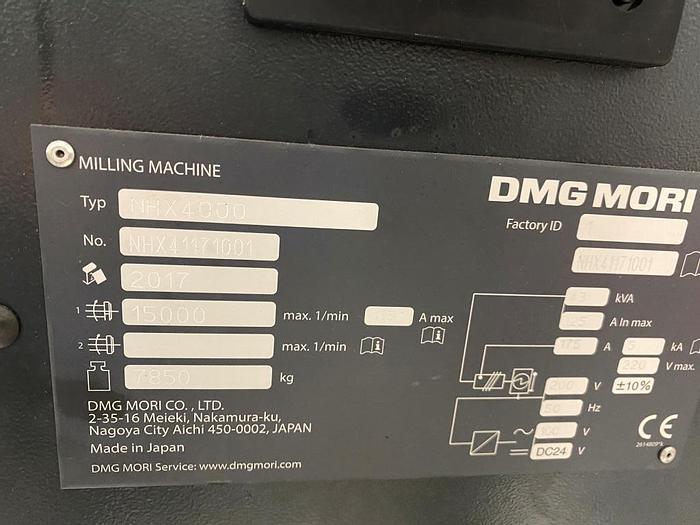

| Manufacturer | DMG Mori |
| Model | NHX 4000 Horizontal Machining Center |
| Year | 2017 |
| Condition | Used |
| Serial Number | NHX41171001 |
| Machine Type | Horizontal Machining Center |
| Year | 2017 |
| Controlled Axis | 4 (X,Y,Z,B) |
| Operating Hours | 14,339hrs |
| Condition | Excellent |
| Available | Immediately |
| X-axis Travel | 560mm |
| Y-axis Travel | 560mm |
| Z-axis Travel | 660mm |
| No of Pallets | 2 |
| Pallet Change Time | 8sec |
| Pallet working surface | 400 x 400mm |
| Pallet loading capacity | 400kg |
| Maximum workpiece swing diameter | 630mm |
| Maximum workpiece height | 900mm |
| Minimum pallet Indexing angle | 0.001Deg Full indexing table |
| Maximum spindle speed | 15,000rpm |
| Spindle bearing inner diameter | 80mm |
| ATC Capacity | 60 Tool Ring Type |
| Tool Shank Taper | BT 40 |
| Max Tool Diameter | 70mm |
| Max Tool Length | 450mm |
| Max Tool Weight | 12kg |
| Method of Tool Selection | Random |
| Tool Changing Time | 2.2sec (C to C) |
| Spindle Drive Motor | 30.7kW |
| X Axis Feed Motor | 3.5kW |
| Y Axis Feed Motor | 3.5kW |
| Z Axis Feed Motor | 3.5kW |
| B Axis Feed Motor | 3kW |
| Coolant Pump Motor | 2.4kW |
| Power Source | 37.3kVA |
| Compressed Air Supply | 0.5MPa, 420L/min |
| Coolant Tank Capacity | 800L |
| Machine Weight | 8,500kg |
