€365 + VAT

Cormak F160 2-Piece Machine Vice

1

Poland

orCall +353 838108745

Description

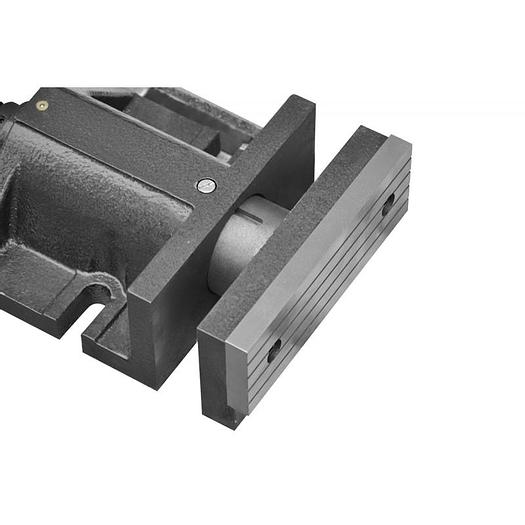

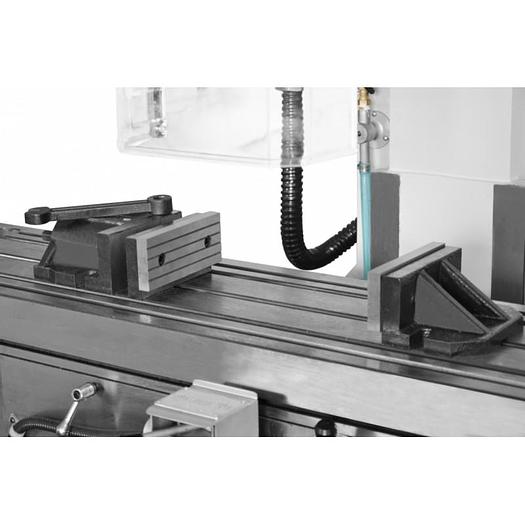

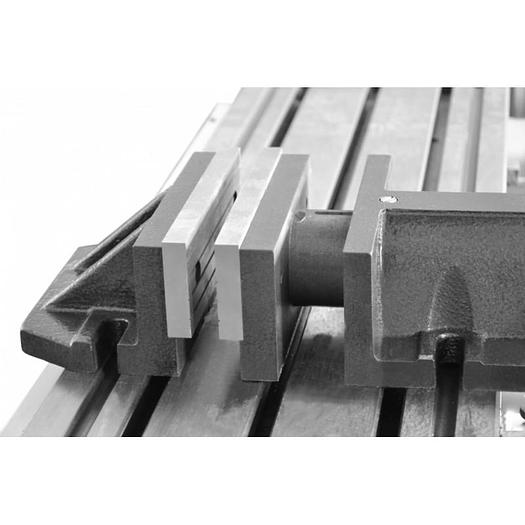

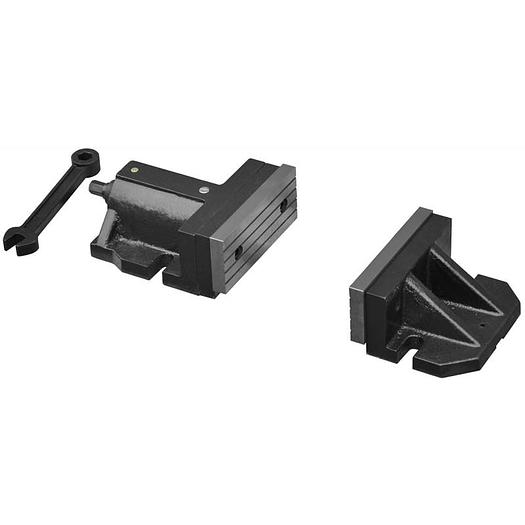

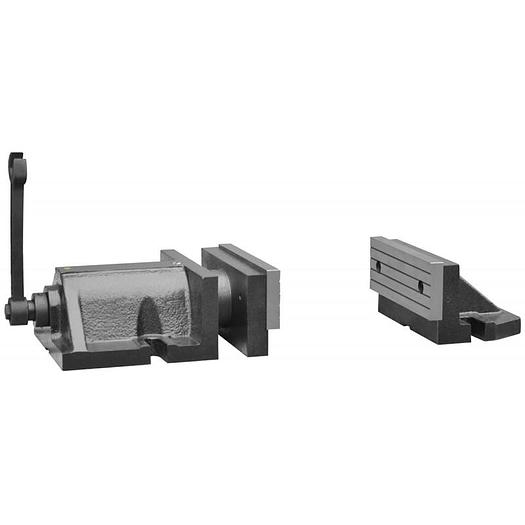

Cormak F-160 2 Piece Machine Vice


Vice Description

Base and movable jaw made of high-quality cast iron

Replaceable, grooved jaw inserts, inductively hardened and ground

Thrust bearing increases the efficiency of the clamping mechanism

Intended for mounting long items that take advantage of the whole length of the table


Includes

Handle

Fixing grooves


Technical Specifications

Jaw Width : 160 mm

Jaw Height: 70 mm

Height: 85 mm

Piece 1 Length: 130 mm

Piece 2 Length: 185-220mm

Fixing Slot: 17mm

Weight: 16.5 kg

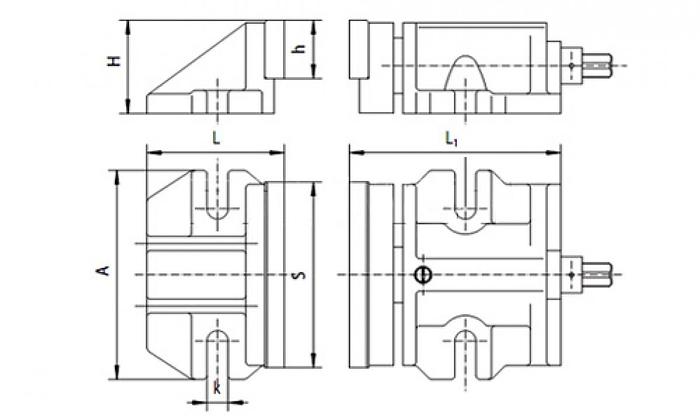

Dimensions (see photos)

S: 160mm

A: 125mm

h: 70mm

H: 85mm

L: 130mm

L1: 185-220mm

k: 17mm

Specifications

ManufacturerCormak
ModelF160 2-Piece Machine Vice
ConditionNew
Jaw Width160 mm
Jaw Height70 mm
Height85 mm
Piece 1 Length130 mm
Piece 2 Length185-220mm
Fixing Slot17mm
Weight16.5 kg
