Emco Turn 242 CNC Lathe
Sold
Description

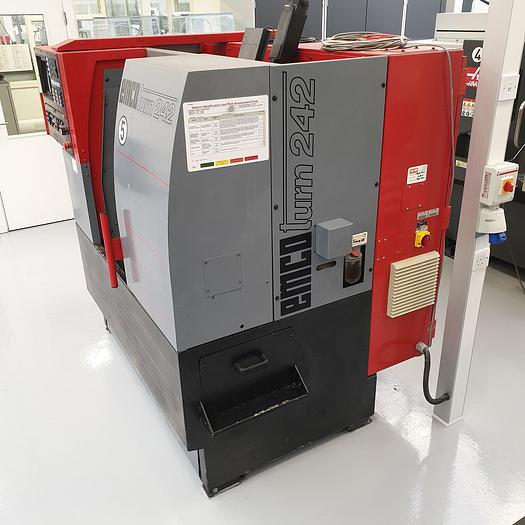

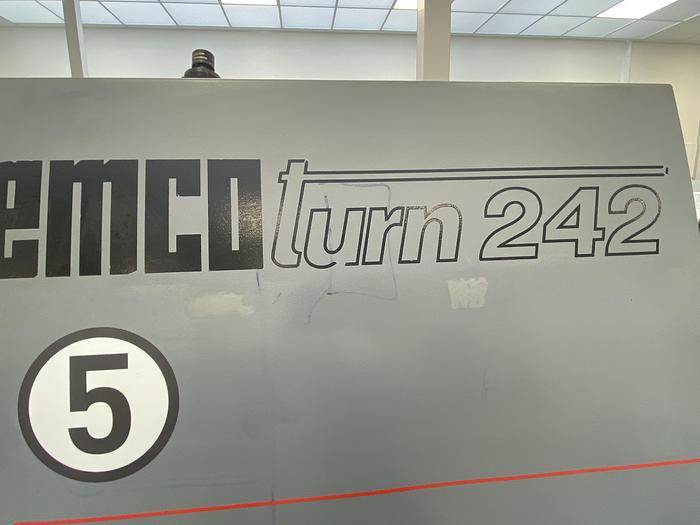

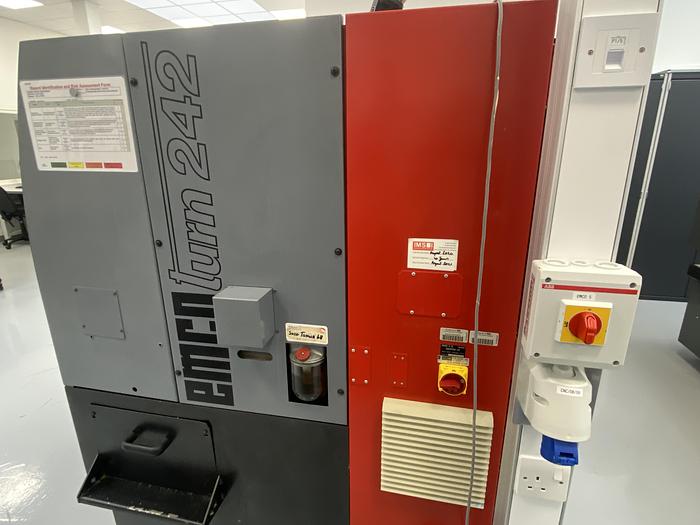

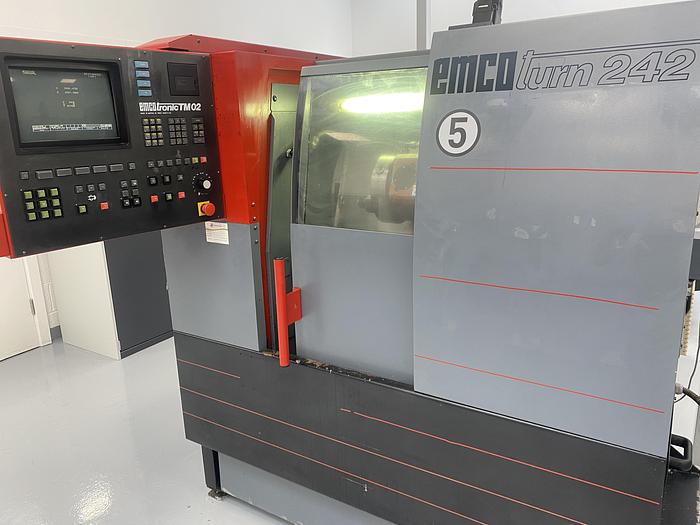

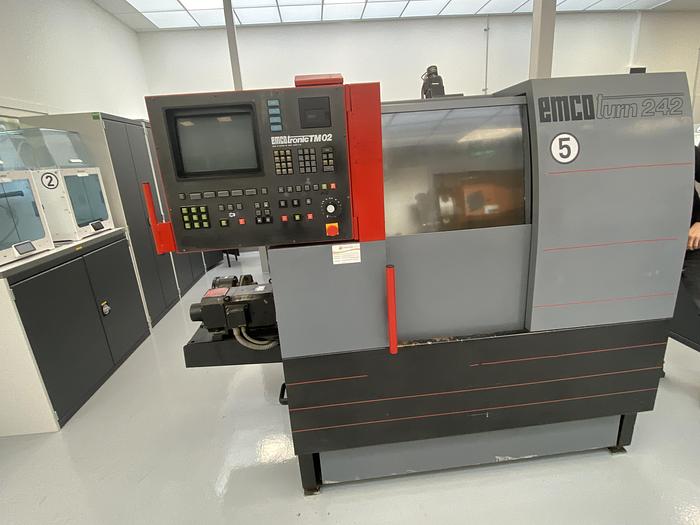

Emco Turn 242 CNC Lathe
Machine Type: 2 Axis CNC Lathe

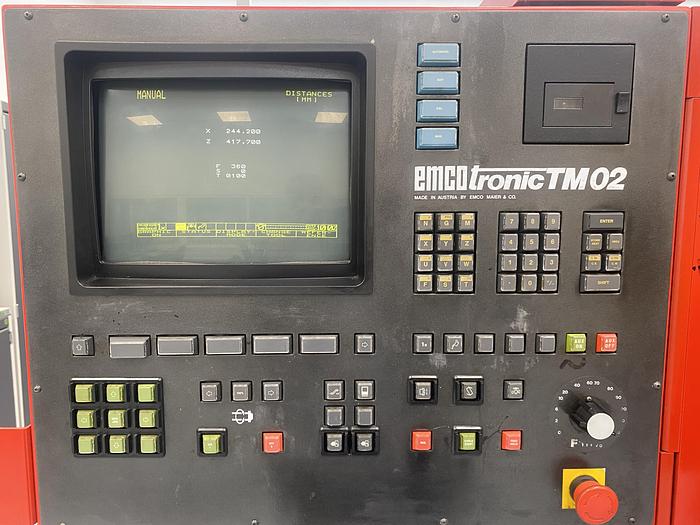

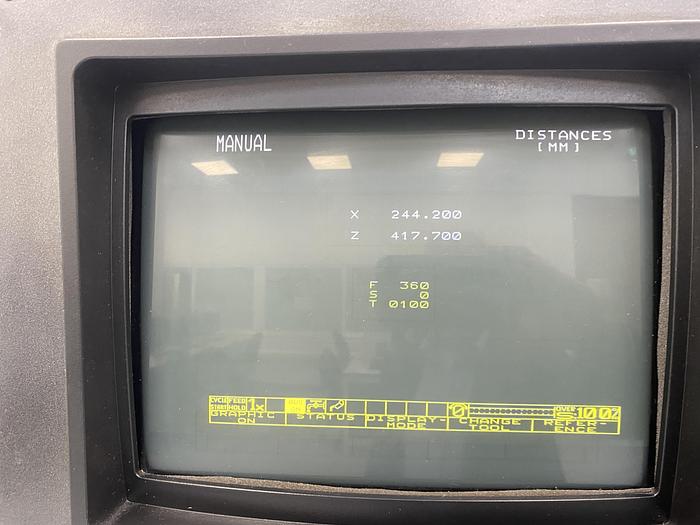

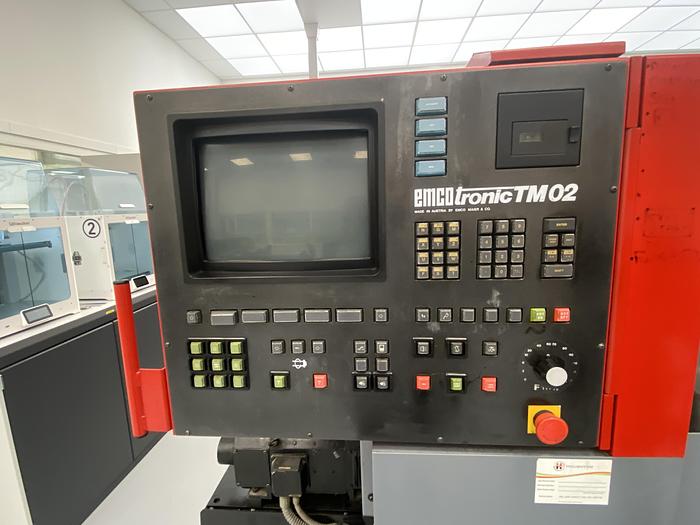

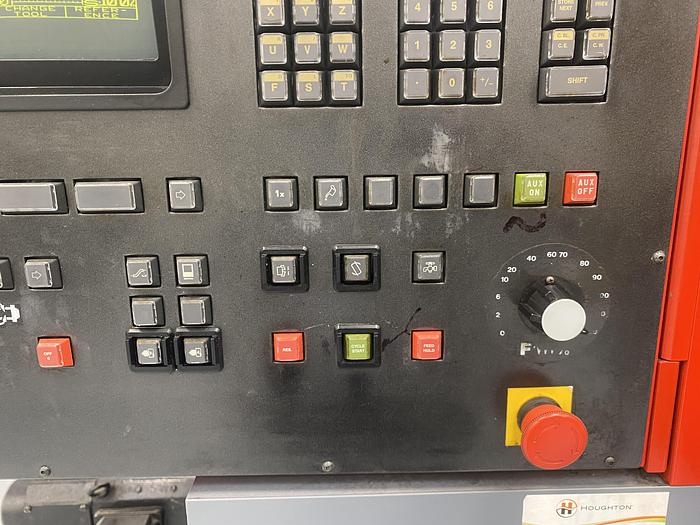

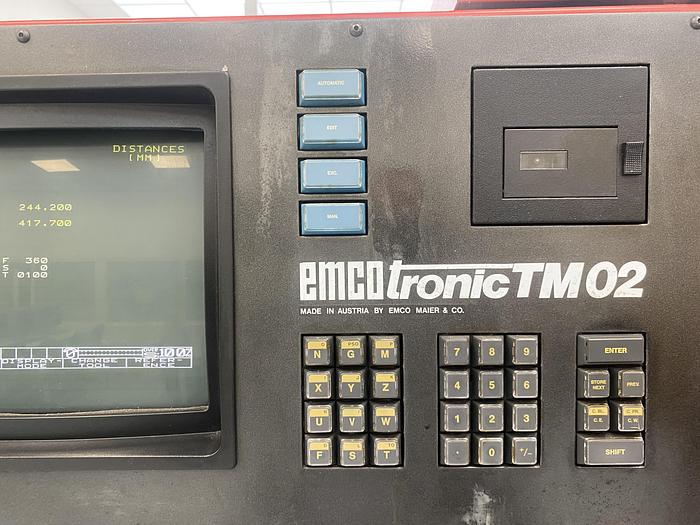

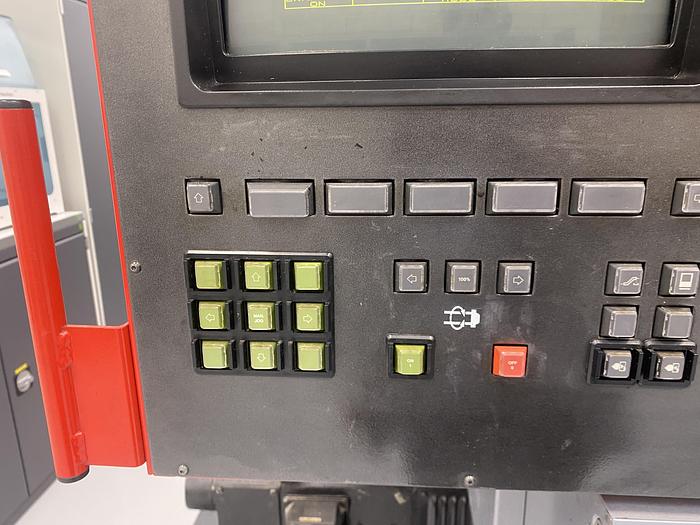

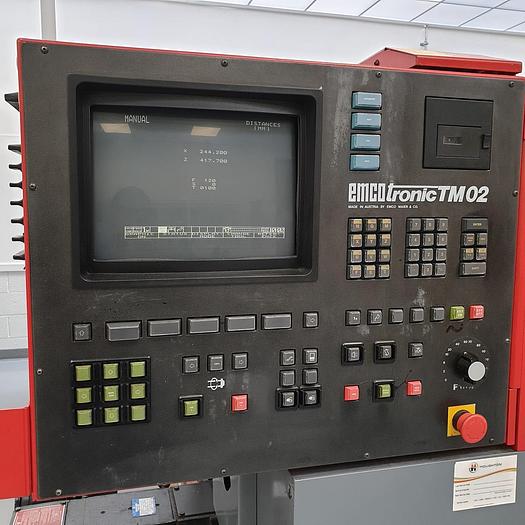

Control: EMCOtronic TM02 CNC Control

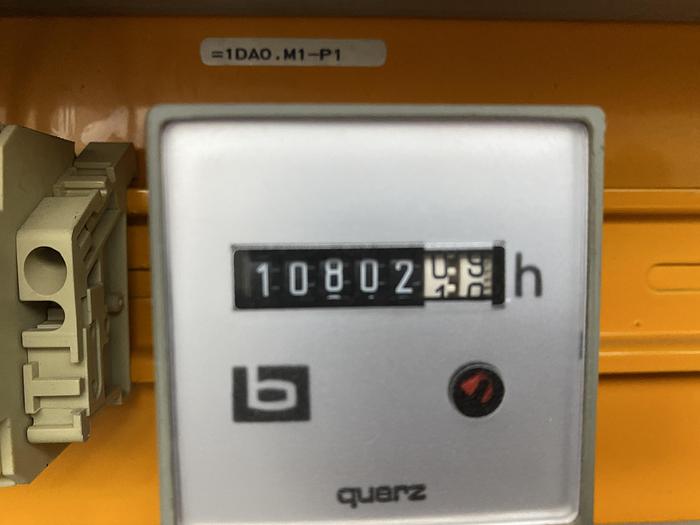

Hours: 10,802 hrs
Condition: Very Good. Ex College Machine
Includes

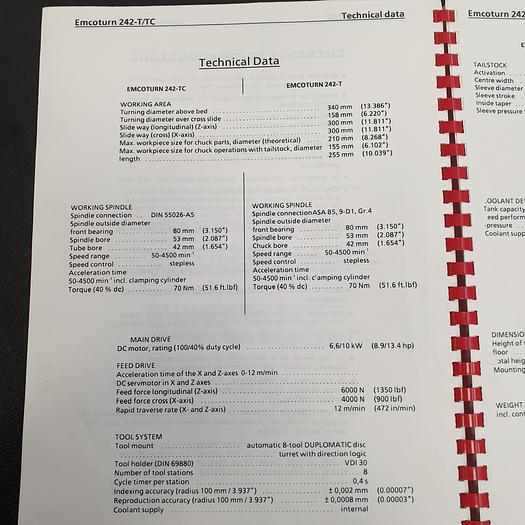

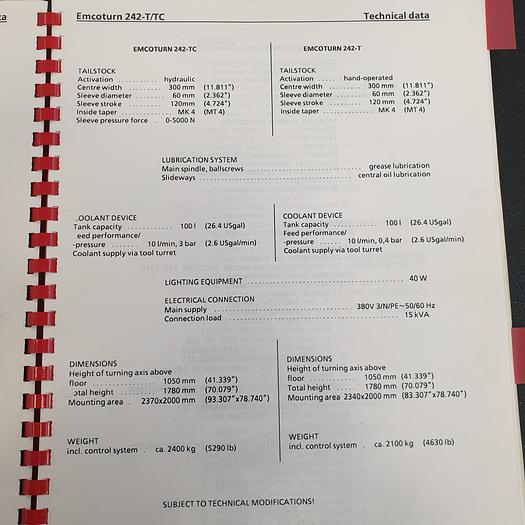

Manuals

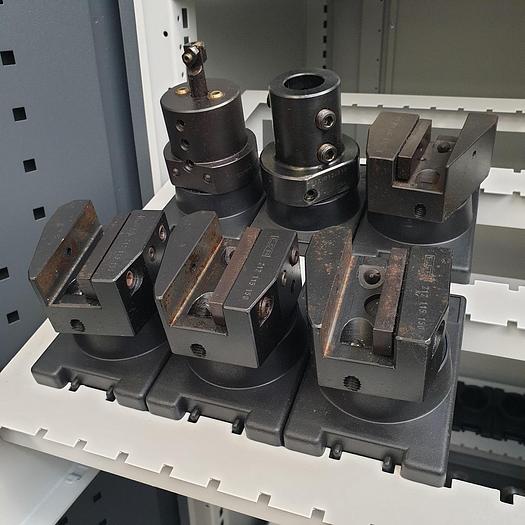

Tool Holders

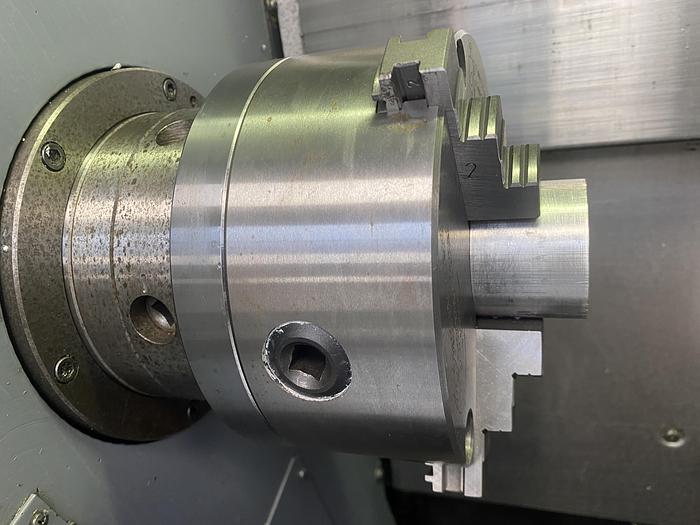

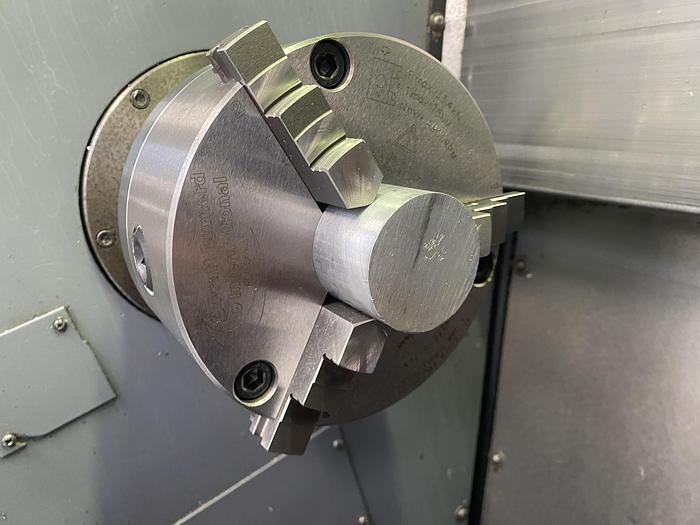

3 Jaw Chuck

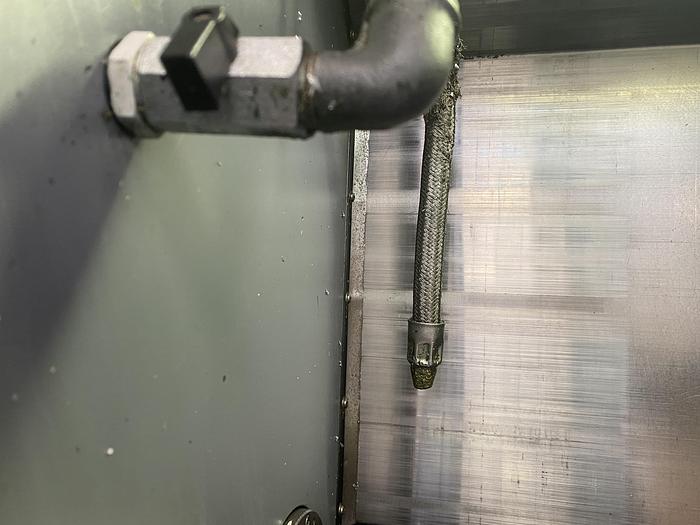

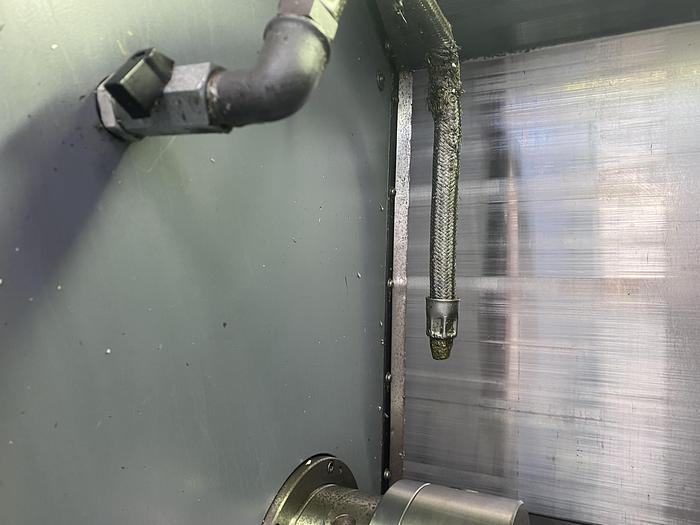

Coolant Equipment
Tailstock
Technical Specification
Max Turning Diameter: 340mm
Max Turning Diameter over Cross Slide: 158mm
Z Axis Travel: 300mm
X Axis Travel: 300mm
Max Turning Length: 255mm
Max Workpiece Weight: 21kg
Max Spindle Speed: 4000rpm
Speed Control: Stepless
Spindle Bore: 53mm

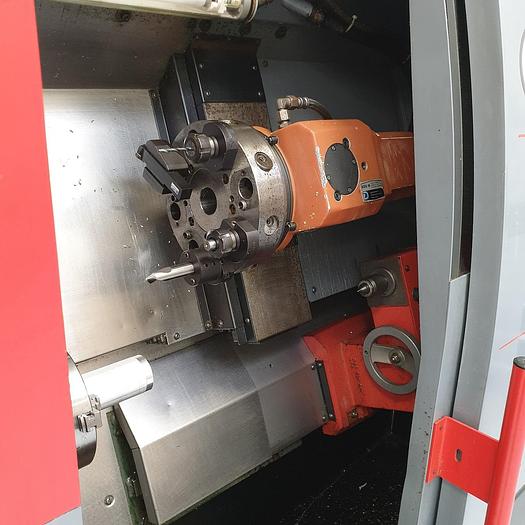

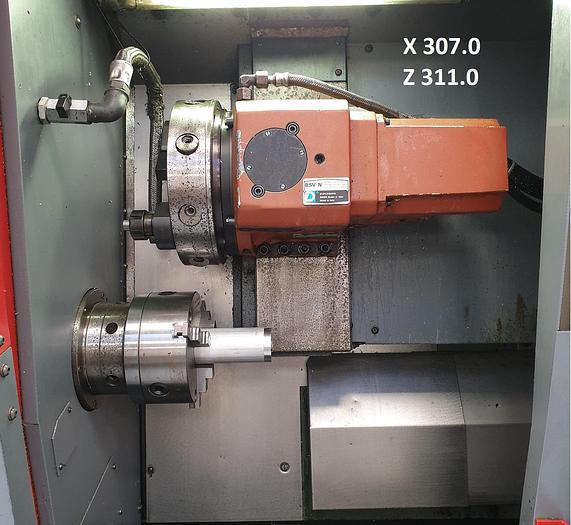

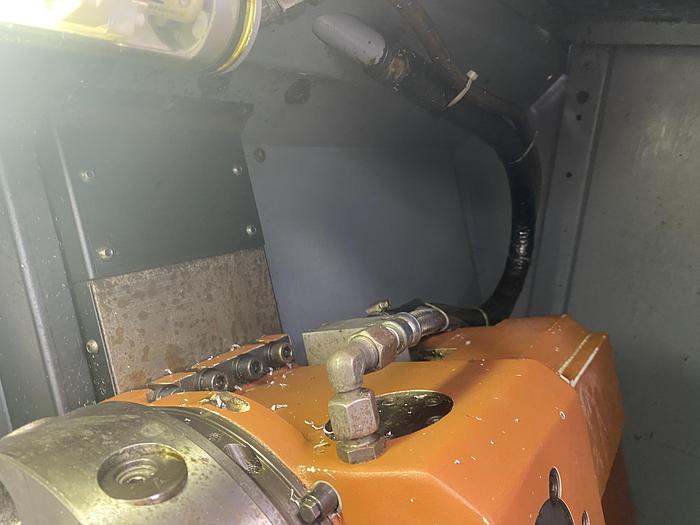

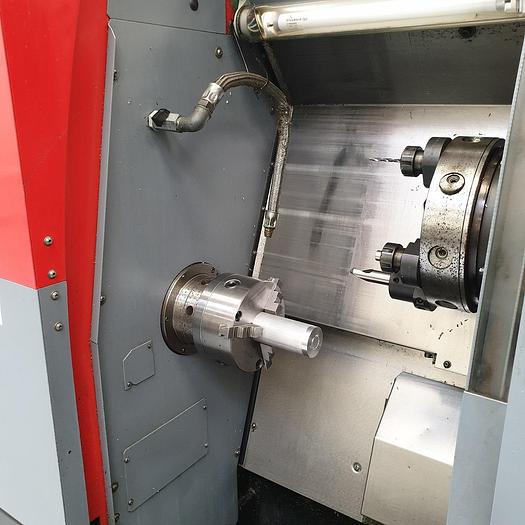

Turret: 8 Station VDI 30 Duplomatic

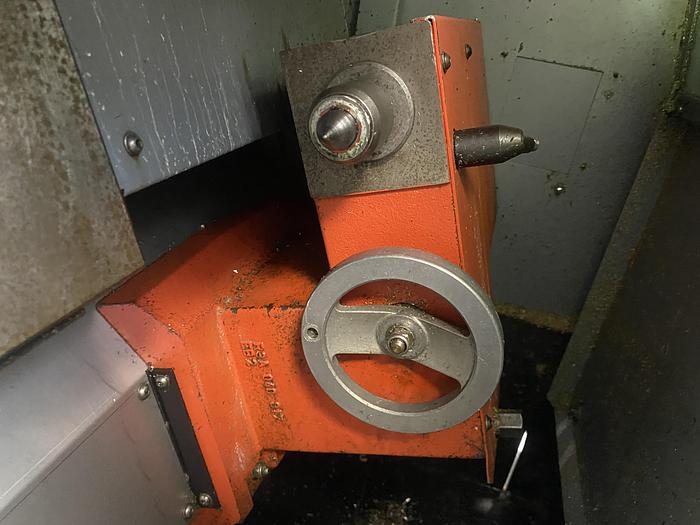

Tailstock: Manually Operated
Center Width: 300mm
Quill Diameter: 60mm
Quill Stroke: 120mm
Taper: MT4

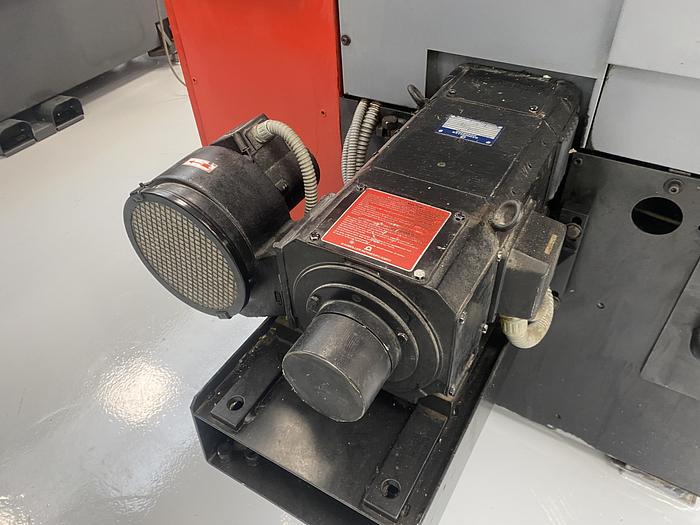

Main Drive: 10kw
Machine Dimensions: 2300 x 2000 x 1780mm
Machine Weight: 2100kg
Specifications
Manufacturer | Emco |
Model | Turn 242 CNC Lathe |
Condition | Used |

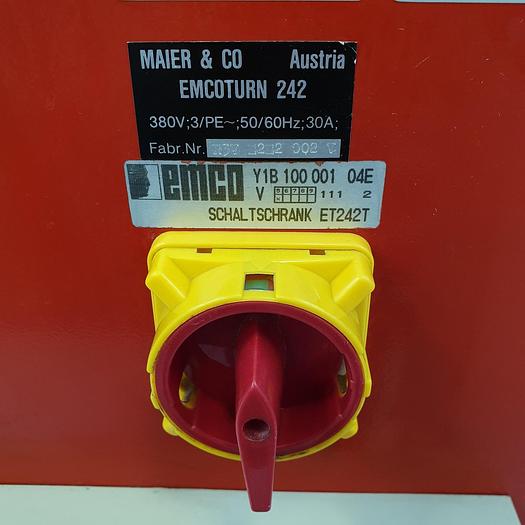

Serial Number | R3V3232 002V |
Machine Type | 2 Axis CNC Lathe |
Control | EMCOtronic TM02 CNC Control |
Max Turning Diameter | 340mm |
Max Turning Length | 300mm |
Max Workpiece Weight | 21kg |
Max Spindle Speed | 4000rpm |
Max Bar Capacity | 42mm |
Turret | 8 Station VDI 30 |
Machine Weight | 2100kg |
