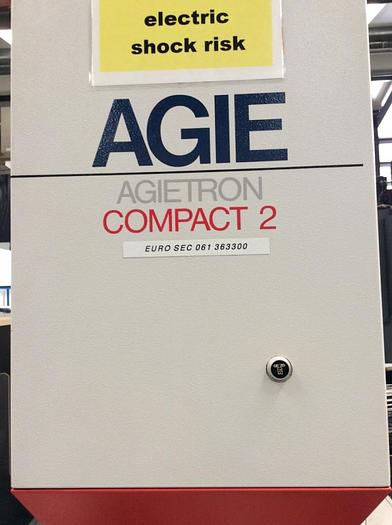

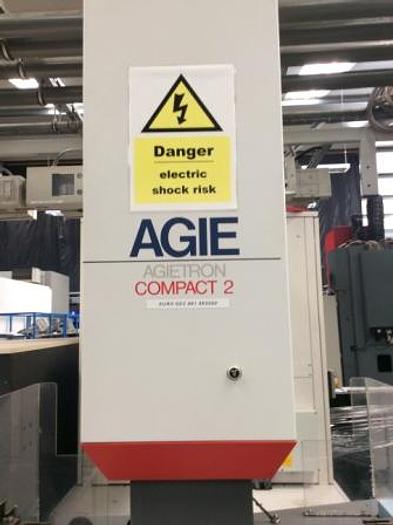

1994 Agie Agietron Compact 2 EDM Machine
Sold
Description
1994 Agie Agietron Compact 2 EDM Machine
Machine Type: EDM Machine
Year: 1994
Control: Agietron
Condition: Good - Decommissioned

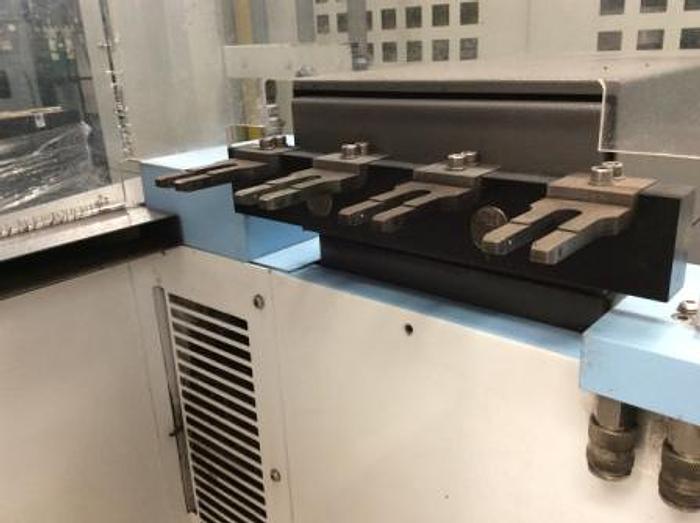

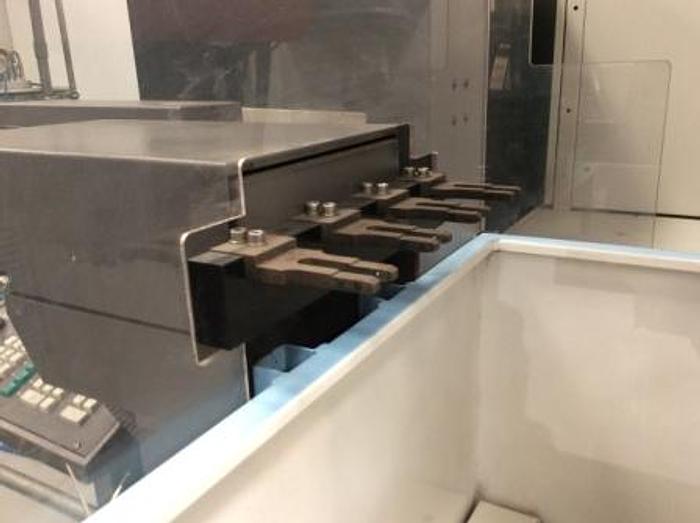

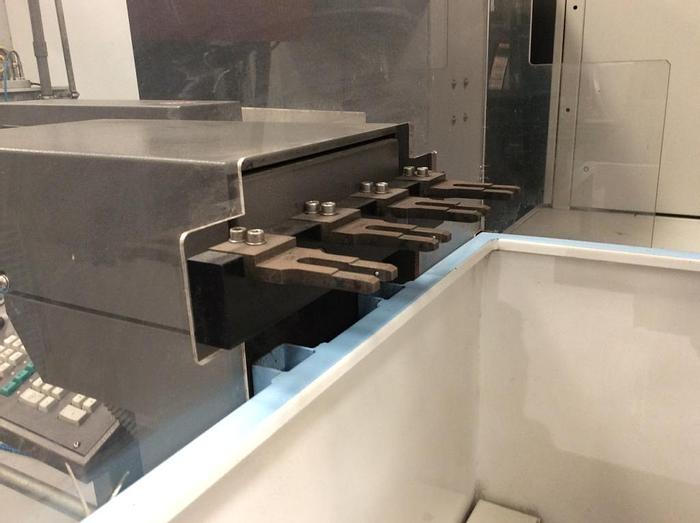

Includes 8 Station Tool Changer

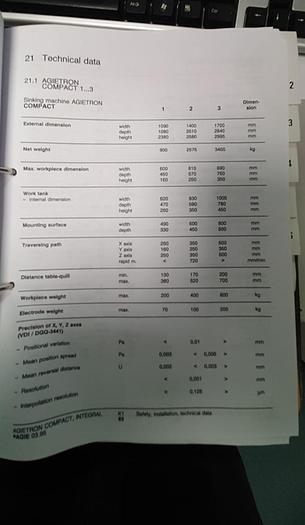

Technical Specification
Tool Holder Type: Erowa
X Axis Travel: 350mm
Y Axis Travel: 250mm
Z Axis Travel: 350mm
Max Workpiece Size X: 810mm
Max Workpiece Size Y: 570mm
Max Workpiece Size Z: 250mm
Max Part Weight: 400Kg
Max Electrode Weight: 100kg
Max Distance from Table to Quill: 520mm
Min Distance from Table To Quill: 170mm
Work Tank Dimensions: 830 x 590 x 350mm
Machine Dimensions: 1400 x 2510 x 2580mm

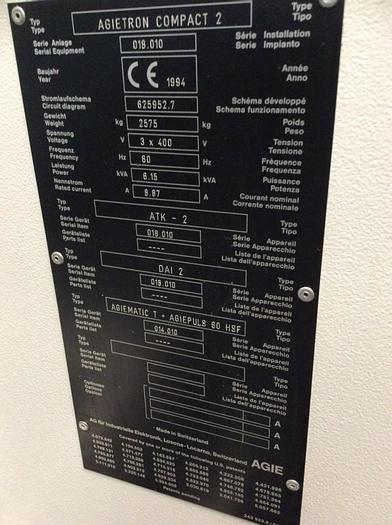

Weight: 2575kg
Specifications
| Manufacturer | Agie |
| Model | Agietron Compact 2 EDM Machine |
| Year | 1994 |
| Condition | Used |
| Machine Type | EDM Machine |
| Control | Agietron |
| Year | 1994 |
| Tool Holder Type | Erowa System |
| Toolholder stations | 8 |
| Travels (X) | 350mm |
| Travels (Y) | 250mm |
| Travels (Z) | 350mm |
| Max Workpiece Size (X) | 810mm |
| Max Workpiece Size (Y) | 570mm |
| Max Workpiece Size (Z) | 250mm |
| Max Workpiece Weight | 400kg |
| Machine Dimensions (L x W x H) | 1400 x 2510 x 2580mm |
| Machine Weight | 2800kg |
