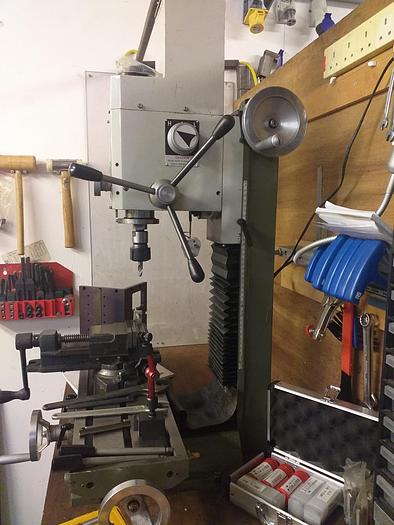

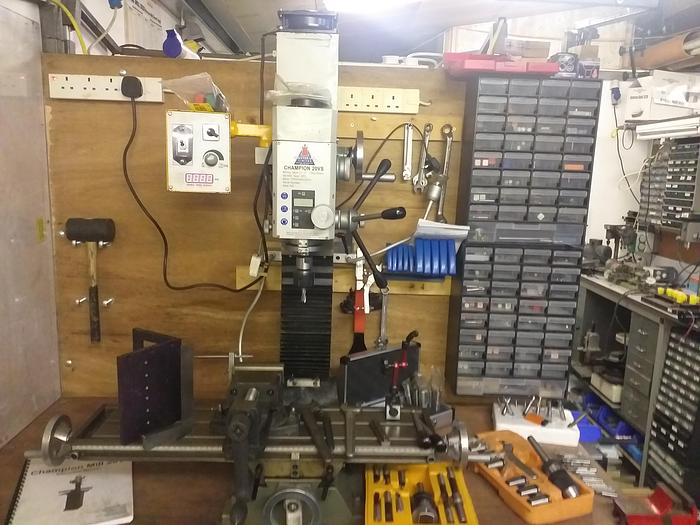

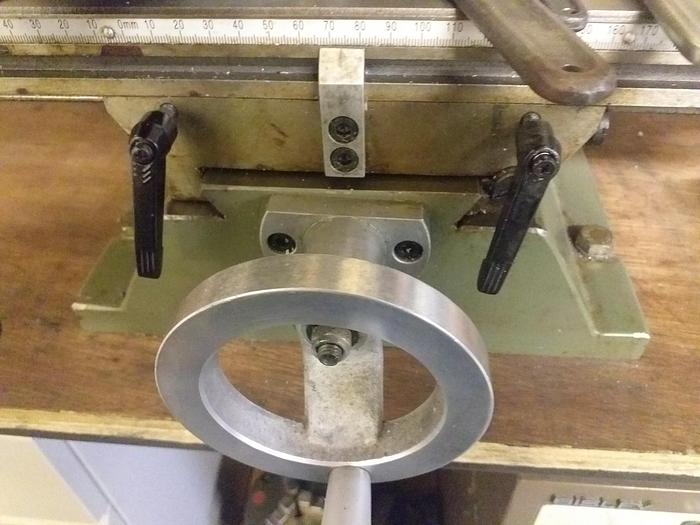

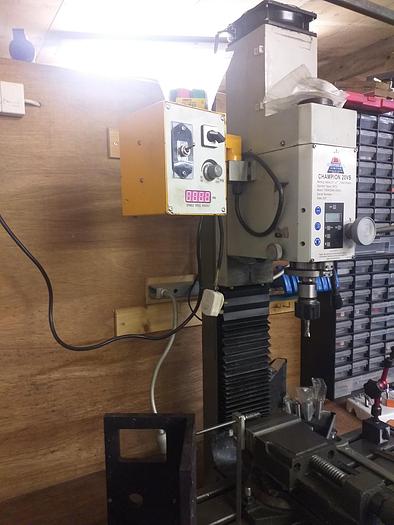

2005 Chester Champion 20VS Mill/Drill
Description
2005 Chester Champion VS20 Mill/Drill
Machine Type: Single Phase Bench Top Milling & Drilling Machine
Year: 2005
Condition

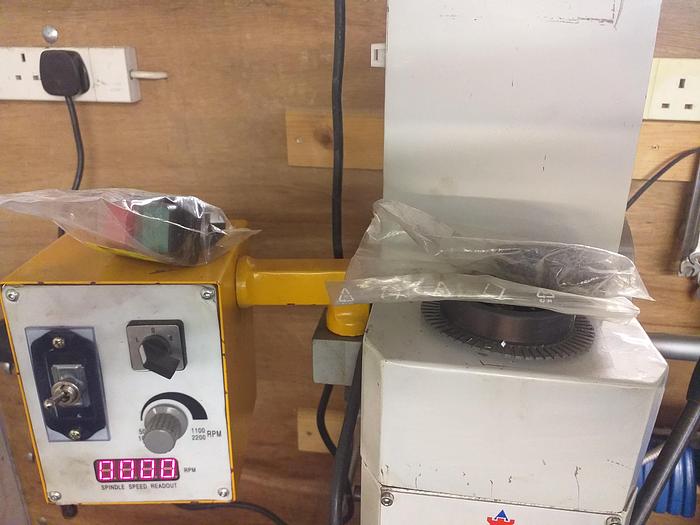

Good. Speed Indicator requires replacement. Parts included with machine.
New Motor Fitted
New Drive Gear Installed (Spare Gear with machine)
New Switch Supplied with Machine

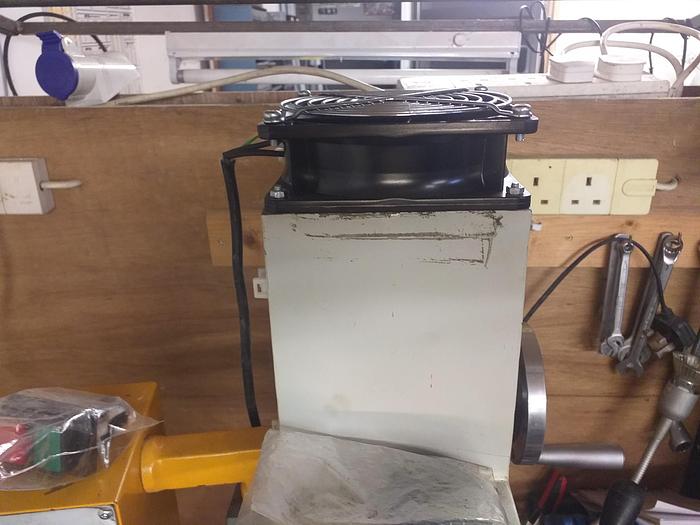

Cooling Fan Fitted to Motor
Includes
Machine Manual

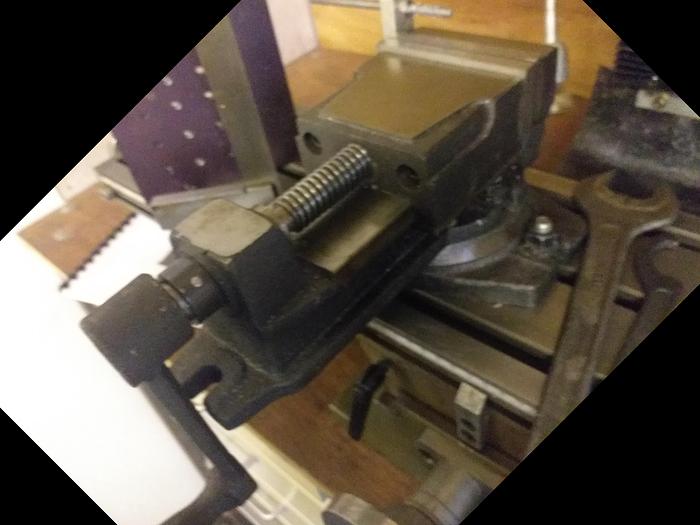

100mm Swivel Vice

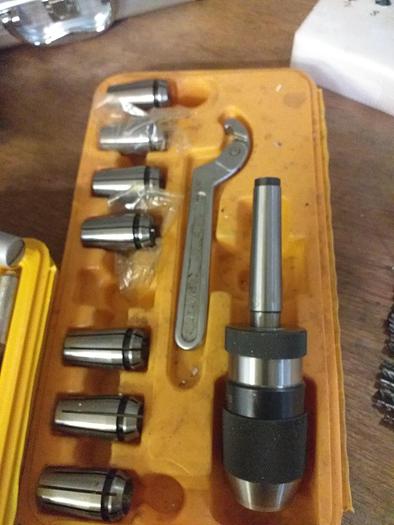

MT2 ER32 Collet Chuck
ER32 Collet Set

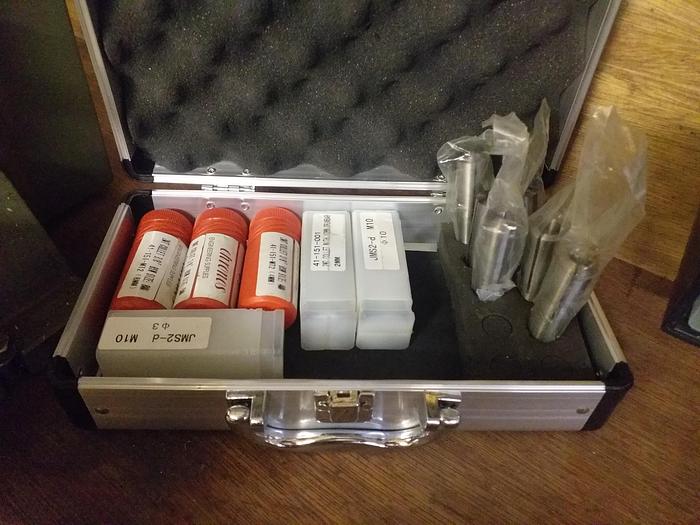

Selection of MT2 Metric Collets
Selection of MT2 Imperial Collets
Keyless Chuck
MT2 Arbor for Chuck

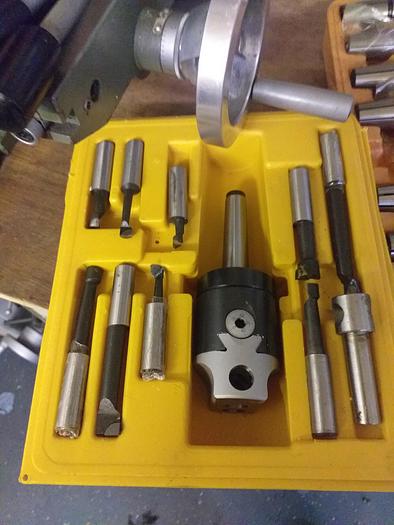

Boring Head Set

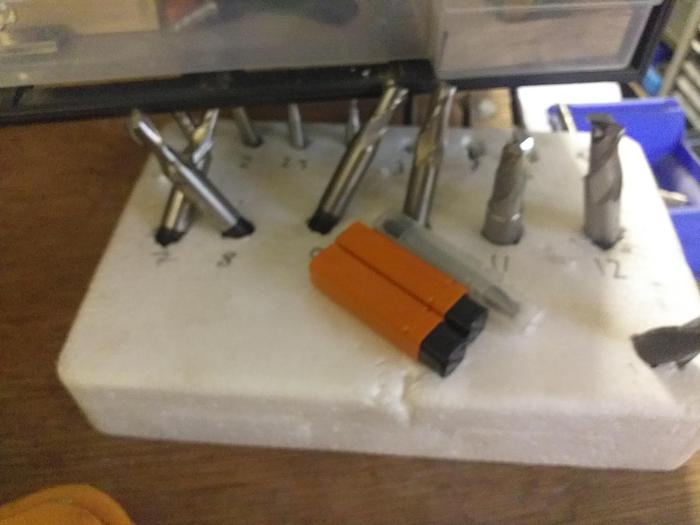

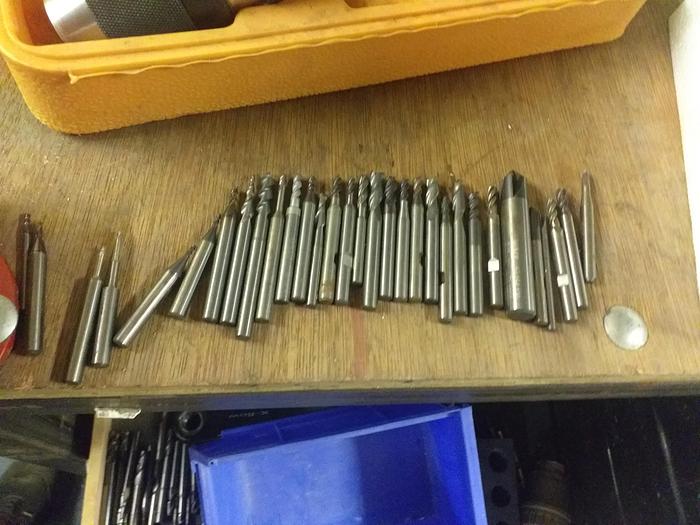

Selection of End Mills
Selection of Slot Drills
Selection of Carbide Cutters
Technical Specification
Drilling Capacity: 16mm
End Milling Capacity: 20mm
Face Milling Capacity: 63mm

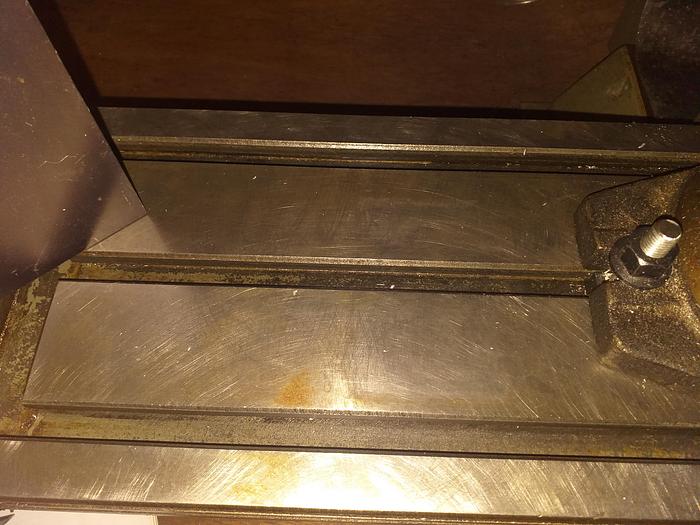

Table Size: 700 x 180mm
Cross Travel: 160mm
Longitudinal Travel: 660mm

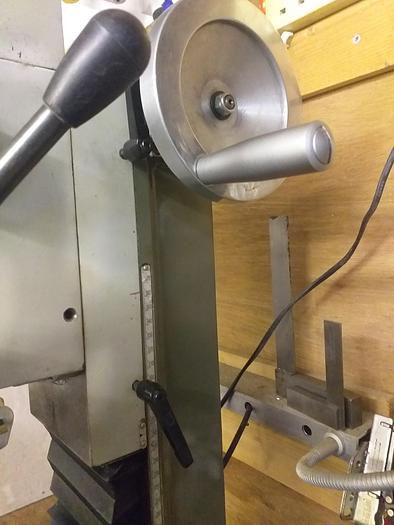

Vertical Travel: 290mm
Spindle Taper: MT2
Spindle Stroke: 42mm

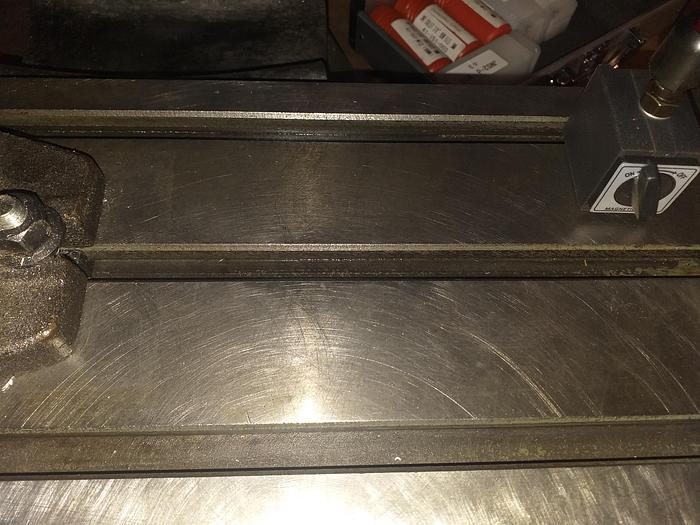

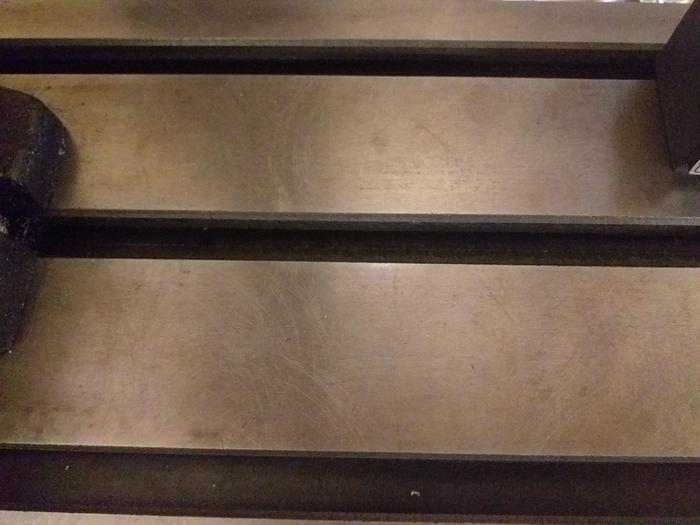

T-Slot Size: 12mm
Spindle Speeds: 50-2500rpm
Headstock Tilt: +/- 90 Degrees
Power: 220V Single Phase
Motor: 750W/1HP
Dimensions: 960 x 570 x 970mm
Weight: 113kg
Specifications
Manufacturer | Chester |
Model | Champion 20VS Mill/Drill |
Year | 2005 |
Condition | Used |
Year | 2005 |
Drilling Capacity | 16mm |
End Milling Capacity | 20mm |
Face Milling Capacity | 63mm |
Table Size | 700 x 180mm |
Cross Travel | 160mm |
Longitudinal Travel | 660mm |
Vertical Travel | 290mm |
Spindle Taper | MT2 |
Spindle Stroke | 42mm |
T-Slot Size | 12mm |
Spindle Speeds | 50-2500rpm |
Headstock Tilt | +/- 90 Degrees |
Power | 220V Single Phase |
Motor | 750W/1HP |
Weight | 113kg |
