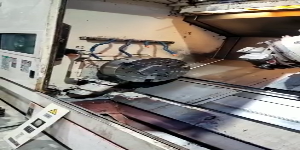

1999 Mazak Integrex 50YR-1500U CNC Turning Center
Description
1999 Mazak Integrex 50YR-1500U CNC Turning Center
Machine Type: CNC Turning Center with B-Axis Milling Spindle with 90 Deg. Positioning
Year: 1999
Control: Mazak Mazatrol PC-Fusion-CNC 640MT
Hours: (Power On) 9082hrs
Condition: Good, Machine Partially Decommissioned(ATC Disconnected from Machine)
Includes
SMW Autoblok Hydraulic Chuck
Tailstock
Large Selection of Tooling
Large Selection of Tool Holders
Selection of Chuck Jaws
Chip Conveyor
Coolant Filtration
Set of Manuals
Technical Specification
Max Swing Over Bed: 700mm
Max Swing Over Carriage: 520mm
Max Turning Length: 1,500mm
X Axis Travel: 645mm
Y Axis Travel: 210mm
Z Axis Travel: 1,550mm
B-Axis Milling Spindle Swivel: 90 Degrees
C-Axis Spindle Rotation: 0.001 Degrees
Bar Capacity: 89mm
Main Spindle Speeds: 2-1,5000rpm
Live Spindle Speeds: 18-3000rpm
Main Motor: 40HP/30HP
Tool Storage: 60
Milling Spindle Taper: CAT 50
Turning Tools: Modified VDI
Milling Spindle Motor: 15HP/20HP
Tailstock Travel: 1400mm
Tailstock Quill Diameter: 130mm
Tailstock Taper: 5MT
Max Weight Between Centers: 1,500kg
Rated Capacity: 71.18kVA
Machine Dimensions: 7,500 x 2,950 x 2,200mm
Machine Weight (Approx): 16,000kg
Specifications
Manufacturer | Mazak |
Model | Integrex 50YR-1500U CNC Turning Center |
Year | 1999 |
Condition | Used |
Year | 1999 |
Control | Mazak Mazatrol PC-Fusion-CNC 640MT |
Hours | (Power On) 9082hrs |
Max Swing Over Bed | 700mm |
Max Swing Over Carriage | 520mm |
Max Turning Length | 1,500mm |
X Axis Travel | 645mm |
Y Axis Travel | 210mm |
Z Axis Travel | 1,550mm |
B-Axis Milling Spindle Swivel | 90 Degrees |
C-Axis Spindle Rotation | 0.001 Degrees |
Bar Capacity | 89mm |
Main Spindle Speeds | 2-1,5000rpm |
Live Spindle Speeds | 18-3000rpm |
Main Motor | 40HP/30HP |
Tool Storage | 60 |
Milling Spindle Taper | CAT 50 |
Turning Tools | Modified VDI |
Milling Spindle Motor | 15HP/20HP |
Tailstock Travel | 1400mm |
Tailstock Quill Diameter | 130mm |
Tailstock Taper | 5MT |
Max Weight Between Centers | 1,500kg |
Rated Capacity | 71.18kVA |
Machine Weight (Approx) | 16,000kg |
