€327 + VAT

Cormak KP 201 XY Table

1

Poland

orCall +353 838108745

Description

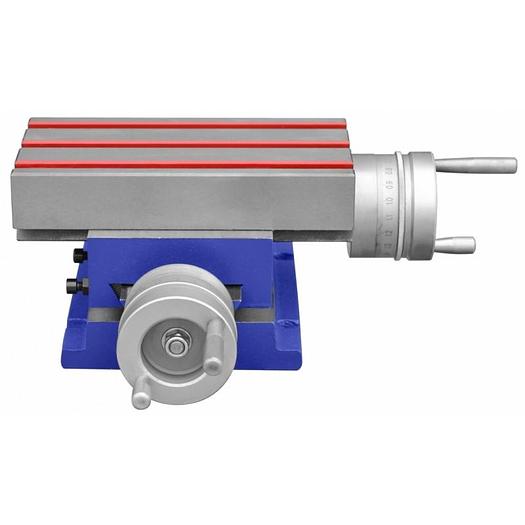

Cormak KP 201 XY Table


Description

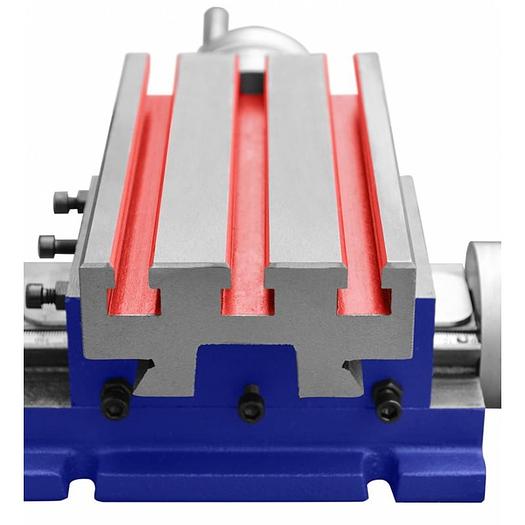

Precise cross table with a screw guard, dovetail-shaped slide guides greatly improve table rigidity and prevent feed wiggling.


Table Description

Cross table is well-made from high-quality materials

Supports working with drilling, milling machines, etc., providing perfect positioning during machining processes

Screw guard protects the feed mechanism from chips

An additional benefit of the table is a pitch, which simplifies telling the X,Y axes position of the table

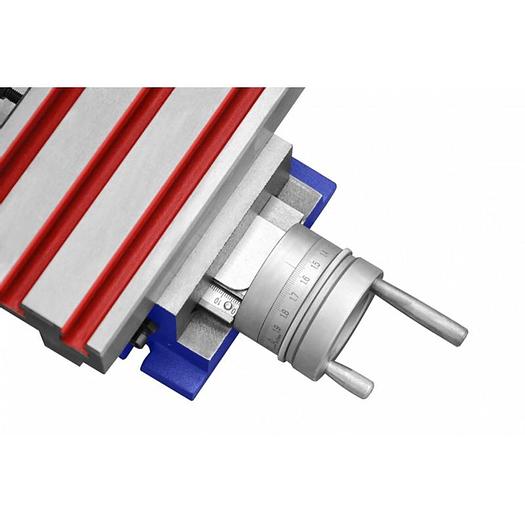

2.5mm/0.02mm vernier

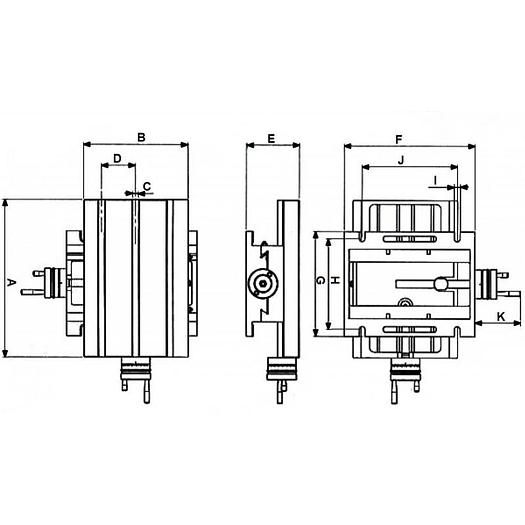

Technical Specification

Table Dimensions: 185 x 100mm

Table Height: 102mm

Tee Slot Size: 10mm

Distance Between T Slots: 35mm

X Axis Travel: 80mm

Y Axis Travel: 50mm

Overall Dimensions: 280 x 280 x 170mm

Weight: 11.5kg



Specifications

ManufacturerCormak
ModelKP 201 XY Table
ConditionNew
Table Dimensions185 x 100mm
Table Height102mm
Tee Slot Size10mm
Distance Between T Slots35mm
X Axis Travel80mm
Y Axis Travel50mm
Weight11.5kg
