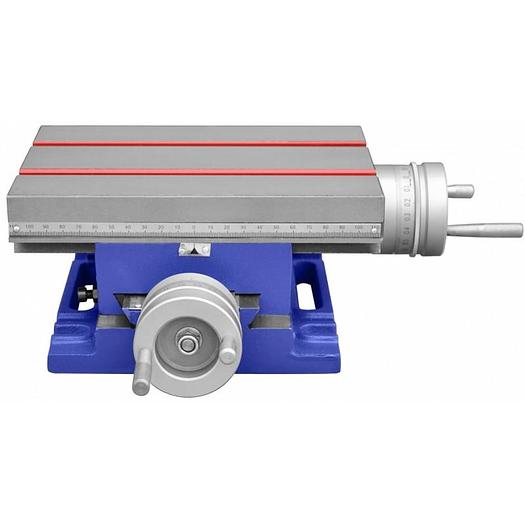

Cormak KP 203 XY Table


Description

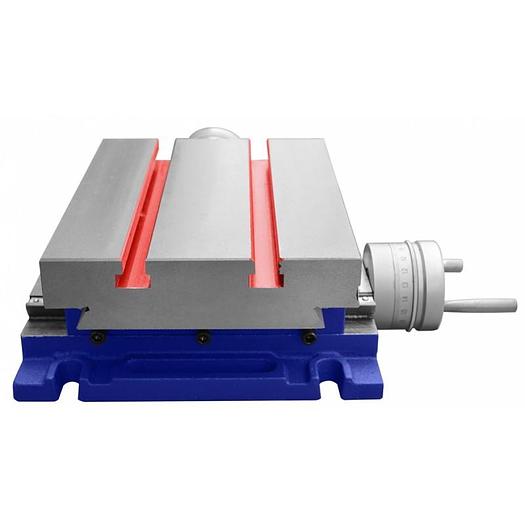

Precise cross table with a screw guard, dovetail-shaped slide guides greatly improve table rigidity and prevent feed wiggling.


Table Description

Cross table is well-made from high-quality materials

Supports working with drilling, milling machines, etc., providing perfect positioning during machining processes

Screw guard protects the feed mechanism from chips

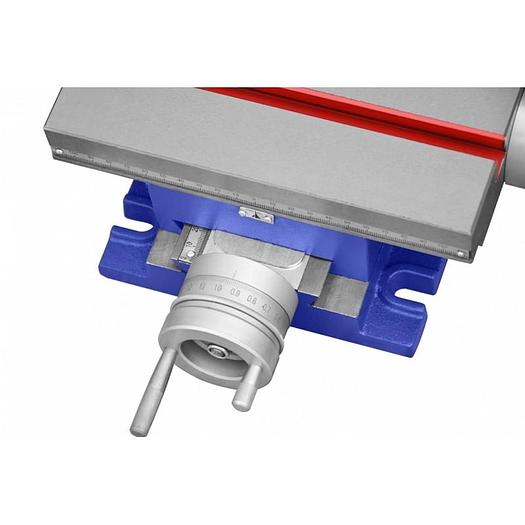

An additional benefit of the table is a pitch, which simplifies telling the X,Y axes position of the table

2.5mm/0.02mm vernier

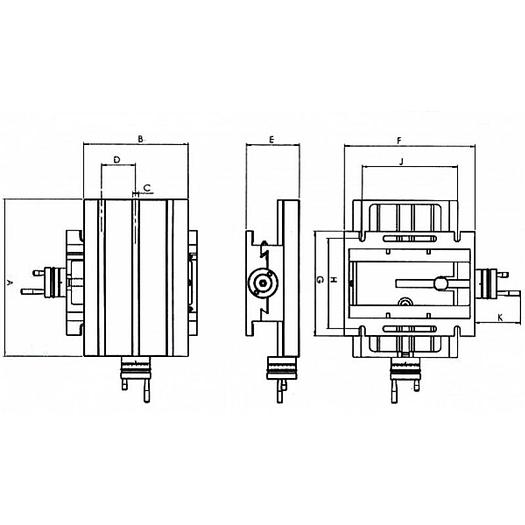

Technical Specification

Table Dimensions: 330 x 220mm

Table Height: 102mm

Tee Slot Size: 12mm

Distance Between T Slots: 72mm

X Axis Travel: 190mm

Y Axis Travel: 100mm

Overall Dimensions: 410 x 356 x 173mm

Weight: 26kg



Specifications

ManufacturerCormak
ModelKP 203 XY Table
ConditionNew
Table Dimensions330 x 220mm
Table Height102mm
Tee Slot Size12mm
Distance Between T Slots72mm
X Axis Travel190mm
Y Axis Travel100mm
Weight26kg
