€425 + VAT

Cormak KP 303 XY Rotary Table

1

Poland

orCall +353 838108745

Description

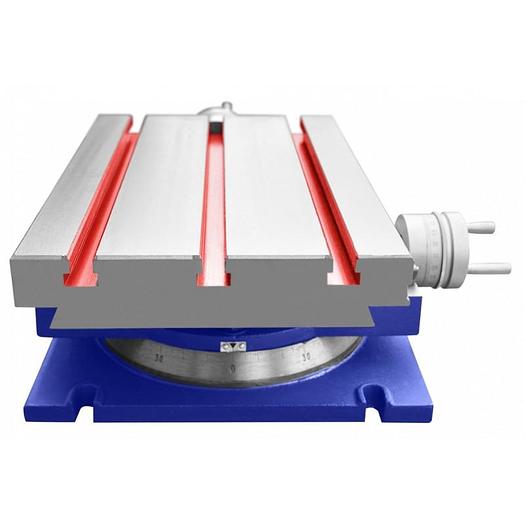

Cormak KP 303 XY Rotary Table


Description

Precise cross table with a screw guard, dovetail-shaped slide guides greatly improve table rigidity and prevent feed wiggling.


Table Description

Cross table is well-made from high-quality materials

Supports working with drilling, milling machines, etc., providing perfect positioning during machining processes

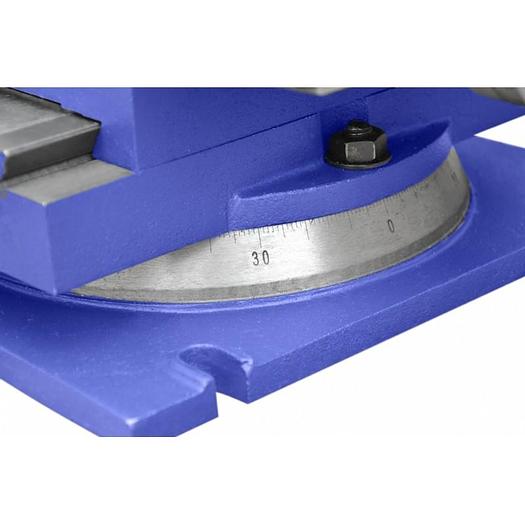

Cross table equipped with a 360° swivel base with 3 mm gradation

Screw guard protects the feed mechanism from chips

An additional benefit of the table is the pitch which provides a preview of the X,Y axes position of the table

4 mm /0.02 mm vernier

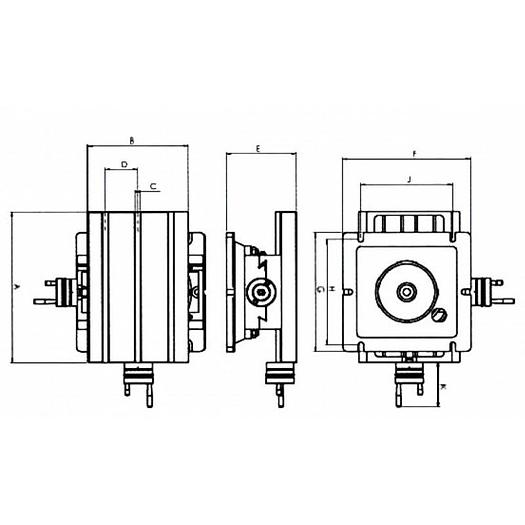

Technical Specification

Table Dimensions: 330 x 220mm

Table Height: 155mm

Tee Slot Size: 12mm

Distance Between T Slots: 72mm

X Axis Travel: 190mm

Y Axis Travel: 100mm

Overall Dimensions: 410 x 350 x 210mm

Weight: 33kg



Specifications

ManufacturerCormak
ModelKP 303 XY Rotary Table
ConditionNew
Table Dimensions330 x 220mm
Table Height155mm
Tee Slot Size12mm
Distance Between T Slots72mm
X Axis Travel190mm
Y Axis Travel100mm
Weight33kg
