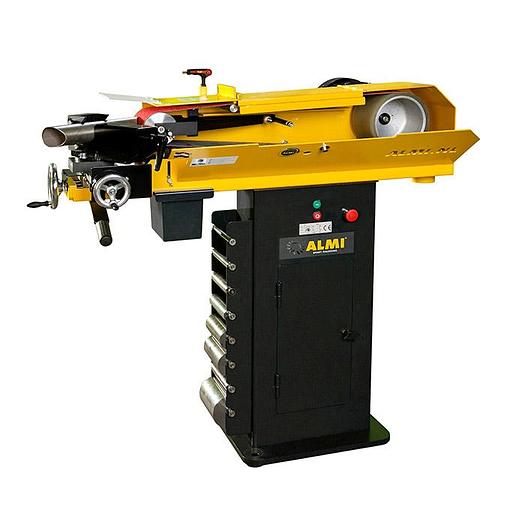

Almi AL150 2 IN 1 PIPE GRINDER/NOTCHER - 230V

ALMI AL150 2 IN 1 PIPE GRINDER/NOTCHER - 230V

Description

The AL150 from ALMI can easily grind tubes, and the same machine can deburr on the deburring table.

Easy To Use

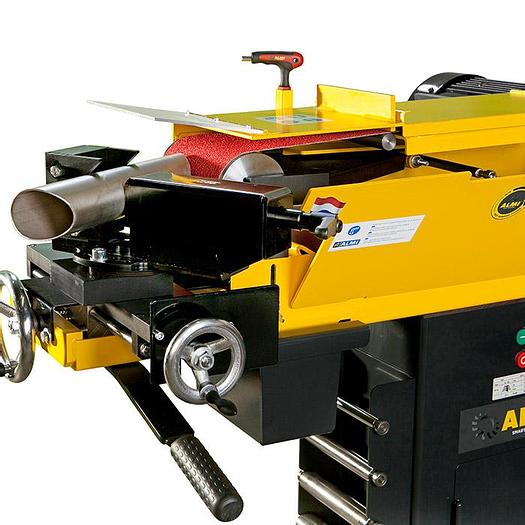

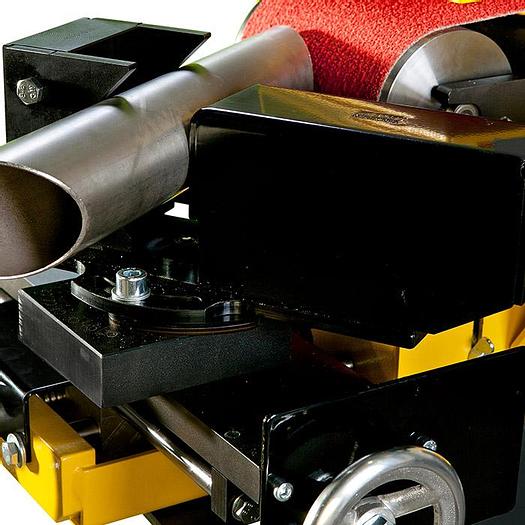

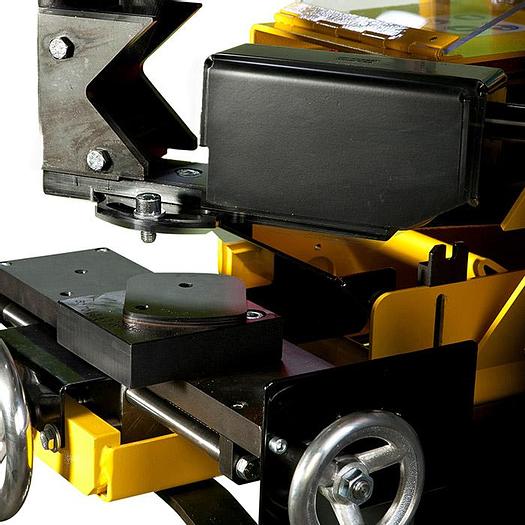

The AL150 has the option of being operated by means of two handwheels or by means of a lever. Both options are available on the machine. With the AL150 you can cut material from Ø20 to Ø114.3. The cross support and the slide with rotatable clamp are infinitely adjustable. This allows all tube profiles to be grinded at any desired angle from 20° to 90°. The AL100U-02 grinds square, rectangular and round pipes with different wall thicknesses and is suitable for all common material types. Thanks to the ALMI belt adjustment system, adjusting the grinding belt is now even easier with the supplied hex wrench. The grinding belt can be tensioned quickly and changing grinding rollers can be done in just a few seconds.

2 in 1 Pipe Grinder

The AL150 is fitted with a deburring table, with which ground pipes can be easily deburred, making the pipe grinder multifunctional.

Sustainable

All ALMI pipe grinders are produced by professional craftsmen. All parts are provided with a protective coating, which guarantees a long service life.

Technical Specification

Motor: 4 kW

Connection: 230V, Single Phase

Belt speed: 30 m/s, 2800 rpm

Belt size: 100×2000/150 x 2000 mm

Grinding diameters: Ø20-Ø114.3

Grinding angle: 20 – 90º

Operation: Lever and handwheel operation

Weight: 260 kg
