Colchester Triumph 2000 Manual Lathe

Cork, Ireland

Sold

Description

Colchester Triumph 2000 Manual Lathe


Machine Type: Manual Lathe

DRO: No

Condition: Good. Machine located in a college.


Includes

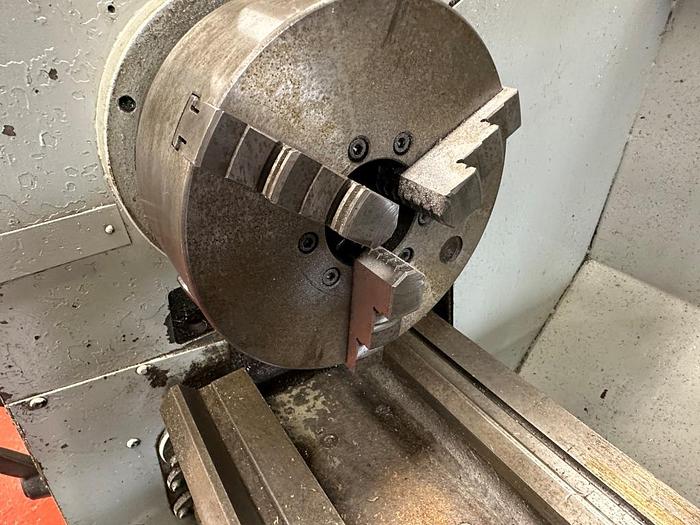

3 Jaw Chuck

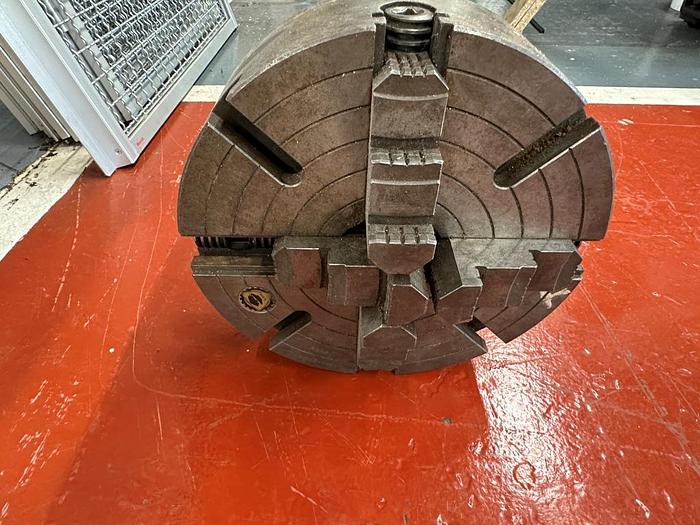

4 Jaw Chuck

Coolant Equipment


Technical Specification

Centre Height: 190mm

Distance Between Centres: 750mm

Swing Over Bed: 390mm

Swing Over Cross Slide: 240mm

Swing in Gap: 580mm

Gap Length: 155mm

Spindle Bore: 54mm

Spindle Nose: D1 6

Spindle Taper: MT 4

Spindle Speed Selection: 16

Spindle Speed Range: 25 - 2000rpm

Motor Power: 7.5hp

Cross-Slide Travel: 235mm

Top Slide Travel: 120mm

Tool Post: QCTP

Tailstock: Yes

Tailstock Quill Travel: 155mm

Tailstock Taper: MT4

Machine Length: 1930mm

Machine Weight: 1170kg


Specifications

ManufacturerColchester
ModelTriumph 2000 Manual Lathe
ConditionUsed
Machine TypeManual Lathe
DRONo
Centre Height190mm
Distance Between Centres750mm
Swing Over Bed390mm
Swing Over Cross Slide240mm
Swing in Gap580mm
Gap Length155mm
Spindle Bore54mm
Spindle NoseD1 6
Spindle TaperMT 4
Spindle Speed Selection16
Spindle Speed Range25 - 2000rpm
Motor Power7.5hp
Cross-Slide Travel235mm
Top Slide Travel120mm
TailstockYes
Tailstock Quill Travel155mm
Tailstock TaperMT4
Machine Length1930mm
Machine Weight1170kg
