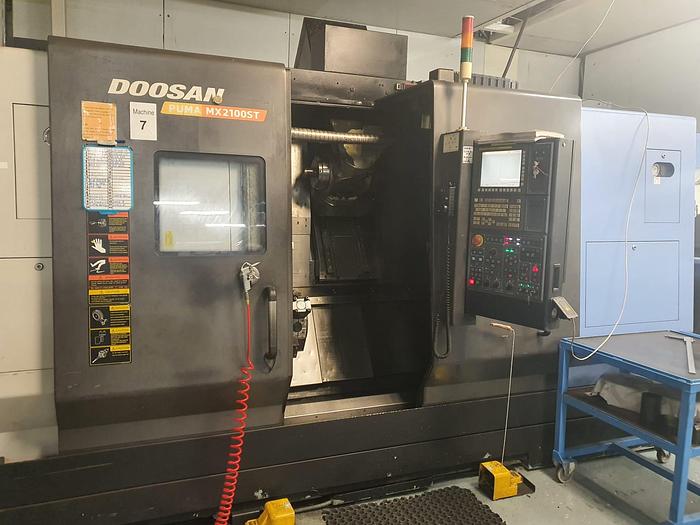

2008 Doosan MX2100ST Multi Tasking CNC Turning Center
Description
2008 Doosan MX2100ST Multi Tasking CNC Turning Center
Machine Type: Multi Tasking CNC Turning Center
Year: 2008

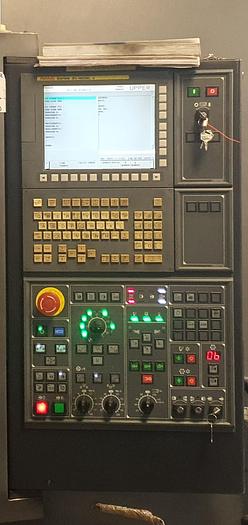

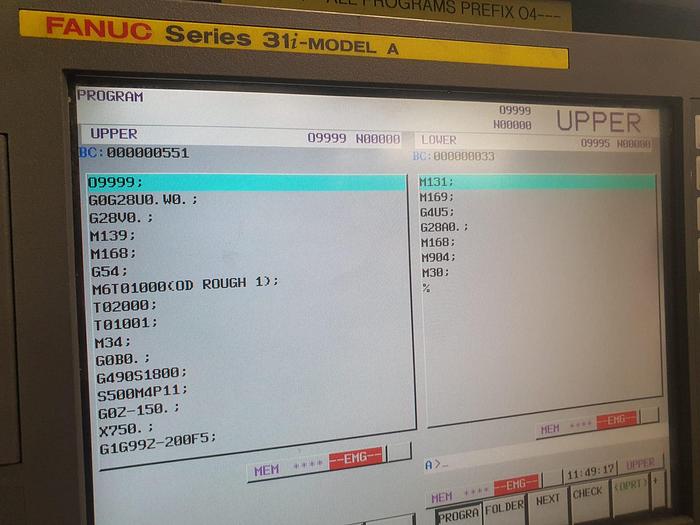

Control: Fanuc 31iA Control
Axes: 9 Axis Machine
Condition: Very Good
Includes

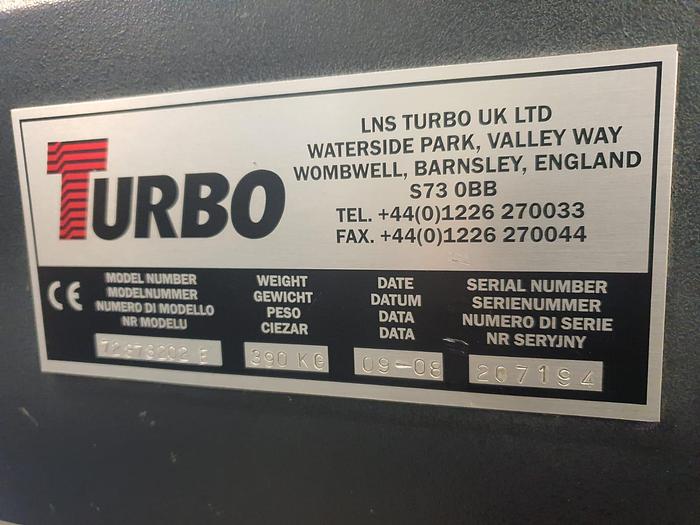

LNS Turbo Swarf Conveyor

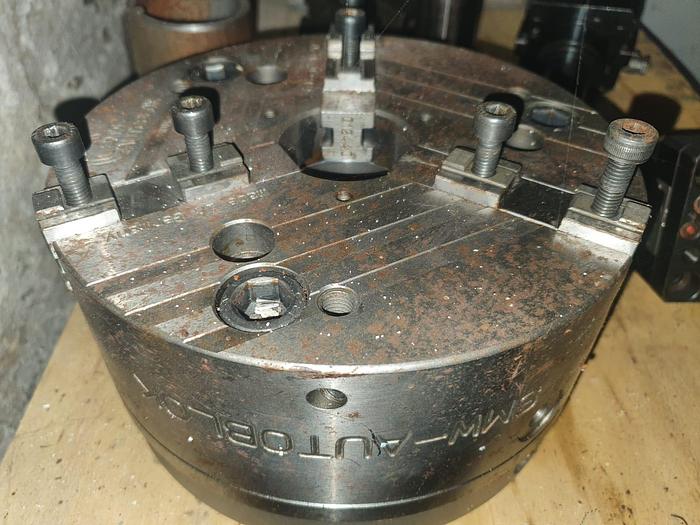

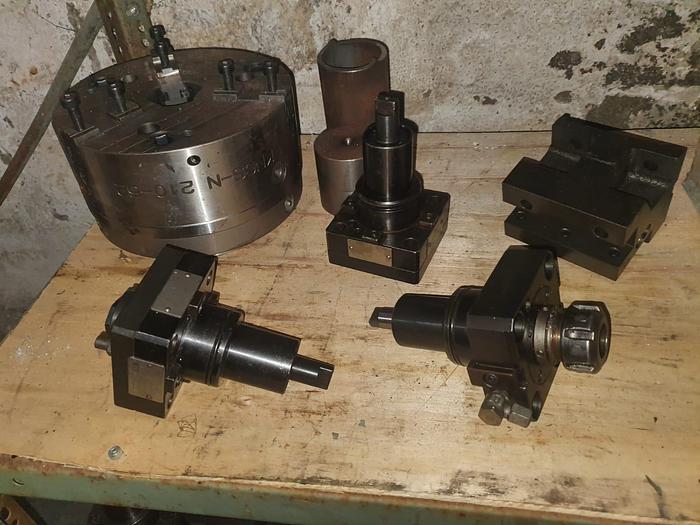

2 x SMW Autoblok 8"(210mm) Chucks
Tool Setter
Selection of Toolholders for Lower Turret
Technical Specification
Turning Length: 1020mm
Max Turning Diameter: 540mm
Swing over Bed: 750mm
Swing over Cross-Slide: 650mm
Main Spindle Speed: 5000rpm
Main Spindle Bore: 76mm
Main Spindle Bar Capacity: 66mm
Main Spindle Chuck: 8"
Main Spindle Nose: A2-6
Sub Spindle Speed: 5000rpm
Sub Spindle Bore: 76mm
Sub Spindle Bar Capacity: 65mm
Sub Spindle Chuck: 8"
Sub Spindle Nose: A2-6

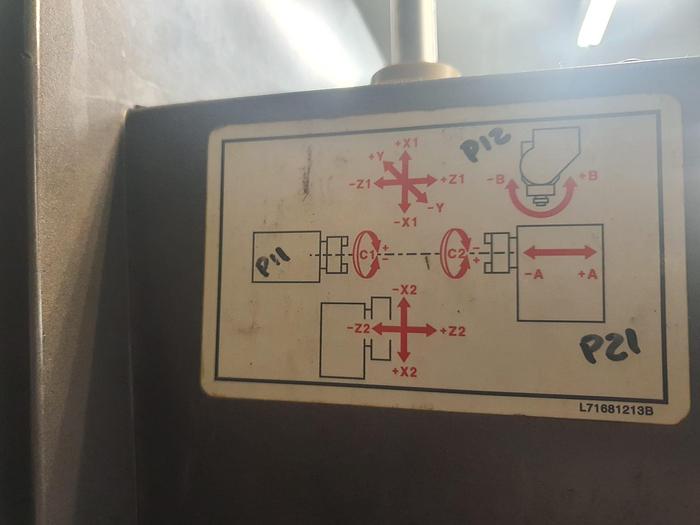

X1 Axis Travel: 564mm
X2 Axis Travel: 188mm
Y Axis Travel: 170mm
Z1 Axis Travel: 1050mm
Z2 Axis Travel: 1050mm
A Axis Travel: 1050mm
B Axis Travel: +/-120 degrees (0.001 degree)
C1 Axis: 0.001 degree
C2 Axis: 0.001 degree
ATC: 40 Station
B Axis Spindle Taper: Capto C6
Milling Speed: 12,000rpm
Milling Power: 18.5kW
Max Tool Diameter: 90mm
Max Tool Diameter with empty adj. Pocket: 120mm
Max Tool Length: 300mm

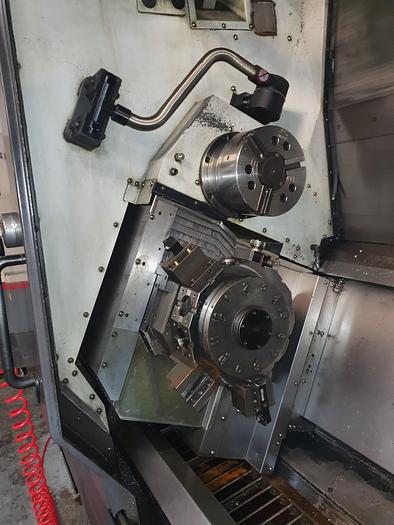

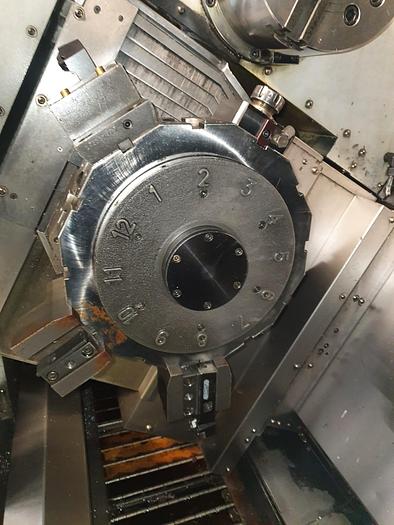

Turret: 12 Station Driven Tool Turret
Turret Milling Speed: 5000rpm
Turret Milling Power: 5.5kW
Turret Tooling: BMT55
Rapid Feed Rate X,Z: 36m/min
Rapid Feed Rate Y: 26m/min
Machine Dimensions: 4825 x 2515 x 2795mm (approx)
Machine Weight: 12,000kg (approx)
Specifications
Manufacturer | Doosan |
Model | MX2100ST Multi Tasking CNC Turning Center |
Year | 2008 |
Condition | Used |
Year | 2008 |
Control | Fanuc 31iA Control |
Axes | 9 Axis Machine |
Condition | Very Good |
Turning Length | 1020mm |
Max Turning Diameter | 540mm |
Swing over Bed | 750mm |
Swing over Cross-Slide | 650mm |
Main Spindle Speed | 5000rpm |
Main Spindle Bore | 76mm |
Main Spindle Bar Capacity | 66mm |
Main Spindle Chuck | 8" |
Main Spindle Nose | A2-6 |
Sub Spindle Speed | 5000rpm |
Sub Spindle Bore | 76mm |
Sub Spindle Bar Capacity | 65mm |
Sub Spindle Chuck | 8" |
Sub Spindle Nose | A2-6 |
X1 Axis Travel | 564mm |
X2 Axis Travel | 188mm |
Y Axis Travel | 170mm |
Z1 Axis Travel | 1050mm |
Z2 Axis Travel | 1050mm |
A Axis Travel | 1050mm |
B Axis Travel | +/-120 degrees (0.001 degree) |
C1 Axis | 0.001 degree |
C2 Axis | 0.001 degree |
ATC | 40 Station |
B Axis Spindle Taper | Capto C6 |
Milling Speed | 12,000rpm |
Milling Power | 18.5kW |
Max Tool Diameter | 90mm |
Max Tool Length | 300mm |
Turret Milling Speed | 5000rpm |
Turret Milling Power | 5.5kW |
Turret Tooling | BMT55 |
Rapid Feed Rate X,Z | 36m/min |
Rapid Feed Rate Y | 26m/min |
Machine Weight | 12,000kg (approx) |
