HM Machinery ZA250 Deburring Machine.

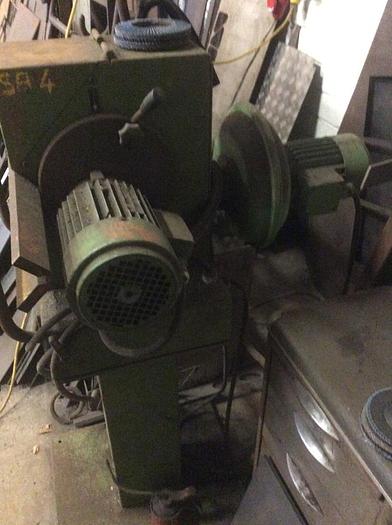

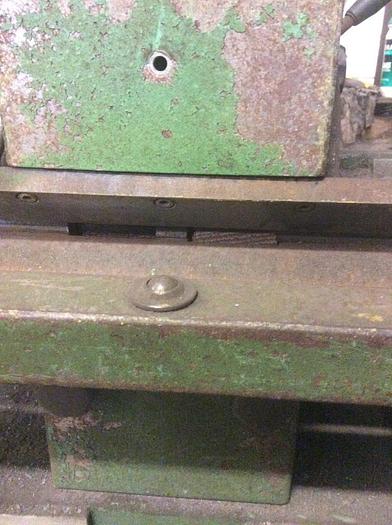

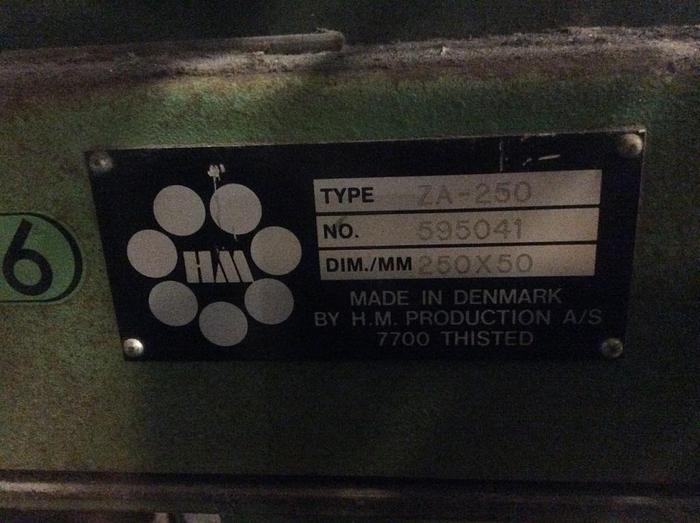

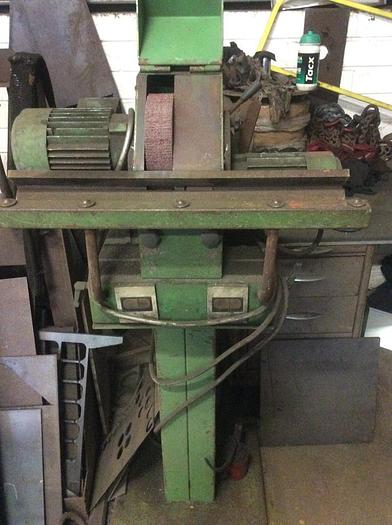

Used HM Machinery ZA250 Deburring Machine.

Description Abrasive Flap Wheel Sheet Deburring Machine.

HM Sheet deburring machine model ZA 250 has a unique design, which ensures effective, safe and clean edge deburring of most ferrous and nonferrous materials utilising two abrasive flap wheels. The motors rotate in opposite directions, and being independent of each other, can either deburr one or both edges at the same time. In addition the top cover of the machine can be opened to grind or finish flat surfaces.

Efficient deburring of sheet or plate up to 10 mm thickness, in most metals, including; mild steel, aluminium, stainless steel, copper, and brass can be accommodated. The machine is manufactured in accordance with the EC-machine directive, and it has a low noise level at the place of operation.

Specification Motor: 3PH

Motor Speed: 1400rpm

Power: 400V,3ph Flap Wheel Size: 250 x 50mm Flap Wheels x 2

Flap Wheel Speed: 18m/sec

Max Material Thickness: 10mm

Machine Dimensions (L x W x H): 460 x 675 x 480mm

Weight: 70kg

Machine was rarely used since purchased.
