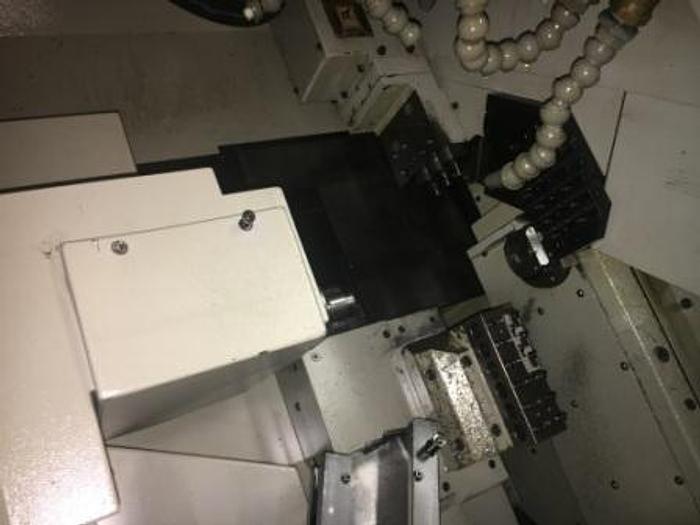

2004 Citizen C16 VII Sliding Head Lathe

1

Cork, Ireland

Sold

Description

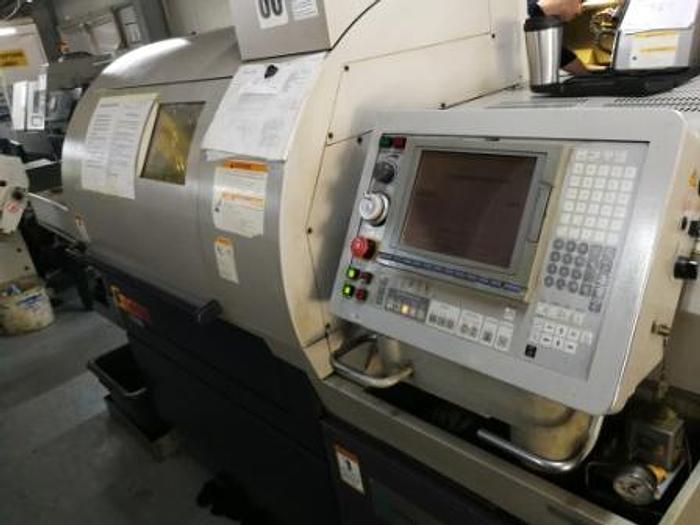

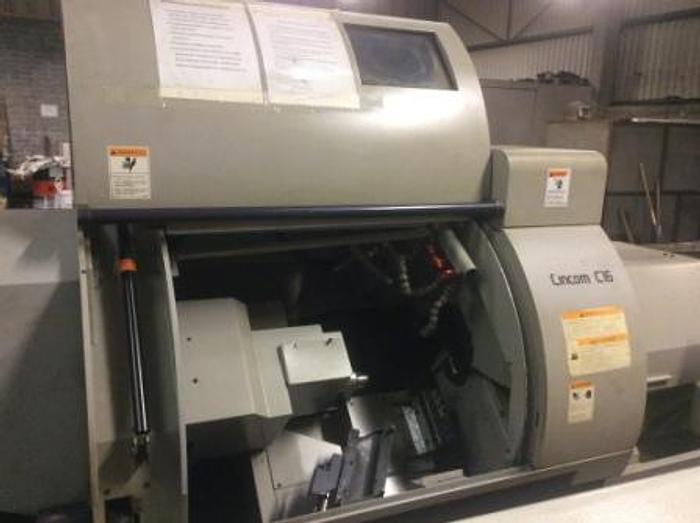

Used Citizen C16 VII Sliding Head Lathe

Includes:

Transformer

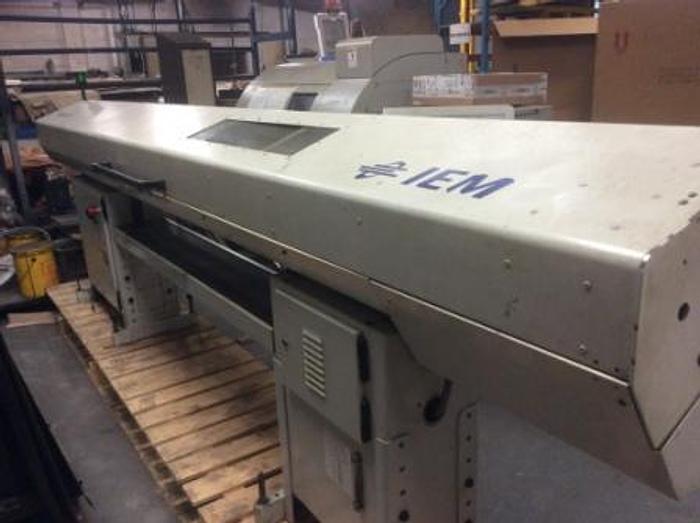

2005 Iemca Genius 118 Barfeed


Technical Specification Max Diameter Main Spindle: 16mm Max Diameter Sub-Spindle: 16mm Max Turning Length: 200mm Main Spindle Speed: 200 - 10,000rpm Sub-Spindle Speed: 200 - 10,000rpm Travels (X1): 105mm Travels (Y1): 202mm Travels (Z1): 205mm Rapid Feedrate: 20m/min Driven Tool Stations: 4+3 Rotary Tool Speed: 200 - 8000rpm Turning Tools on Gang Tool Post: 6 Rotary Tools on Gang Tool Post: 4 Main Spindle Drilling Tools: 6 Sub Spindle Drilling Tools: 6 Total Power Requirement: 2.2kW Machine Dimensions (L x W x H): 3250 x 1200 x 1700mm Machine Weight: 1750kg

Specifications

ManufacturerCitizen
ModelC16 VII
Year2004
ConditionUsed

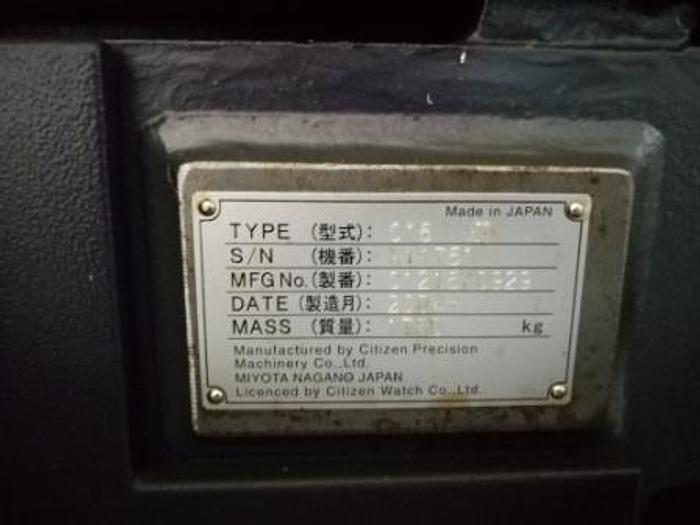

Serial NumberX11751

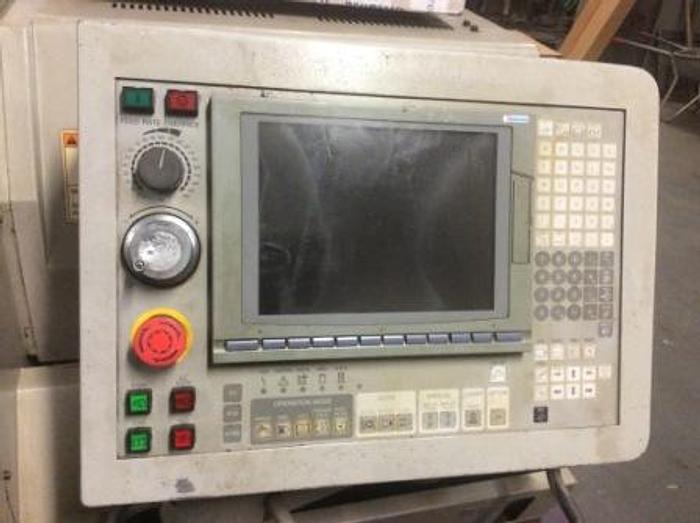

ControlMitsubishi Meldas
Bar capacity16mm
Machine hours71,000Hrs
Year2004
Max Diameter Main Spindle16mm
Max Diameter Sub-Spindle16mm
Max Turning Length200mm
Main Spindle Speed200 - 10,000rpm
Sub-Spindle Speed200 - 10,000rpm
Travels (X1)105mm
Travels (Y1)202mm
Travels (Z1)205mm
Rapid Feedrate20m/min
Driven Tool Stations4+3
Rotary Tool Speed200 - 8000rpm
Main Spindle Drilling Tools6
Sub Spindle Drilling Tools6
Total Power Requirement2.2kW
Machine Dimensions (L x W x H)3250 x 1200 x 1700mm
Machine Weight1750kg
Bar FeedIemca Genius 118
