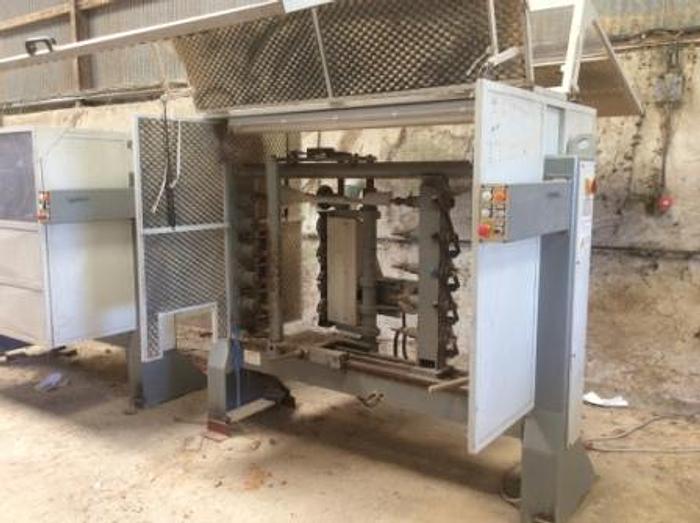

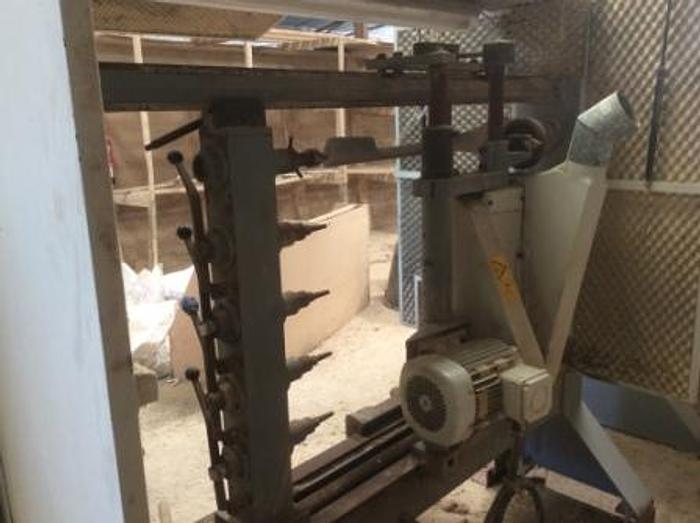

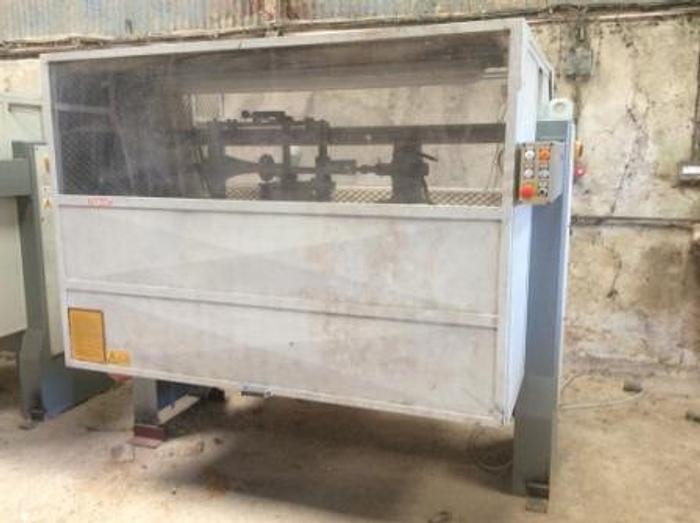

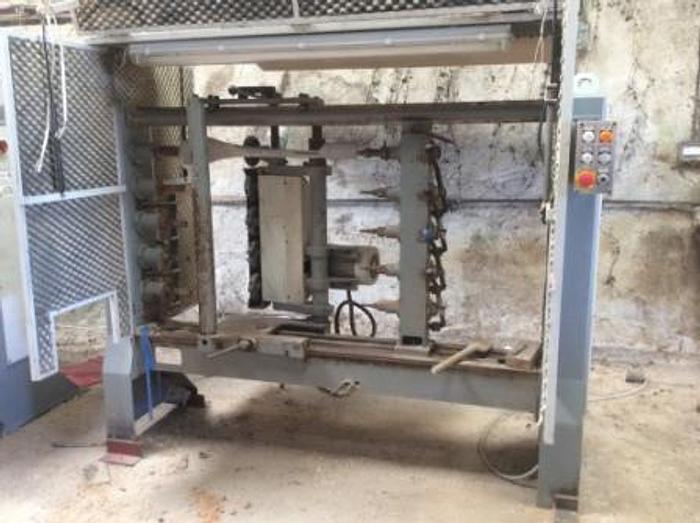

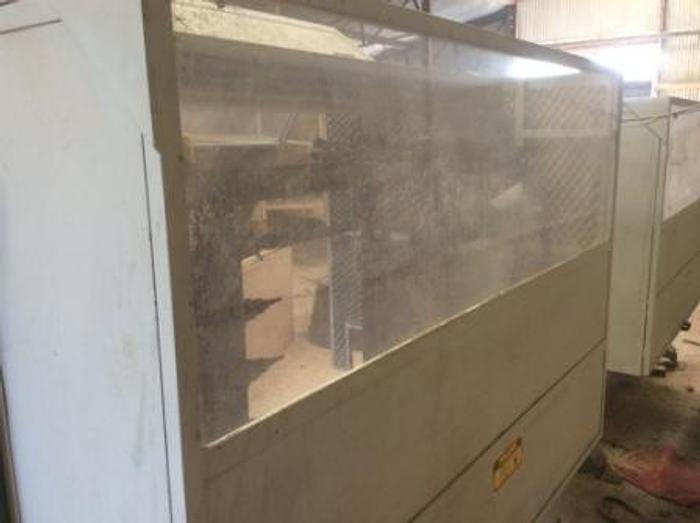

2005 Balestrieri Mecc 120/4 Copying Lathe
Description
Balestrieri MECC 120/4 Copying Lathe Year: 2005 S/N: 004/05 Weight: 1010kg Power: 380V 50Hz Complete with: Hurley Making Template 4 x Copying Stations Standard Specification • Nr. 4 spindles for simultaneous copying of 4 work pieces • Variable rotation by inverter • Spindle movement by bronze gears and worm screw • Max. turning length mm 1200 • Max.turning diameter mm 150 • Cutter motor power V 380/50 - Kw 4 • Power of spindle rotation and V 380/50 - Kw 0,75 cutter-holder carriage advancement motor • Tools-holder diameter mm 145 • Tool diameter mm 35 • Variable spindle rotation speed RPM 20÷50 • Carriage advancement speed connected with mm /min 70÷180 spindle rotation • Tools speed RPM 4500 • Overall dimensions mm 2600 x 1000 x 1960 • Machine and electric installation in compliance with EC rules
Specifications
| Manufacturer | Balestrieri |
| Model | MECC 120/4 |
| Year | 2005 |
| Condition | Used |

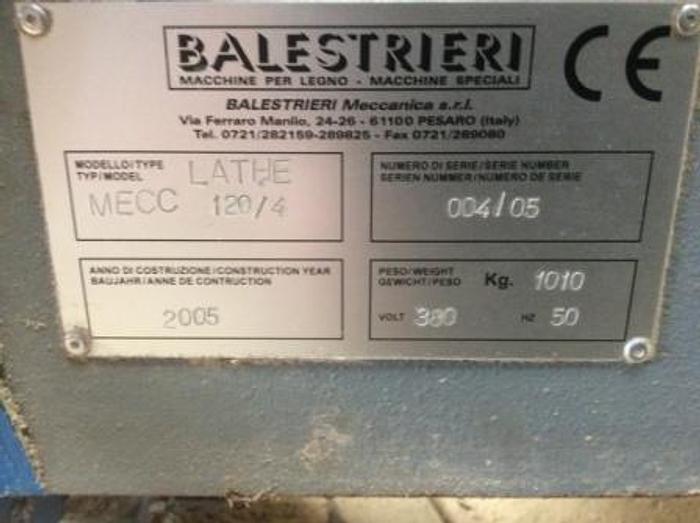

| Serial Number | 004/05 |
| Stock Number | 00177 |
| Weight | 1010kg |
| Power | 380V 50Hz |
| Number of Copying Spindles | 4 |
| Max Turning Length | 1200mm |
| Max Turning Diameter | 150mm |
| Tool Holder Diameter | 145mm |
| Tool Diameter | 35mm |
| Variable Spindle Speed | 20-50 rpm |
| Tool Speed | 4500 rpm |
| Machine Dimensions (L x W x H) | 1600 x 1000 x 1960mm |
