2005 Peddinghaus Avenger MDL1000B CNC Beam Drilling Line

1

Cork, Ireland

Sold

Description

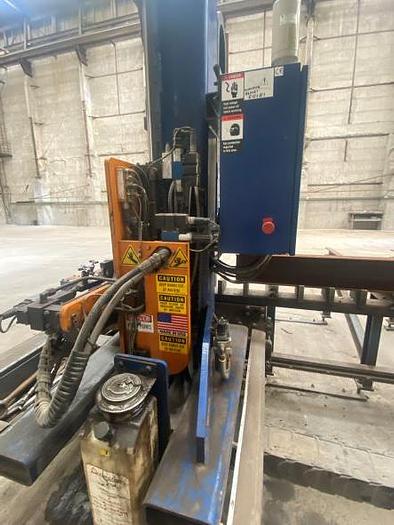

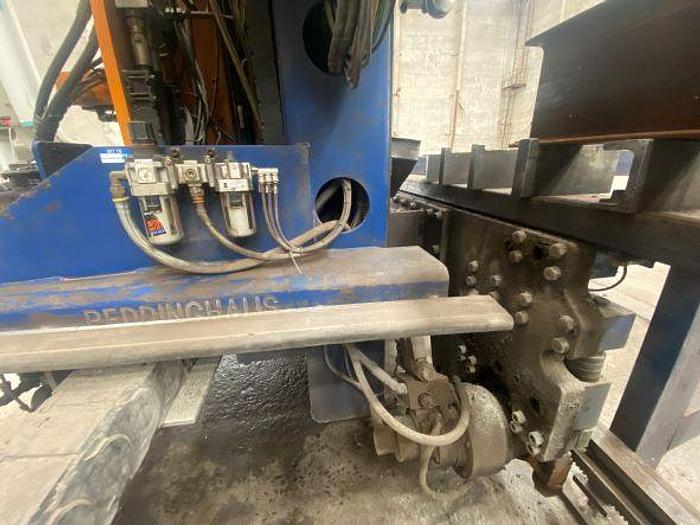

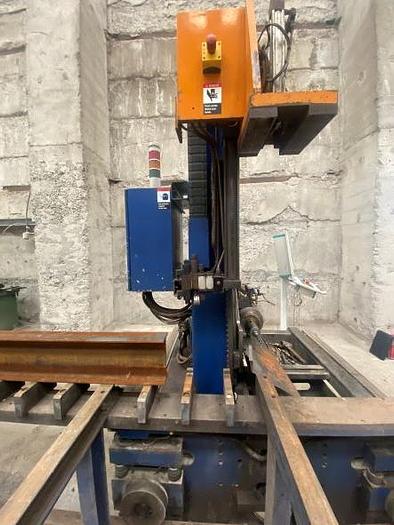

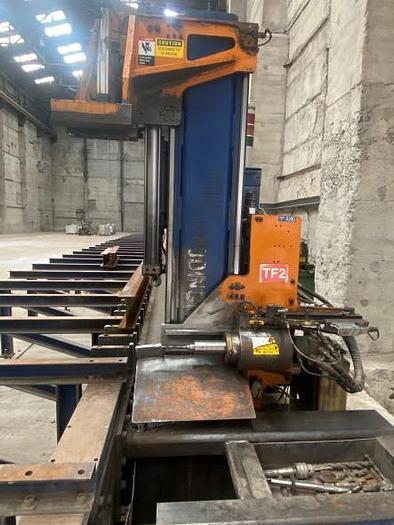

2005 Peddinghaus Avenger MDL1000/B CNC Beam Drilling Line

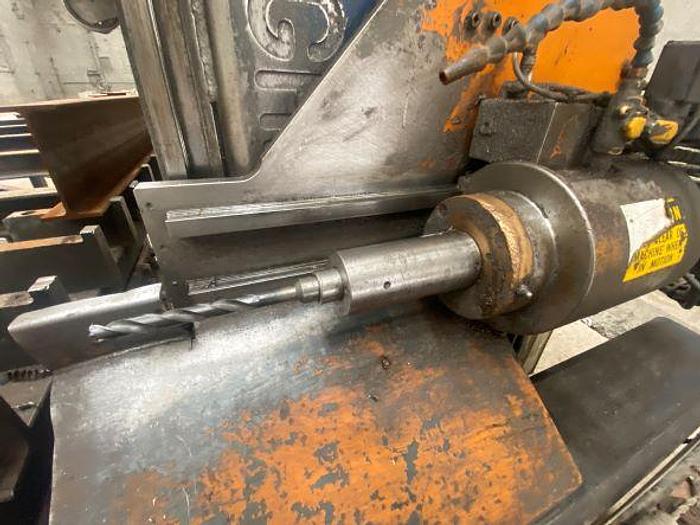

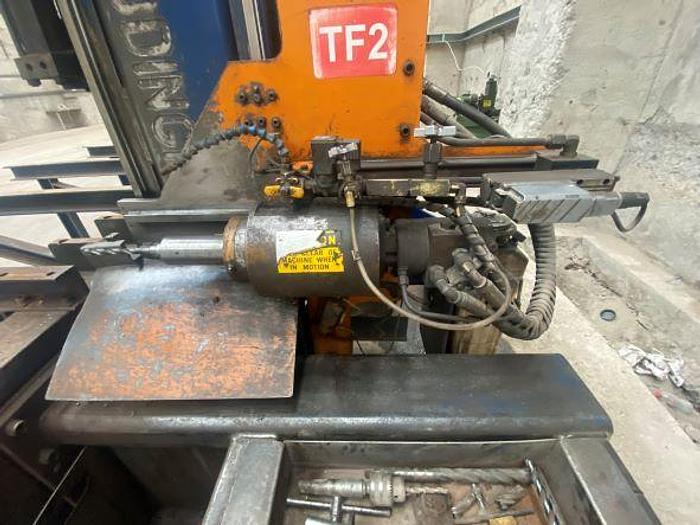

Machine Type: Single Spindle CNC Beam Drilling Line

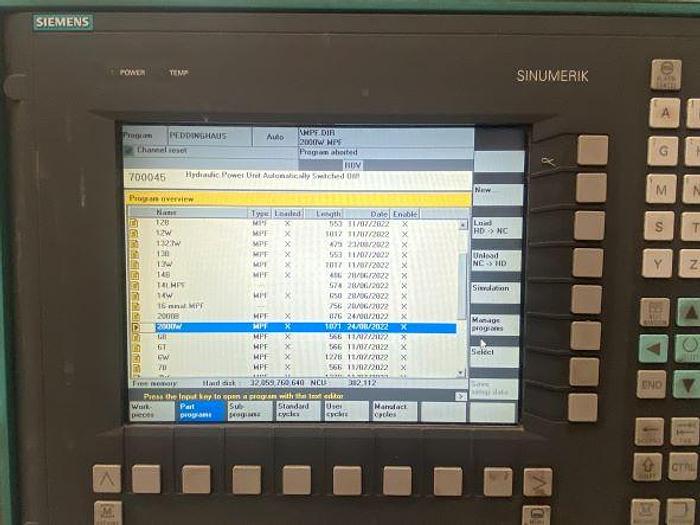

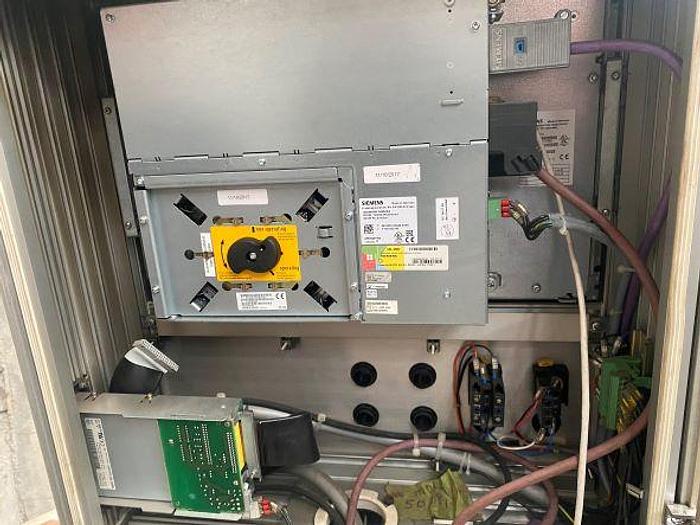

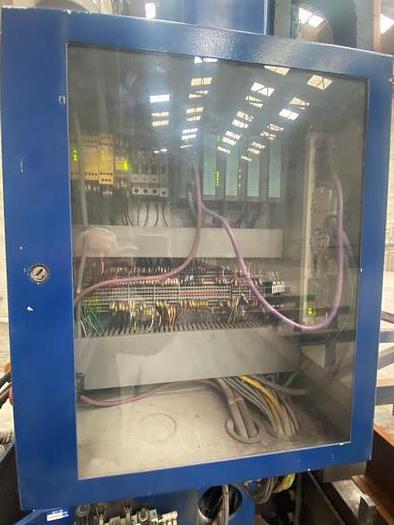

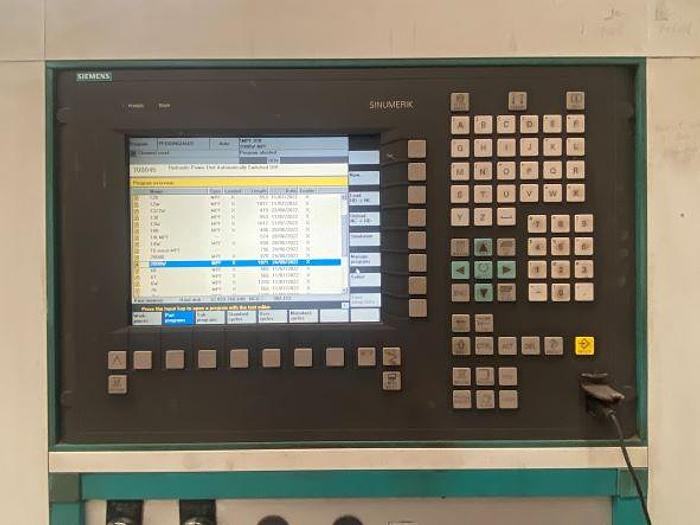

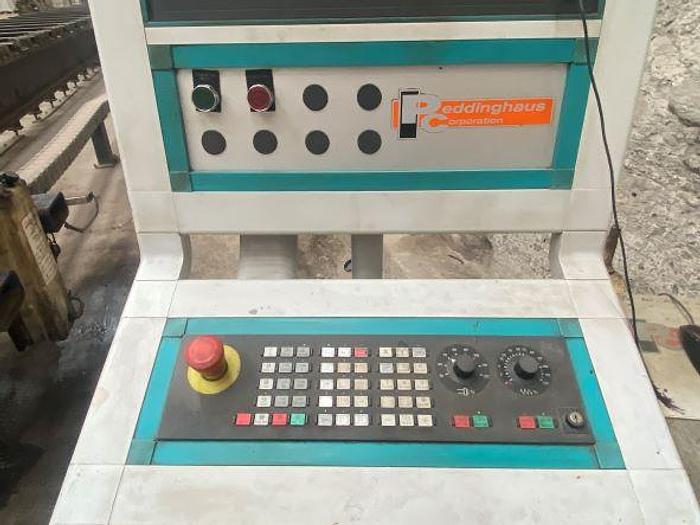

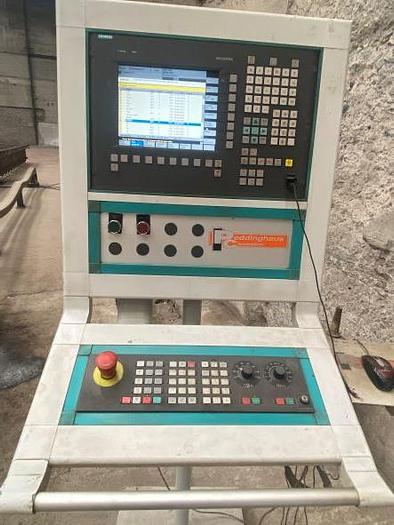

Control: Siemens Sinumerik

Year: 2005

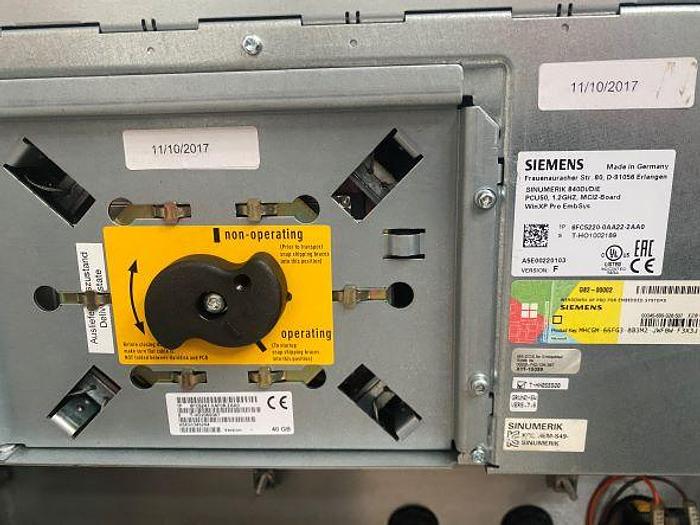

Condition: Good. Control upgraded in 2017.


Includes

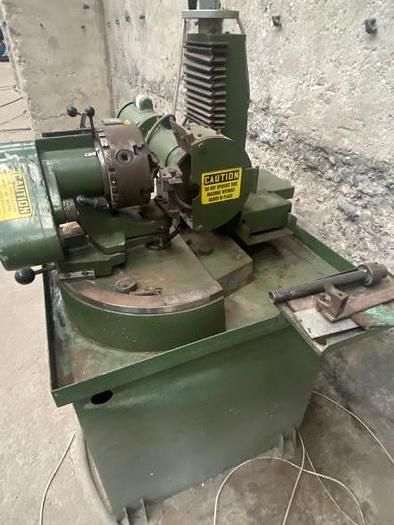

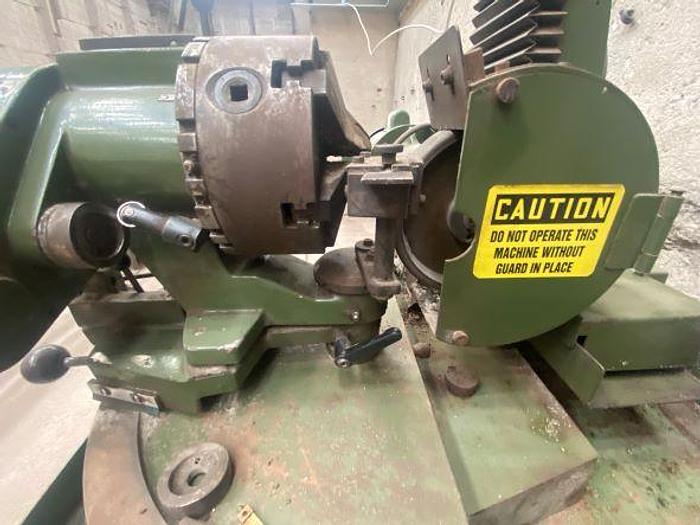

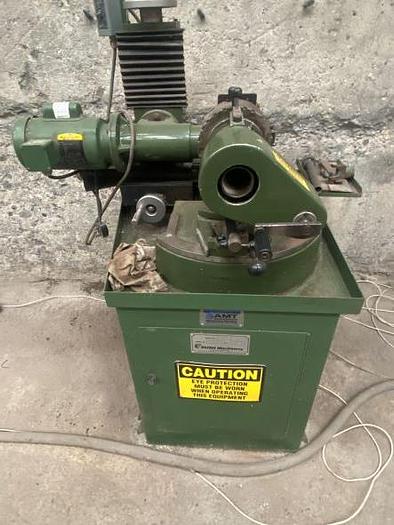

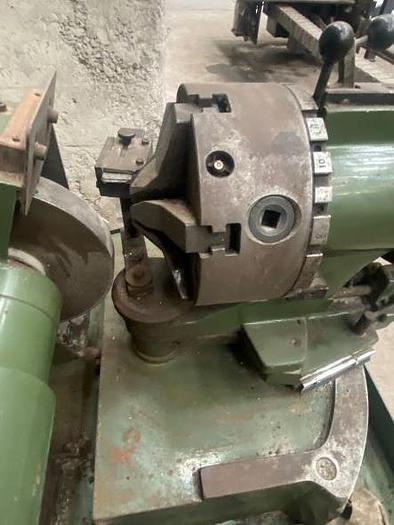

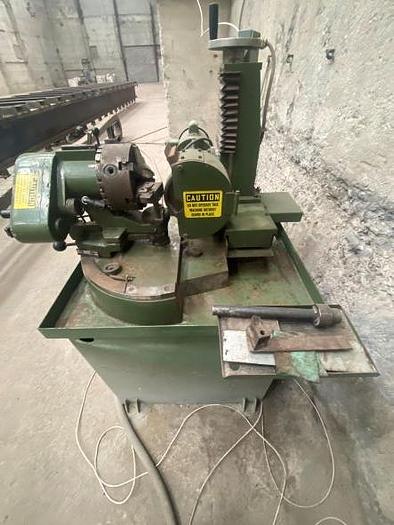

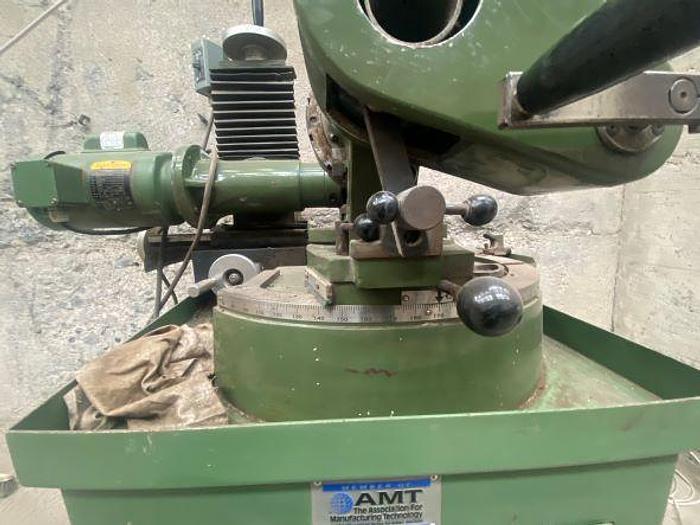

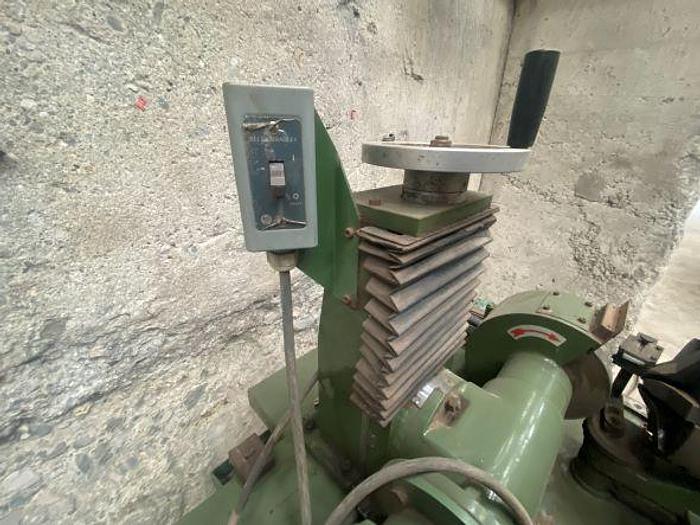

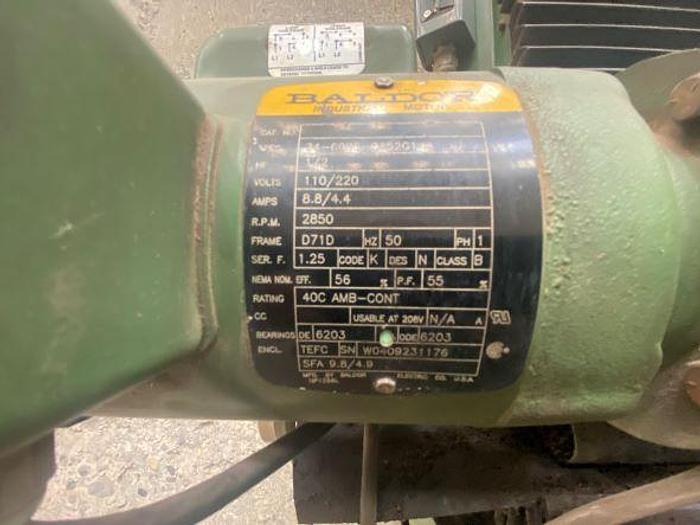

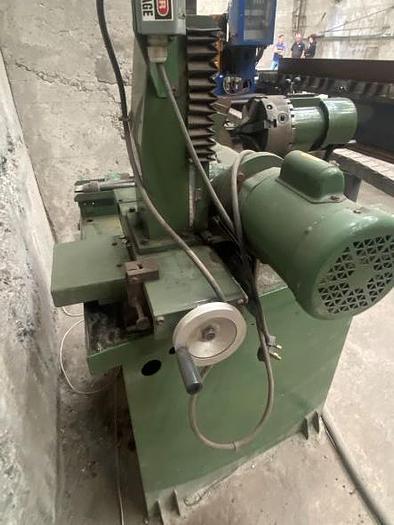

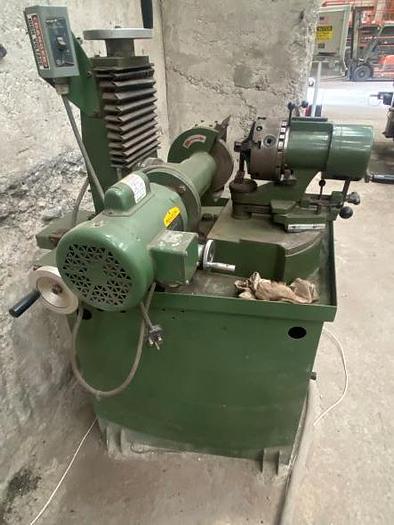

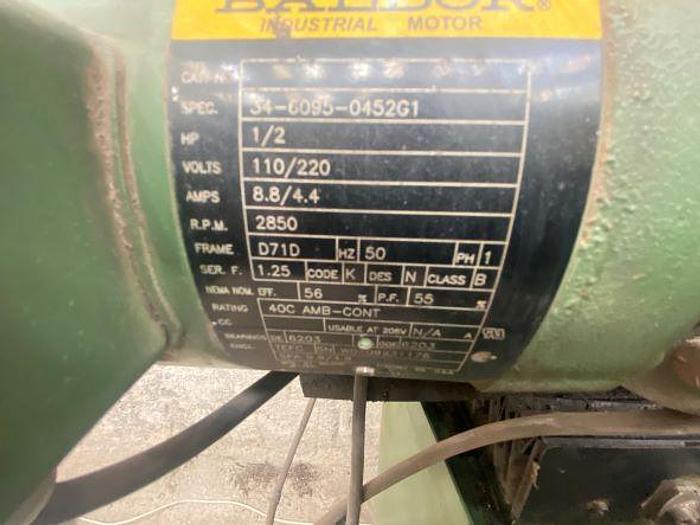

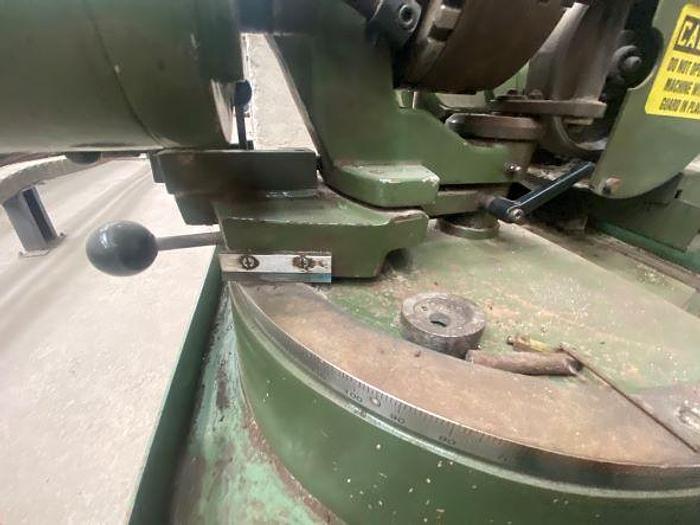

Rush 250A Drill Grinder

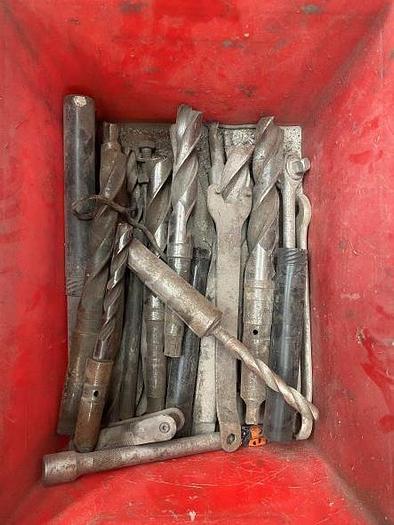

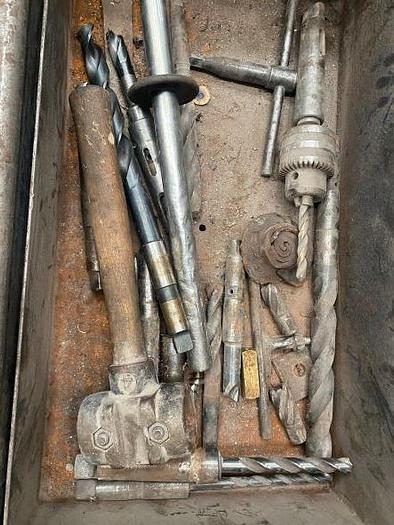

Selection of Drill Bits

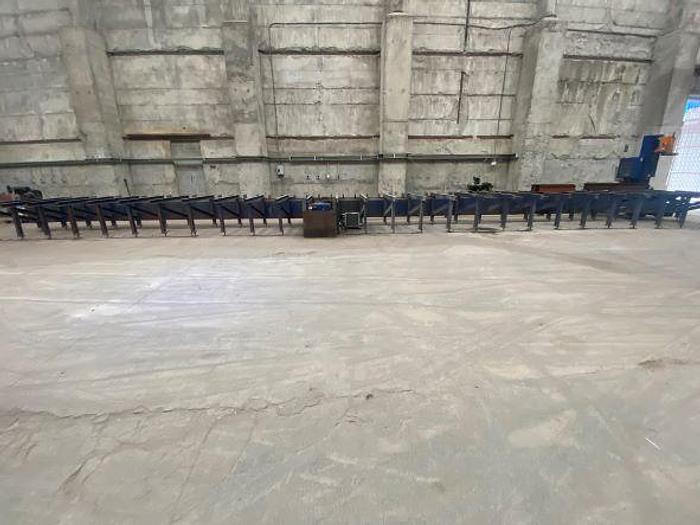

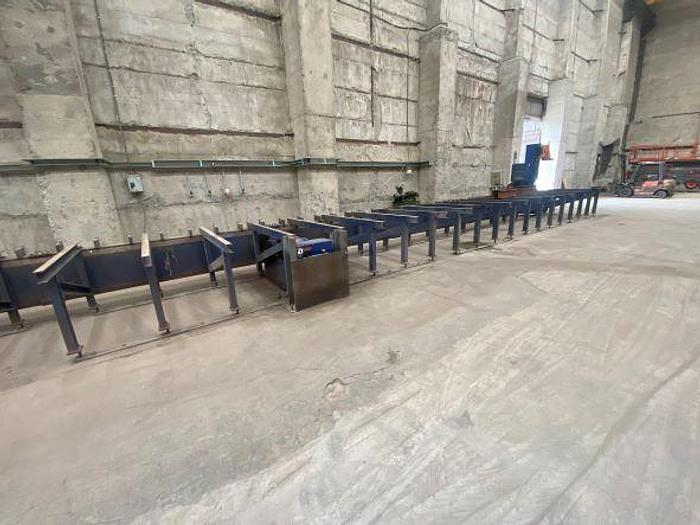

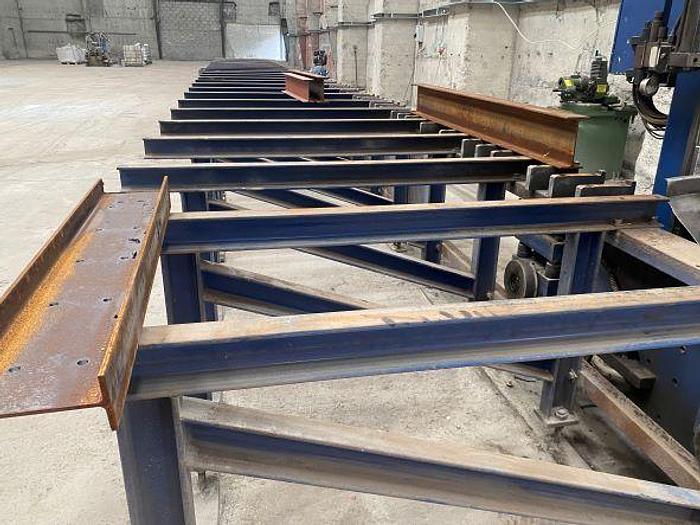

60ft Table


Technical Specification

Max Beam Size: 60ft x 40" (18.3m x 1000mm)

Max Beam Weight: 730lbs/ft (1088kg/m)

Min Drill Diameter: 1/4" (6.5mm)

Max Drill Diameter: 2" (50mm)

Max Thickness: Up to 10" (250mm)

Max Speed X-axis: 120 ft/min (37m/min.)

Max Speed Y-axis: 120 ft/min (37m/min.)

Spindle Power: 13 3/4hp (10KW)

Drilling Feed Rate: 2" – 10" per min (50-254mm/min) infinitely variable

Spindle Stroke: 13" (330mm) max

Total power: 20 HP (14.9 KW)

Power Supply: 400V, 3-ph, 50 Hz

Average Output: 200 to 400 holes per hour depending on the profile drilled

Approx Floor Space Required: 20.5 x 3.5m

Machine Height: 2.56m

Show All

Specifications

ManufacturerPeddinghaus
ModelAvenger MDL1000B CNC Beam Drilling Line
Year2005
ConditionUsed
ControlSiemens Sinumerik
Year2005
Max Beam Size60ft x 40" (18.3m x 1000mm)
Max Beam Weight730lbs/ft (1088kg/m)
Min Drill Diameter1/4" (6.5mm)
Max Drill Diameter2" (50mm)
Max ThicknessUp to 10" (250mm)
Max Speed X-axis120 ft/min (37m/min.)
Max Speed Y-axis120 ft/min (37m/min.)
Spindle Power13 3/4hp (10KW)
Spindle Stroke13" (330mm) max
Total power20 HP (14.9 KW)
Power Supply400V, 3-ph, 50 Hz
Approx Floor Space Required20.5 x 3.5m
Machine Height2.56m
