Tubend HPK40 3 Rolls Hydraulic Section and Pipe Bending Machine

Tubend HPK 40 3 Rolls Hydraulic Section and Pipe Bending Machine

Machine Type: Hydraulic Section Rolls

Standard Accessories

Steel construction welded frame

3 rolls are powered

Hardened and ground shafts made of high tensile special steel

Horizontal and vertical working position

Hardened standard rolls

Mobile control panel

3 Axis mechanical lateral angle guide rolls

Brake motor equipped for the precision bending

Digital Read-Outs (2pcs)

Optional Extras

NC Control

Hydraulic lateral guide rollers (2 Axis)

Spiral bending crane

Special profile rolls

Technical Specification

Rolls shaft: Ø40mm

Rolls diameter: Ø137mm

Working speed: 7m/min

Motor power: 1.1kW

Electrical Connection: 380V

Dimensions (LxWxH): 1050x530x1250mm

Weight: 350kg

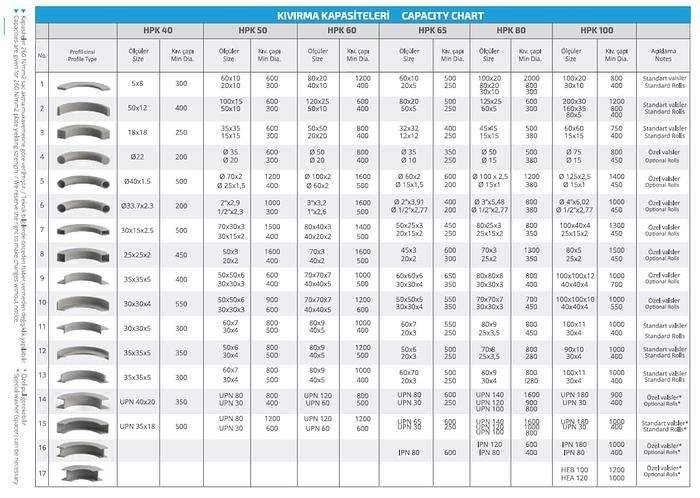

Rolling/Bending Capacities

Please see attachment below
