2021 HAAS ST 25 CNC Turning Centre
Description

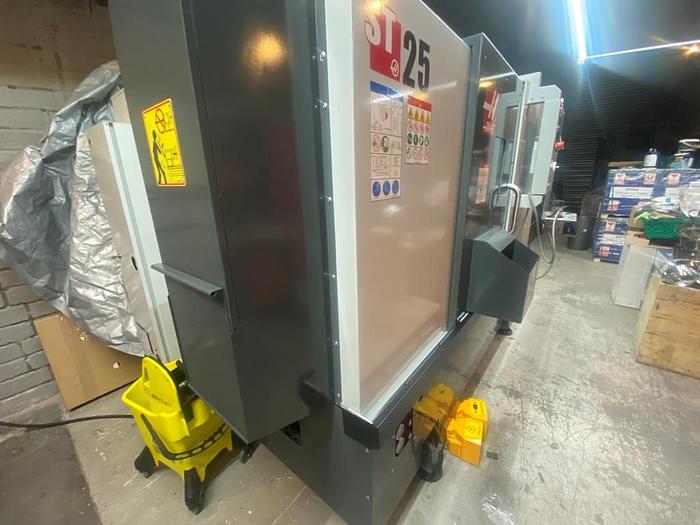

HAAS ST-25 CNC Turning Centre
Machine Type: CNC Lathe
Year: 2021 (Delivered in 2022)
Hours: Approx 60 hrs
Condition: Machine is in "As New" Condition
Availability: Immediately
Included Options

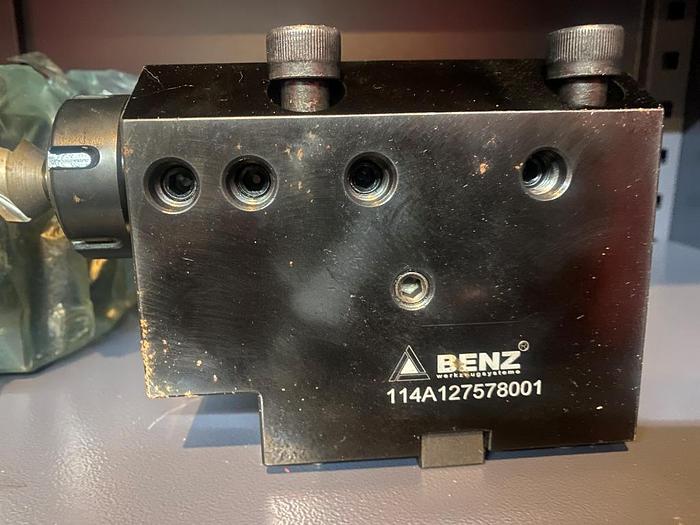

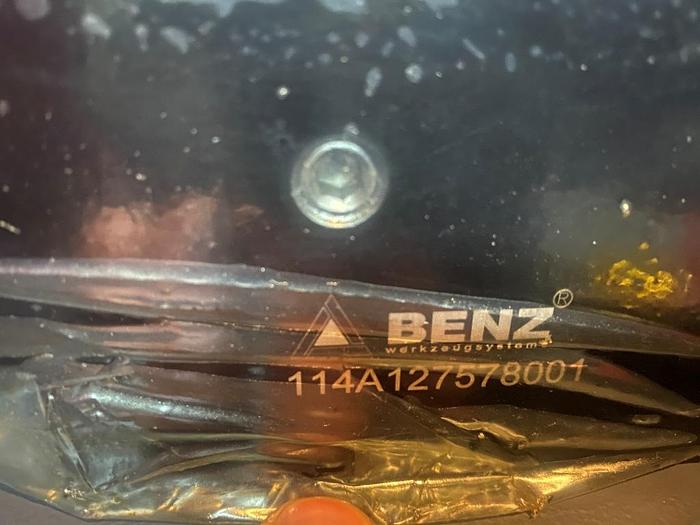

4000rpm Live Tooling with C Axis

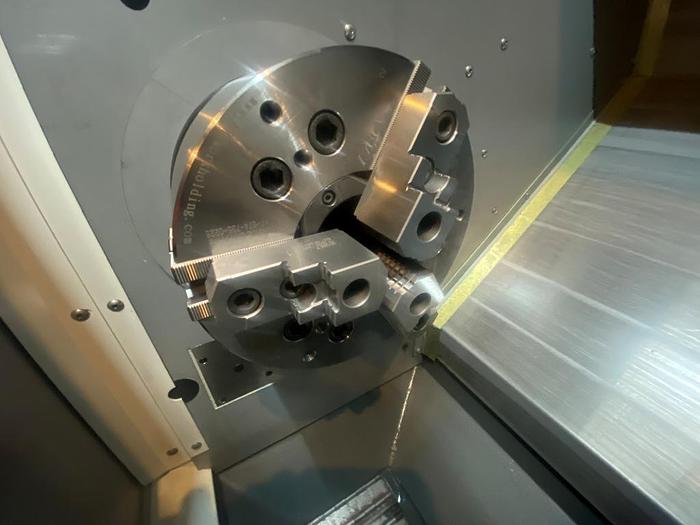

10" Hydraulic Chuck
Top Plate Tube x 2
Compression Tilt x 2
Fitting NPT 1/8M NPT 1/8F Str Brass x 2
Swarf Tray Filter Kit

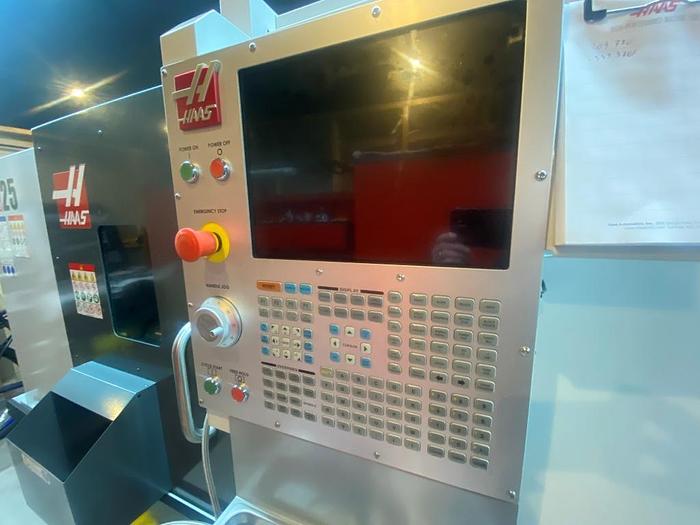

Visual Part Programming System

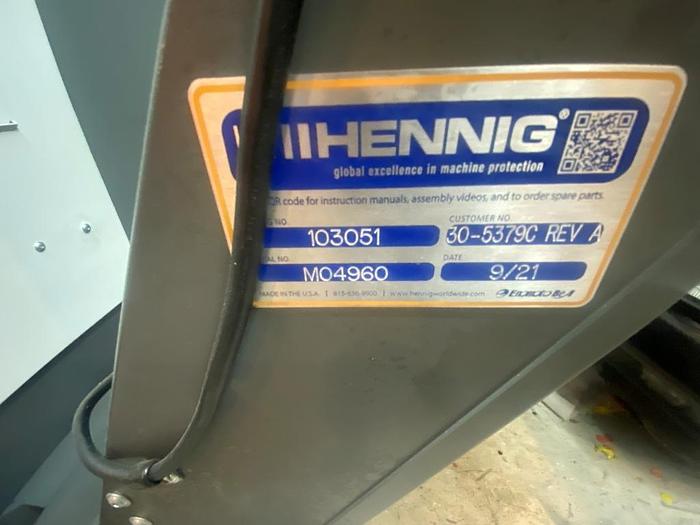

Belt Type Chip Conveyor

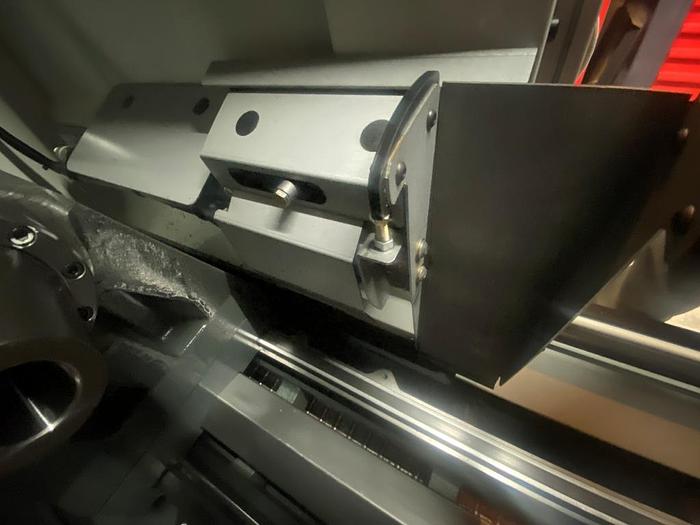

Dual Action Parts Catcher

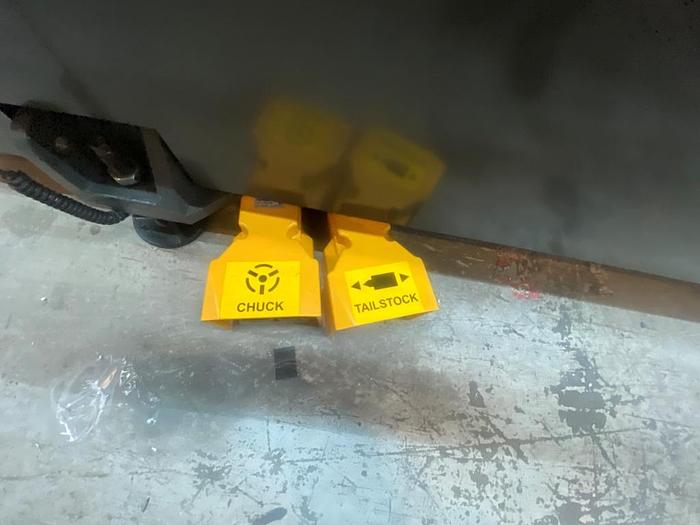

Programmable Hydraulic Tailstock
Technical Specification
Max Part Swing: 533mm
Chuck Size: 254mm (10")
Max Cutting Diameter: 298mm
Max Cutting Length: 572mm
Bar Capacity: 76mm (3")
X Axis Travel: 213mm
Z Axis Travel: 572mm
X Axis Rapid Feed: 24m/min
Z Axis Rapid Feed: 24m/min
X Axis Max Thrust: 18,238N
Y Axis Max Thrust: 22,686N
Spindle Motor: 22.4kW
Max Spindle Speed: 3400rpm
Max Spindle Torque: 407Nm @ 500rpm
Spindle Nose: A2-6
Spindle Bore: 88.9mm

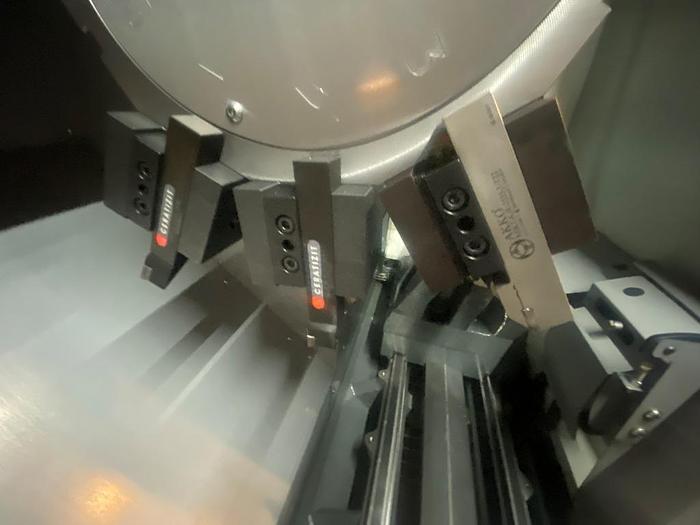

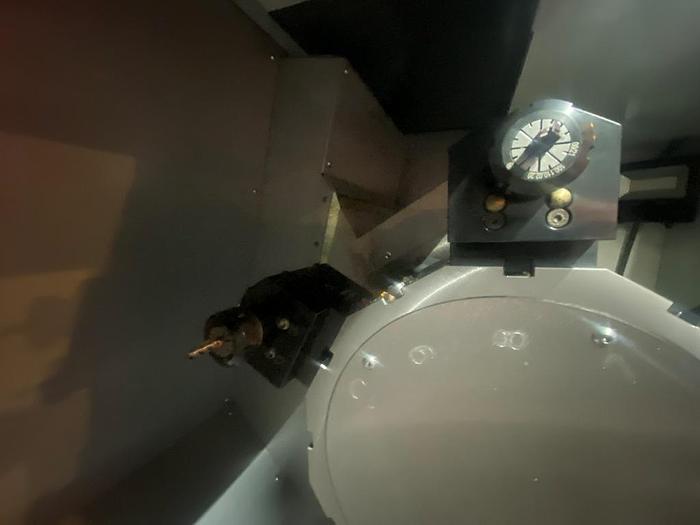

Turret: 12 Station
Driven Tool Capacity: Yes
C Axis: Yes
Boring Bar Rear Clearance: 102mm
Air Required: 113L/min, 6.9Bar
Coolant Capacity: 208L
Dimensions: 4000 x 2600 x 2000mm

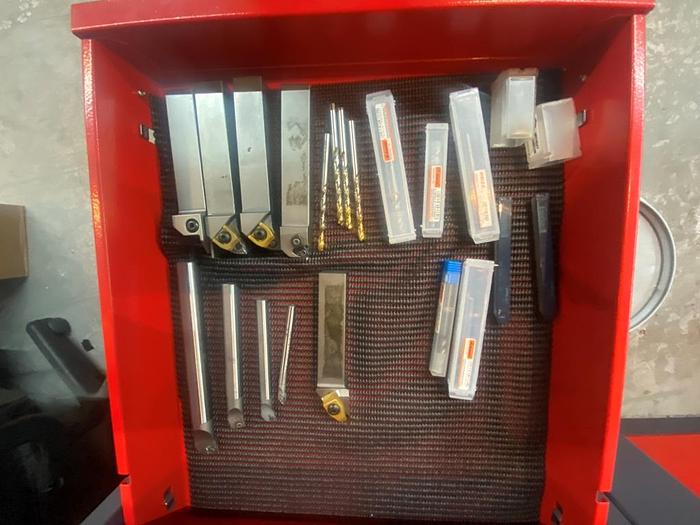

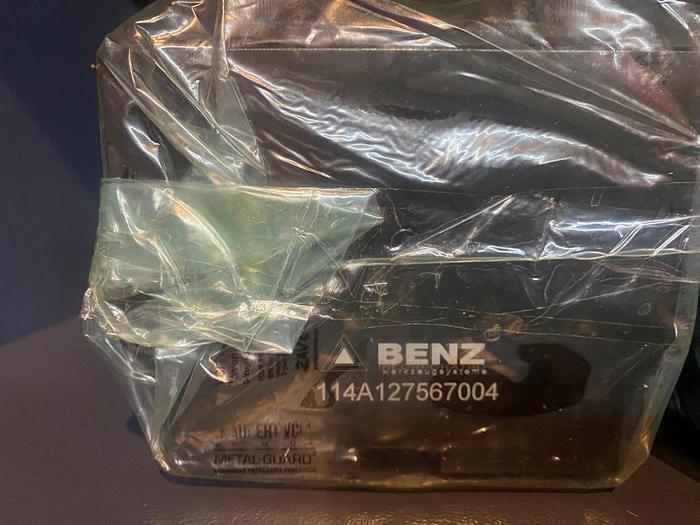

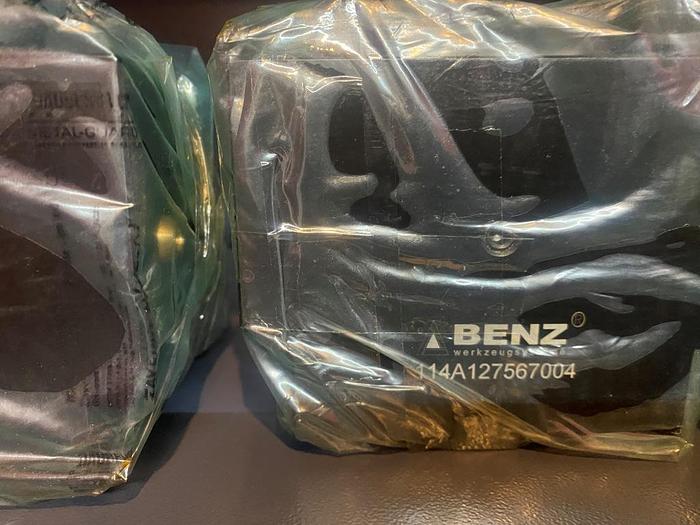

Tooling Package Available at an Extra Cost

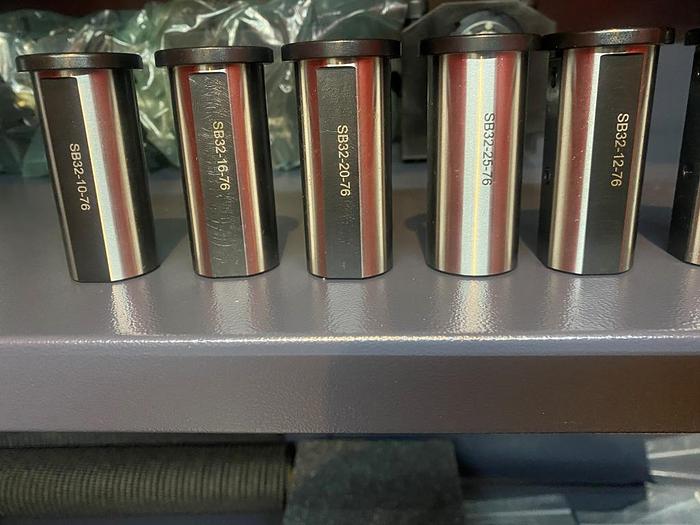

Reducing Sleeve Set

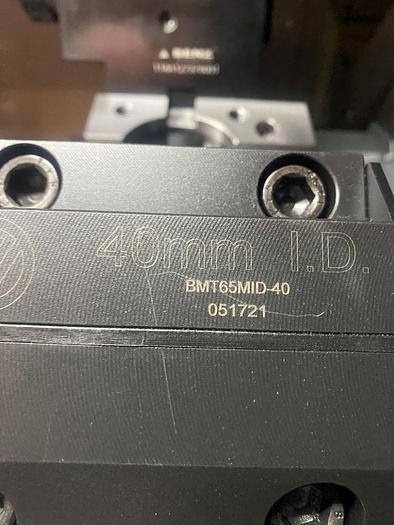

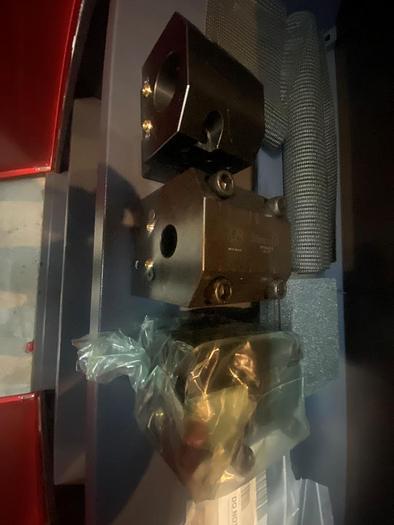

6 x Boring Bar Holders
7 x Turning Tool Holders

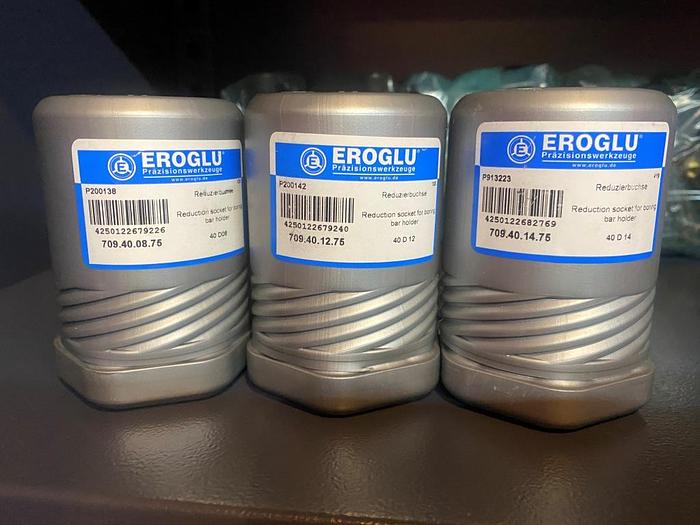

15 x Boring Bar Holder Reducing Bushes

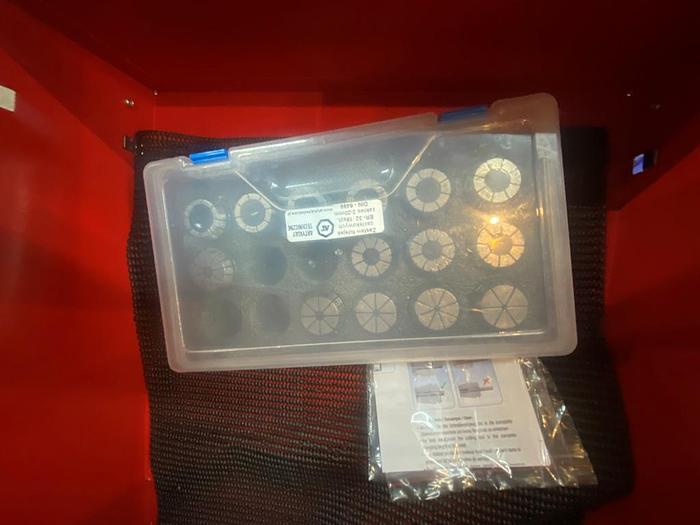

Collet Set
Selection of Tooling

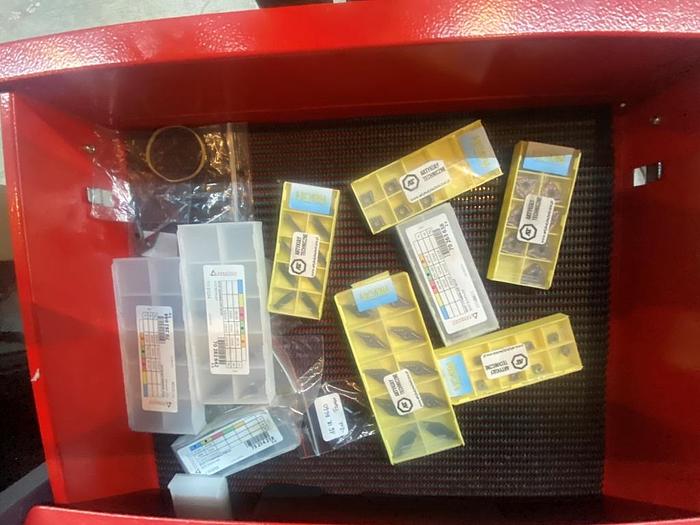

Selection of Inserts
Liner Guide Adapter Kit for Spindles

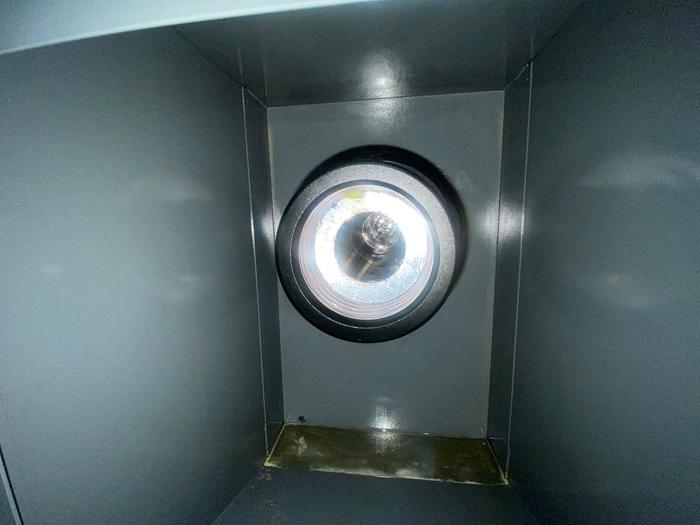

Spindle Liner Kit (3")
Specifications
Manufacturer | HAAS |
Model | ST 25 CNC Turning Centre |
Year | 2021 |
Condition | Used |
Machine Type | CNC Lathe |
Year | 2021 (Delivered in 2022) |
Hours | Approx 60 hrs |
Availability | Immediately |
Max Part Swing | 533mm |
Chuck Size | 254mm (10") |
Max Cutting Diameter | 298mm |
Max Cutting Length | 572mm |
Bar Capacity | 76mm (3") |
X Axis Travel | 213mm |
Z Axis Travel | 572mm |
X Axis Rapid Feed | 24m/min |
Z Axis Rapid Feed | 24m/min |
X Axis Max Thrust | 18,238N |
Y Axis Max Thrust | 22,686N |
Spindle Motor | 22.4kW |
Max Spindle Speed | 3400rpm |
Max Spindle Torque | 407Nm @ 500rpm |
Spindle Nose | A2-6 |
Spindle Bore | 88.9mm |
Turret | 12 Station |
Driven Tool Capacity | Yes |
C Axis | Yes |
Boring Bar Rear Clearance | 102mm |
Air Required | 113L/min, 6.9Bar |
Coolant Capacity | 208L |
