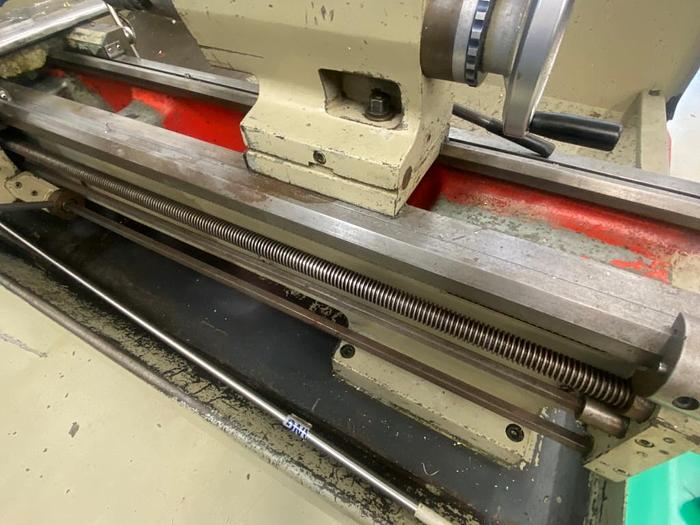

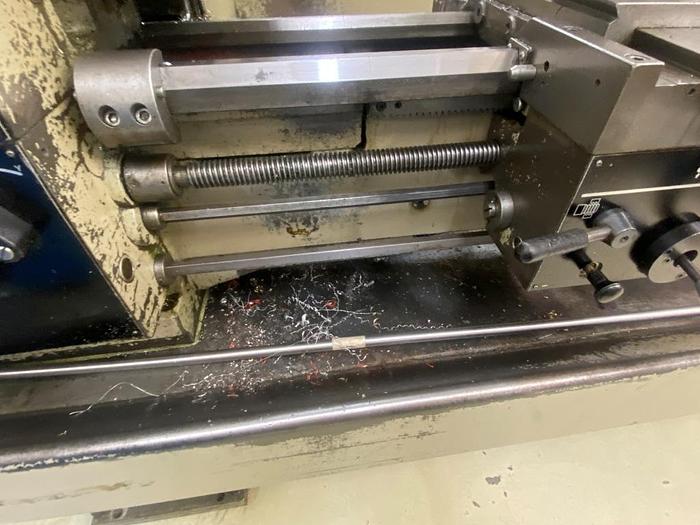

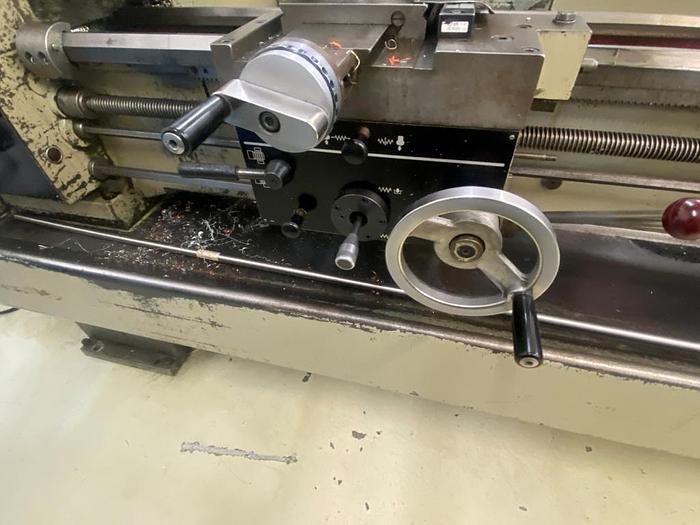

Harrison M350 Manual Lathe

Cork, Ireland

Sold

Description

Harrison M350 Manual Lathe


Machine Type: Manual Centre Lathe

Condition: Working Well


Includes

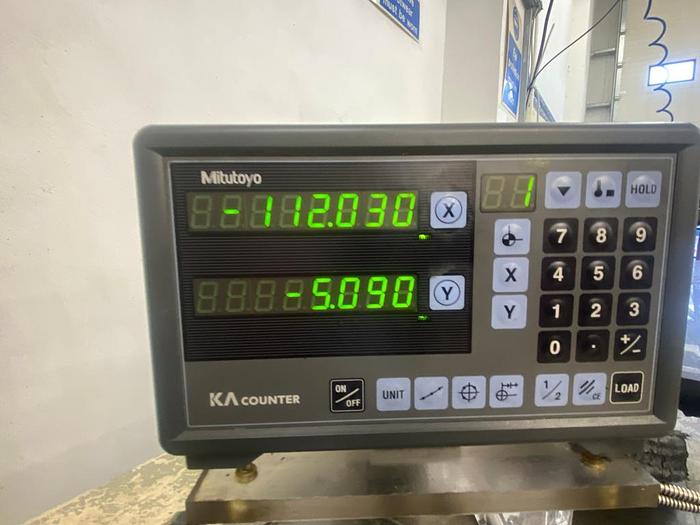

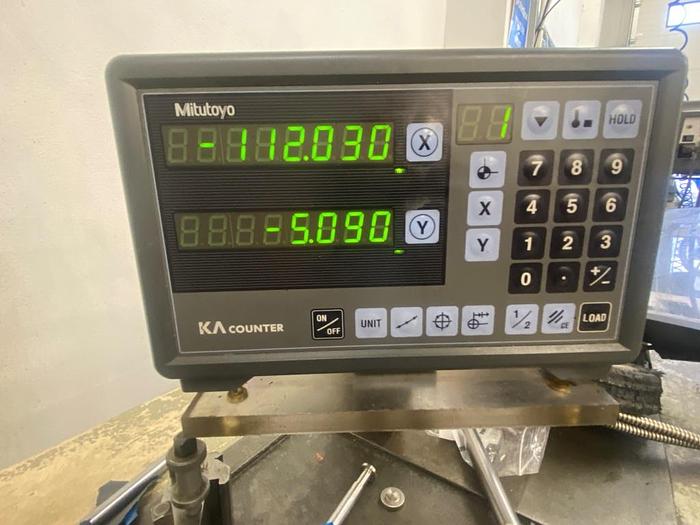

Mitutoyo 2 Axis DRO

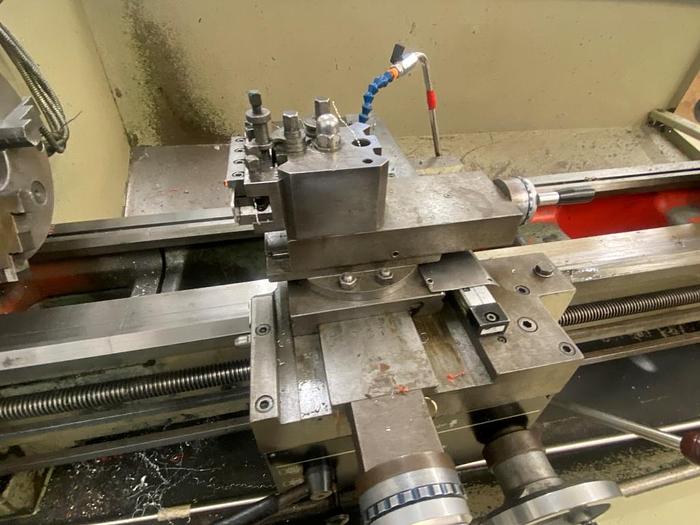

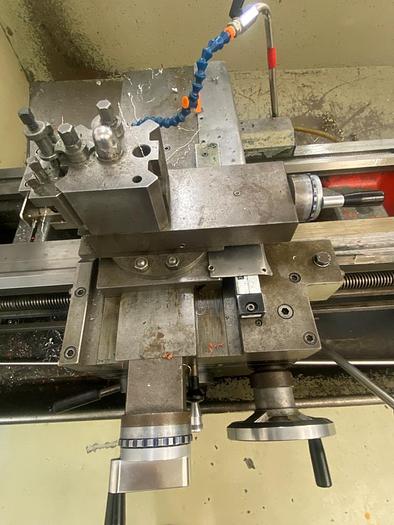

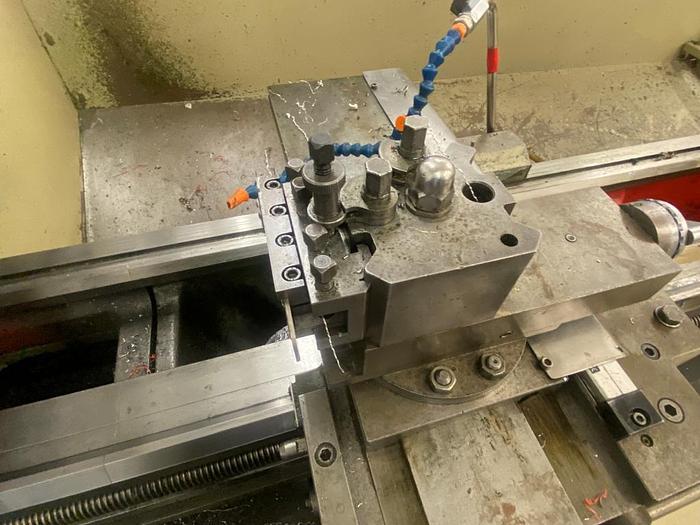

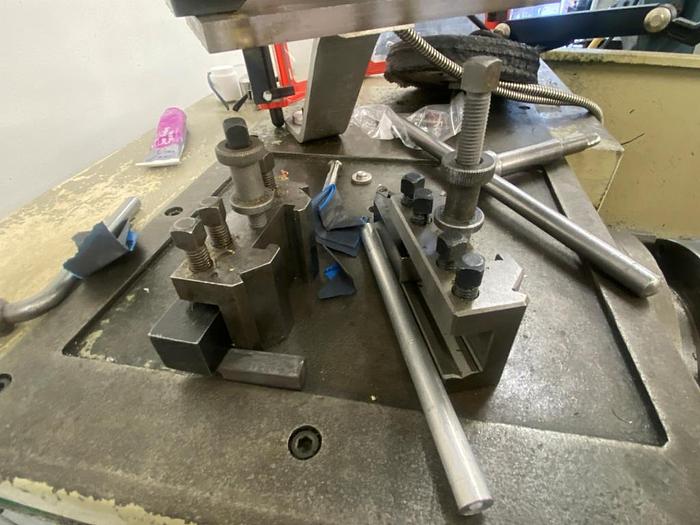

Quick Change Tool Post

Tool Holders

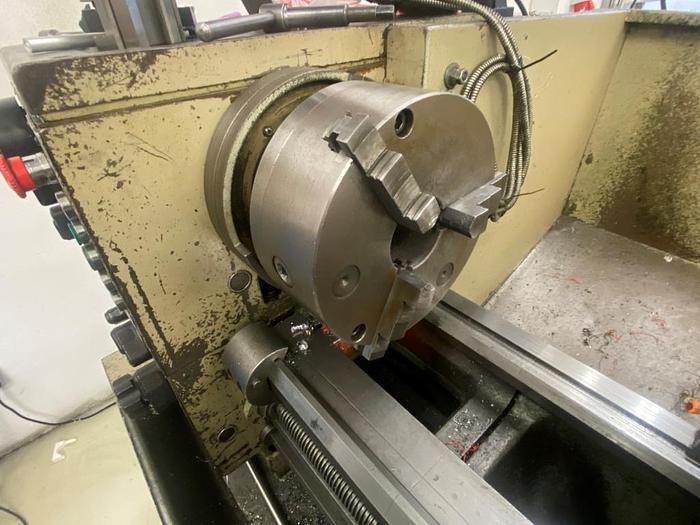

3 Jaw Chuck

Coolant Equipment

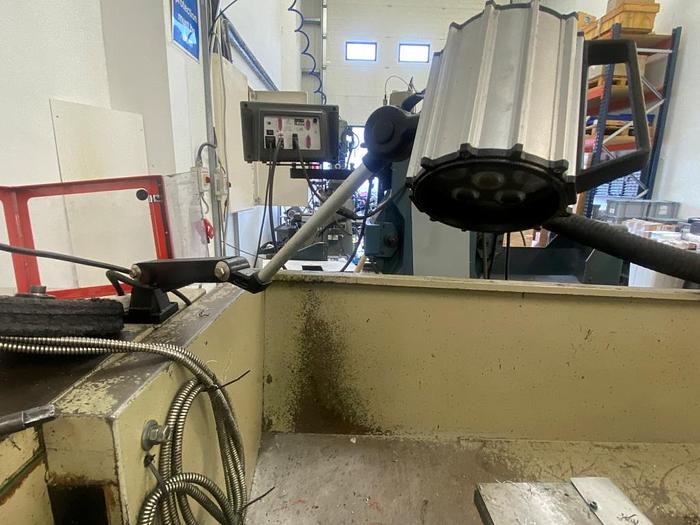

Machine Light


Technical Specification

Centre Height: 190mm

Distance Between Centres: 1500mm

Swing Over Bed: 380mm

Swing Over Cross-Slide: 240mm

Swing in Gap: 585mm

Gap Length: 150mm

Spindle Bore: 54mm

Spindle Nose: D1-6 Camlock

Spindle Taper: MT4

Spindle Speeds: 12

Speed Range: 40-2200rpm

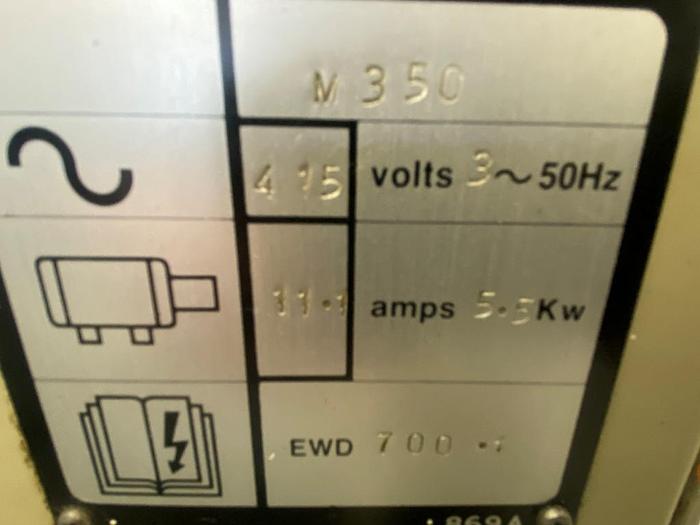

Motor Power: 5.5kW

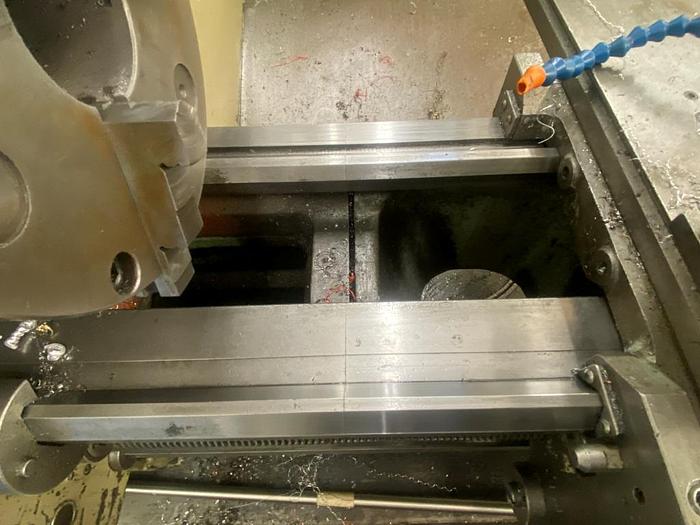

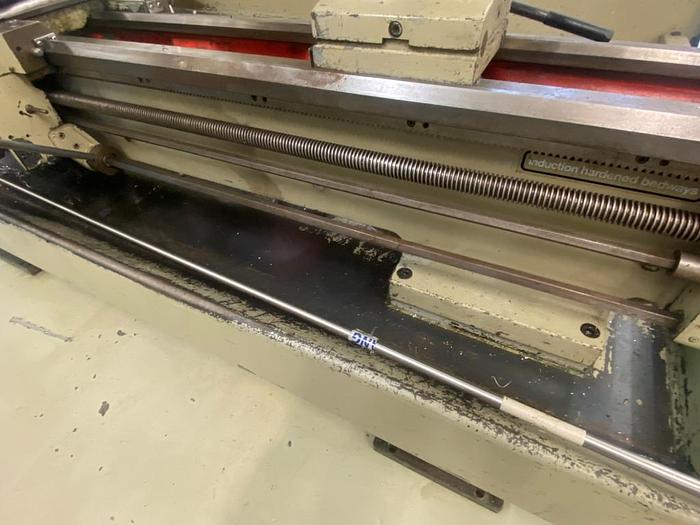

Bed Width: 300mm

Cross-Slide Width: 106mm

Cross-Slide Travel: 225mm

Top Slide Width: 106mm

Top Slide Travel: 120mm

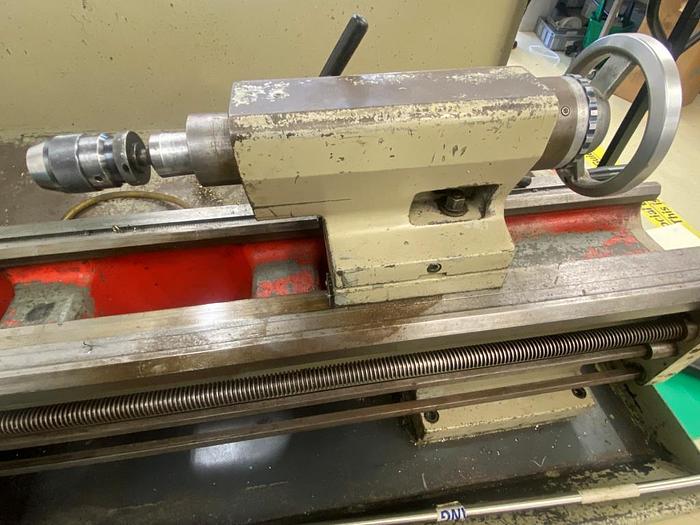

Tailstock Quill Diameter: 63mm

Tailstock Quill Travel: 140mm

Tailstock Taper: MT4

Machine Dimensions: 2740x1220x1400mm

Machine Weight: 1404kg

Specifications

ManufacturerHarrison
ModelM350 Manual Lathe
ConditionUsed
Machine TypeManual Centre Lathe
ConditionWorking Well
Centre Height190mm
Distance Between Centres1500mm
Swing Over Bed380mm
Swing Over Cross-Slide240mm
Swing in Gap585mm
Gap Length150mm
Spindle Bore54mm
Spindle NoseD1-6 Camlock
Spindle TaperMT4
Spindle Speeds12
Speed Range40-2200rpm
Motor Power5.5kW
Bed Width300mm
Cross-Slide Width106mm
Cross-Slide Travel225mm
Top Slide Width106mm
Top Slide Travel120mm
Tailstock Quill Diameter63mm
Tailstock Quill Travel140mm
Tailstock TaperMT4
Machine Dimensions2740x1220x1400mm
Machine Weight1404kg
