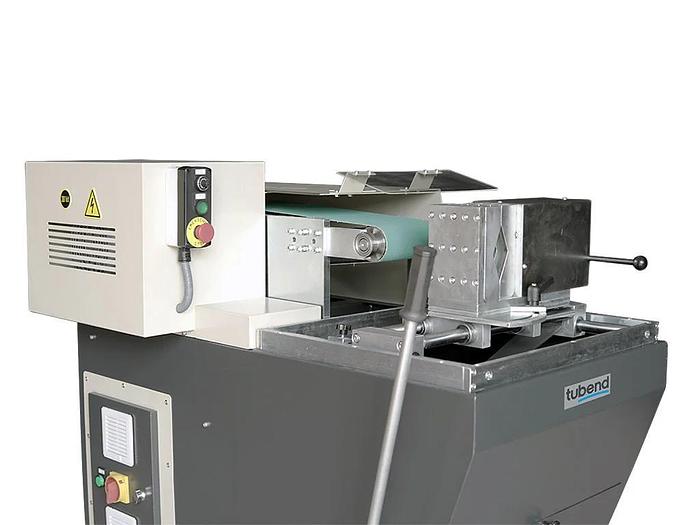

Tubend TT170 Pipe Notching Machine

Tubend TT170 Pipe Notcher/Grinder

Machine Type: Pipe Notcher/Pipe Grinder

Machine Description

Ability to open suitable dovetails according to the diameter of the pipe and profile with the help of processing drum

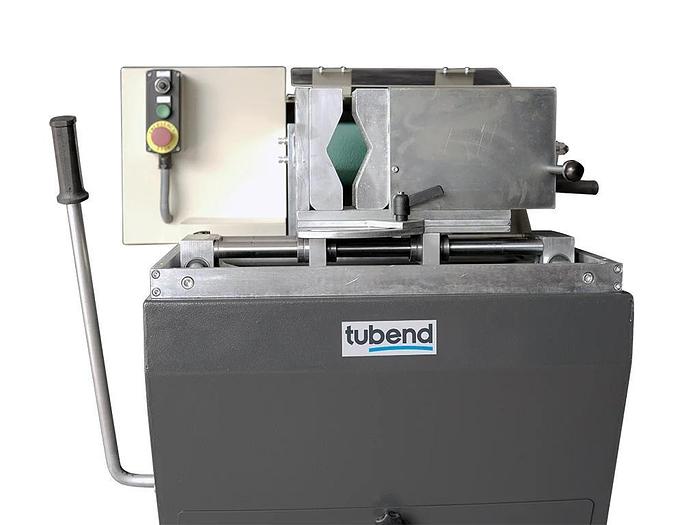

Ability to tighten and loosen the parts quickly as a result of moving clamp

Ability of clamp to move right and left sideways

With movable clamp, notching up to 50° degrees angle

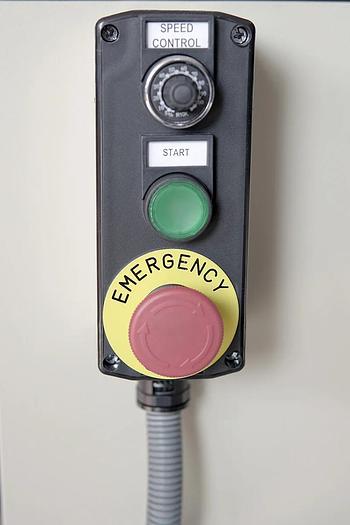

Adjustable speed with inverter

Notching operation up to 6″ pipe

Optional pneumatic vice

Ø76, Ø90, Ø114 rolls standard

Technical Specifications

Clamp capacity: Ø40-170mm

Notching capacity: Ø40-170mm

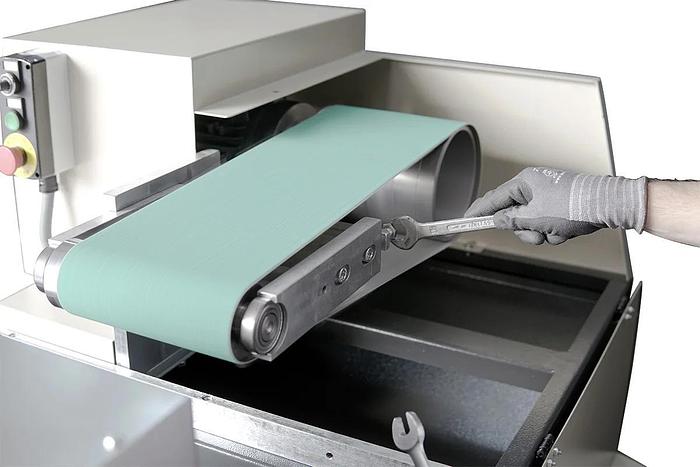

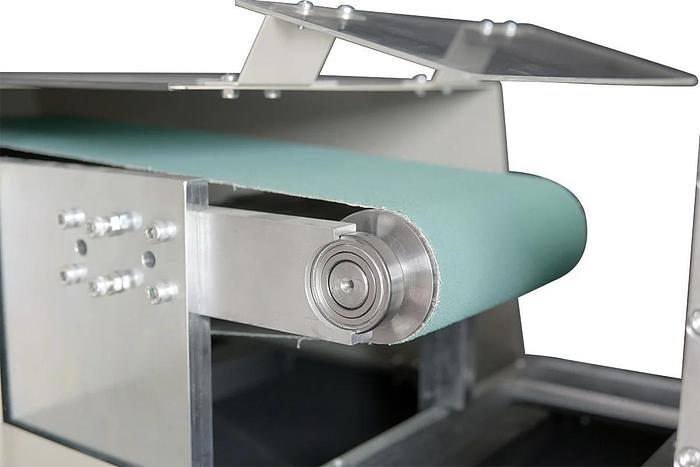

Belt size: 200×1400mm

Motor power: 3kW/380V

Dimensions: 1400x800x1350mm

Weight: 250kg
