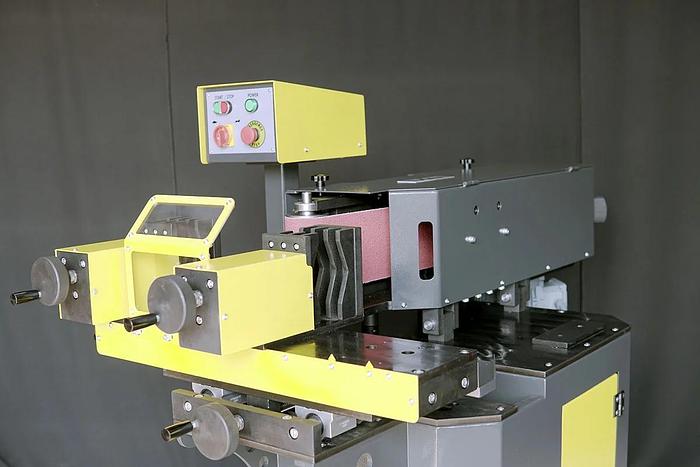

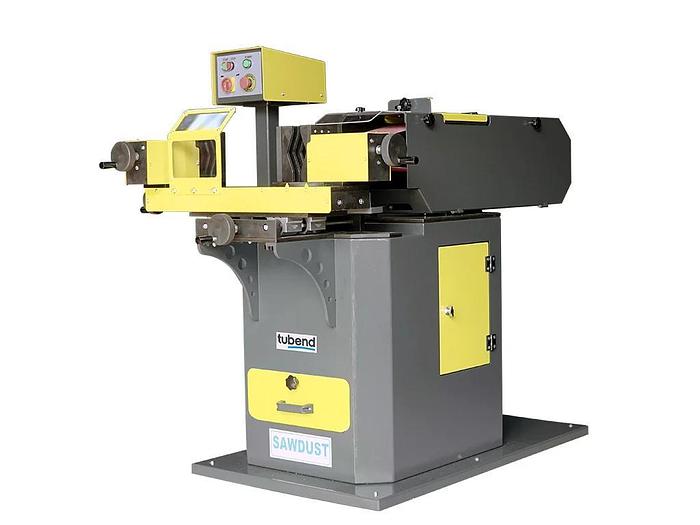

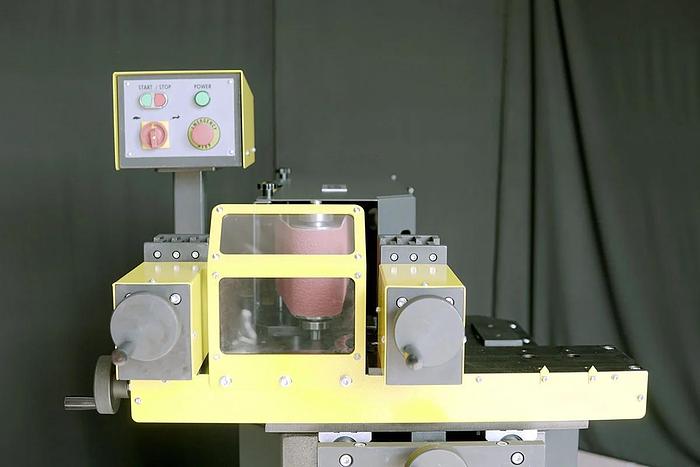

Tubend TT 140 Pipe Notching Machine

Tubend TT140 Pipe Notching Machine

Machine Type: Pipe Notching/Grinding Machine

Description

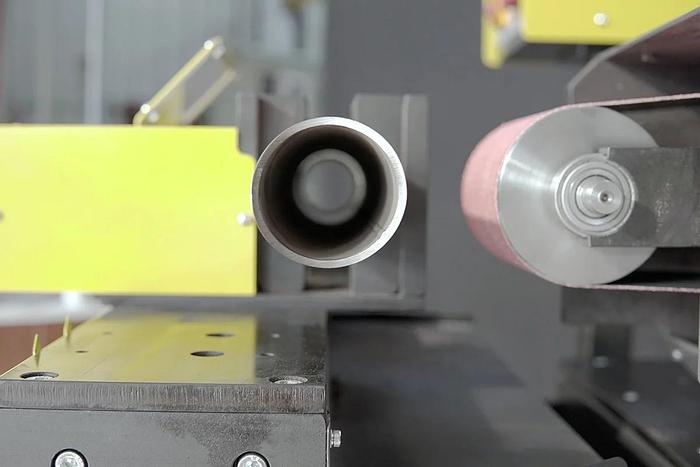

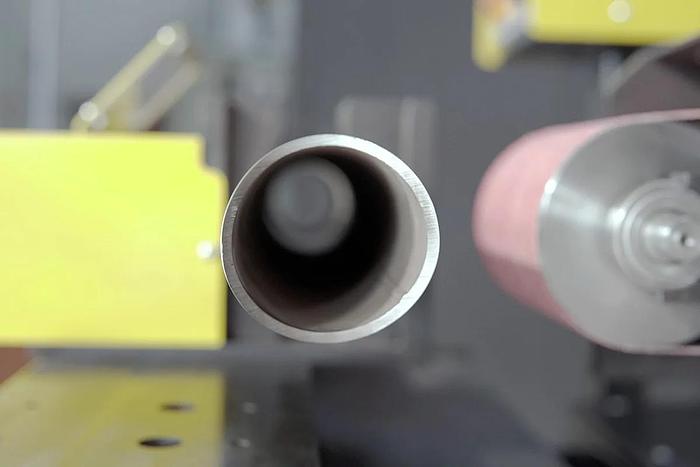

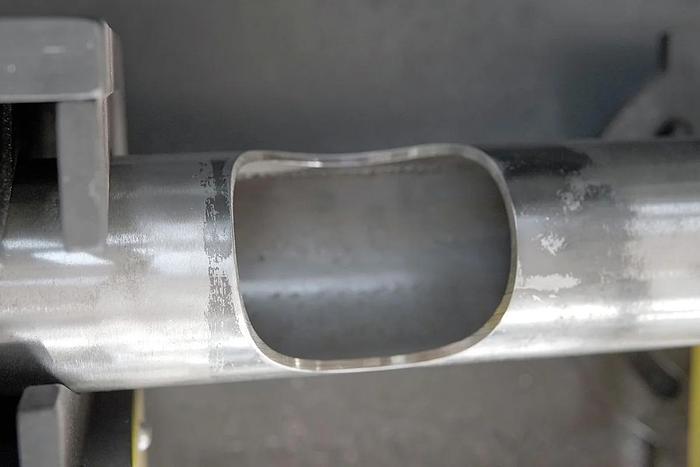

Capability of notching operation for section and pipe under the favour of di erent diameter of front rolls

Provides notching operation up to 50° angle through the vice

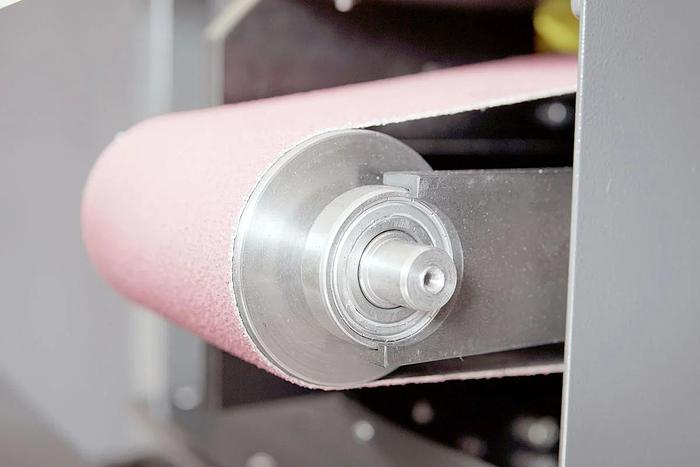

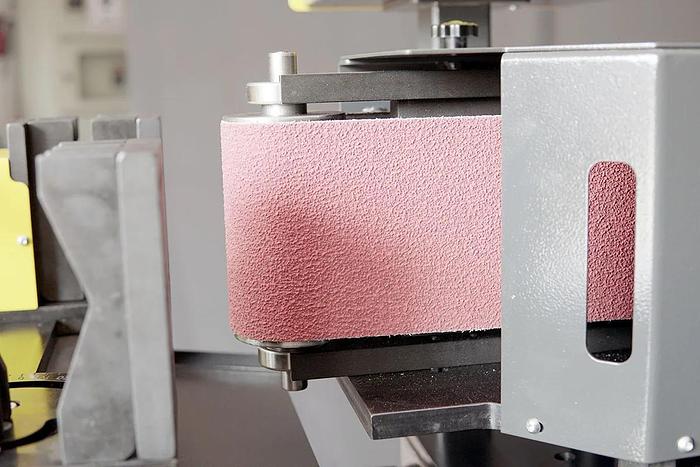

Abrasive belt easy and fast changeable

Capability of notching operation on the surface of the pipe through the horizontal move of the body

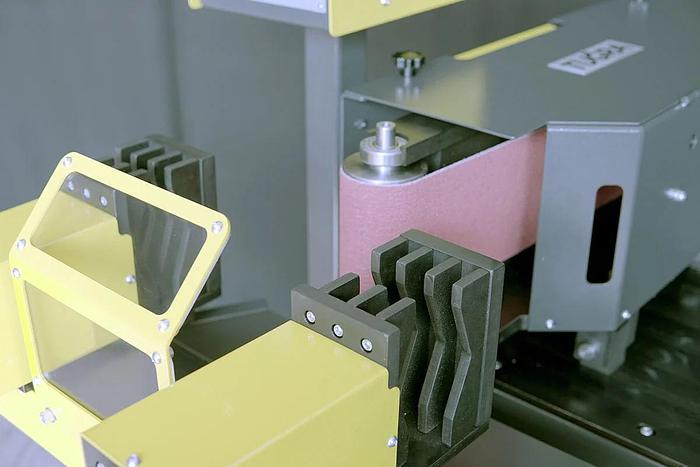

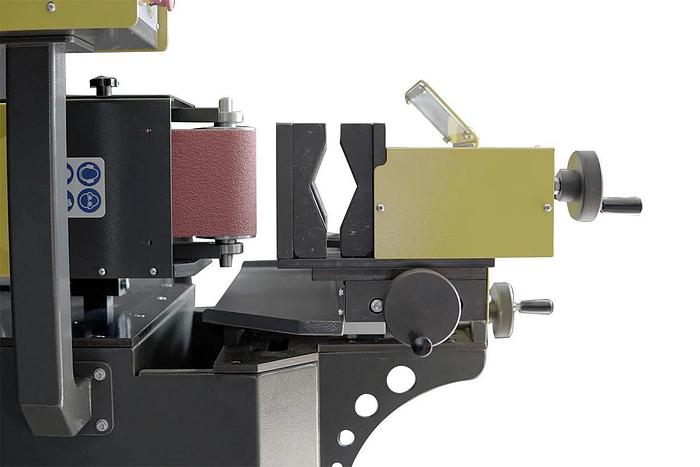

Vice movement to right – left ,forward and back with bearing system

Double speed motor

Includes

Standard Rolls 76,90 & 114mm

Technical Specifications

Clamp capacity: Ø40-140mm

Belt Size: 150 x 2000mm

Motor power: 3kW/380V

Speed (Two): 1400, 2800rpm

Dimensions: 1600x910x1360mm

Weight: 360kg
