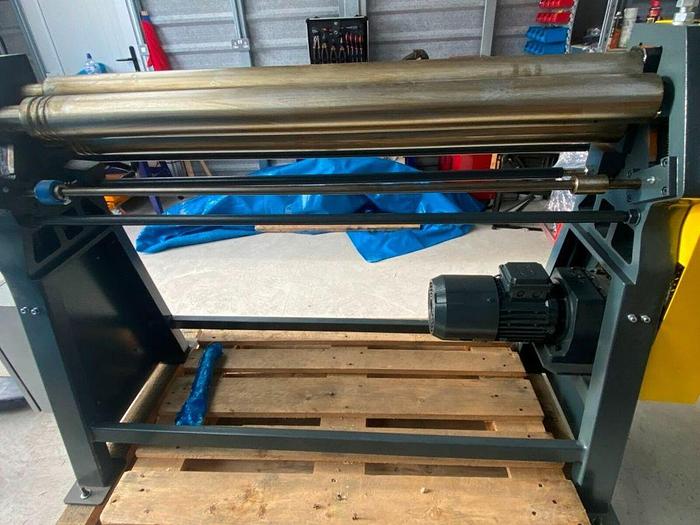

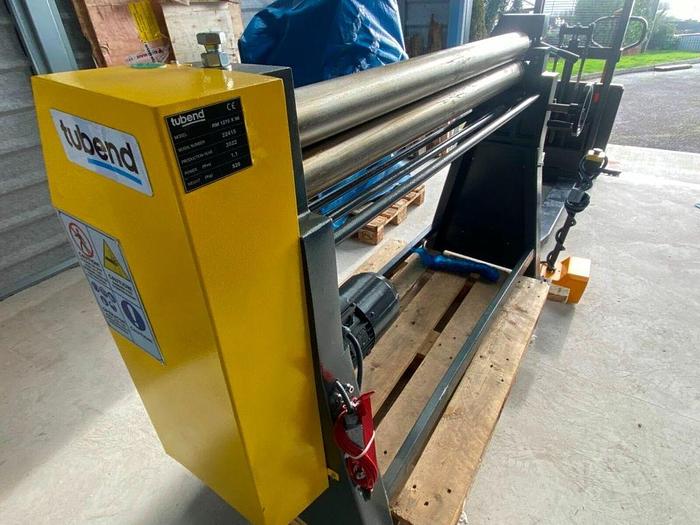

Tubend RM 1270 x 90 Motorised Plate Rolls
Description
Tubend RM 1270 x 90 Motorised Plate Rolls
Machine Type: Motorised Plate Rolls
Capacity: 1270 x 2.5mm
Optional Extras
Induction Hardened Rolls
Motorised Back Roll Adjustment
Digital Readout for Rear Roll
Description
Top and bottom rolls powered by a single gearbox and gear system
Cast Iron Main Frames

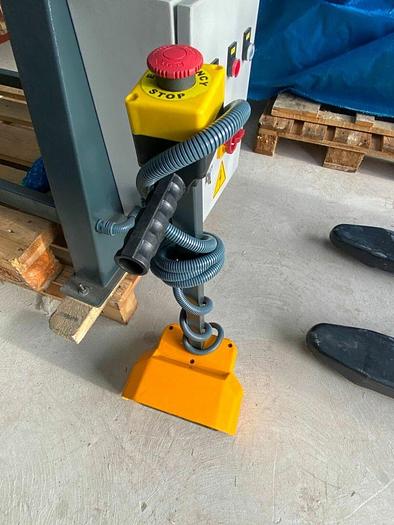

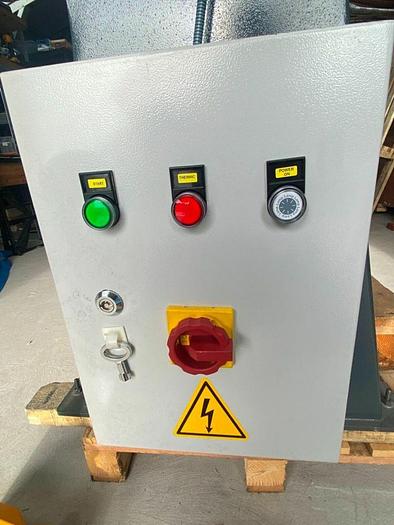

Mobile Control Panel by foot pedal
Wire grooves at the end of the rolls
Precision Bending with Brake Motor
Built according to EC Safety Directives (CE Marked)
Technical Specifications
Max Bending Length: 1270mm
Max Bending Capacity: 2.5mm MildSteel
Rolls Diameter: 90mm
Min Rolling Diameter: 135mm
Bending Speed: 6m/min
Motor Power: 1.1kW
Wire Grooves Diameters: 4/7/10mm
Machine Dimensions: 1850x700x1200mm
Machine Weight: 520kg
More Information can be found in the machine brochure below
Specifications
| Manufacturer | Tubend |
| Model | RM 1270 x 90 Motorised Plate Rolls |
| Condition | New |
| Machine Type | Motorised Plate Rolls |
| Capacity | 1270 x 2.5mm |
| Max Bending Length | 1270mm |
| Max Bending Capacity | 2.5mm MildSteel |
| Rolls Diameter | 90mm |
| Min Rolling Diameter | 135mm |
| Bending Speed | 6m/min |
| Motor Power | 1.1kW |
| Wire Grooves Diameters | 4/7/10mm |
| Machine Dimensions | 1850x700x1200mm |
| Machine Weight | 520kg |
