Alfra GmbH Foot Pump Set

Alfra Foot Pump Set

Product No: 02120

Product Description

Our hydraulic cylinder with a quick coupling has a performance up to 11 tons pressure – with a deadweight of only 2,5 kg. The SKP-1 is compatible with the ALFRA foot pump. Your advantage: Your hands are free to position round- square- or rectangular punchers save and comfortable on the control cabinet. The carrying frame is splayed, which guarantees steady working with no risk of tipping. The pump is working with a maximum operating pressure of 700 bar. Along with the SKP-1 and the foot pump, a 2,8m high pressure hose is also belonging to the set – as well as a draw bolt with a 19,0 mm diameter, a 5 part spacer sleeve set and a 11,0 mm pre-drill.

• Fitted pressure limiting valve
• For all circular, square, rectangular and special shape hole punchers

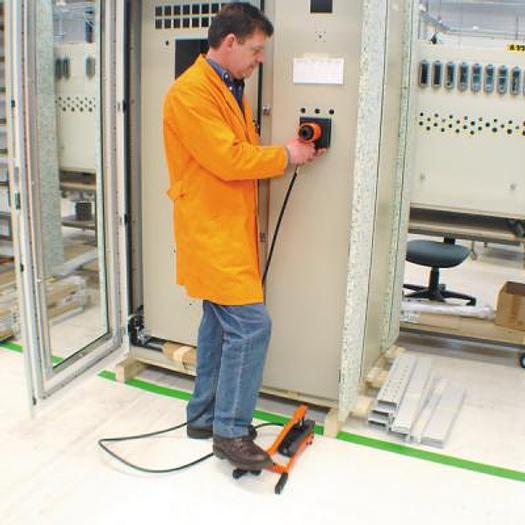

• The foot pump leaves both hands free for precise positioning and punching on the control cabinet. The foot pump carrying frame is splayed. This guarantees steady working with no risk of tipping.

Includes

Foot Pump

Hydraulic cylinder with quick coupling

Hydraulic hose 2.8 m

Draw bolt Ø 19.0 and 19.0 x 9.5 mm

Spacer sleeve set 5-part

Pre-drill Ø 11.0 mm

Specification

Max. operating pressure: 700 bar

Tank volume: 270 cm3

Usable oil volume: 210 cm3

Delivery volume: 1.7 cm3 per piston stroke
