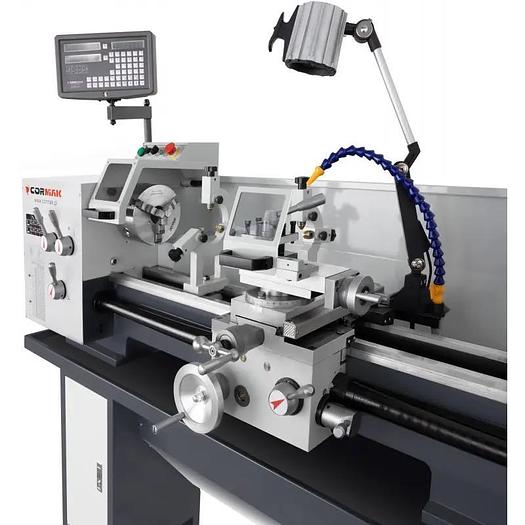

Cormak 330 x 915 Manual Lathe
Description
Cormak 330 x 915 Manual Lathe
Machine Type: Manual Lathe
Power: 380V, 3Phase
Description
Semi-professional CORMAK 330x915 universal lathe for metal is equipped with a 12-speed gearbox with an induction motor (constant speed) 1.1 kW/400V - maximum torque. Recommended for turning hard steels, mechanical turning. It can be used for many tasks such as internal and external surface turning, tapers, polishing, metric and inch threading, drilling and broaching.
Includes
- Lathe base
- 2-axis digital readout (optical ruler)
- 160mm 3-jaw lathe chuck
- Set of Jaws
- Fixed centre: MT3

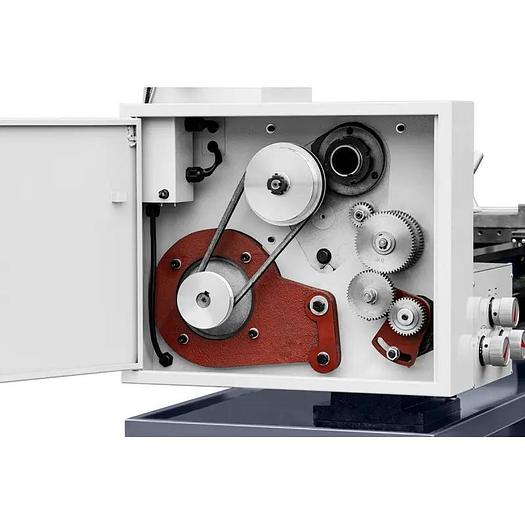

- Change wheels
- Spindle reducer
- Cooling system
- Lubricator
- Handle and holder spanner
- A set of maintenance tools
- CE safety guards
- CE Declaration of Conformity
Features
- Lathe equipped with a quick switch on the support to change the direction of spindle rotation.
- Digital reading in two axes of longitudinal and transverse movement of the carriage. The processed electronic signal from optical rulers visualizes the obtained values from movements along the axis on a digital screen.
- Induction motor (constant speed) 1.1kW/400V high power, high torque drive , optimally for machining steel, non-ferrous materials.
- Cooling system as standard.
- 38mm spindle bore for optimal work results, allowing the machining of large diameter shafts.
- Bed with inductive, ground hardened steel guide. Appropriate bed width 160 mm ensures stable and precise working conditions.
- Hardened and ground gears in the spindle gear.
- Lead screw and lead shaft for threading and automatic longitudinal and transverse feed.
- Easy adjustment of the spindle speed and automatic feed from the ergonomic control panel to the gears.

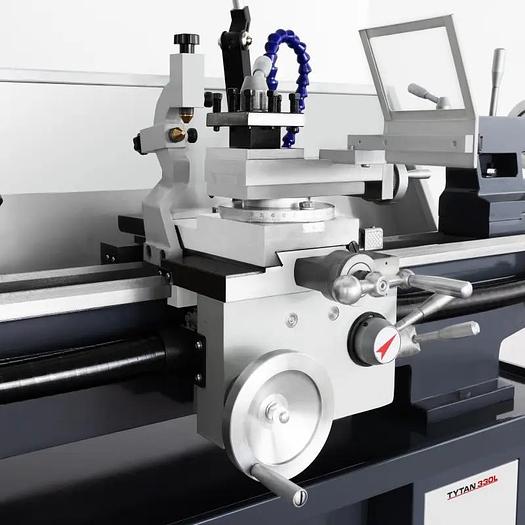

- Slide with handwheels with fine scale0.5/0.1mm (transverse/longitudinal feed) ).
- Top Slide with scale, rotated ± 45°, and tailstock has ± 10 mm offset for taper turning.
- Ability to machine a large range of threads without having to replace the gears in the headstock. A wide range of turned threads: metric 0.4-7 (36), inch 4-60 (36). Turning right and left threads.
Technical Specifications
Max. turning diameter over bed:325mm
Max. turning length (btw centres):915 mm
Max. turning length (chuck/center):830mm
Turning diameter over carriage:208mm
Bed width:160mm
Spindle bore: 38mm
Spindle taper:MK5
Tool post dimensions:78 x 78 x 20mm
Max. tool dimension:16x16mm
Top slide range:100mm
Traverse feed range:153mm
Longitudinal feed range:800mm
Spindle speeds:12 Speeds (L/H)
Spindle speed range: L 65, 90, 120, 120, 160, 300 / H 380, 500, 640, 850, 1100, 1650 rpm.
Longitudinal feed range: 0.087-2.218 mm/rev
Traversing range:0.019-0.477mm/rev
Spindle nose:MT5
Metric thread:(16) 0.25-6mm
Inch thread:(24) 4-120 T.P.I.
Tailstock quill diameter:32mm
Tailstock sleeve taper:MT3
Tailstock quill travel distance:75mm
Motor power:1.1kW / 400V
Coolant pump power:0.1kW
Weight:390 kg
Dimensions:1770x740x1600mm
Specifications
| Manufacturer | Cormak |
| Model | 330 x 915 Manual Lathe |
| Condition | New |
| Stock Number | 968766 |
| Machine Type | Manual Lathe |
| Power | 380V, 3Phase |
| Max. turning length (chuck/center) | 830mm |
| Turning diameter over carriage | 208mm |
| Bed width | 160mm |
| Spindle bore | 38mm |
| Spindle taper | MK5 |
| Max. tool dimension | 16x16mm |
| Top slide range | 100mm |
| Traverse feed range | 153mm |
| Longitudinal feed range | 800mm |
| Spindle speeds | 12 Speeds (L/H) |
| Longitudinal feed speed | 0.087-2.218 mm/rev |
| Traversing feed speed | 0.019-0.477mm/rev |
| Spindle nose | MT5 |
| Metric thread | (16) 0.25-6mm |
| Inch thread | (24) 4-120 T.P.I. |
| Tailstock quill diameter | 32mm |
| Tailstock sleeve taper | MT3 |
| Tailstock quill travel distance | 75mm |
| Motor power | 1.1kW / 400V |
| Coolant pump power | 0.1kW |
| Weight | 390 kg |
| Dimensions | 1770x740x1600mm |
