2011 Dugard Eagle Eco 760 Machining Centre
Sold
Description

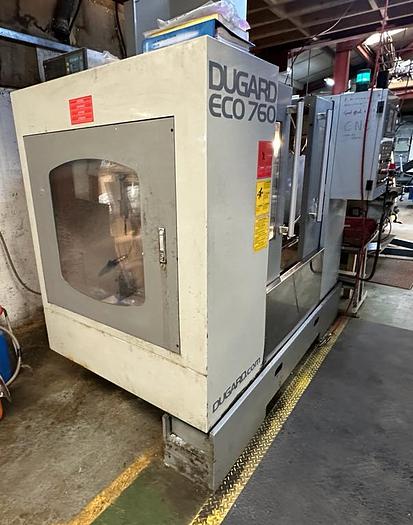

Dugard Eagle Eco 760 Vertical Machining Centre
Machine Type: 3 Axis Vertical Machining Centre
Year: 2011
Control: Fanuc Series Oi-MD
Condition: Very Good (Just Dirty)
Includes
Machine Vice
Tool Holders
Technical Specification
Table Size: 900 x 410mm
X Axis Travel: 760mm
Y Axis Travel: 430mm
Z Axis Travel: 390mm
Max Table Load: 350kg
Spindle Nose to Table: 102-492mm
Cutting Feed Rates (X,Y,Z): 10/10/10 m/min
Rapid Feed Rate (X,Y): 24m/min
Rapid Feed Rate (Z): 24m/min
Speed Range: 20-8000rpm
Spindle Taper: BT40
Spindle Motor: 7.5kW
Spindle Centre to Column: 420mm
ATC: Drum Type
ATC Stations: 16
Max Tool Diameter: 100mm
Max Tool Diameter(Empty Adj Pocket): 130mm
Max Tool Length: 250mm
Max Tool Weight: 8kg
Machine Dimensions: 2100x1935x2500mm
Machine Weight: 3650kg
Specifications
Manufacturer | Dugard |
Model | Eagle Eco 760 Machining Centre |
Year | 2011 |
Condition | Used |
Year | 2011 |
Control | Fanuc Series Oi-MD |
Condition | Very Good (Just Dirty) |
Table Size | 900 x 410mm |
Speed Range | 20-8000rpm |
Spindle Taper | BT40 |
Spindle Centre to Column | 420mm |
ATC | Drum Type |
ATC Stations | 16 |
Max Tool Length | 250mm |
Machine Dimensions | 2100x1935x2500mm |
Machine Weight | 3650kg |
X Axis Travel | 760mm |
Y Axis Travel | 430mm |
Z Axis Travel | 390mm |
Max Table Load | 350kg |
Spindle Nose to Table | 102-492mm |
Cutting Feed Rates (X,Y,Z) | 10/10/10 m/min |
Rapid Feed Rate (X,Y) | 24m/min |
Rapid Feed Rate (Z) | 24m/min |
Spindle Motor | 7.5kW |
Max Tool Diameter | 100mm |
Max Tool Weight | 8kg |
