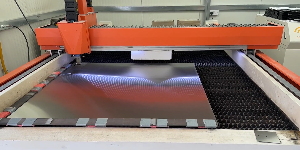

2015 Bodor BCL-1325BF Fiber Laser
Description
2015 Bodor BCL-1325BF Fiber Laser
Machine Type: Fiber Laser Cutter for Thin Sheets
Year: 2015
Condition: Very Good
Laser Source: Maxphotonics MFSC-300L (300W)
Control: BCS100 V2.0
Software: CYPCUT
Includes
S & A CW 6100 Chiller
Maxphotonics Laser Module
Solid state Hard Drive fitted May 2023
Back up Drive also installed
Technical Specifications
Working area: 1300 X 2500mm
Laser Power: 300W
Max Cutting Capacity (S/S): 1.5mm
Max Cutting Capacity (M/S): 3.0mm
Max. Travel Speed : 30m/min
Max. Cutting Speed : 15m/min
Positioning Accuracy : ±0.1mm
Reposition Accuracy : ±0.05mm
Laser Module: Maxphotonics MFSC-300L
Controls System: RD & Lazerwork
Guide Rail: [Taiwan] HIWIN Liner Guide Rail
Electronic Components: [Japan] Omron
Cooling: Air Cooling via water chiller
Software: Cypcut
Specifications
| Manufacturer | Bodor |
| Model | BCL-1325BF Fiber Laser |
| Year | 2015 |
| Condition | Used |
| Serial Number | BDF-1509031 |
| Year | 2015 |
| Condition | Very Good |
| Laser Source | Maxphotonics MFSC-300L (300W) |
| Control | BCS100 V2.0 |
| Software | CYPCUT |
| Working area | 1300 X 2500mm |
| Laser Power | 300W |
| Max Cutting Capacity (S/S) | 1.5mm |
| Max Cutting Capacity (M/S) | 3.0mm |
| Max. Travel Speed | 30m/min |
| Max. Cutting Speed | 15m/min |
| Positioning Accuracy | ±0.1mm |
| Reposition Accuracy | ±0.05mm |
| Laser Module | Maxphotonics MFSC-300L |
| Controls System | RD & Lazerwork |
| Electronic Components | [Japan] Omron |
