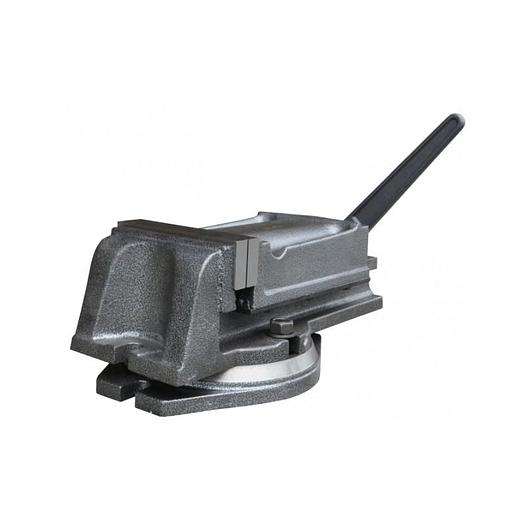

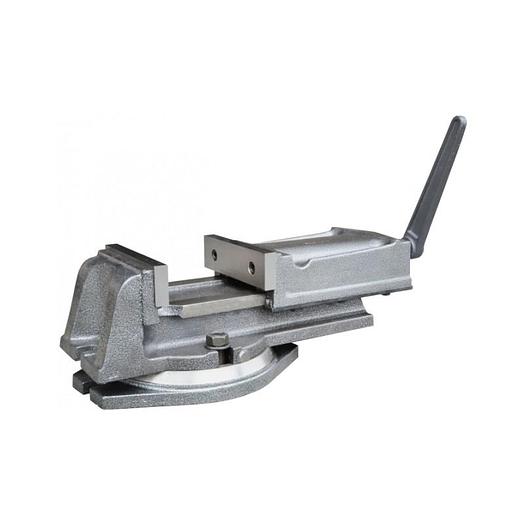

Cormak QH160 x 125mm Machine Vice

Cormak QH160 x 125mm Machine Vice

Vice Description

The machine vice is made of cast iron with smooth, hardened and ground jaw blocks. A swivel vice graduated 360 Deg. Cast iron rotary QH machine vice, useful while working with grinding, milling, drilling and planing machines, etc.

Made of high-quality cast iron

Equipped with swivel base with 360o pitch, 1o gradation

Body, along with the moving jaw, is made of high-quality cast iron

Top side of the lead screw secured from dirt and chips

Possible disassembly of the swivel base

While replacing inserts it is advised to machine their surfaces attached to the vice in order to achieve the accuracy parameters specified in the technical documentation

Technical Specification Jaws Width: 160 mm Jaw Height: 52 mm Max Opening: 125 mm Swivel Base: 360°

Clamping Force: 3000kg Weight: 35 kg

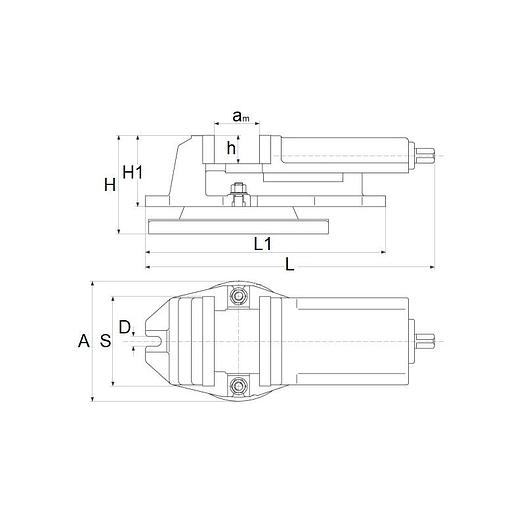

Vice Dimensions

S: 150mm

am: 125mm

h: 51mm

H1: 124mm

H: 159mm

A: 220mm

L: 422mm

L1: 391mm

D: 18mm
