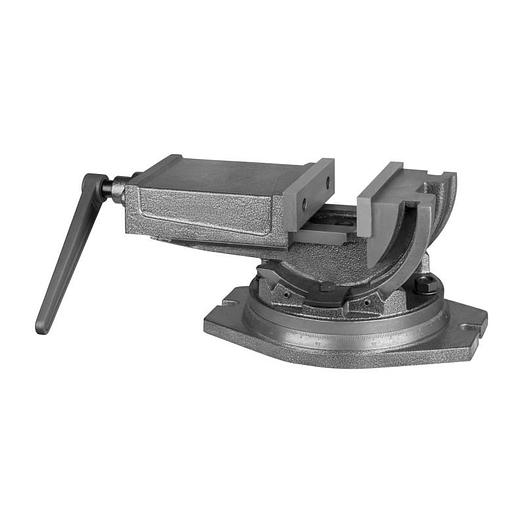

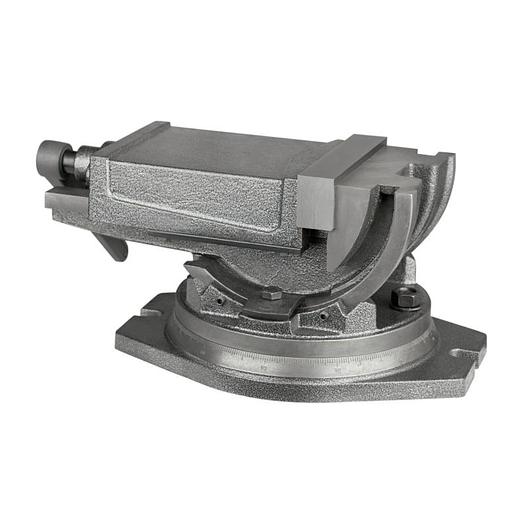

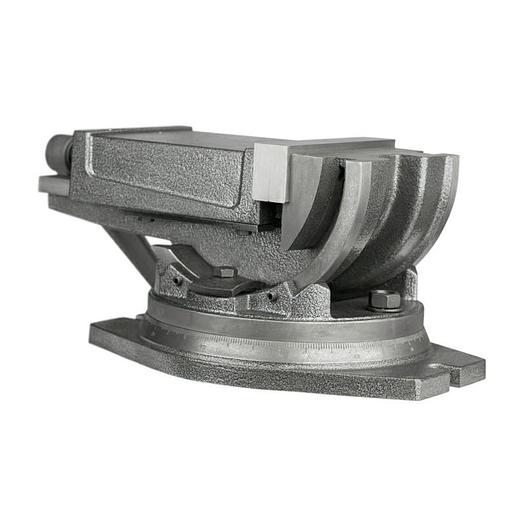

Cormak QHK125 x 125mm Tilting Machine Vice
Description
Cormak QHK125 x 125mm Tilting Machine Vice
Vice Description
The vice is made of high quality cast iron. Thanks to the precise guiding, the rotary-vice machine vice is used in the precision mechanics industry. The rotating base allows you to change the angle in the horizontal plane by 360 degrees & in the vertical plane by 90 degrees. Jaw inserts made of hardened tool steel (55 + - 3HRC) and precision ground.
• Vice made of high quality cast iron. • Rigid structure, high durability and reliable. • Angle of rotation around Y axis – 360 Deg, Z axis – 90 Deg. • Vice Applications: grinding, milling and drilling machines. Technical Specifications Jaw Width : 125 mm Max Opening : 125 mm Jaw Height: 50 mm Base Width: 244 mm Height: 195 mm Length: 420 mm Clamping force: 3000 kg Weight: 33 kg

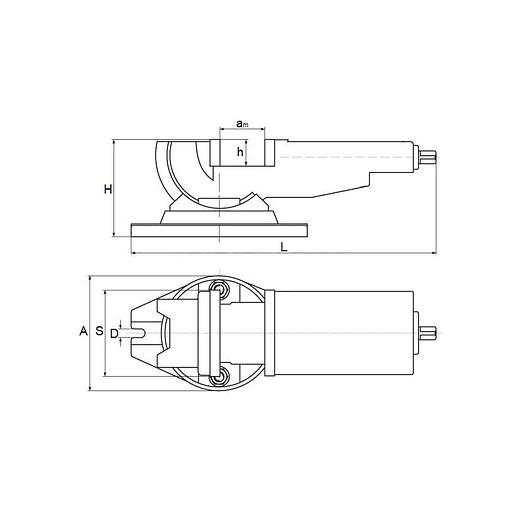

Vice Dimensions
S: 125mm
am: 125mm
h: 50mm
H: 195mm
A: 244mm
L: 420mm
D: 18mm
Specifications
Manufacturer | Cormak |
Model | QHK125 x 125mm Tilting Machine Vice |
Condition | New |
Jaw Width | 125 mm |
Max Opening | 125 mm |
Jaw Height | 50 mm |
Base Width | 244 mm |
Height | 195 mm |
Length | 420 mm |
Clamping force | 3000 kg |
Weight | 33 kg |
