Cormak QHK160 x 125mm Tilting Machine Vice
Description

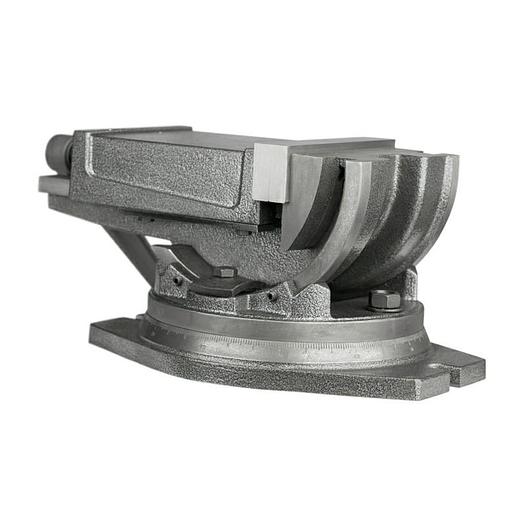

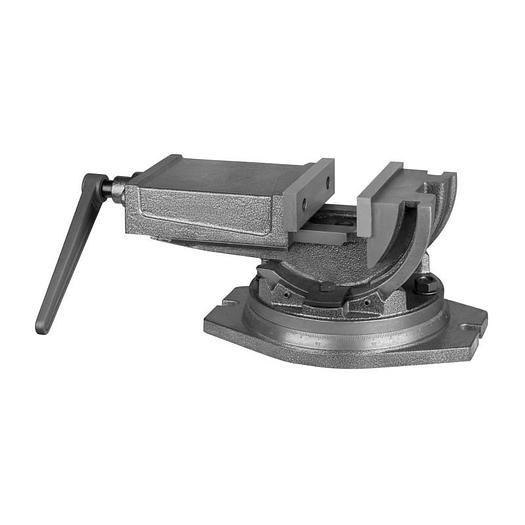

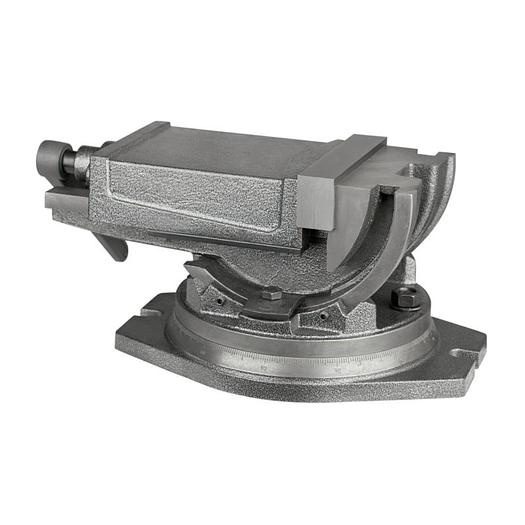

Cormak QHK160 x 125mm Tilting Machine Vice
Vice Description
The vice is made of high quality cast iron. Thanks to the precise guiding, the rotary-vice machine vice is used in the precision mechanics industry. The rotating base allows you to change the angle in the horizontal plane by 360 degrees & in the vertical plane by 90 degrees. Jaw inserts made of hardened tool steel (55 + - 3HRC) and precision ground.
Cast iron rotary QHK machine vice, useful while working with grinding, milling, drilling and planing machines, etc.
Made of high-quality cast iron
Equipped with swivel base with 360 Deg pitch, 1 Deg gradation
Body, along with the moving jaw, is made of high-quality cast iron
Top side of the lead screw secured from dirt and chips
Possible disassembly of the swivel base
While replacing inserts it is advised to machine their surfaces attached to the vice in order to achieve the accuracy parameters specified in the technical documentation
Technical Specification Jaw Width : 160 mm Max Opening : 125 mm Jaw Height: 50 mm Base Width: 244 mm Height: 195 mm Length: 420 mm Clamping force: 3000 kg Weight: 33 kg

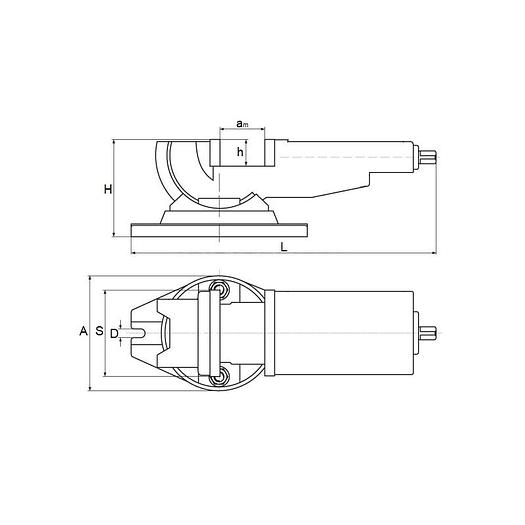

Vice Dimensions
S: 160mm
am: 125mm
h: 50mm
H: 195mm
A: 244mm
L: 420mm
D: 18mm
Specifications
Manufacturer | Cormak |
Model | QHK160 x 125mm Tilting Machine Vice |
Condition | New |
Jaw Width | 160 mm |
Max Opening | 125 mm |
Jaw Height | 50 mm |
Base Width | 244 mm |
Height | 195 mm |
Length | 420 mm |
Clamping force | 3000 kg |
Weight | 33 kg |
