Cormak ERBM35 Section Rolls

Cormak ERBM 35 Section Rolls

Machine Description

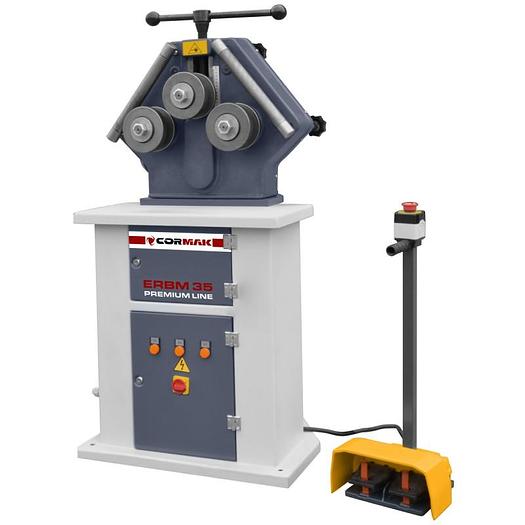

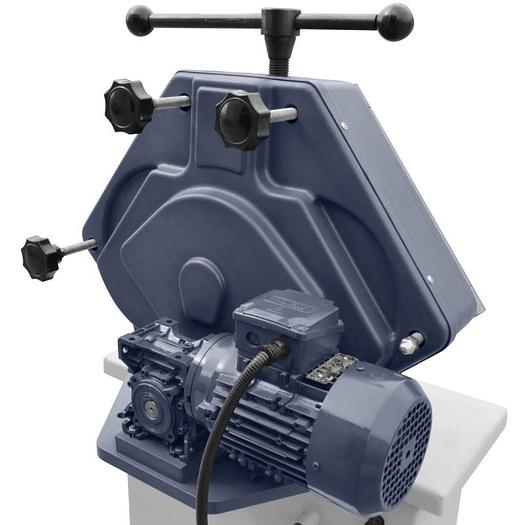

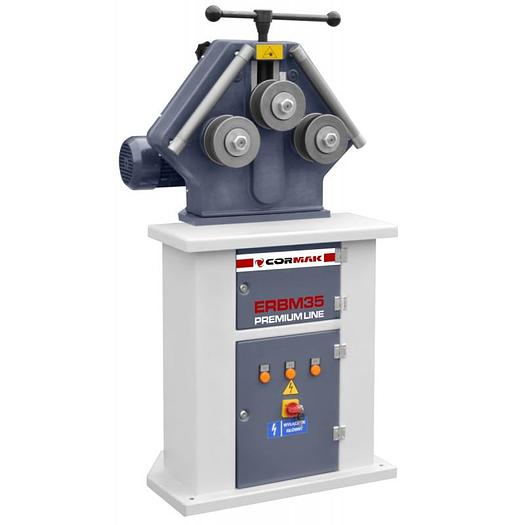

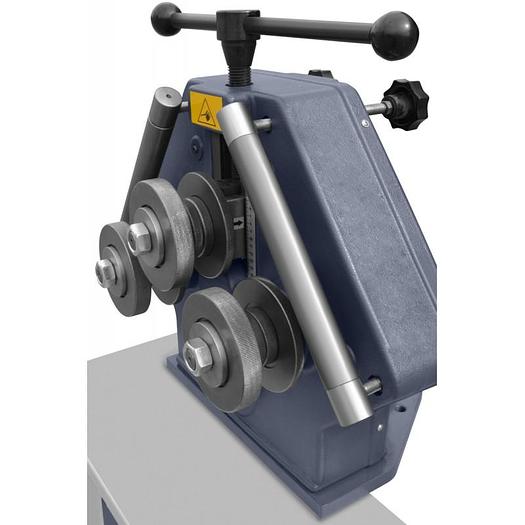

Electric bending machine for bending pipes and profiles, rods and flat bars depending on the used rollers. The machine is additionally equipped with a mechanical upper roller with a scale. The perfect solution when bending arcs, circles, spirals, etc. The set includes a foot pedal for controlling the left / right drive. The machine can used vertically and horizontally. Machine Features Heavy and stable construction made of steel Infinitely adjustable side straightening rollers Left / right operation (controlled with the foot control) Rollers made from durable and hardened steel Mechanical clamp of the upper roll Lower rollers with direct motor drive The possibility of horizontal and vertical work Technical Specification Shaft diameter: ø 30 mm Diameter of lower rolls: ø 118 mm Upper roller diameter: ø 148 mm Working speed: 3 - 6 rpm Motor power: 0.75 kw Weight: 220 kg Length: 600 mm Width: 800 mm Height: 1450 mm

Includes:

Side Guide Rolls

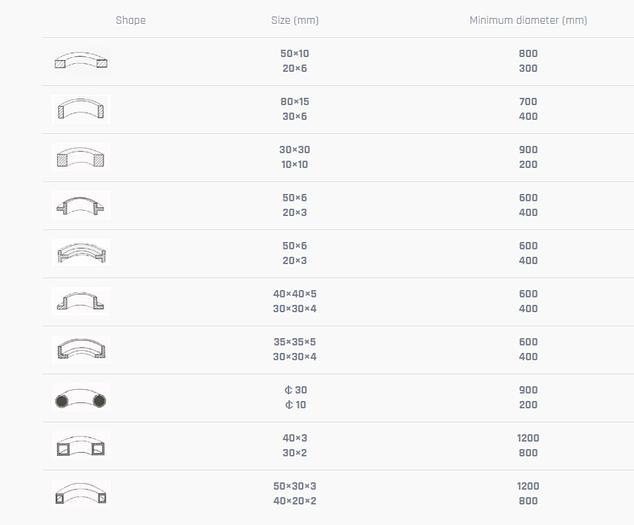

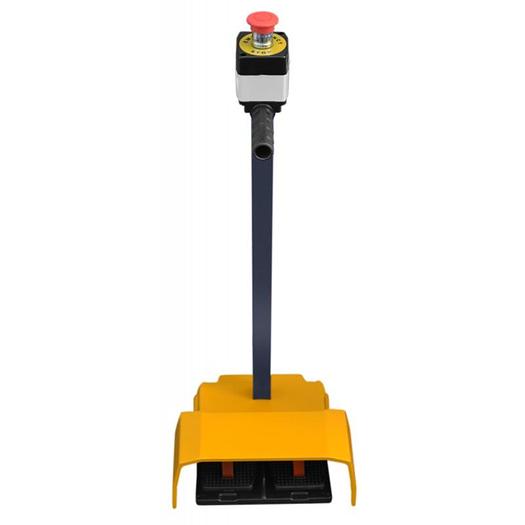

Footpedal Capacity Section on Flat: Max: 50 x 10mm Min Dia: 800mm Section on Edge: Max: 80 x 15mm Min Dia: 700mm Square Section: Max: 30 x 30mm Min Dia: 900mm
