Cormak ERBM50 Section Rolls

Cormak ERBM50 Section Rolls

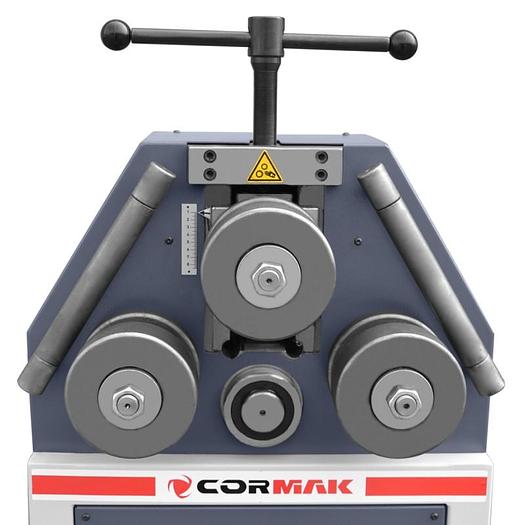

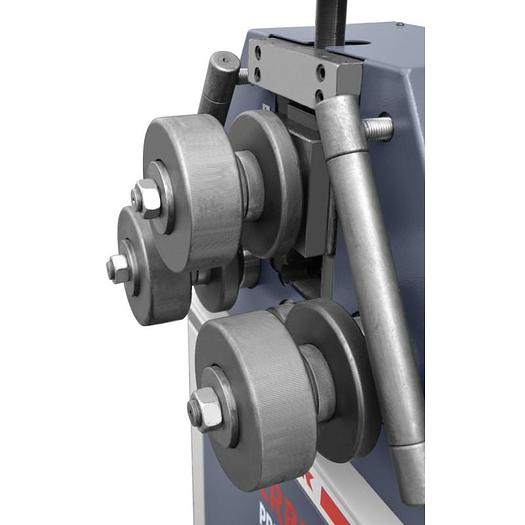

Electric bending machine for bending pipes and profiles, rods and flat bars depending on the used rollers. The machine is additionally equipped with a mechanical upper roller with a scale. The perfect solution when bending arcs, circles, spirals, etc. The set includes a foot pedal for controlling the left / right drive. The machine can used vertically and horizontally. MACHINE CHARACTERISTICS Heavy and stable construction made of steel Infinitely adjustable side straightening rollers Left / right operation (controlled with the foot control) Rollers made from durable and hardened steel Lower rollers with direct motor drive The possibility of horizontal and vertical work TECHNICAL PARAMETERS Shaft diameter: ø 50 mm Diameter of rolls: ø 155 mm Working speed: 4 - 5 rpm Motor power: 1.5 kw Weight: 400 kg Length: 1000 mm Width: 750 mm Height: 1400 mm

Includes:

Side Guide Rollers

Footpedal Control CAPACITY
