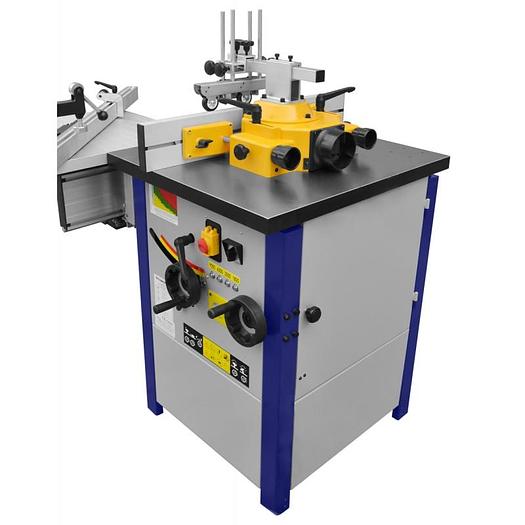

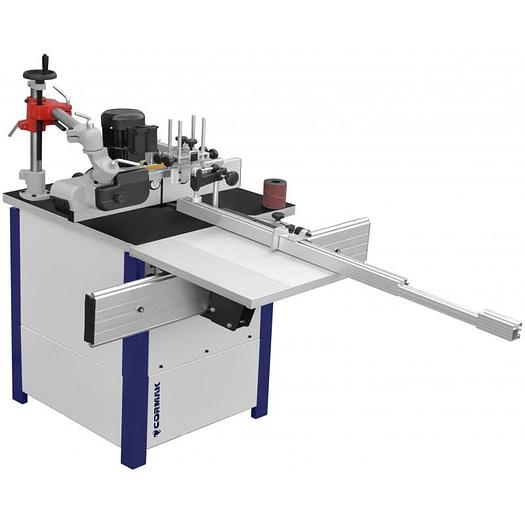

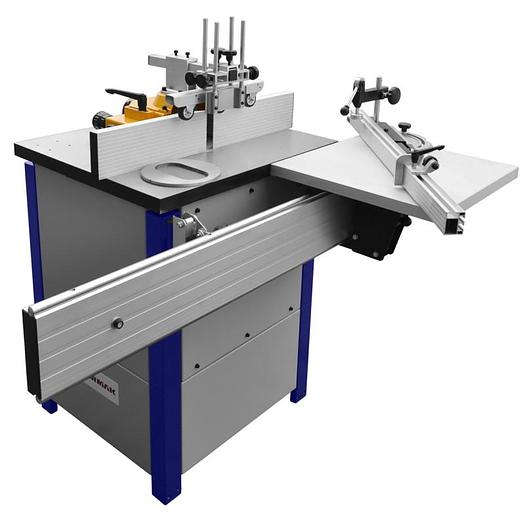

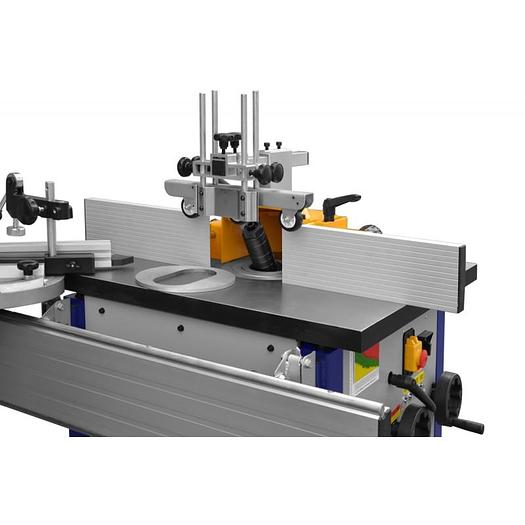

Cormak 5110T Milling Machine + Table for Tenoning
Description
Cormak 5110T Milling(Spindle Moulding) Machine + Table for Tenoning
Machine Type: Spindle Moulder & Tenoning Machine
Machine Description
Perfect machine for both professionals and novices. Tilting cutter arbor expands the capabilities of basic tools. Thanks to its sturdy construction it is used in small workshops and in large carpentry facilities.
Large milling cast iron table, ground and polished.
- Moulder base made of welded steel metal sheets
- Precise spindle height adjustment through a big handwheel
- Precise milling limiter adjustment
- Stability of milling unit in bearings with column guide

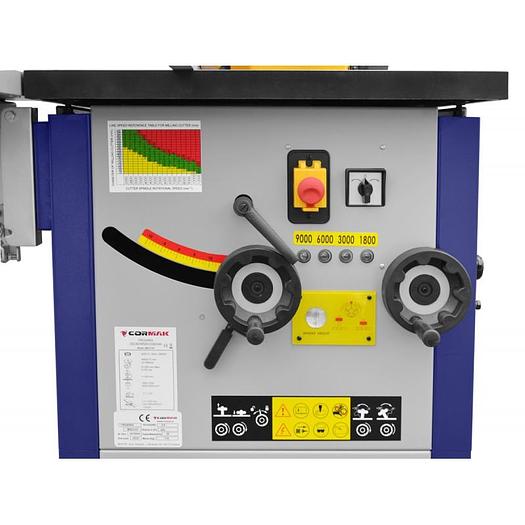

- Easy switching between 4 speeds: 1800/3000/6000/9000 rpm
- V-belt drive
- Easy exchange of milling cutter
Standard Equipment
- 30 mm spindle

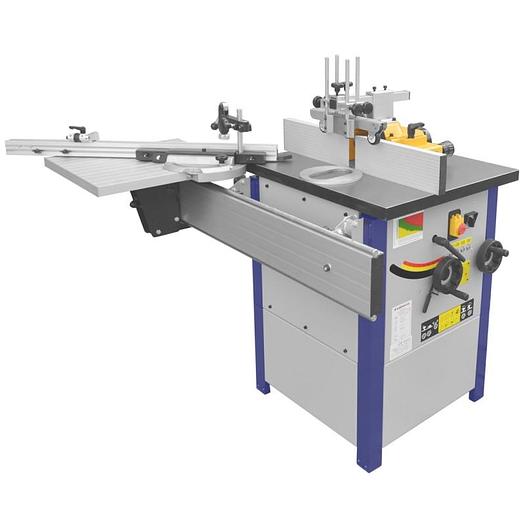

- Movable table expansion
- Side and upper workpiece clamping
- Precise setting of milling limiter

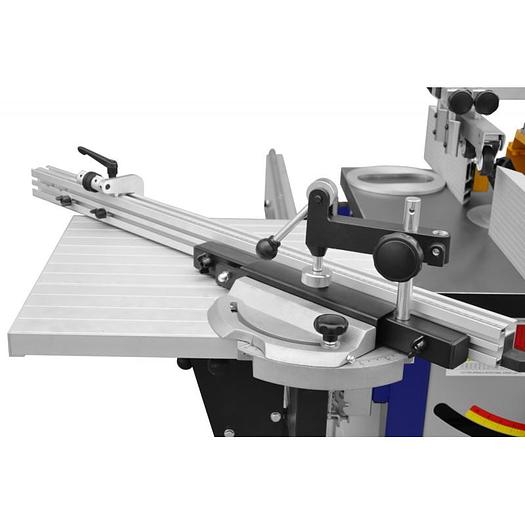

- Angular limiter
- User manual
- EC declaration of conformity
Technical Specifications
Table size: 640×710 mm
Spindle stroke: 100 mm
Spindle length: 100 mm
Maximum machine diameter under table: 80 mm
Max. machine diameter above table: 200 mm

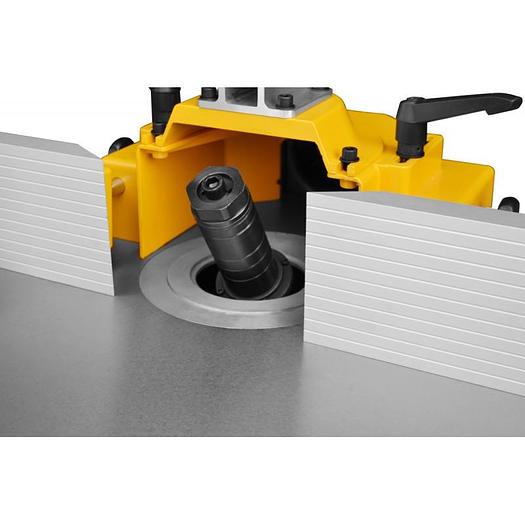

Spindle tilt: from 10° to 30°
Hole diameter in table: 185 mm
Spindle diameter: 30 mm
Spindle speeds: 1800, 3000, 6000, 9000 rpm
Motor power: S1 2.8 kW, S6 4 kW
Power supply: 400V
Weight: 170 kg
Specifications
| Manufacturer | Cormak |
| Model | 5110T Milling Machine + Table for Tenoning |
| Condition | New |
| Table size | 640×710 mm |
| Spindle stroke | 100 mm |
| Spindle length | 100 mm |
| Spindle tilt | from 10° to 30° |
| Hole diameter in table | 185 mm |
| Spindle diameter | 30 mm |
| Power supply | 400V |
| Weight | 170 kg |
