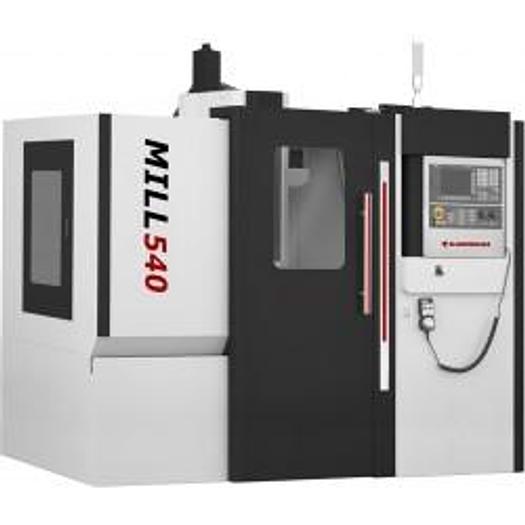

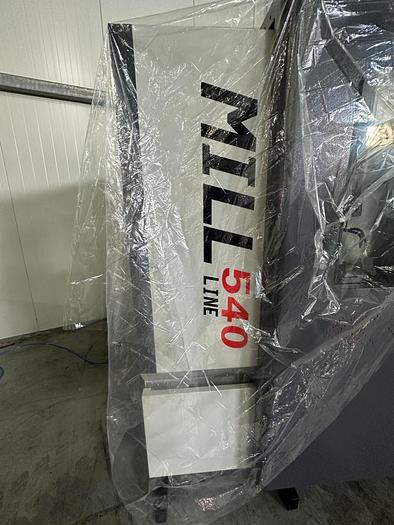

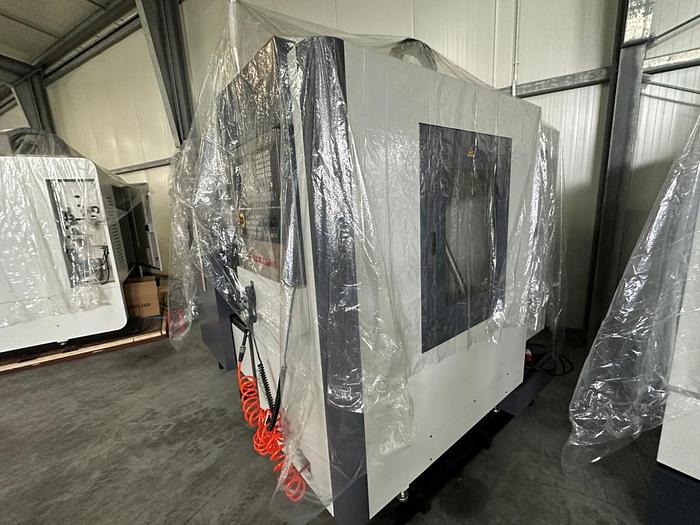

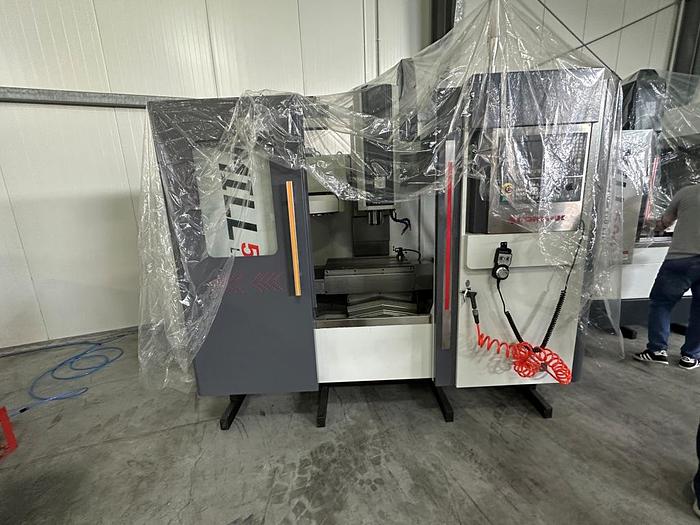

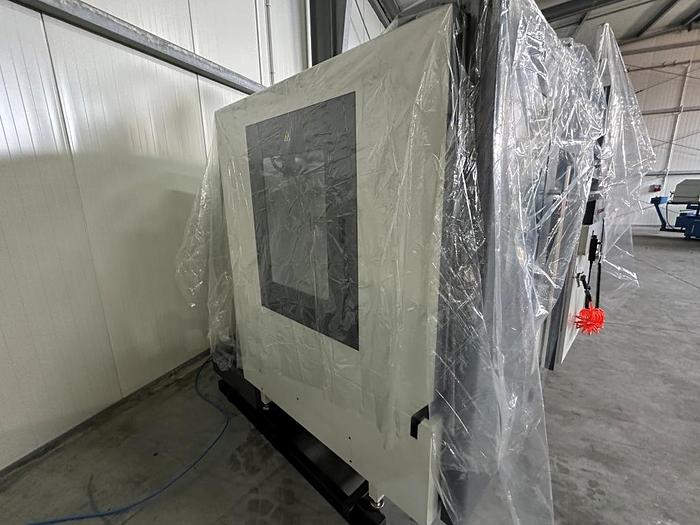

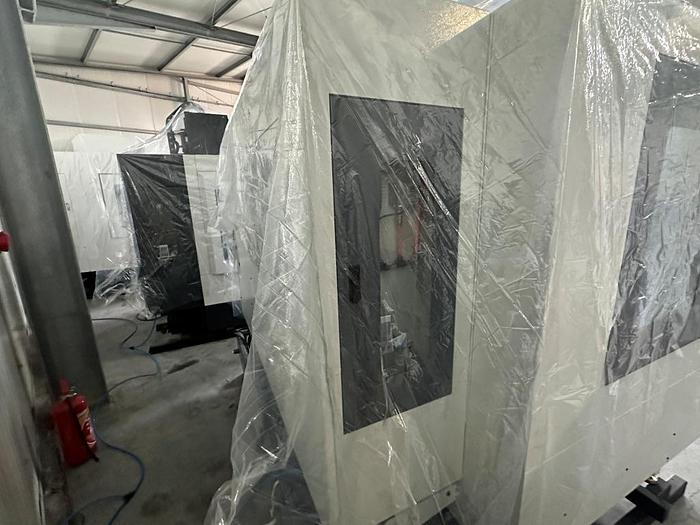

Cormak Mill 540 Vertical Machining Centre

Cormak Mill 540 Vertical Machining Centre

Machine Type: 3 Axis CNC Vertical Machining Centre

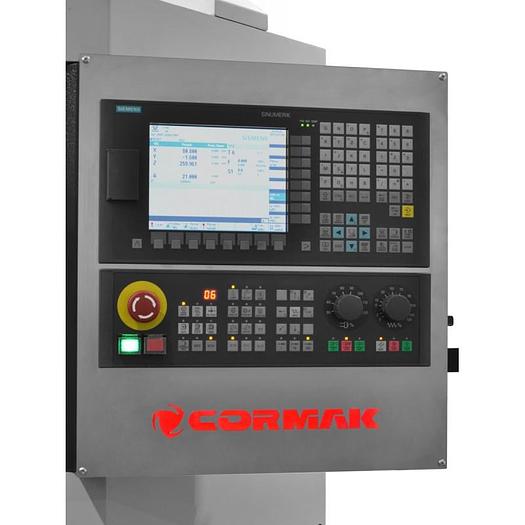

Control: Siemens 808D Control

Machine Description

Cormak CNC centers have been designed based on proven components that guarantee reliability for a long time of use. The massive machine body ensures efficient and precise machining. Hermetic chamber ensures safety and cleanliness at the workplace. The table with a hardened surface can accept workpieces without loading the mechanical elements of the structure. Each machine in this series is equipped with an efficient cooling system to ensure optimal cutting conditions.

• Top quality linear guides for all axes
• Heavy Duty machine body
• Good accessibility of the work table
• Hermetic working chamber ensuring work safety

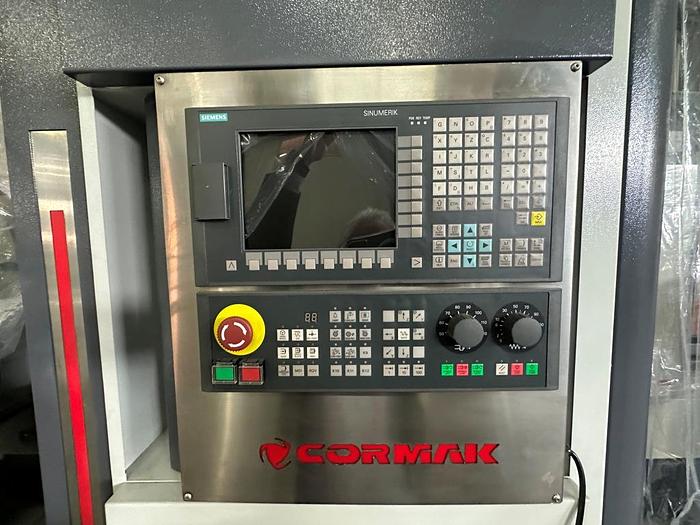

• CNC control (SIEMENS SINUMERIK 808D)

Technical Specifications

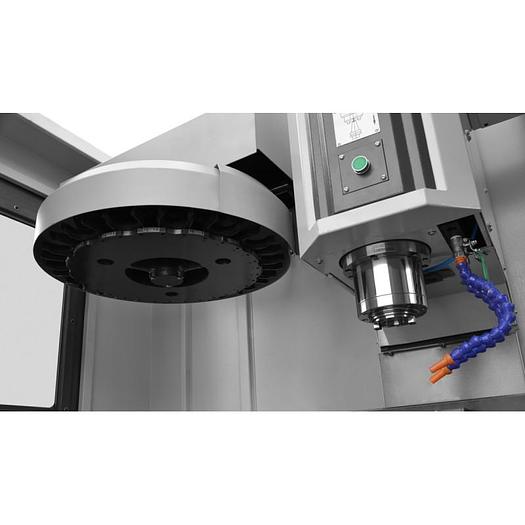

Spindle taper: BT40

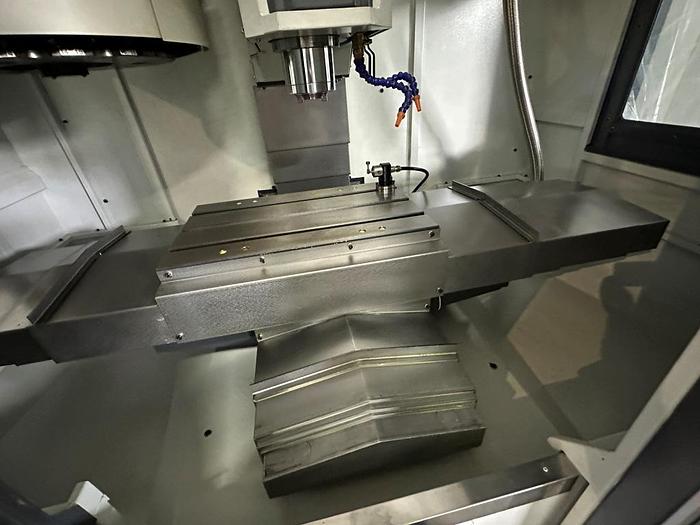

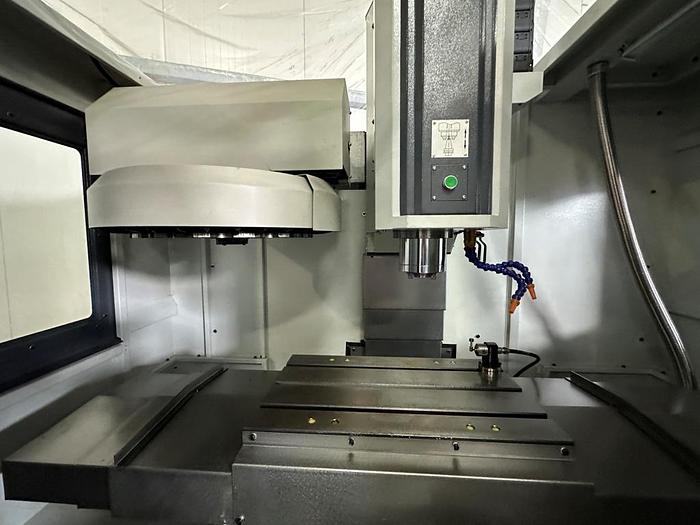

Table dimensions: 650 x 400 mm

Load capacity: 300 kg

The distance between the spindle and the table surface: 100-550 mm

The distance between the spindle and the column: 450 mm

X Axis Travel: 550mm

Y Axis Travel: 400 mm

Z Axis Travel: 450 mm

Spindle speed: 8000 rpm

Number / width / spacing of T-slots: 3 / 18 mm / 115 mm

Rapid feed X,Y,Z: 12/12/10 m/min

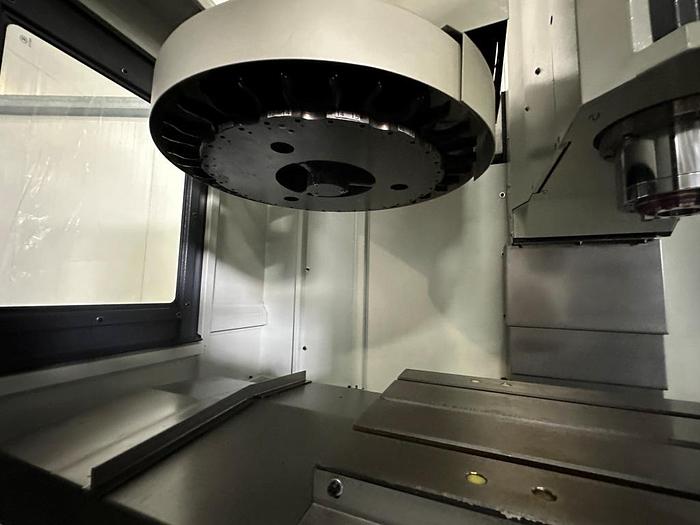

Number of tools in the magazine: 16

Max Tool Diameter: 100mm

Max Tool Length: 300mm

Max Tool Weight: 7kg

Spindle motor power: 5,5 kW

Power supply, total power: 400V

Dimensions (L x W x H): 2300 x 2000 x 2750 mm

Weight: 2200 kg
